Tiankang lithium titanate 15ah

Product Overview

Description

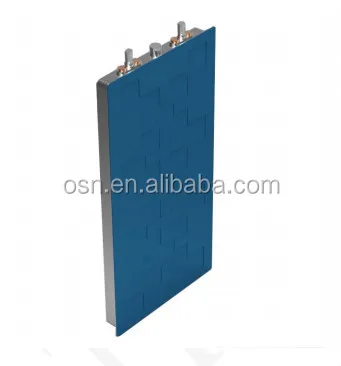

                                                    Tiankang lithium titanate 15ah battery





   Lithium Titanate Battery  2.4V 15AH fast charge battery

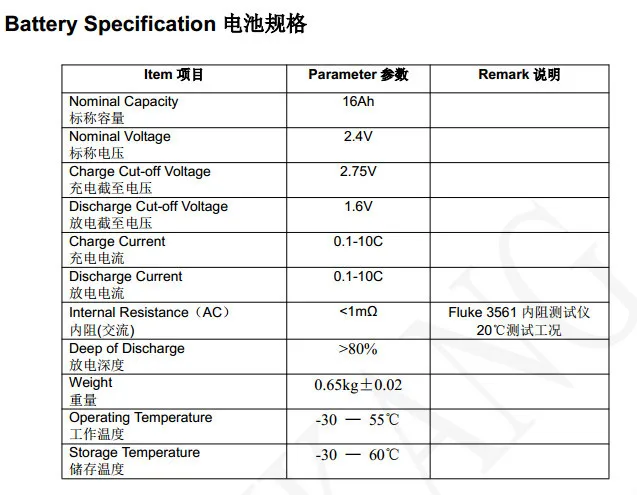

1. Basic Specifications
Model number: OSN-TK2.4V/16Ah
Dimensions: (W)110mm x (T)12.9mm x (H)228mm
Weight: 0.65kg±0.02
Nominal Voltage: 2.4V
Nominal Capacity 16 Ah

2. Working conditions and instructions of handling

2.1 Charge/Discharge Specifications

2.1.1 Maximum Charging Current (Current between +/- current terminals):
80A (Continuous) (Cell surface temp. < 55 deg. C)
160A (instantaneous within 10 sec.) )(Cell surface temp. < 55 deg. C)



2.1.2 Maximum Discharging Current
(Current between +/- current terminals):
80A (Continuous) (Cell surface temp. < 55 deg. C)
160A (instantaneous within 10 sec.) (Cell surface temp. < 55 deg. C)



Usable Voltage Range (Voltage between +/- voltage terminal

1.5V  ≤ CCV   ≤2.7V
Closed Circuit Voltage

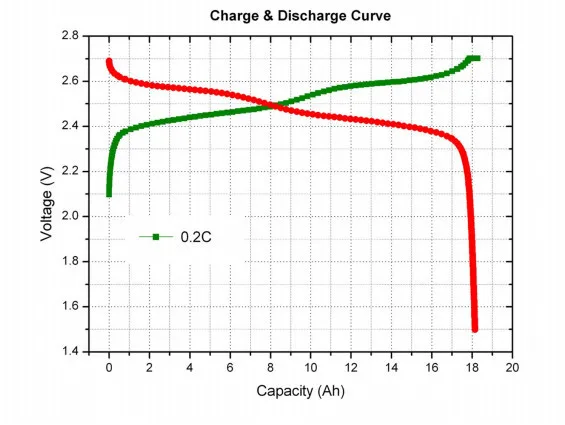

2.2 Recommended Charge/Discharge Conditions



2.2.1 Charging: Charging with constant current and constant voltage
Starting temperature of battery surface: 25 deg. C
Charging voltage: 2.7V
Starting current: 5.3A
Minimum charge-ending current: 1A
Stop charging when electric current meets the minimum charge-ending current.

2.2.2 Discharging: Discharging with constant current
Starting temperature of battery surface: 25 deg. C
Discharging current: 5.36A
Discharge-ending voltage: 1.5V
Stop discharging when voltage meets discharge-ending voltage
