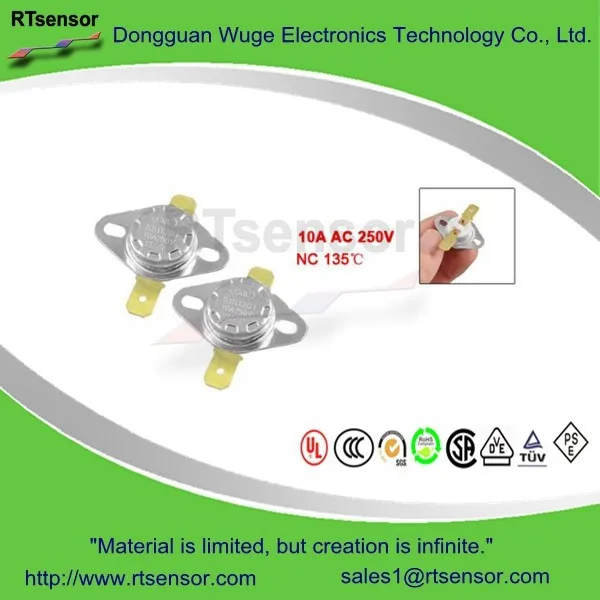

10A 250V 135 Celsius Normal Closed Ceramic Thermostat KSD301 KSD302 For Microwave Oven

 KSD301 Description

KSD301 , thermal protector is a kind heating protector with an open structure. It is ideal protectors for pet drier, industrial heating gun, and heaters, etc, for its prompt snap action and accurate cutout temperature.

At the heart of the device is a bimetal snap-action disc. When the temperature of this disc reaches its pre-calibrated temperature, it snaps open, resulting in an open circuit. This temperature is reached during a fault condition caused by an increase in ambient temperature. After the device breaks the circuit, the system cools and automatically resets allowing power to be restored to the circuit.

Contact capacity:

20A /24VDC 20A /125VAC 12A /250VAC

Temperature specification:

Open temperature: 50~150±5℃; one gear every 5℃.

ON-OFF differential >10℃

Cycles: 6000 cycles @ rated current and voltage.

The principle of this button like thermal protector is that ,the bimetal which is key component of this device

sensed the temperature of the corresponding machine, when the temperature it sensed increased to the

rated action temperature, the bi-metal will snap action in very short mment. When bimetal snap action ,it will

push the active contact point to take action ,in this way, the circuit is on or off .

KSD301 Features

1.  Longevity
2.  High precision
3.  Anti-EMC testing
4.  No flashover
5.  Small size
6.  Stable performance
7.  Small differention temperature
8.  Different types of bracket
9.  Different materials of body case
10. Different types of terminal

Applications:

• Automatic drop coffee machine
• Water heater
• Toaster furnace
• Dish washer
• Boiler
• Cooker
• Drier
• Electric heating appliance
• Washing machines
• Office supplies

Specification



Technical  Data



Electrical Rating	Rated Voltage : AC 250V / 125V , DC 24V	Circuit Resistance	≤50mΩ initial value
Differential	-30℃ - 300 ℃ or customized according to customers	Insulation Resistance	≥100MΩ ( DC 500V normal state )
Temp. Tolerance	±3 ±5 ±10℃ or requirement of customers	Dielectric Strength	AC 50Hz 1800V No breakdown blingling ( normal state )
		Life cycle	≥ 100,000





Electrical Rating :





Model Type	Cylces	Electrical	Certification
KSD 301	100,000	250VAC / 10A 125VAC / 16A	CQC/ CB
	100,000 30,000	125VAC / 10A 24VDC / 10A 125VAC / 16A	UL / CUL
	100,000	250VAC / 10A	TUV
	30,000	250AC / 16A	VDE





Standard Tolerance for Automatic Reset



Temperature Range		Differential		Open Toleracne		Close Tolerance
℃	℉	℃	℉	℃	℉	℃	℉
-15 – 40	8 – 104	10	20	±4.0	±7.5	±5.0	±9.0
41 – 90	105 – 194	10 – 15	20 -25	±4.0	±7.5	±5.0	±9.0
91 – 195	195 – 383	15 – 20	25 –30	±5.0	±9.0	±7.0	±13.0
196 - 250	384 - 482	20 - 30	30 - 40	±8.0	±15.0	±10.0	±18.0





Standard Tolerance for Manual Reset :





Temperature Range		Open Tolerance
℃	℉	℃	℉
0 – 60	32 - 140	±4.0	±7.5
61 – 160	141 – 320	±5.0	±9.0
161 - 210	321 - 410	±7.0	±13.0







• Installation Introduction : When we apply this device to target elctric equipment, make sure the holder
• cling closely to the equipment heating part. To make sure superior temperature sensitivity , thermally
• conductivesilicone or other similar heat conducting medium should be coated on the thermal conducting surface .







• When installing, the cap should not be crushed ,loose ,out of shape.



• Liquid should be avoid from permeate into the inside of thermal protector .



• When the product hereof is applied in circuit where current is not over 5A , the copper core section of the electric cable is 0.5 - 1mm2 ; when applied in circuit where current is not over 10A , the copper core of the elctric cable is 0.75-1.5mm2 .



• Product should be stored in stored in a warehouse where relative humidity  ≤90%  , ambient temperature <40℃ ,ventilate , clean , dry ,no corossive gas .





Characteristic :





Long lifespan



High precision



Anti-EMC testing



No flash over



Small in size



Stable performence







Precise thermostat products , professionalized management , strong R&D support and creative marketing





thoughts contribute to unique KAIN thermostat brand globally . Our persistence on perfection pursuit to





product quality and full-progress track service to after-sale let us win high –end platform in developing



together with various well-known enterprises .





Manufacturing technology







1. Small order quantity accepttable

2. Customise available

3. High quality & competitive price

4. Timely delivery : 7-10 workdays

5. Payment: T/T & Paypal etc.

6. Trade terms: FOB,EXW,CIF,CFR,CPT

Dongguan Wuge Electronics Technology Co., Ltd was founded by a group of enthusiastic technicians and sales force who have abundant experience in thermistor & temperature sensor & 17AME ST12 ST-22 thermal protector and highly motivated to serve customers.

Our goal in pursuing best and perfect that make us achieve continuous progress. And we are striving for professional hermistor
and temperature sensor manufacturer, customer-oriented and service- minded made us became customers’ preferred anufacturer.As one high-tech enterprises, we own independent R&D and manufacturing ,specializing in research, development,production and sell of thermistor and temperature sensor. Our advanced technology, innovative management idea and mechanism effectively ensured product performances steady and reliable. Compared with similar products at
home and abroad, our conventional performance indexes have reached advanced level.

At present , our main products including : NTC temperature sensor, glass encapsulation type NTC thermistor series, SMD NTC
thermistor series, high precision AT type thermistor (epoxy encapsulation). Widely used in household appliances (heat pump, air conditioners, refrigerators, electric heaters, electric kettles, washing machines, microwave oven, electric water heater, solar water heaters, water dispenser, rice cooker, induction cooker, bread machine, dishwasher, weather forecasting, etc.), industrial equipments (wet machine, boiler, automatic control equipment, instruments and meters, etc.), automotive, medical equipments, computer, energy-saving lamps, power panels, energy-saving power supply, communications equipment, high/medium/low temperature humidity field.
