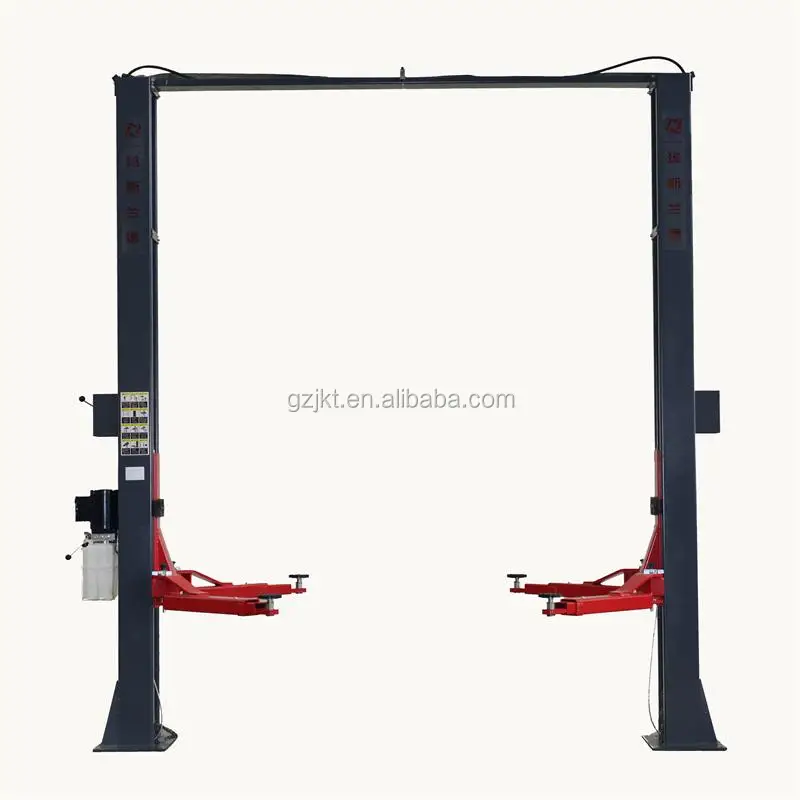

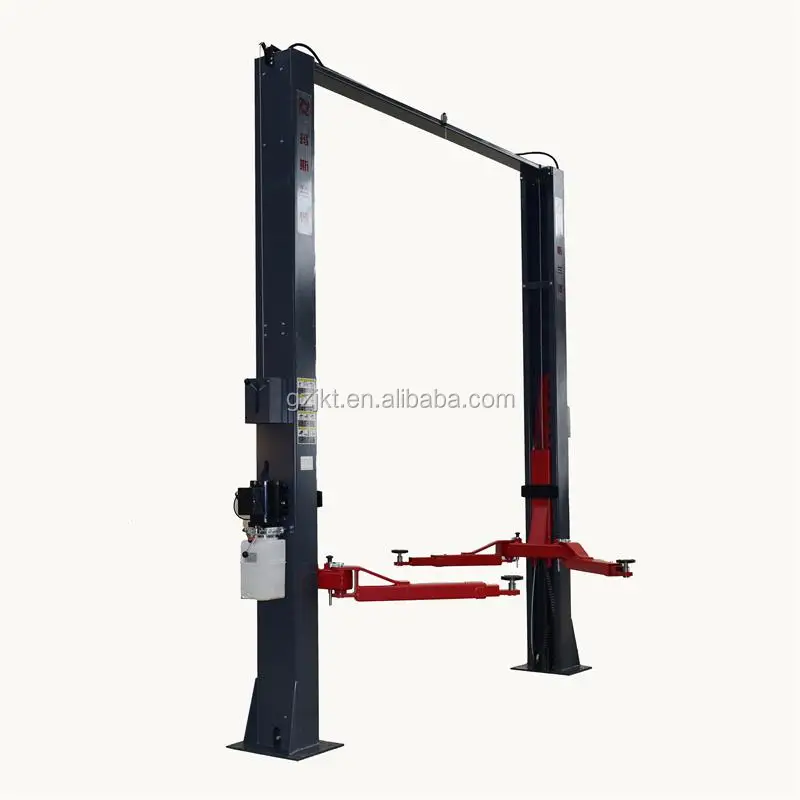

CE hydraulic 2 post ;idt car lifting machine 4T

Product Overview

Description

CE hydraulic 2 post ;idt car lifting machine 4T

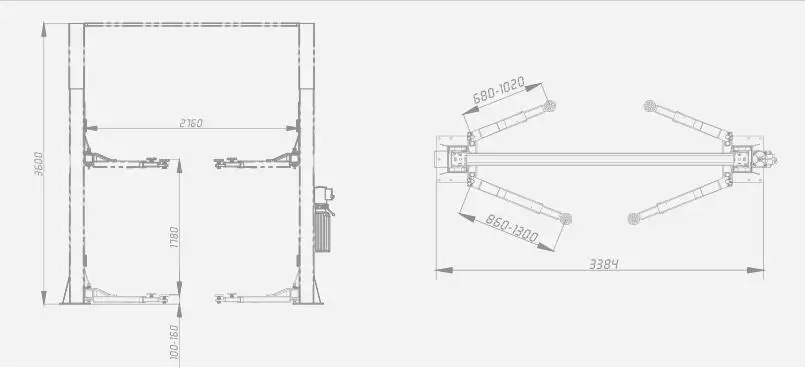

Technical Parameters

Lifting Capacity:	4000g
Lifting Height(mm):	1780mm
Overall Width(mm):	2760mm
Minimum height:	100-160mm
Forearm length:	680-1020mm
Arm length:	860-130mm
Overall height:	3600MM
Overall width :	3384MM
Arm length	860-1300MM

Drive mode
Hydraulic double cylinder / chain traction / rope balance

No floor-through gantry

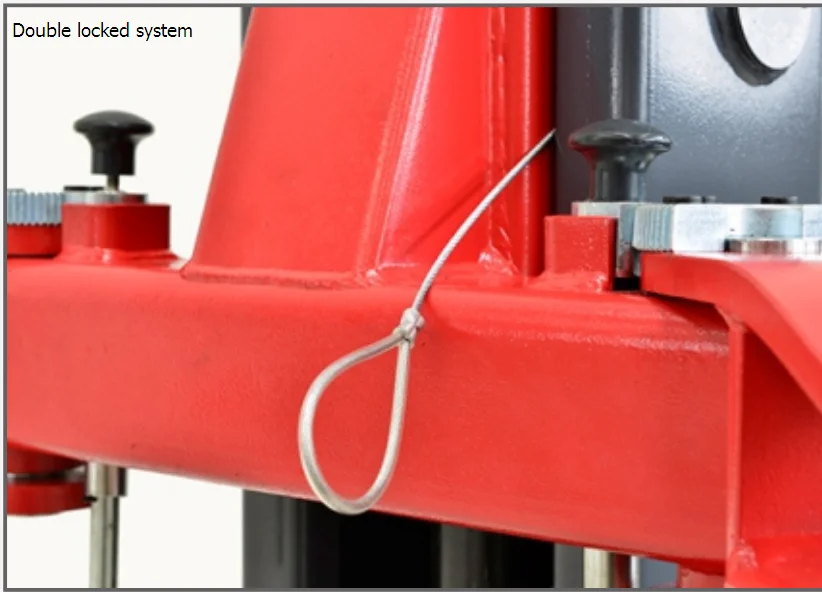

Safety lock release mode

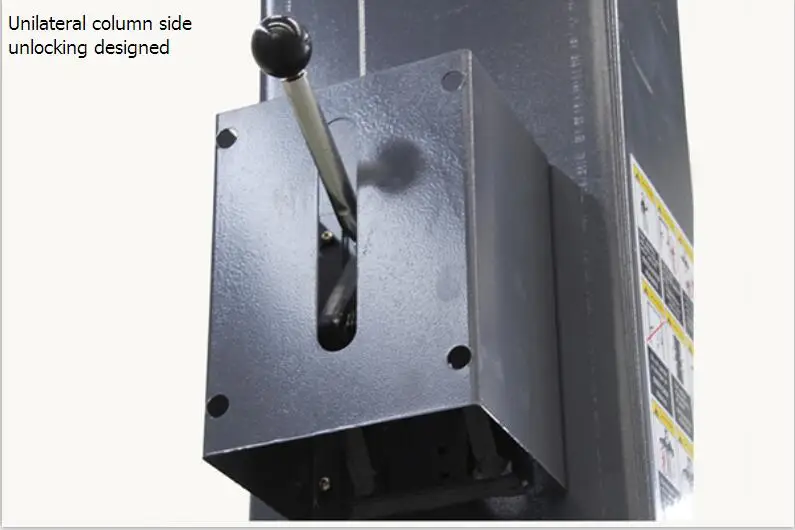

Adopt unilateral column side unlocking mechanism / manual unlocking drop-down, compared to the advantages of bilateral unlocking mechanism:



* Unlock unilateral increase efficiency
* In the lift abnormality occurs, the rapid manual locking of people and vehicles can be more of a heavy protection



Mechanical structure
- Column design aspect ratio, anti-fatigue bending

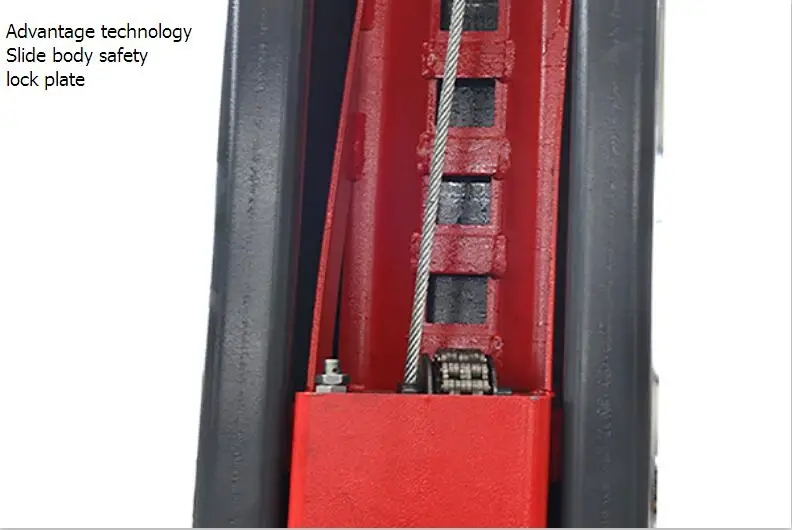

- High intensity landslide lengthen, strengthen security lock plate attached Welding support
- Sliding body plus welded support ring, anti dowel hole dropdown deformation

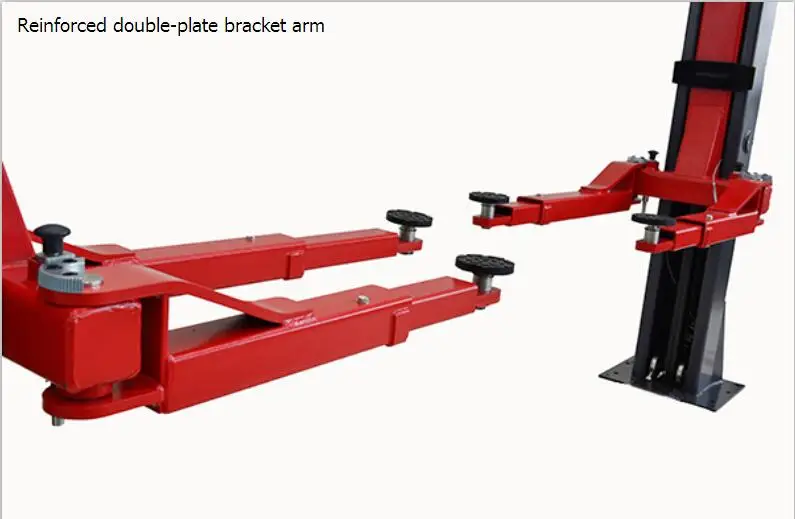

- Enhanced drawing board double corbel, widely applicable model

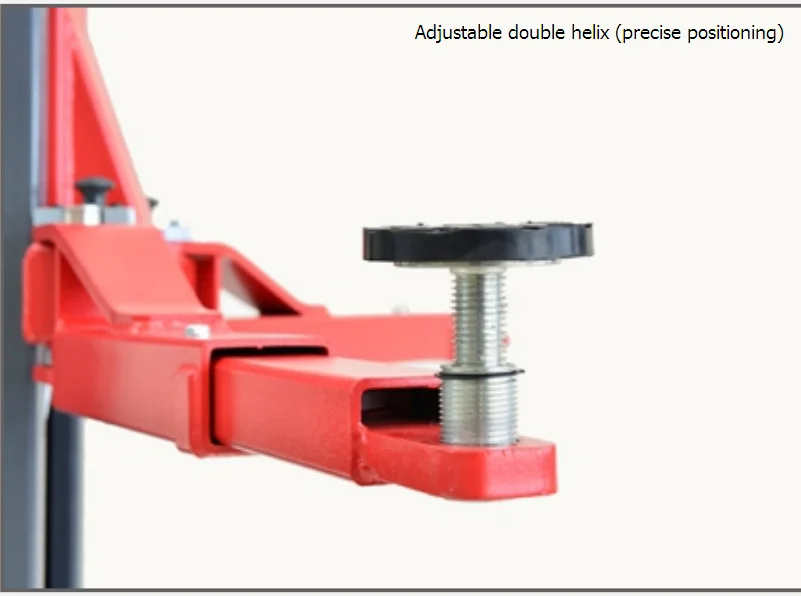

- Precise positioning double helical support pad

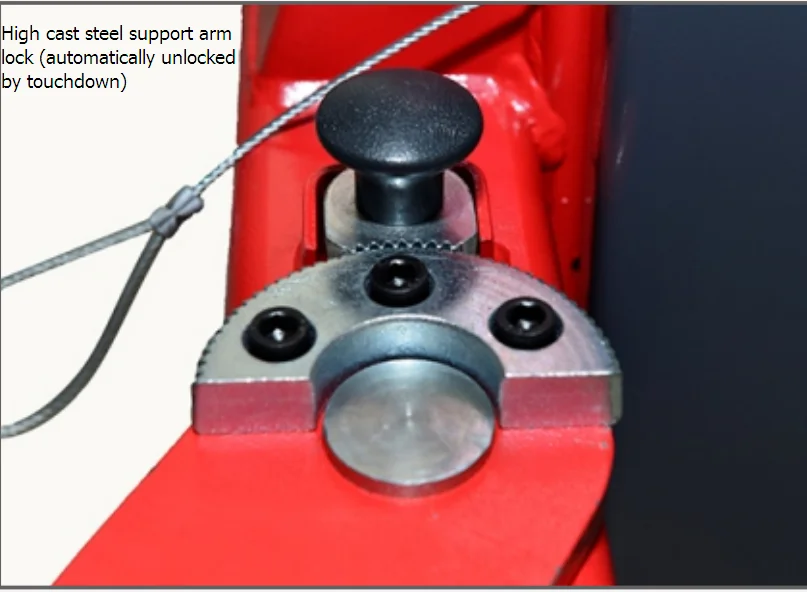

-7 Meshing of high-strength steel bracket arm lock automatically unlock touchdown
- Balance rope using double anti-fracture design, using high-strength alloy steel core wire



harness stranded, and pre-stretching process
- - Set up anti-hoisting limit switch, protective equipment roof beams hit the roof
Hydraulic / electrical systems
- Cylinder use of new technology scraping roller cylinder / seal combined, double support guide, with stable under long-stroke characteristics to withstand high loads
- Set up anti-bottom cylinder burst pipe safety valve, effectively prevent damage caused by burst

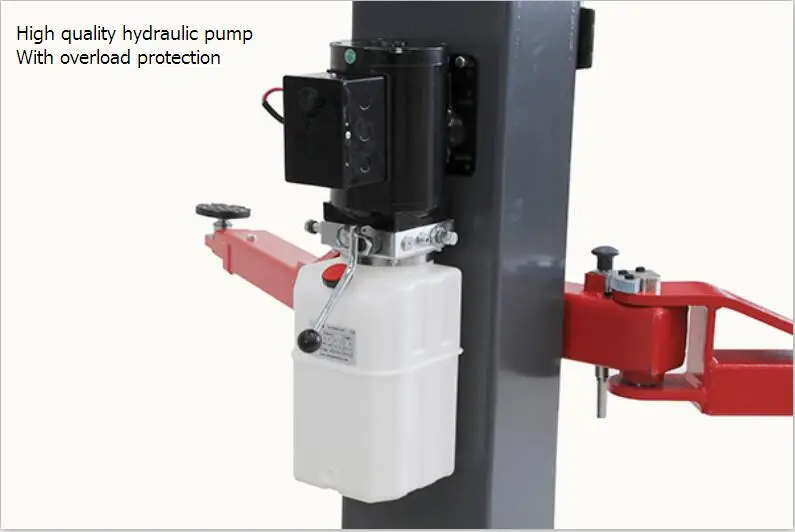

- High-quality pump stations, to provide a stable hydraulic supply (with overload protection), with emergency power decline knob
- Setting a maximum lift position limit switch protection, to protect the fuel tank from impact
