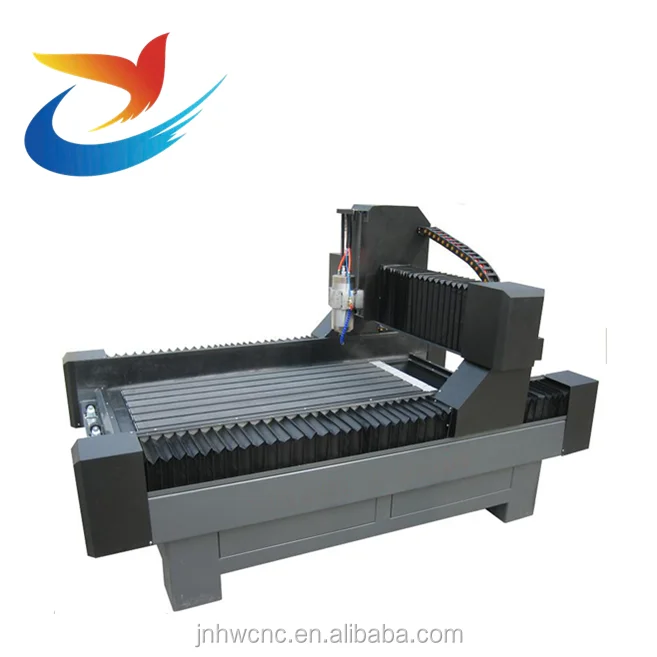

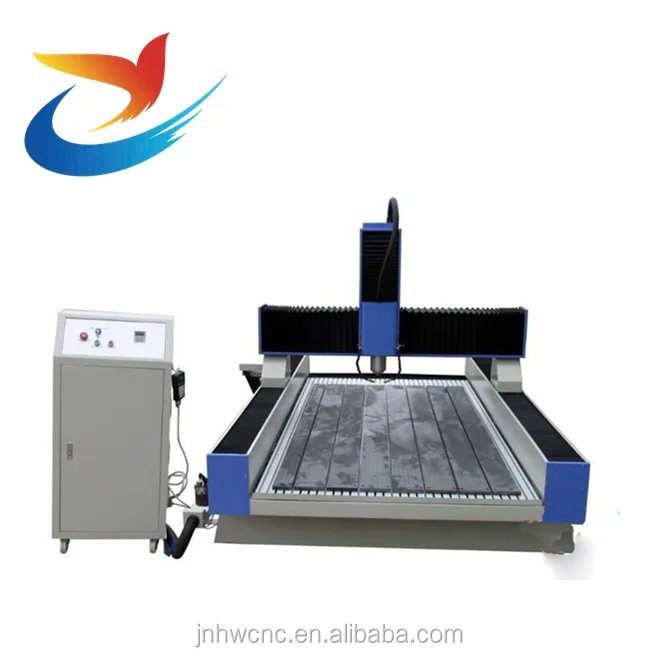

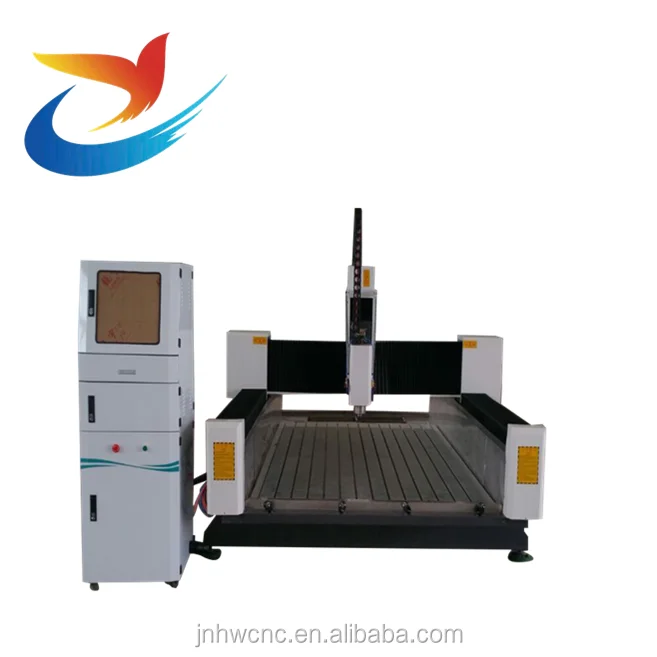

high precision marble cutting machine with high efficient granite cutting machine 1318
- Category: >>>
- Supplier: Jinan Huawei CNC Machinery Co. Ltd
Share on (60269083497):
Product Overview
Description
high precision marble cutting machines with high efficient granite cobblestone cutting machine
Features
Features:

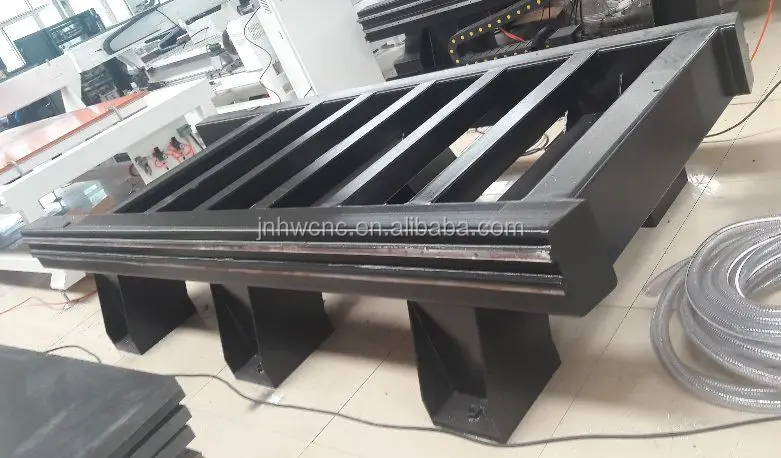

1.Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
2.Adopts Germany-made ball-screw on Z axis, having the character of high precision and long life time. XY axes adopt rack and pinion transmission, having character of fast working, high efficiency and low cost.
3. Three axes adopt imported high precision HIWIN guide rail;
4. Precise traveling of Y axis driven by double motor ensures stable performance of machine.
5.Water-cooling brushless spindle, low noise, vigorous cutting strength and long time mass processing.
6.Excellent compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
7.Stainless steel tank for processing stones and configured with auto water supplying device as well.
8.Overall dust-proof and water-proof design protects all moving.
Parameters:
Description | Parameter |
X,Y Working Area | 1200*2400mm |
Z Working Area | 200mm |
Table Size | 1340*2540mm |
Resolution | 0.01mm |
Lathe Structure | Seamless welded steel structure |
X,Y Structure | Rack and pinion transmission, Hiwin square guide rail |
Z Structure | Germany-made rolling ball screw,Hiwin square guide rail |
Max. Idling Speed | 35m/min |
Spindle | 3.0KW |
Spindle Rotate Speed | 0-24000r/min, variable speed |
Working Voltage | AC220V/50Hz |
Working Mode | Servo System |
Command | G code (HPGL,U00,mmg,plt) |
Operating System | DSP with USB interface |
Diameter of cutter | φ3.175-φ12.7mm |
Cooling Mode | water-cooled |
Dust-collect Function | Optional |
Work-holding | By vacuum or clamp |
Net Weight | 1200KG |
Software | Type 3, ArtCam, Wentai |
Application:
natural marble, granite, artificial stone, tombstone, milestones, ceramic tile, glass and other three-dimensional relief, cut, chamfer, boring, two-dimensional sculpture .
Samples:
Packaging & Shipping
Transport | 1.From Jinan, Shandong to Qingdao Port. |
2. From Qingdao Port to your destination port by sea. | |
3. If you want other transport, please tell us, we're glad to do it for you, for your convenience. |
After-sales service | 1. Gantry, lathe bed, stand whole life warranty. |
2. 24 hours technical support by email, call, video. | |
3. Whole machine one year warranty ( spindle half year ). Within warranty, we provide new parts free. | |
4. Exceed warranty period 1 year: if the cnc machine parts have any problem, we can offer new machine parts with cost price and your side should pay all the shipping cost. | |
5. Engineers available to serve and train overseas, but your side should pay all the expense. Free training at our factory. | |
6. Warranty is counting from the date of B/L. |
Contact me
If you choose us, we can do that:
1. High quality of every machine parts. warranty one year. Our machine has the ability of 24 hours of continuous work.
2. Good service. If you have any questions, you can contact me at any time. we are on service for 24 hours.
3.Competitive price for distributor. we are the manufacturer so our price is most competitive in the market.
4.Timely delivery. If our clients are badly in need of the machine, we can overtime work.
