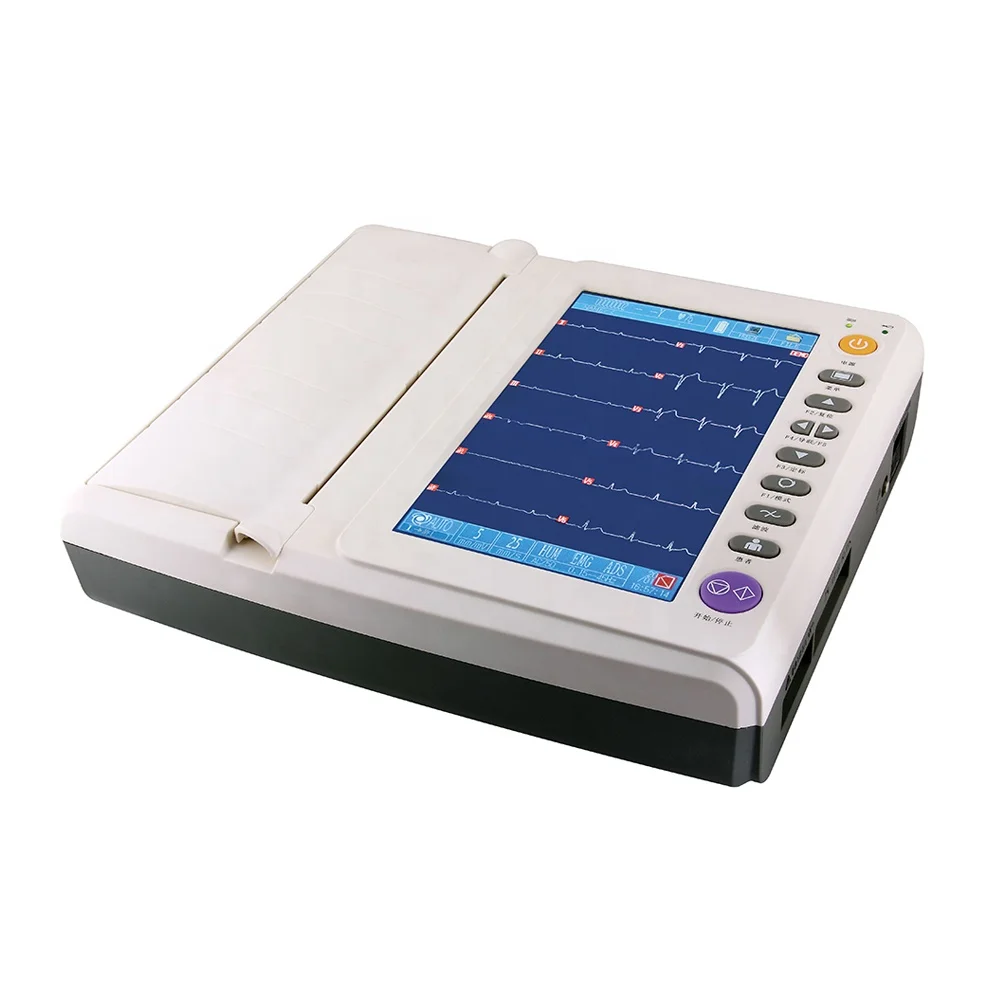

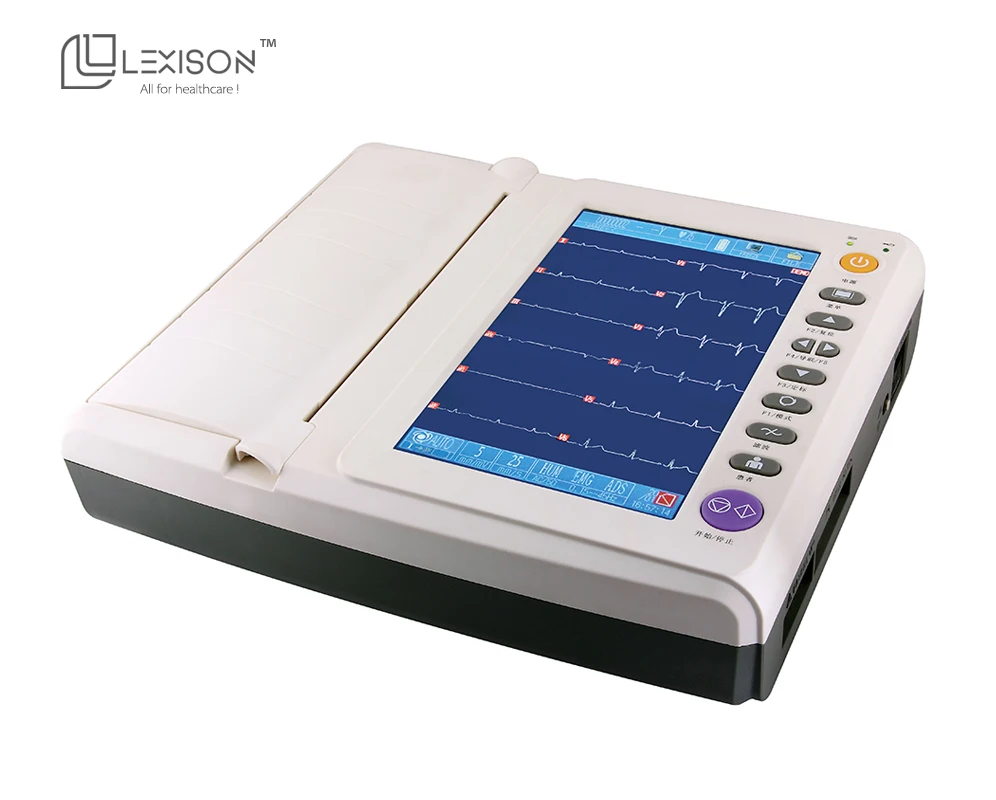

ECG-R3312G High Quality Cheap Price 12 Leads 12 Channel Portable Electrocardiograph ECG Machine



Features:

* Portable and delicate design, big Touch Screen, very easy to operate
* Accurate pulse pace identification
* High accuracy digital filter, auto baseline adjustment
* Working modes: Manual, Automatic, Arrythmia Analysis, Storage
* 215mm, 12 channel format recording, excellent automatic interpretation
* 800×480 graphic 10 inch colorful Touch Screen LCD to display ECG information simultaneously
* 250 patient cases storage (SD card storage is optional)
* Detailed patient information record
* Adapt to 110 ~ 230V, 50/60Hz power supply
* Built-in rechargeable Li-ion battery support working about 4hours continuously
* USB/RS232 commnunication port support USB storage, Laser printer printing and PC ECG Software(optional)



Technical Specification
Lead
Standard 12 Leads
Lead acquisition
12bit/1000Hz(synchronously 12 leads)
Work mode
Manual/Auto/R-R Analysis
Filter
* AC Filter: 50Hz/60Hz
* EMG Filter: 25Hz/45Hz
* Anti-Drift Filter: 0.15Hz(Adaptive)
CMMR
≥ 120dB(with AC Filter)
Input circuit
Floating; Protection circuit againt Defibrillator effect
Input impedance
≥ 50MΩ
Input circuit current
≤ 0.05μA
Patient current leakage
< 10μA
Calibrating voltate
1mV±2%
Voltate tolerance
≥ ±500mV
Time constant
≥ 3.2s
Frequency response
0.05 ~ 160Hz(-3db)
Noise level
< 15μVp-p
Inter-channel interference
≤ 0.5mm
Sensitivity
Auto, 2.5, 5, 10, 20, 40mm/mV(±3%)
Recording mode
* 3ch+++, 6ch, 6ch+, 12ch
* Default Man.Mode is 3ch+++ format
* Default Auto. Mode is 12ch+ format
Paper speed
6.25, 12.5, 25, 50mm/s(±3%)
Paper
215mm x 20m roll / 210 x 140mm Z-fold paper
Working environment
Temperature 5 ~ 40°C; Humidity 25 ~ 95%
Power supply
* AC 110 ~ 230V(±10%), 50/60Hz(±1Hz), 40VA
* DC Built-in rechargeable battery, 12V(1500mAh)
Dimension
347mm x 293mm x 83mm
Weight
5.8Kg




Our Company


With years of export experience along with excellent quality, advanced services and competitive prices, Proway has won numerous customers' trust and support. In order to better control the quality and delivery time, we built our own factory Suzhou Lexison MediTech in 2012. Our main products are various Patient Monitors, Syringe Pumps, Infusion Pumps and various medical instruments for veterinary use.

Our value Message is "QUALITY IS OUR CULTURE"!
"WITH US, YOUR MONEY IN SAFE, YOUR BUSINESS IN SAFE"









Recommend Products




Packing & Delivery




Delivery

For the order which less than 20units, more of the customers choose the shipment by Express Courier or by Air Cargo.
Our normal Lead Time is within 7working days after payment.





Certifications




FAQ


1. What is your MOQ?

    ---- 1Unit/1pc

2. What is your Lead Time?

    ---- For the normal order, 7working days after payment.

3. What is your company's Payment Term?

    ---- TT(Wire Transfer), PayPal, Western Union, Credit Card and E-checking are available.

4. What is your Warranty Period?

    ---- 24months warranty period and lifetime technical support.

5. Do you accept Money Refund?

    ---- Yes, we accept Full Money Refund once the customer received the goods with quality problem.
