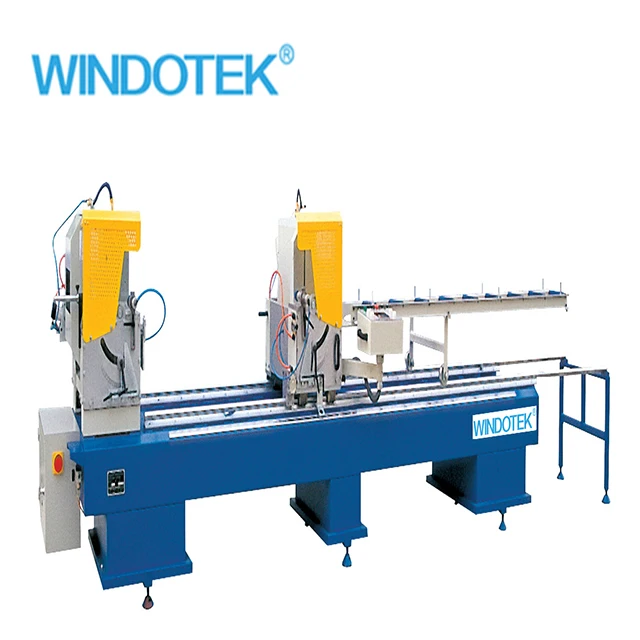

45/90 auto change Upvc Window Double Head Mitre Saw LJZ2A 450 x 3600
- Category: >>>
- Supplier: Jinan Windotek International Co. Ltd.
Share on (60269177792):
Product Overview
Description
Product Description
Function:
UPVC and Aluminum Window Fabricating Machine, Used for plastic and aluminum profile cutting.For inward 45°~90°plastic and aluminum profile cutting. double miter saw.
Features:
Equipped with cutting angle fine adjustment device.

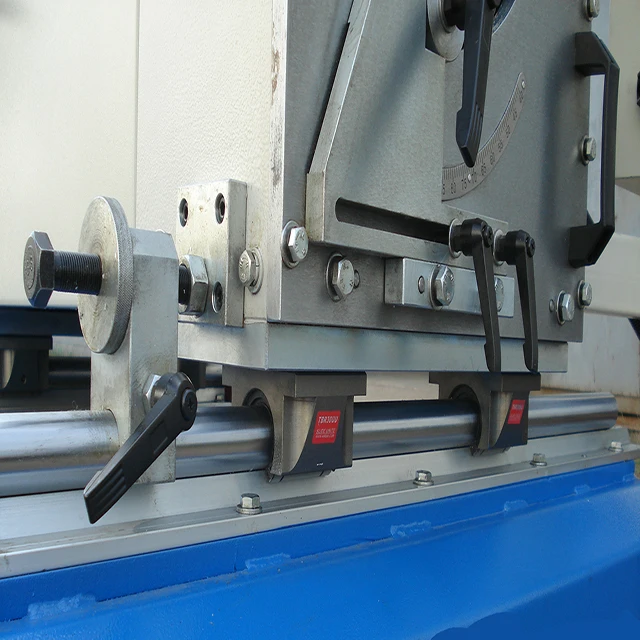

Straight line feeding type; the guide for machine body and feeding system adopt linear bearing system to ensure stable feeding and high cutting precision.
Optional: Machine head could adopt air-hydraulic damping cylinder to cut aluminum profile.

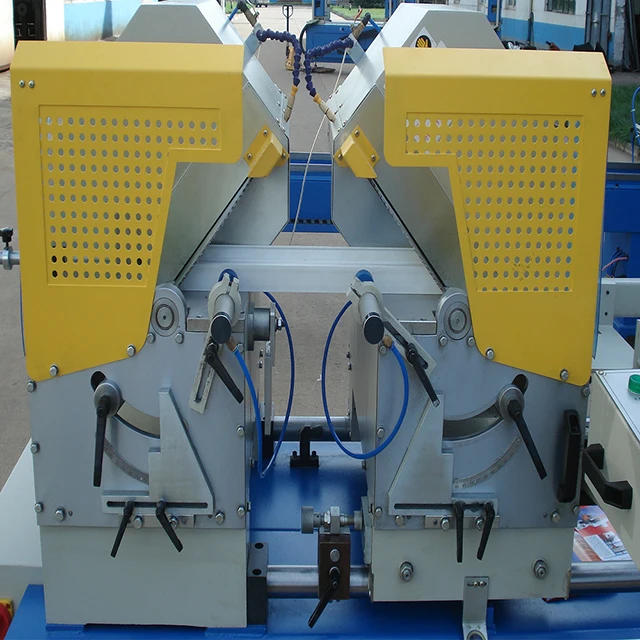

Same shaft angle-changing structure for good surface cutting performance.
Profile supporter is available on the movable head.
One time two pieces of profile cutting (height of profile less then 60mm).
With short profile cutting device on left machine head can realize super short profile cutting.
Manual type.
Parameter:
Air Pressure: | 0.5~0.8(MPa) |
Air Consumption: | 50(L/min) |
Input Voltage: | 380V/50Hz |
Input Power: | 4.5(Kw) |
Spindle Rotary Speed: | 2800(r/min) |
Cutting Height: | 120(mm) |
Cutting Width: | 120(mm) |
Cutting Length: | 290~3600(mm) |
Overall Dimension: | 6000×1300×1650(mm) |
Weight: | 1200(kg) |
| Main Accessory | |
| Solenoid | SXPC |
| Temperature Controller | Omron |
| PLC | Omron, Misibisi |
| Cylinder | JPC (Festo China) |
| Motor | Anhui Sanyang/Zhenyang |
| Saw Blade | Uniken |
| Mechanical Parts | High Precision |
| Air Filter Device | STNC |
| Electrical Button and Switcher | Schneider |
| AC Contactor and Circuit Breaker | Schneider |
| Approach Switcher | Swiss CONTRINEX or Japan Omron |
