YZ180 Construction vibrating hammer Hydraulic vibratory pile driver for pile
- Category: >>>
- Supplier: Shanghai Yongan Machinery Co. Ltd.
Share on (60269207993):
Product Overview
Description
Product Description
Technical Specification
Vibrator | |
Eccentric Moment(kgm):: | 55 |
Max frequency(rpm): | 1700 |
Centrifugal force(kN): | 1800 |
Max Centrifugal force(kN): | 2340 |
Max line pull(kN): | 800/1200 |
Max Amplitude(mm): | 32 |
Max oil flow (L/min): | 600 |
Size(mm): | 2800*800*3000 |
Weight(W/O clamp) (kg): | 7200 |
Power Pack 700V | |
Engine Type: | Caterpillar C15 |
Max Power (KW/HP) : | 444/595 |
Max frequency(rpm) : | 2100 |
Working Pressure(bar) : | 350 |
Max oil flow (L/min) : | 680 |
Weight (kg) : | 7800 |
Size L*W*H (mm) : | 4500*1740*2240 |
Clamp YZJ200 | |
Clamping force(kN) : | 2000 |
Operating pressure(bar) : | 320 |
Size(mm) : | 1145*1045*360 |
Weight(kg) : | 1300 |
Product components list
1.Main components
(Double clamp is also available, optional)
2.Accessories

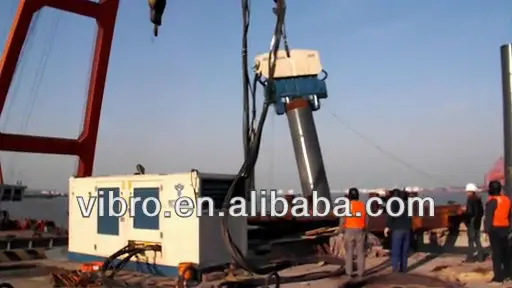

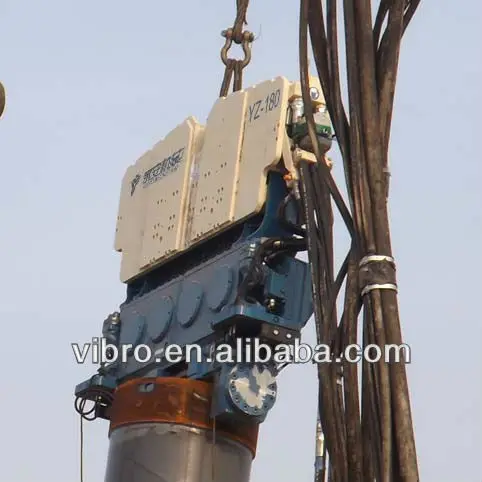

Working Site
Application range
Could be applied in driving various kinds of piles.
Quality control
Packaging & Shipping
Packaging Details:1.Vibrator and clamp in shrink film
2. Accessories in wooden cases
3. All been reinforced in the container
Delivery Details: 1. In a 20FCL container
2. delivery time is 45 days after receiving the deposit
Our Services
*One year guarantee for whole machine except the easy wear parts.
*24 hours technical support by e-mail.
*Engineer available to server oversea.
Projects

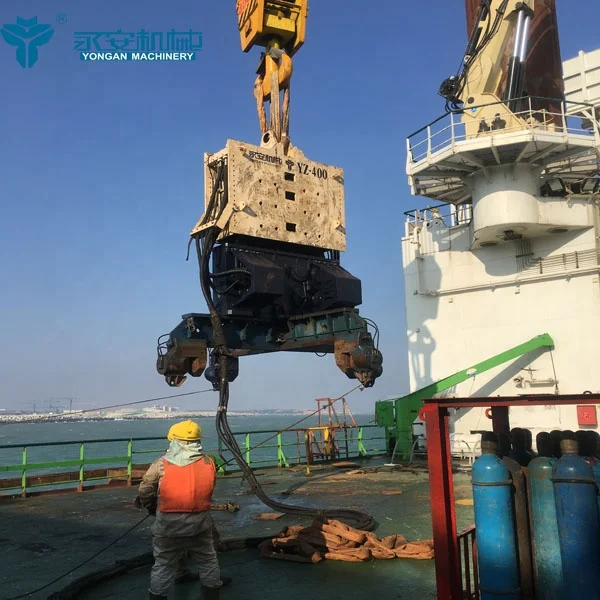

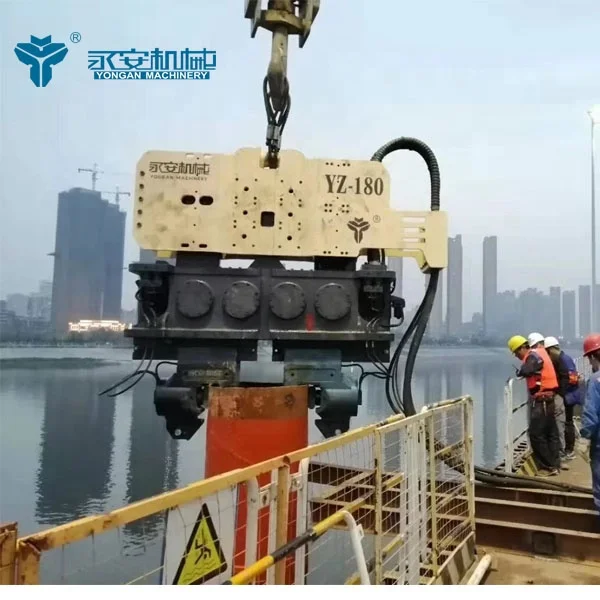

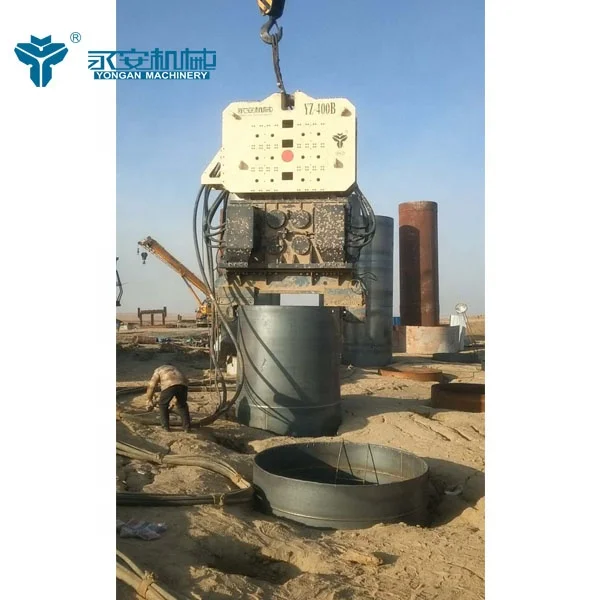

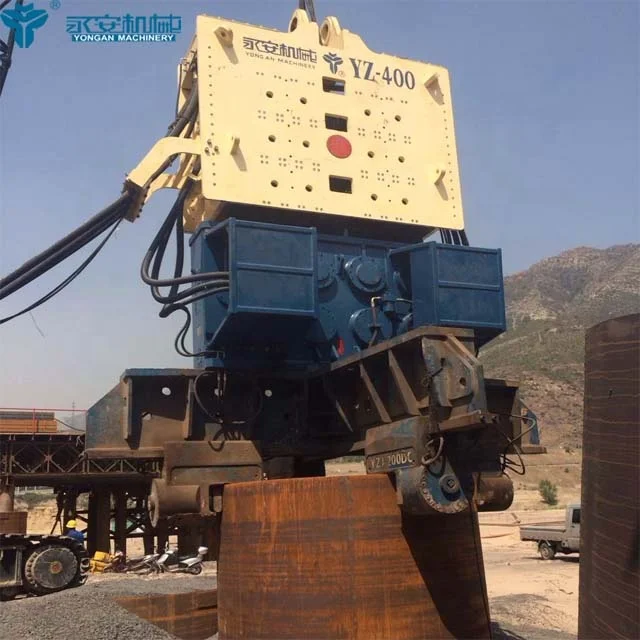

Projects photos:
