Waste Tyre Pyrolysis Manufacture Best Continuous Pyrolysis Equipment
- Category: >>>
- Supplier: Shangqiu Jinpeng Industrial Co. Ltd.
Share on (60269252758):
Product Overview
Description
Waste Tyre Pyrolysis Manufacture Best Continuous Pyrolysis Equipment
Product Description
1. Main parts and function:

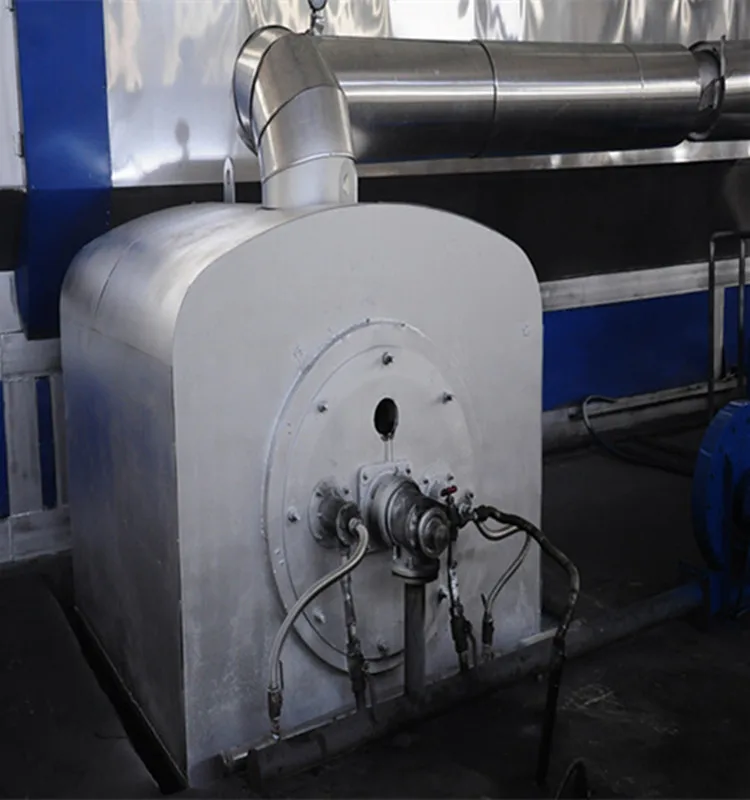

1.Heating system
---two heating rooms and indirect heating.

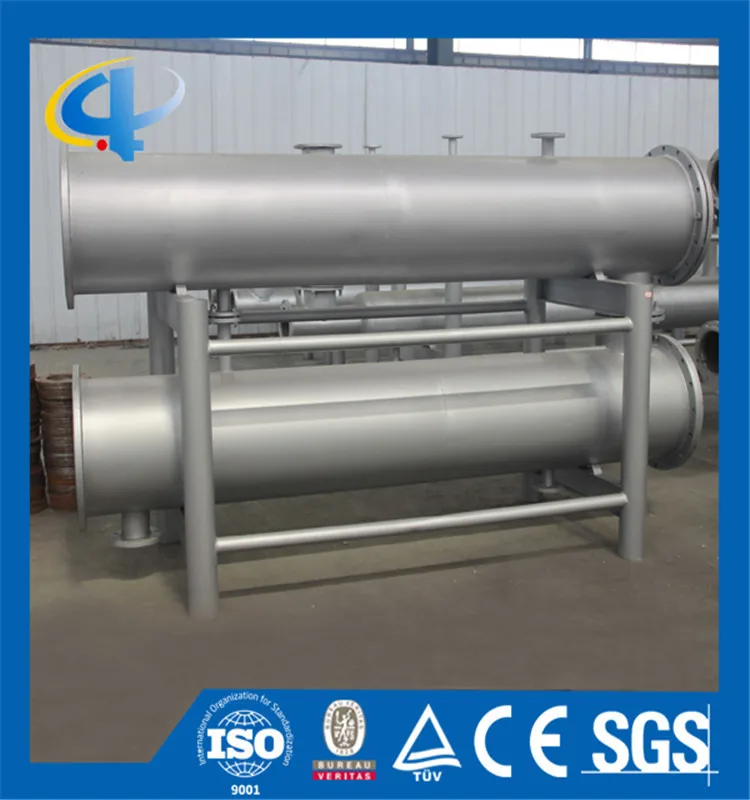

2.Cooling system

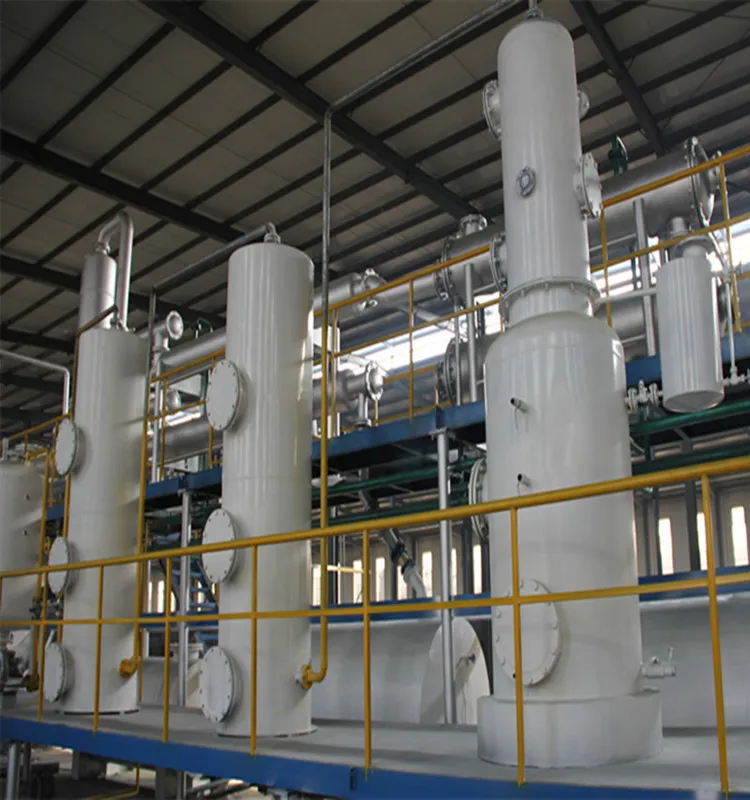

---4 new design condensers to convert the oil gas into oil.

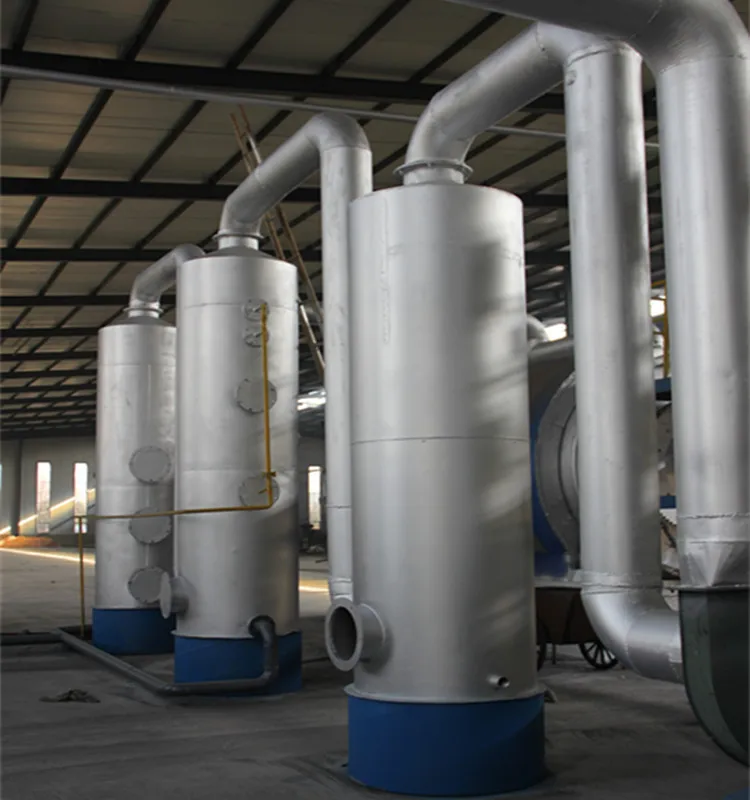

3.Waste gas purifying system
--- its function is to remove the acids,bad smell and dust from the waste gas,so the gas will be more clean and environmental friendly.
4.Smoke purifying system
---its finction is to remove the acids,bad smell and dust from the waste gas, so the gas will be more clean and environmental friendly.
5.Carbon black discharging system
---we adopt the whole sealed automatic discharging system to ensure no catbon black flying out, so the whole process is no pollution at all.
The End Product
Steel wires: 12%-15% from tires
Carbon black: 30%-35%
Fuel oil:40%-45%
Sync gas: 3%-5%
Technology Parameter
NO. | ITEM | Technical Parameter |
1 | Suitable Raw Materials<=5cm | Small pieces of Waste tyre,rubber,waste plastic<=10cm |
2 | Operating Mode | Fully Continuous Opreation |
3 | Structure | Horizontal Type |
4 | Loading and discharging | Fully automatic feeding and discharging under high temperature at same time |
5 | Capacity(24h) | 10-30Mt |
6 | Work Pressure | Slightly Negative Pressure |
7 | Oil Yield of tyres | 40%-45% |
8 | Reactor Rotation Speed | 1R/M |
9 | Power | 50-60kw/h |
10 | Cooling Method | Cycle water |
11 | Type of Drive | Sprocket Wheel |
12 | Heating Method | Hot Air |
13 | NoisedB(A) | <=85 |
14 | Main Reactor Weight(Mt) | 25Mt |
15 | Total Weight(Mt) | 30—40Mt |
16 | Installation Space Required | 48m*20m |
17 | Manpower | 2/shift |
End product | Percentage | Usage |
Fuel oil | 40%-45% | 1. Used as fuel in Industrial such as steel&iron factories, chemical industrial or hotels and restaurants. 2. For heavy oil generators to get electricity. 3. For distillation to non-standard diesel oil |
Crude carbon black | 35% | 1. Used for construction bricks; 2. Deep-processed to N330, N660, N774 or color carbon black. |
Steel wire | 10%-15% |
Sold or reprocessing
|
Sync gas | 10% | Used for heating the reactor |
2.Outstanding Features:
1.You just need preheat at the first time when the machine start producing.And then the machine can produce lasting for 20days without stop.Because it can use the waste gas to heat the chamber,no need other energy.
2.The most capacity can reach 30T/D,much bigger than other kind of plant.It is fully-automatic and fully–continuous.
3.New design of vertical condensers.you can get high oil yield,good oil quality,high profit.
4.The carbon black and steel discharging is easier.The carbon black and big size steel can discharge when the chamber is hot needn’t cooling down.Very save energy.
5.Low requirement on the raw materials,no need tiny granule,10cm pieces acceptable for smooth running
3. Advantages:
1. Security:
a: Adopting automatic submerged-arc welding technology
b: All of the welding will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the welding shape.
c: Adopting manufacture process controlling system on the quality, every manufacture process, manufacture date, etc.
d: Equipped with anti-explosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming system.
2. Environmental-friendly:
a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke
b: Smell during operation: Fully enclosed during the operation
c: Water pollution: No pollution at all.
d: Solid pollution: the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold directly with its value.
Packaging & Shipping
a.By Sea
b.Delivered by 4-5HQ
c.About 50 days after the first deposit
d.Use the exported package standard to avoid any damage in transportation.
Our Services
1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines and lifetime maintenance for complete set of machines.
2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's workers on operation, maintenance, etc.
3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.
4. For the damage caused by the users, our company provides the parts and accessories with cost price.
5. Our factory supplies the wearing parts with the cost price to clients.

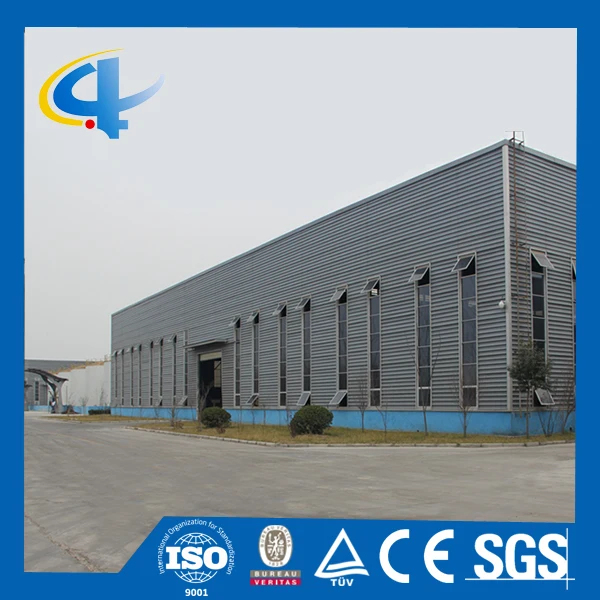

Company Information
Shangqiu jinpeng Industrial Co.LTD, was founded in 1985, as the first domestic professional institute in the recycling and utilization of solid wastes (waste plastics, waste rubber, tyre), is a technology innovative demonstration enterprise involving scientific research, developing manufacture and sales amount about 300 sets, total sales revenue about 180 million RMB per year, including 16 million USD export oriented.
We have been exported to USA,Saudi Arabia,New Zealand,Australia,Poland,Malaysia,
India,Pakistan,Thailand,Vietnam, Indonesia,South Africa,Korea, Bangladesh,Mongolia etc.
FAQ
1. Q: What's environmental pollution problems during the conversion process?
A:The environmental problem includes waste water, waste gas and waste solid.
2.Q:How to assure the reactor safety?
A: Our reactor is made by automatic welder machine. Welding technology and latest X-ray testing and flaw detection to protect gas
3.Q:How to solve the environmental problem when operating the reactor?
A:1.We have the closed discharging system and it is compete closed no fly ash and no pollution.
