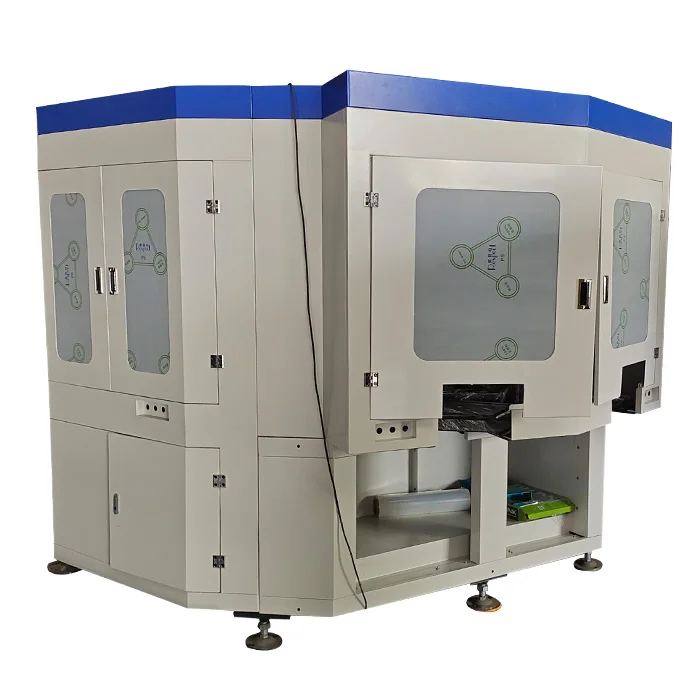

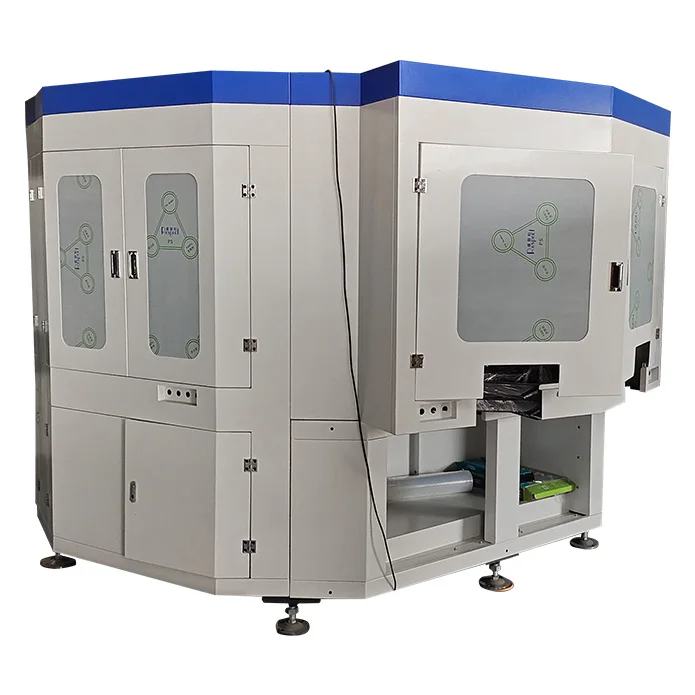

S-CNC501 Automatic 5-Color Cosmetic Soft-tube Screen Printing Machine



 It is a screen printing machine specially developed for plastic bottles and glass bottles. After manually placing the bottles on the feeding conveyor belt, the mechanical gripper transfers the bottles to the printing tooling. At the same time, the CCD camera captures the bottom and body of the bottle and cooperates with the servo motor for precise positioning. Two silk printing stations and two colors are completed at the same time. . Then the robot clamps the finished bottle to the unloading line. the
      The machine has high efficiency, and the round bottle can reach more than 55 per minute, and the square bottle can reach more than 45 per minute. And the overprinting precision is high, the degree of intelligence is high, and the pass rate of product quality is high.
      The main frame of the machine is welded by high-strength and high-quality steel parts, the circular turntable is designed, the main components are processed by CNC, and the plexiglass protective door is installed, which shows the safety of humanization and operation, and meets European safety standards; the control system , Servo motors, electrical components, and pneumatic components are all made of well-known brands from Germany, Japan, and France to ensure the accuracy and stability of the machine's operation. It is suitable for multi-color silk screen printing of round, square, square with arc, oval, rhombus, special-shaped and other bottle shapes.

Printing samples-cups:

Printing samples-Cosmetic case





Description:

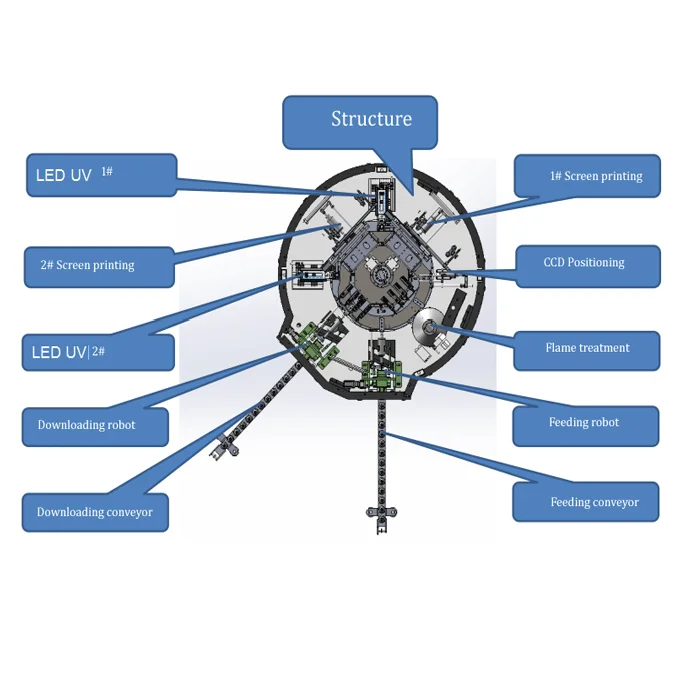

• Structure

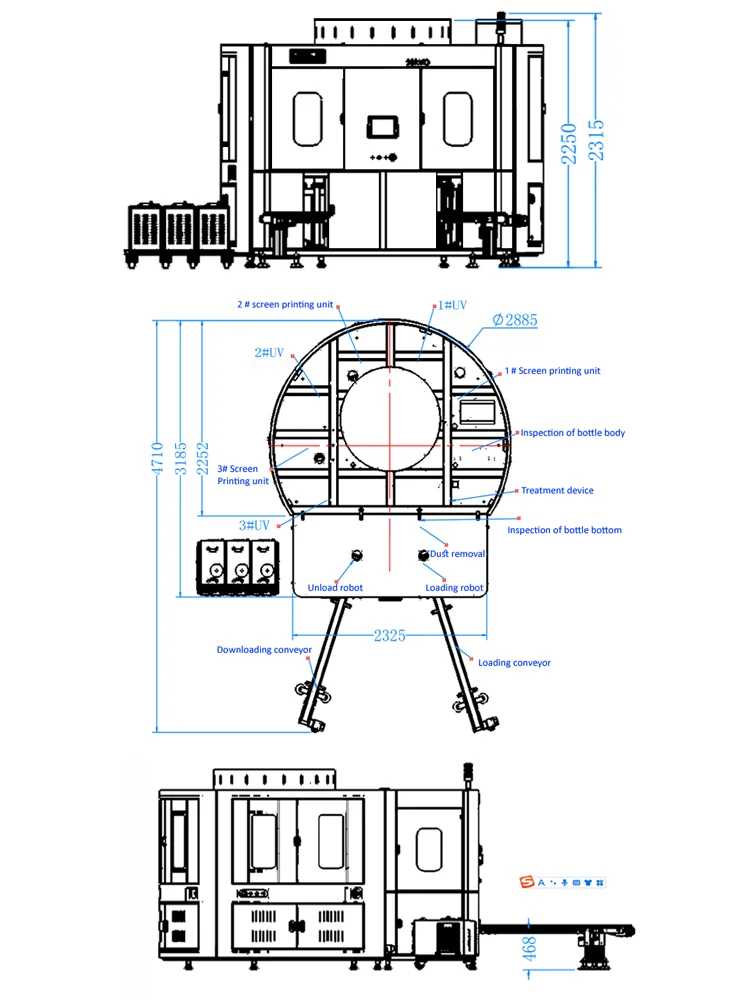

• Technical parameter



ITEM		Parameters	Q
1	Feeding system	Speed : 0-10M/
		Conveyor width: 50mm
2	Pre-treatment	Fire width: 250mm
3	Workbench	Rotating plate diameter : 1.5M
4	Print system	Max print diameter:  100mm
		Max print length: 300mm
		Screen plate up-down adjustment :  150mm
		Overprint  accurate:  0.05-0.1mm
		Max print speed: 3000pcs/H
		Air : 5-7 bar
		Print color number:  3 colors
		Materials: plastics, glass, ceramic,.
		PLC Control system
5	UV system	UV Wattage: 4KW
6	Downloading	Conveyor width : 0.5M
		Conveyor speed: 0-10M/min
7	Power supply	3 P380V

Printing samples-Soft-tube



Machine details

Details description
