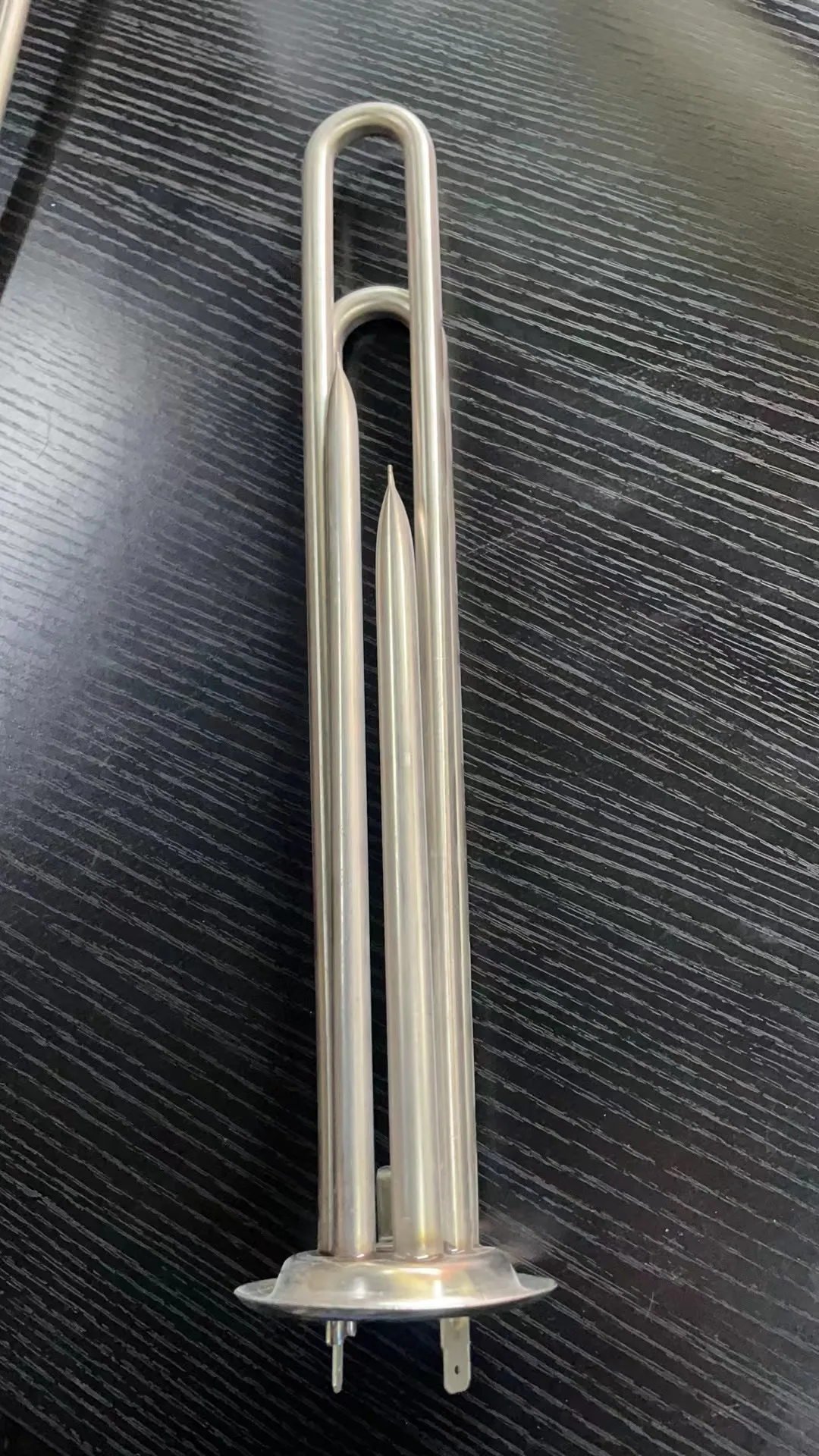

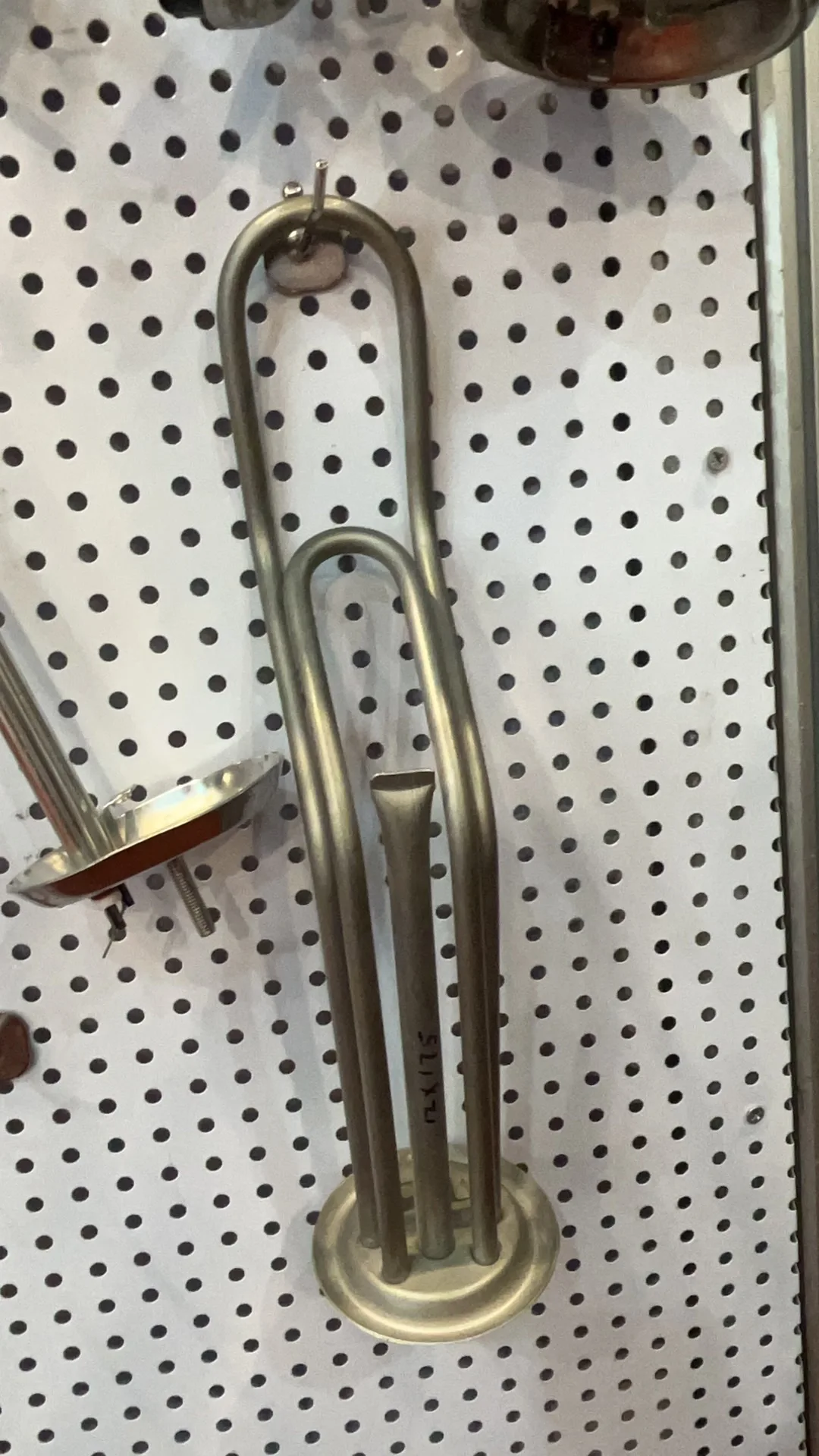

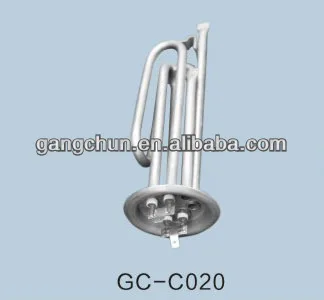

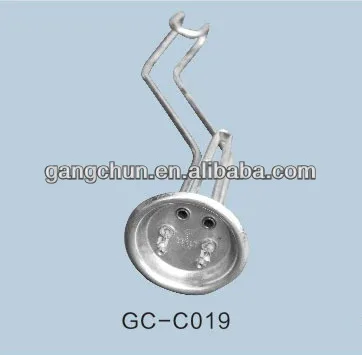

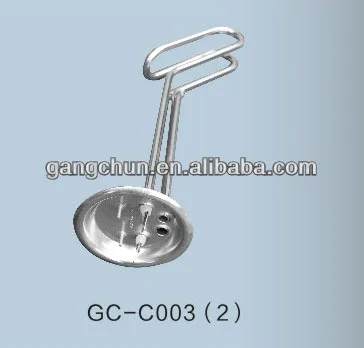

Solar heater Water heating elements Water Fast heating tank Fast heating element

Product Overview

Description

  heating element is a metal tube housing, along the central axis of the tube uniform spiral heating alloy wire (nickel-chromium, iron-chromium alloy) compacted fill its void with good thermal insulation properties of magnesium oxide sand, both ends of the tube mouth sealed with silicone or ceramic.

  The stainless steel electr





ic heating tube is designed to convert electrical energy into heat energy of electrical components, because of its cheap, convenient and easy to use, install, no pollution, is widely used in a variety of heating applications, stainless steel heating tube life is very long, usually design life of 10,000 hours.

Features:

 (1) can be designed for the voltage :110-380V
 (2) customizible a single injection of power: 10W-80KW
 (3) material: 10 # iron, T4 copper, 1Cr18Ni9Ti stainless steel, Ti titanium.
 (4) specifications: U-type, W-type, shaped, electrically heated element with cooling fins, explosion-proof     electric heating element
 (5)  It is customizable include shape,surface,specification etc.



Insulation resistance	≥1000MΩ(cold condition)
Leak current	≤0.5mA
Material	SUS304
Voltage/wattage	220V/2500W
Diameter	25mm
Resistance powder	Magnesium oxide
Faston terminal	Nickel plated iron
Pipes	Stainless steel
Thermal fuse	Iron chromium
Application	Air heater,industrial heating and household appliances





1 .How fastest way to get a sample ?
For the country needs power, volts, materials, shape different requirements .
Please confirm that:
(1) Material(Pipe, flange, etc)
(2) Voltage
(3) Wattage
(4) Shape
(5) Product design ( if possible , in accordance with the needs of their markets , to provide the necessary product design drawing)


2. How to quickly get quotes ?
Please provide :
(1) Sample conditions required
(2) Quantity
(3) Receiving cargo port
(4) Payment (T/T or L/C. It is possible that you can choose the most convenient method of payment )
3 .How to smoothly get the goods ?
(1) Sample, quotes conditions required
(2) Confirmation samples →Production→Delivery→Transport
(3) Our company will provide a complete clearance information to ensure a smooth get the goods.


Any question, contact in 24 hours by msn, yahoo, skype, fax, mobile, etc.



Bruce Zhu

Hangzhou Gangchun Appliance Co., Ltd.

Tel: +86 187 68123548

Skype : ahabruce

Wite ://www.hzgangchun.com

Add :No. 53,JiJiaBa,West Lake District ,Hangzhou City ,Zhejiang ,China
