Product Overview

Description

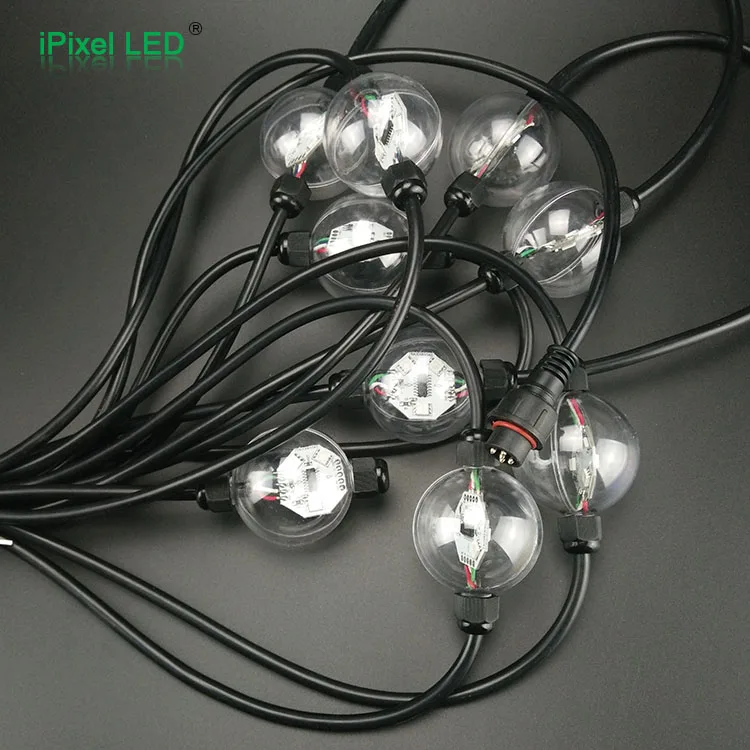

360 degree full color ws2801 led ball pixel module 50mm

About Products



1-50mm diameter LED Pixel ball housing by a plastic case in milky white or transparent color.

2-Absolutely 360 degree lighting.

3-Control: WS2801 or DMX512. Standard version is DMX512. WS2801 light is DC12V, DMX512 light is DC24V.

4-There are 20pcs pixel ball in a string, wire distance between each ball is 12cm, 20AWG Copper wire.

6-The cable have two different color: white/black.

7-There are two waterproof rating available, IP20 / IP65.



Specifications
Product Name50mm ball led pixel light
Model NumberP506-360
IC ChipWS2801/DMX512
LED ChipEpister 5050 RGB LED Chip
LED QtyDouble-sided, 3LEDs/sid 6 leds/pcs
VoltageDC12V/DC24V
Wattage1.44W/PCS
Cover ColorMilky white/Transparent
PCB BoardDouble-sided board, each board with 3LEDs
IP RateIP20/IP65
Cable Length12cm usually, also can be customized
Beam angle360 degree
CertificationCE,RoHS
Warranty2 years



Product Details

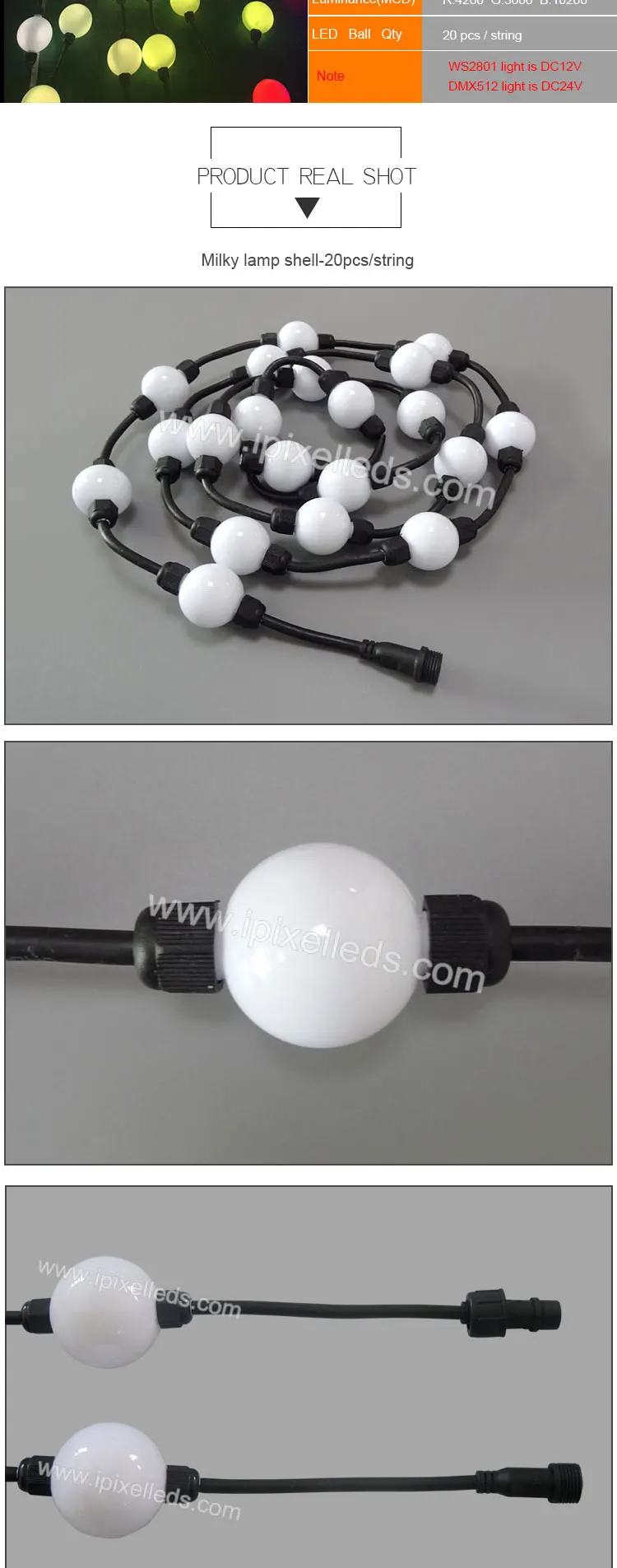

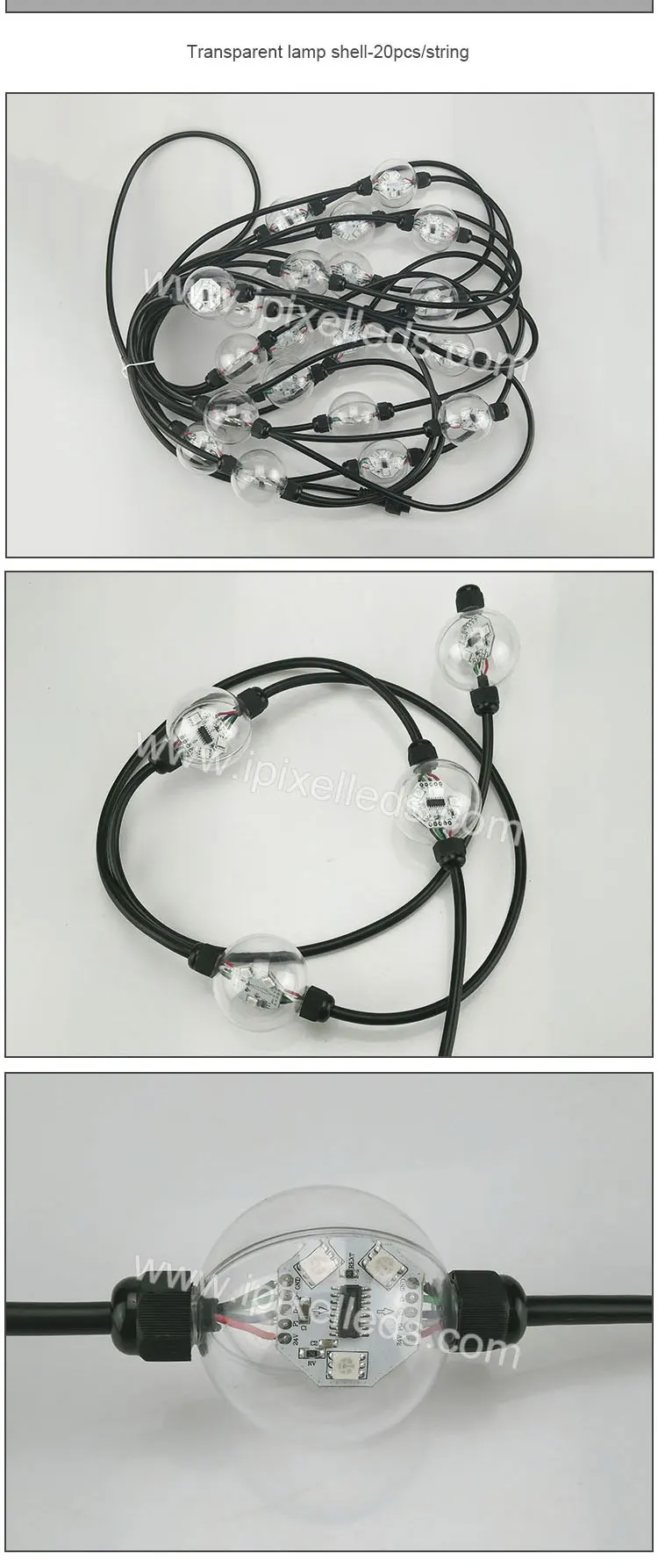

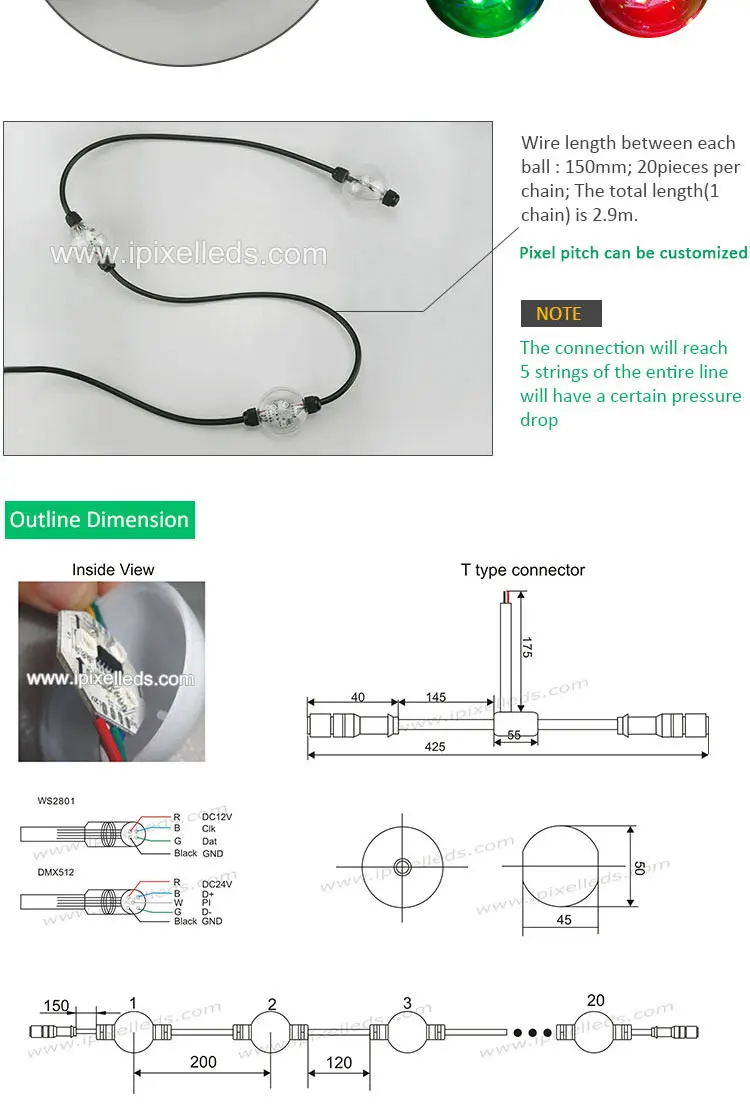

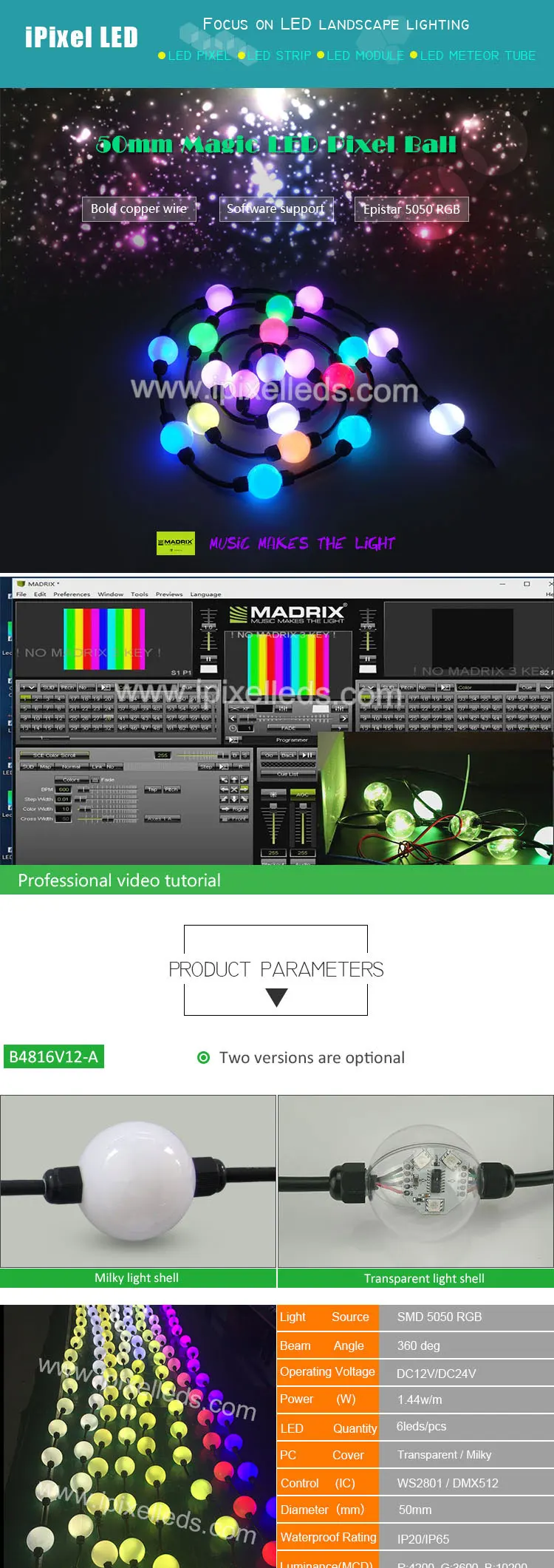

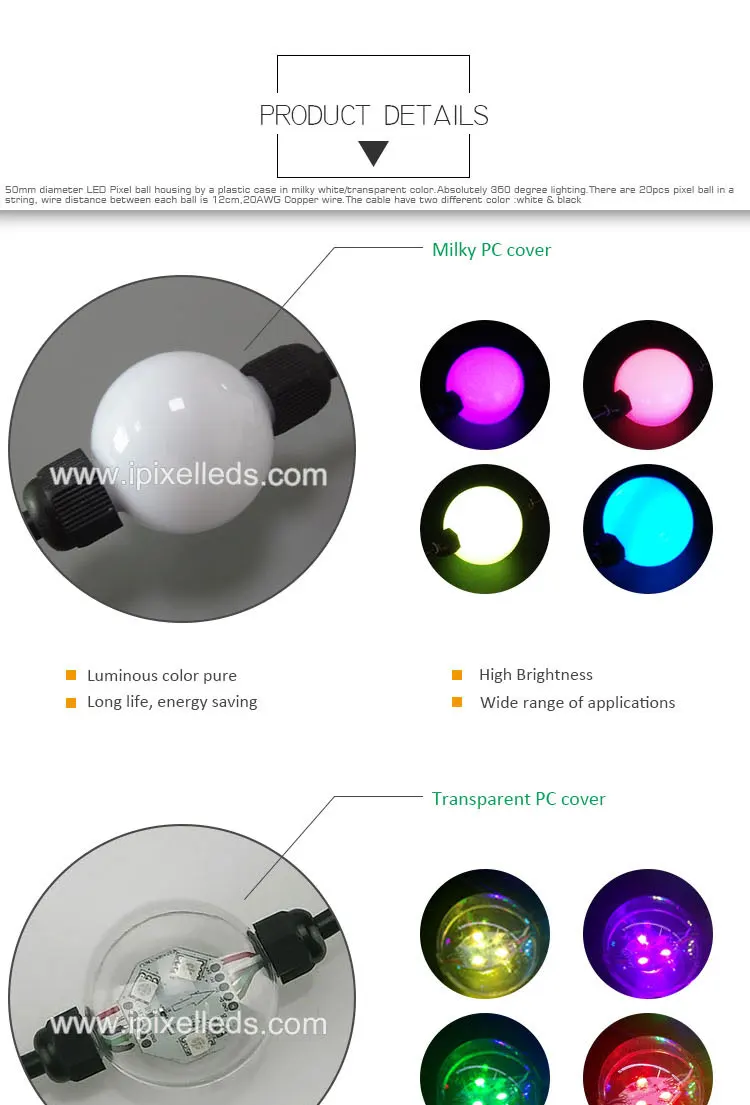

50mm-LED-Ball (1).jpg50mm-LED-Ball (2).jpg50mm-LED-Ball (3).jpg50mm-LED-Ball (4).jpg50mm-LED-Ball (5).jpg

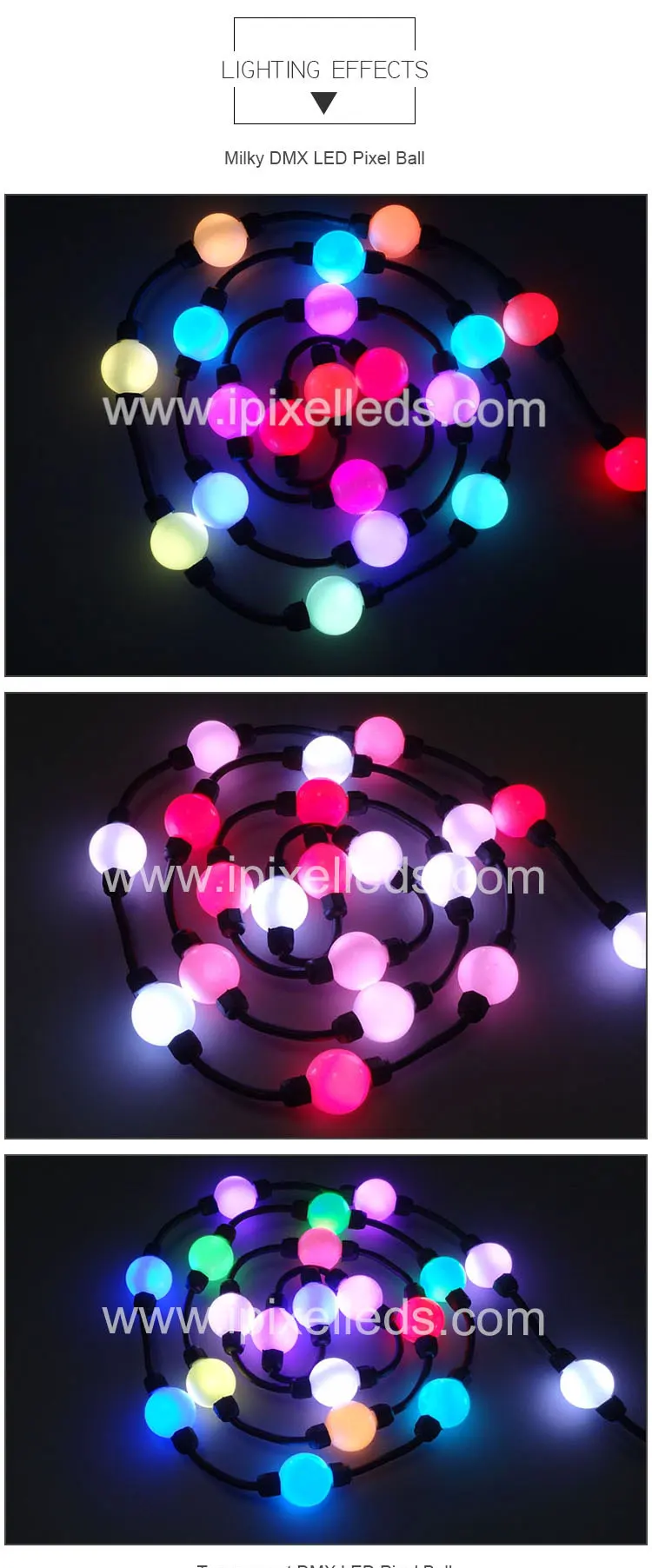

Lighting Effects

50mm-LED-Ball (6).jpg

50mm-LED-Ball (7).jpg

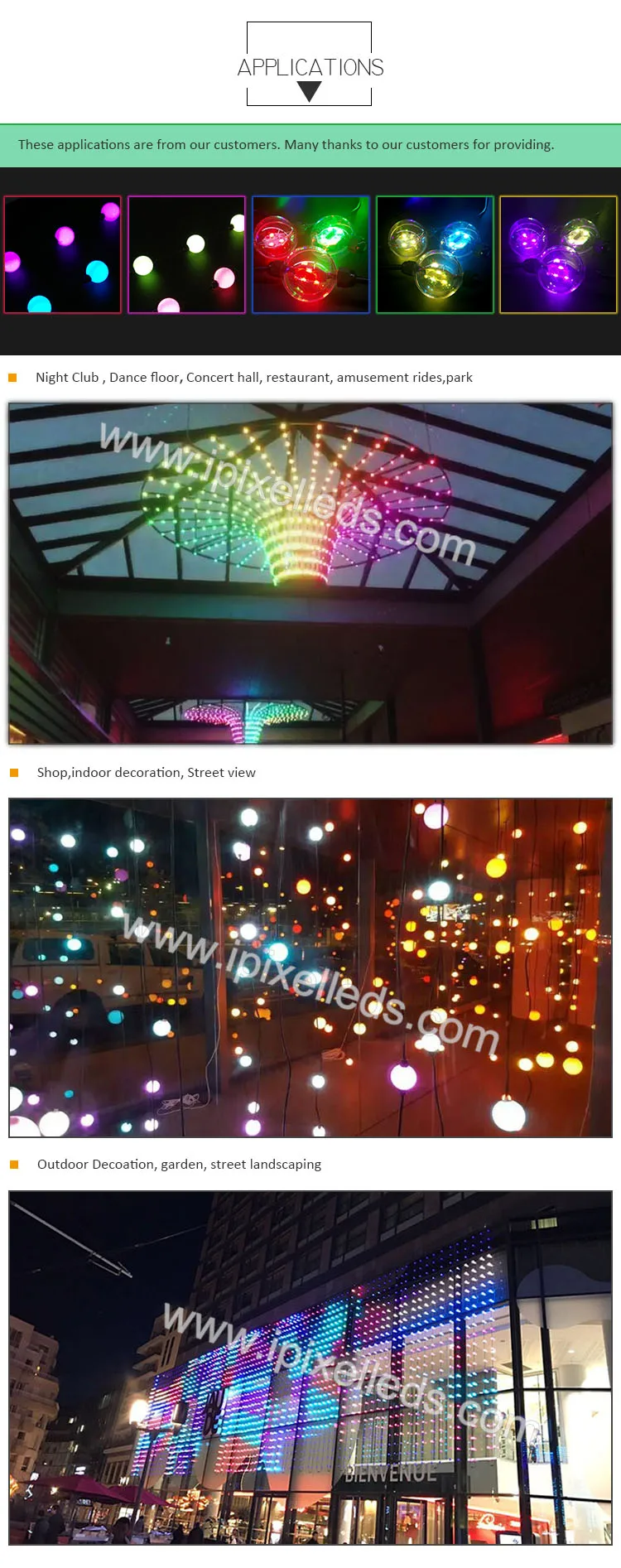

Application

50mm-LED-Ball (8).jpg
