Control way: PLC and man machine interface or computer
RO membrane brand: Film Tec ,Hydranautics or PFT
Multi media filter material: quartz sand,5 types 1,2,3,4,5
Active carbon filter material: active carbon, iodine 900
RO high pressure pump: modern pump, Nan fang pump or select by the user
Raw water temperature: 15--35 centigrade
Raw water PH range: 4-9
Raw water hardness: 17mg/L (calcium carbonate)
Raw water pollution index: SDI less than 5
Raw water total dissolved solids: less than 1000mg/L
System capacity changes significantly with water temperature and feed TDS, for higher TDS,a water analysis must be supplied and could result in modifications to the system. Our reverse osmosis system are mostly custom designed specifically for your water treatment requirements by our experienced engineers.
Packaging & Delivery
Packaging Detail: plywood case
Delivery Detail:7~15 days
Specifications
1.Custom designed according to the customer’s raw water analysis, capacity and product water requirements.
2.Certificate : ISO9001, RO system CE certificate No: 111018/WHE713
3.Warranty one year
4.Install compact

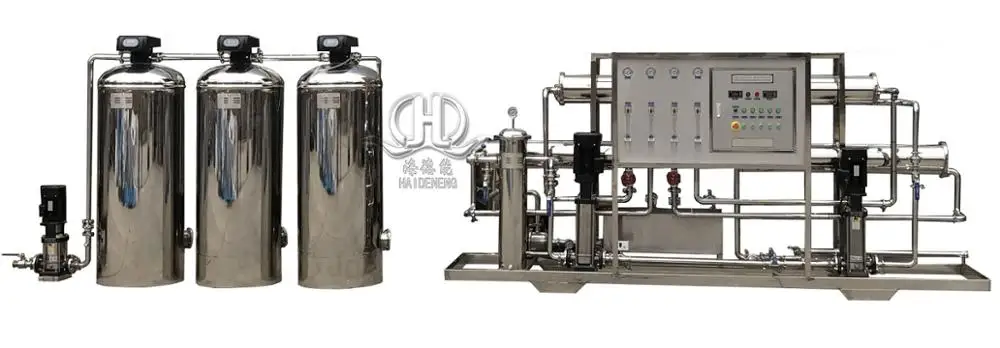

A. Product Description
Reverse Osmosis(RO) use enough pressure to separate solvent (usually it is water) of liquor through film of RO membrance, so it is called to reverse osmosis, RO as high efficient technology of desalting which can remove impurity such as inorganic ion, bacteria, virus, organic substance and colloid so that high quality pure water could be obtained. The system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².
B. Main Flow Chat
(Pure water tank)--->raw water pump--->quartz sand filter--->active carbon filter---> Scale
inhibitor/water softener--->Ultrafilter--->high pressure pump--->reverse osmosis system---> (pure water tank)
Note: The process flow of water purifying machine is customized according to different raw water quality and the usage of treated water. Raw water can be tap water, ground water, lake water, seawater, waste water, ect. Different components for option like UV sterilizer, ozone generator, water softener, manganese sand filter, ect. Multi-stage of RO is availiable.
C. Parameters:
1. Capacity: customized
2. Rated power: check with the configuration list
3. Voltage: 220V/3phase/50Hz, 380V3phase/50Hz,or customized at different country
4. Desalting rate:97-98%
5. Water recovery rate: 50-70%
6. Conductivity of raw water: ≤400μs or custom designed
7. Conductivity of pure water: ≤10μs or custom designed
D. Application Field
Electronics Industry:Silicon,micro-electronics products with high water. Semiconductors,tubes and other manufacturing industries with high water. The using of production water batteries in lithium batteries, solar power batteries, dry cell batteries
Food and Beverage field:Pure water, distilled water, mineralized water, natural water,mineral water. The using of production water in liquor blending and beer production.The using of pure water in food and beverage production.The supply of drinking water for hotels, building and uptown
Phamaceutical industry:Pharmaceutical, injection with pure water, high pure water and sterile water,etc. Purification and separation of drug raw materials. Medical hemodialysis, biochemical analysis and water for injection
Cosmetics :The using of pure water in the production of skincare, shampoo,toothpaste and other cleaning fluid.
Chemistry and Chemical Engineering:The using of pure water in the production of chemical reagent, chemical fertilizers and paper making
Surface Treatment:The using of highly pure water in electroplating and glass coated. Ultrasonic cleaning with pure water. The surface coating and cleaning automotive,appliance, building material products with pure water
E. Function
1. Manually and automatically wash RO membrane, CIP system
2. Manually wash RO membrane with chemicals on machine,
3. Automatic shut-down at tank full,
4 .SS high pressure components, SS pump to avoid the leakage.
5. Multi-stage pumps protect the machine when lack of water,
6. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc
Note: The quality of raw water could be from city tap water or the same quality water.
Capacity: 40T/H (25℃ input water temperature) one stage RO water system
Electric conductivity ≤5μm/cm (raw water electric conductivity≤1000μm/cm)
F. Consumable:
1. Microfilter cartridges
2. Scale inhibitor
G. Service:
1. Installation guideline.
2. Factory tested to ensure trouble-free operation
3. 24 hours/7 days after sale service for the whole life of the system
4. We can manufacture machines according to your requirement, welcome to our company
Comapny Introduction
We are the professional manufacturer of all sorts of water treatment equipments: such as pure water machine, mineral water machine, deionized water machine, Medical water purifying machine, EDI device, waste water recycle and reuse system, Sea water desalination system, factory direct drinking water system, bottled water and barreled drinking water production line, coding machine, bottle blowing machine,etc.
We are an engineering company that integrates technology research and development, design, production, installation and personnel training in one. Gathering engineering technicians with abundant experience, we will do our best to serve for food, dairy, beverage, biology and pharmacy, boiler, brewing, electronic, electric appliance and surface treatment industries. We supply water treatment production lines and all other industrial equipment of deionized water.
Our company will provide the best price and good service for our customers and distributors all over the world.
Main products: RO system, Hollow fiber ultrafiltration device, Ion exchanger, EDI device, Ozone generator, UV sterilizer, household RO water purifier, etc.
Other relative products:SUS304, 316L multi-medium filters, active carbon filters, cartridge filters, stainless steel sterile water storage tanks, water pumps, valves, food grade stainless steel pipes, etc.
Products Show
Shipment
FAQ
Q1: Are you manufacturer or trading company? A1: We are the most professional manufacturer in China, and we have more than 20years experience in the water treatment..
Q2: What is your business scope? A2: Drinking water, Medicine, Food, Beverage, Dairy, Chemical and cosmetic industries etc.
Q3: How could we confirm the details of the products? A3: WZHDN will provide all technical support for you to confirm,and the drawings also send you for free if we get your company information.
Q4: How long the warranty will be? A4: 1 Year warranty.
Q5: How about the installation? And what if the machine goes down? A5: There are two options:a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. b. On-line service will be provided.Its easy to install and debug.
Q6: What is the payment terms? A6: Usually we main make the FOB and T/T.
Q7: Can we become your distributor in our country? A7: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
