CE certification arrester DIN Rail RJ45 POE Surge Protector Spd
- Category: >>>
- Supplier: Fatech Electronic (foshan) Co. Ltd.
Share on (60269755676):
Product Overview
Description
1. Characteristic FS-RJ45D/POE-1000SV
- DIN Rail RJ45 PoE surge arrester 1000M, suitable for application of POE cable-powered server, wireless AP, network cameras, network switches and other communications equipment supply, network signal line surge protection, integrated design, easy installation.
- Adopt power supply + signal surge protection integrated design.
- Use high quality main component with excellent performance.
- Small insertion loss, good trnasmission rate.
- Low residual voltage, efficient surge protection effect.
- Fast response, stable performance, reliable working.
- Small size, DIN Rail installation, convenient application, maintenance free.

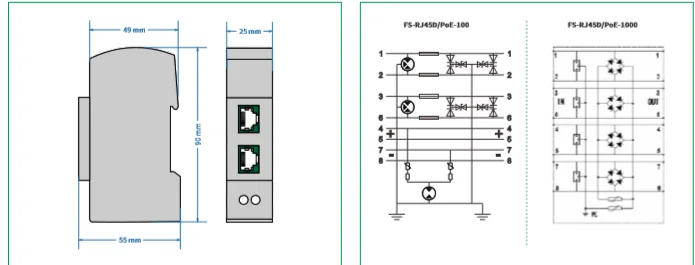

2.Installation and circuit RJ45 POE surge protector FS-RJ45D/POE-1000SV
3. Electrical parameters RJ45D POE surge protector FS-RJ45D/POE-1000SV
| Product Name | DIN Rail RJ45 PoE surge arrester | |
| Model No. | FS-RJ45D/POE-1000SV | |
| Nominal Working Voltage | Un | 48VDC |
| Max. cont. Opertating Voltage | Uc | 60VDC |
| Nominal Discharge Current (8/20µs) | In | 2.5kA/Line |
| Max. discharge current (8/20µs) | Imax | 5kA |
| Protection level (8/20µs,5kA) | Up | L-L(1/2, 3/6, 4/5, 7/8)15V |
| L-PE 600V | ||
| Transmission rate | Vs | 1000Mbps |
| Insertion loss | Ae | ≤0.1dB |
| Interface port type | RJ45: 1/2,3/4,5/6,7/8 | |
| Shell | Flammerble PC+ABS | |
| Dimension | 18.6*90*64 mm | |
| Installation | 35mm Din Rail | |
| Environment | Temperature: -40~+85℃,Relative Humidity ≤95%(25℃) | |
| Shell protection level | IP20 |
 |  |  |  |
protection photovoltaic system | protection power supply system | Lightning Rods & Surge Counters |
Workshop
→
→
Module assembling Base part producing Finished products tests
↓
←
←
Go to warehouse Packing Impulse current test
Certifications
FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.
FAQ:
1. Q: Could l know which advantages do you have please?
A: Independent test center, TUV, Patent certifications; 15 years export experience in the overseas market; good technical service and support.
2. Q: Are you a lightning surge protectors factory or trading company?
A: We area manufacturer which is ISO 9001-2008 quality system on R&D, production and sales of surge arrester.
3. Q: Warranty and return?
A: We supply five-years warranty on surge protective devices and own the best after-sale service team, if any
problem happens, our team will do our best to solve it for you.
4. Q: What's the delievery time?
A: It is usually about 15 days after receiving the payment and confirmed the order, but specific time should
be based on the order quantity.
