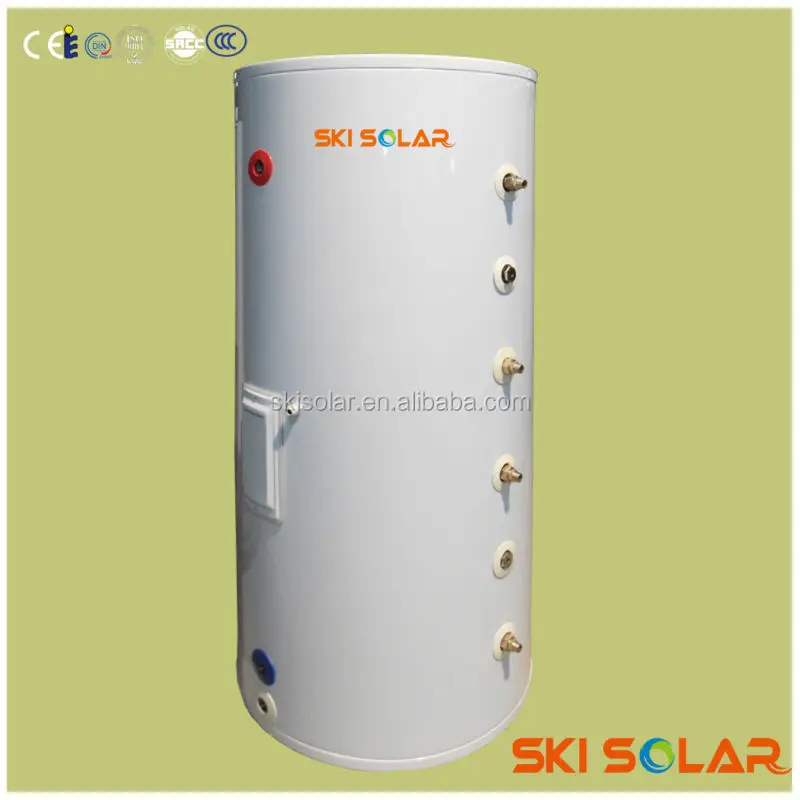

Enamel solar hot water tank;solar storage tank(SKI-TCB)
Product Description
1.Material of out shell: Galvanized-steel with painting, stainless steel, PU soft coat, aluminum-alloy.
2.Material of inner tank: BTC 340R steel & enamel coating
3.Insulation: polyurethane resin foaming.
4.Material of inner coils: Copper / stainless steel .
What is the technical data of enamel water tank?
Specification
TCB-200L
TCB-300L
TCB-400L
TCB-500L
Capacity
L
200
300
400
500
Dimension
mm
Φ570 x 1270
Φ520 x 1430
Φ570 x 1770
Φ700 x 1580
Φ700 x 1800
Package Size
mm
Φ680 x 1370
Φ550 x 1530
Φ680 x 1880
Φ670 x 1550
Φ750 x 1600
Φ750 x 1880
Max. Working Pressure
bar
7
7
7
7
Max. Test Pressure
bar
12
12
12
12
Max. Running Temperture
℃
99
99
99
99
What is the advantage of enamel water tank?
1,Superior anti-corrosion ability.
The enamel coating on the surface of inner steel vessel is a kind of silicate,so it never face the danger of scale or corrosion,just like glass.Also,after barking at 900 degree Celsius,enamel coating is so perfectly covered on the surface of inner steel plate that water had chance to contact with inner plate.
2,Double heat preservation.
Its physical feature ensures that enamel coating can be served to preserve heat,just like the polyurethane foam.From this point,our enamel tank has double heat preservation.Also as enamel coating is insulated from heat,the service life of polyurethane foam will be much longer & efficient.For porcelain enamel tanks,the heat loss coefficient is 5-7% per day.
3.Green product bringing you health & safety.
Porcelain enamel tank is much healthier than the normal tank.It does not contain such poisonous substance as lead,hydrargyrum,chromium and nickel.Thus it can be called clean energy and green product.Besides,enamel coating is insulated from electricity,so it ensures you safety.
4.With its unique characteristics of high intensity and high preesure resistant,porcelain enamel tank is rustproof,corrosionproof,leakproof.Thus,it is suitable for different water quality in all conditions,even in coastal area and region with bad water quality.
Features and Characteristics
1.SKI SOLAR is NO.1 enamel water tank manufacturer in China to use and developed hundreds different design tanks.
2.Our water tanks have gained CE certificates. Good help for you to sale the certificated products!
3.Process enamel barking machines, connectors ' hole punching machines, efficiency water leakage test requirements and professional testing laboratory, which double ensure to offer customers long-term reliable high quality products.
4.The most important thing is SKI SOLAR has a well-educated technical & QC engineers team and a quick-act sales team, so that we can offer customers reliable and satisfaction OEM and ODM service.
Working Principle
Packaging & Shipping
What is the packaging & shipping of this solar water heater?
pressurized solar water heater Shipping
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
3. Delivery Time: 7-10 days for samples; 15-25 days for batch goods.
Payment Terms
1. Payment: T/T; 30% deposits; 70% balance against copy of original BL.
2.MOQ: 1pcs
3.Warranty : 5years for water tank, 3 years for the collector
Our Services
Why choose us?
pressurized solar water heater
We are Alibaba Assessed 9 years Gold Supplier.
2.We are a factory manufacturing solar water heaters,best production capability ,best quality control, Best Service .
3.Inspected by the Inspection Institution of TUV.
4.100% QC inspection Before Shippment.
5. CE/ISO/EN 12975 listed,competitve price.
Production Process
Company Information
What is our company look like?
Certfication
FAQ
FAQ
Q1:Can I add my logo on the solar water heaters? A:Yes,OEM and ODM are available for us. But you should send us the Trademark authorization letter. Q2:How can i get the after-service? A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay. For our range hood motors it is lifelong maintenance. Q3 :Do you have inspection procedures for solar water heaters? A:100% self-inspection before packing.
Q4:Can I have a visit to your factory before the order? A:Sure,welcome to visit our factory. Here is our factory address:Niutang Industrial Park, Wujin District, Changzhou, Jiangsu, China. Hotel booking service is available.
