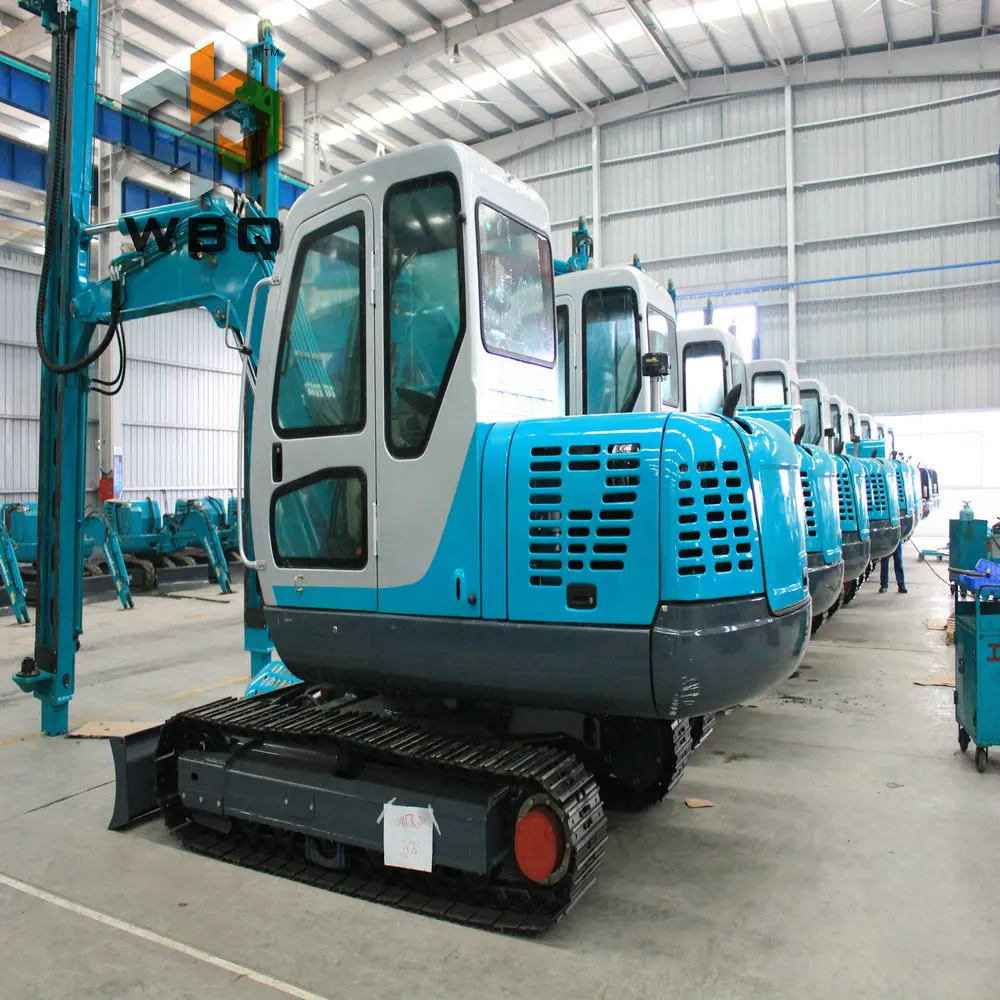

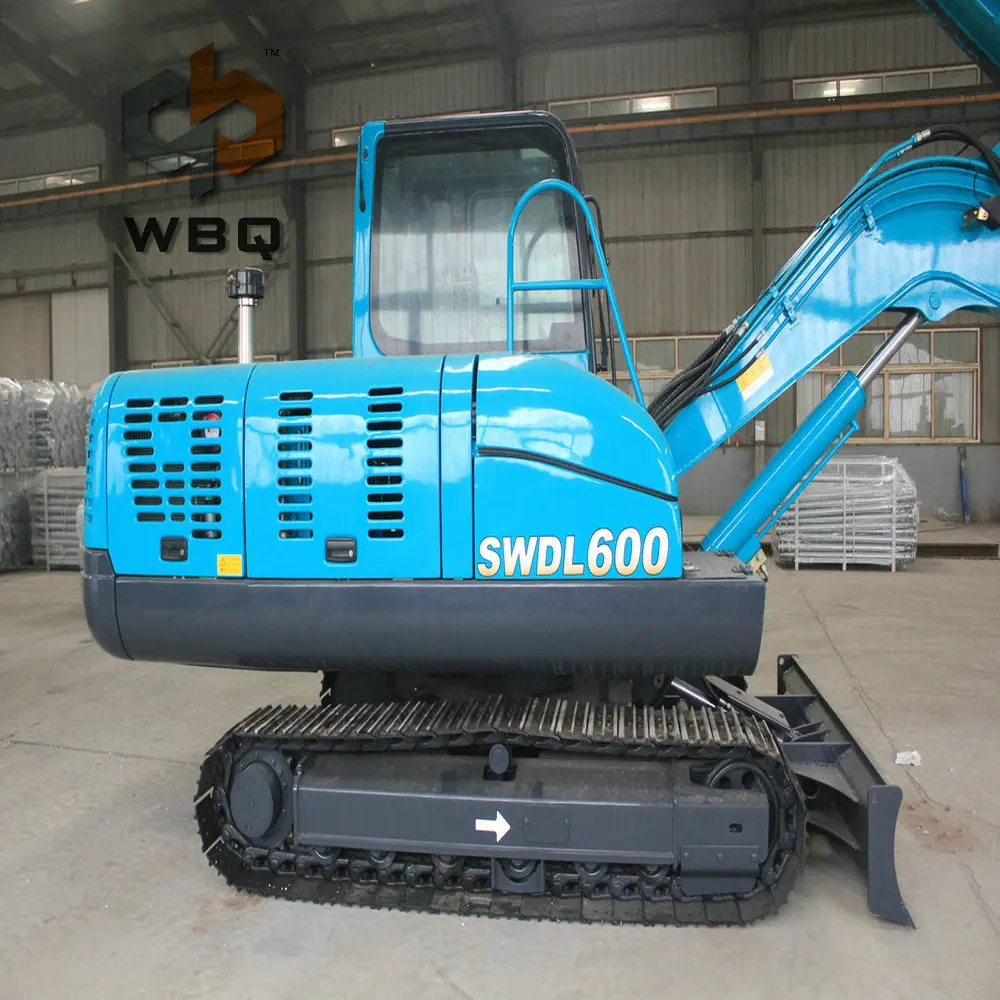

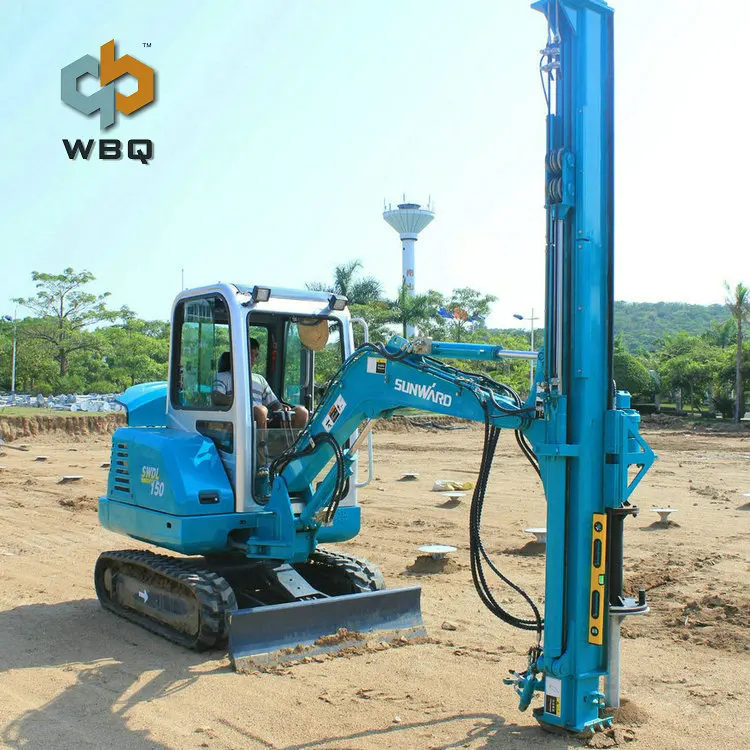

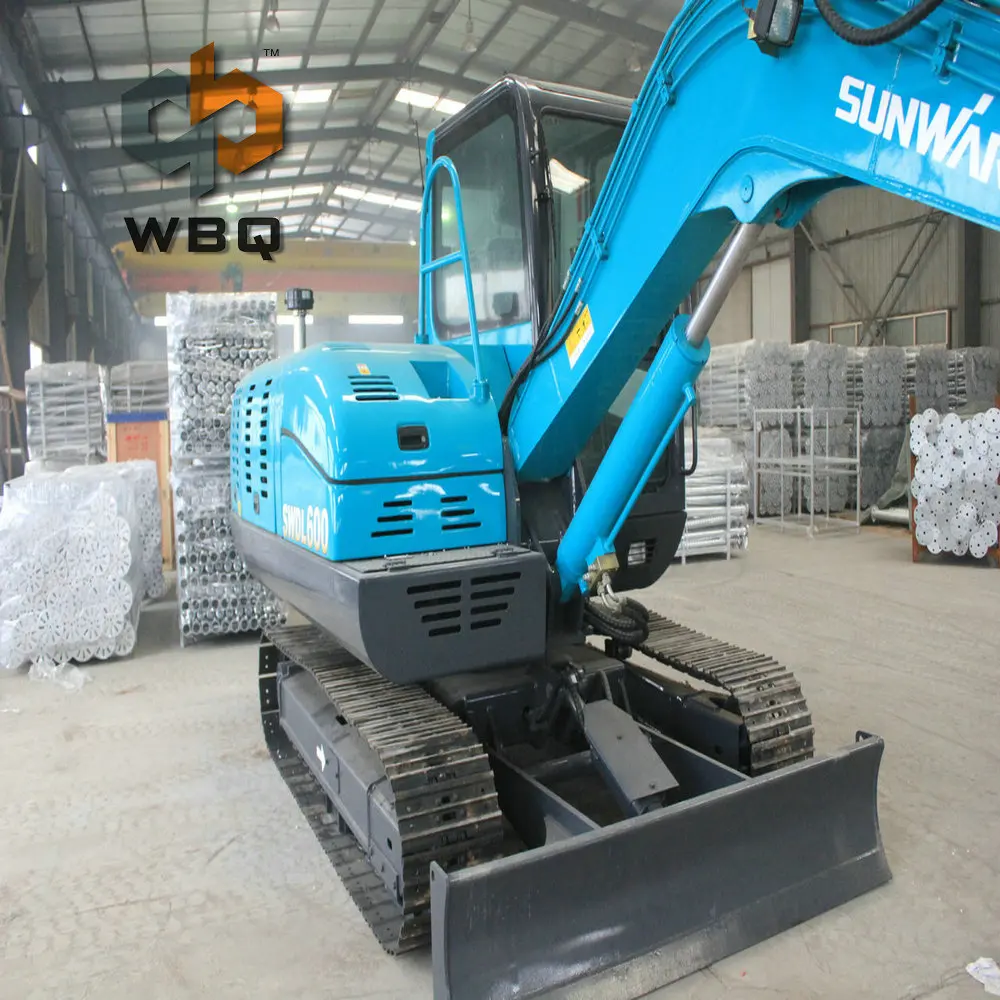

SWDL 600 Ground Screw spiral pilling machine

Product Overview

Description

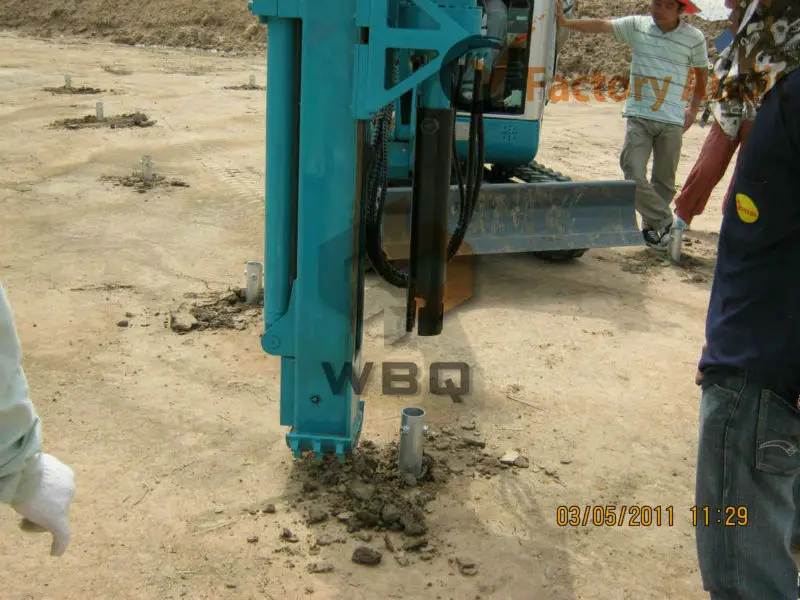

Ground Screw spiral pile drilling machine



Technical Features:



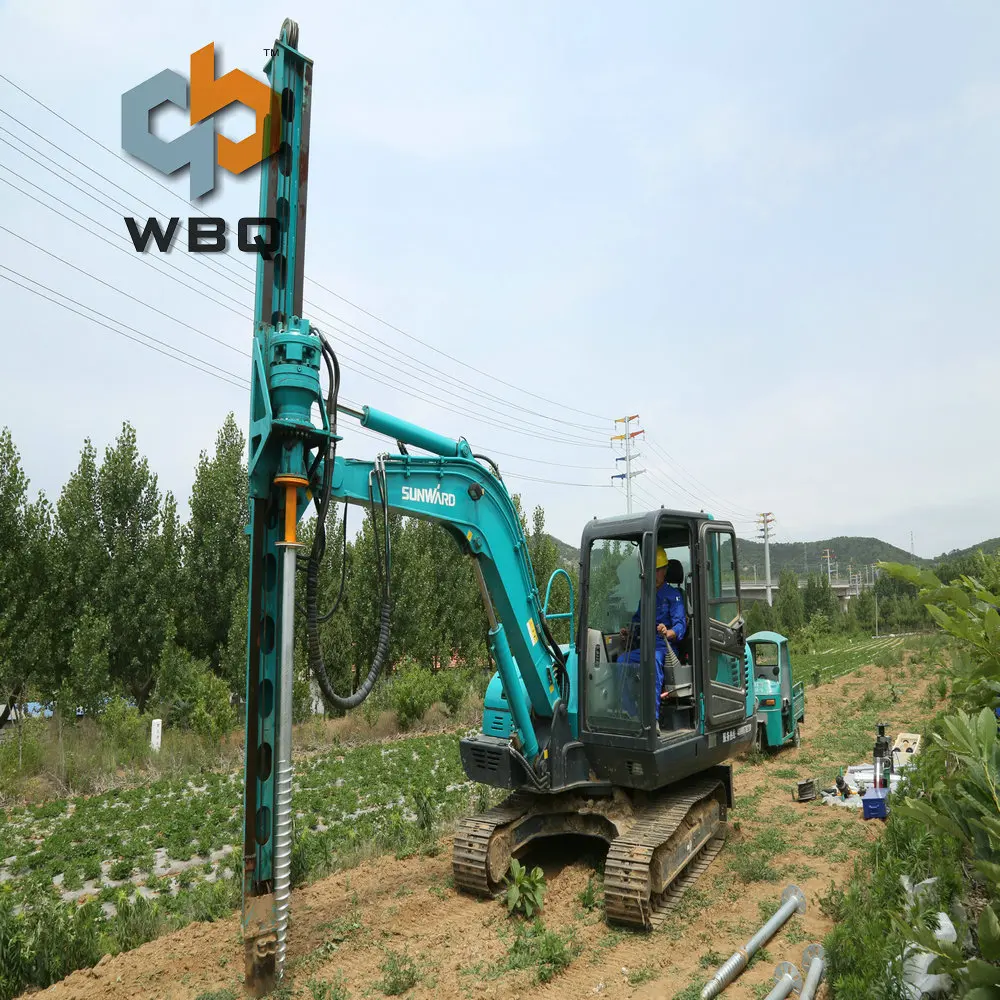

1, The machine is base on the excavator system, which can complete digging and drilling work by different work devices. Turntable can fully 360°swing, and whole machine is flexibly.



2, Easy and flexible operation: All actions including travel, dozer, turntable swing, work devices, pile rotation and feed etc. are all controlled by advanced hydraulic pilot valve. Work operation is in the cabin which can reduce operating force and operator’s load, and advance the control stability.



3, Drill frame angle display is fit in the cab, which make operation clearly.



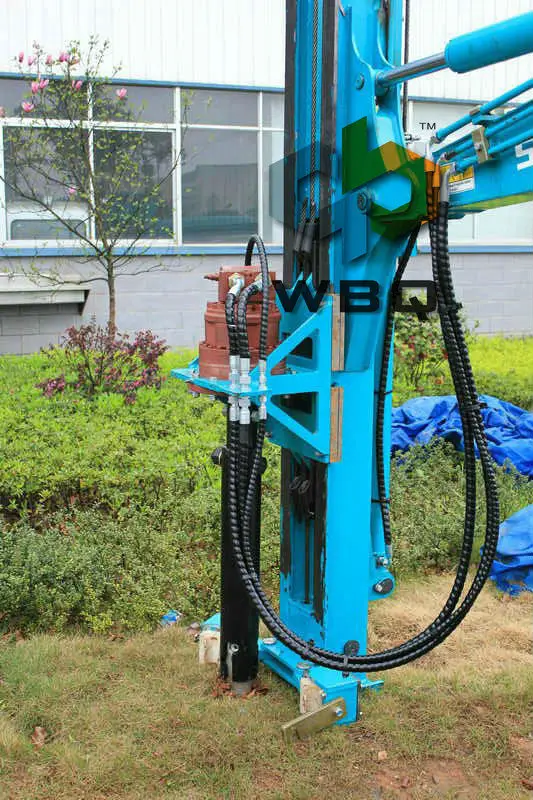

4, The machine is supplying special clamping fixtures for piles, easy assembling and disassembling, high efficiency.



5, The machine is supplying pile guiding device which can ensure the verticality of pile drill.



6, Safety and reliable key parts: YANMAR-3TNV82A Engine from Japan, Hydraulic system main pump, Main valve, swing motor, travel motor are all from KYB Janpa.









Pile Drilling Parameter
Drilling Diameter	mm	76
Drilling Depth	mm	1800

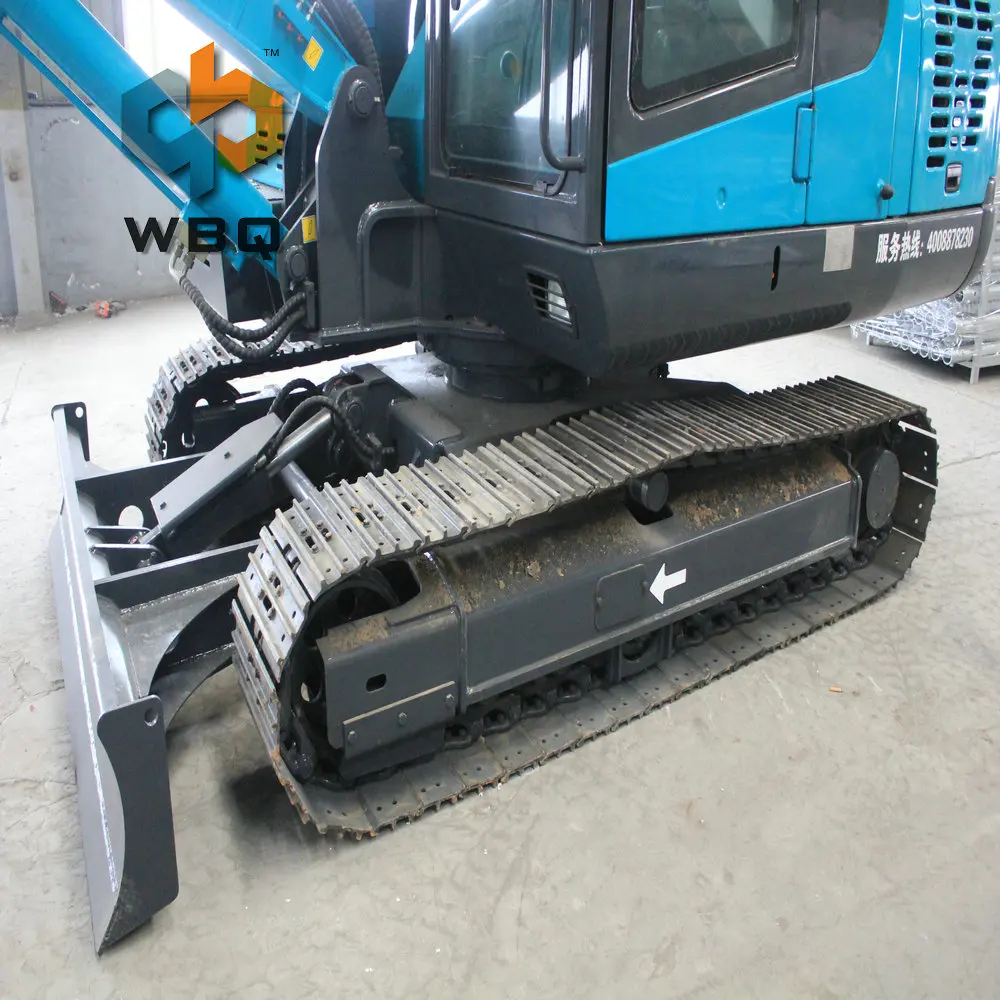

Chassis

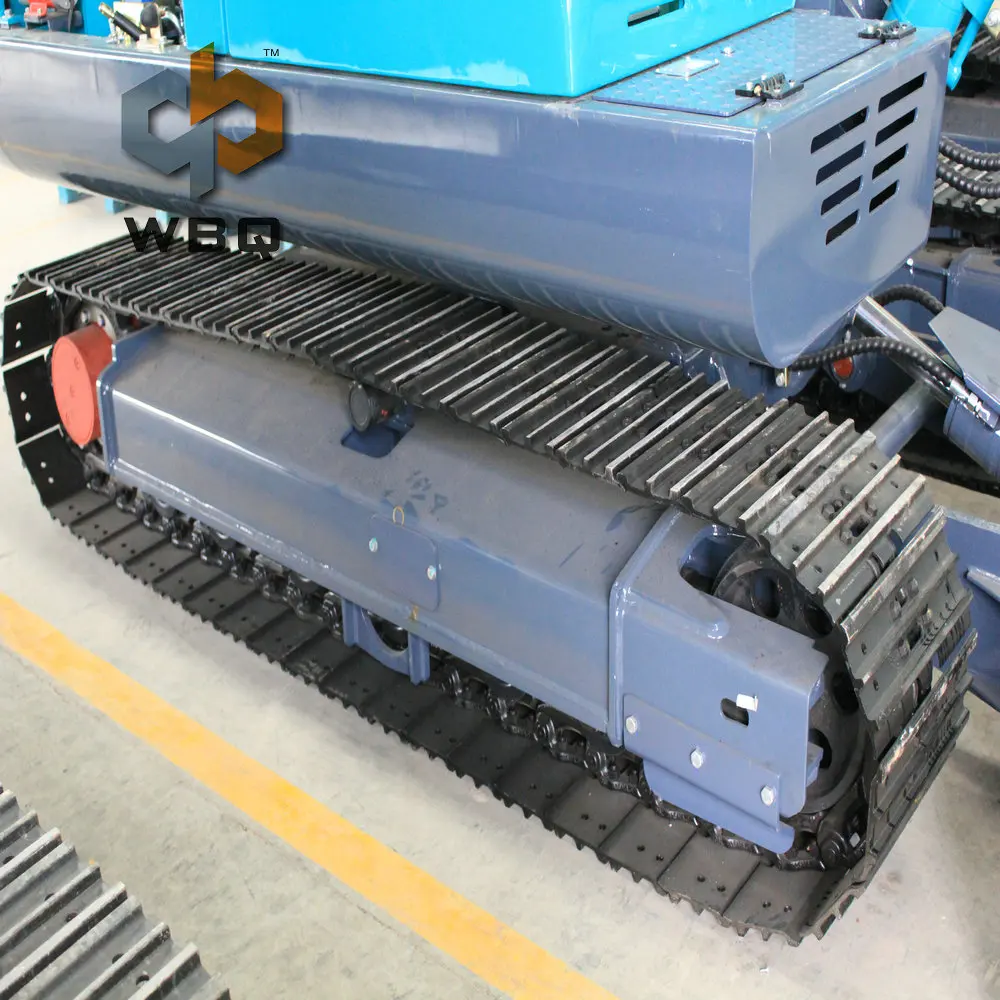

Track base	mm	1430
Track  gauge	mm	1150
Ground width	mm	250
Grounding clearance	mm	280
Blade length	mm	1400
Travel Capacity
Max. Traction	KN	19
(Max/Min)Travel speed	Km/h	4.7/2.6
Hill Climbing capacity	°	20
Feed
Length of feeding beam	mm	3400
Stroke	mm	2000
Speed	m/min	2
Rotation
Torque	N.m	1500/3000
Speed	rpm	50/35
Engine
Model		YANMAR-3TNV82A
Displacement	L	1.331
Power/Rev.	kw/rpm	16/2200
Fuel tank volume	L	42.5
Turntable Swing	°	360
Dimension(L*W*H)	mm	5500X1400X3000
Machine Weight	kg	3000
