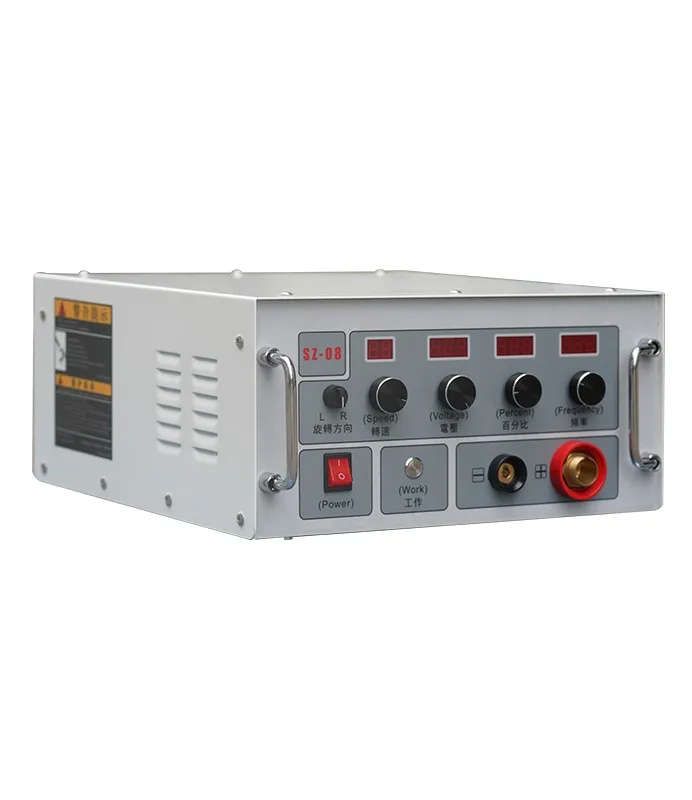

SZ 08 Electrical S park deposition cold welding equipment / ESD metal defect repairing machine

Product Overview

Description

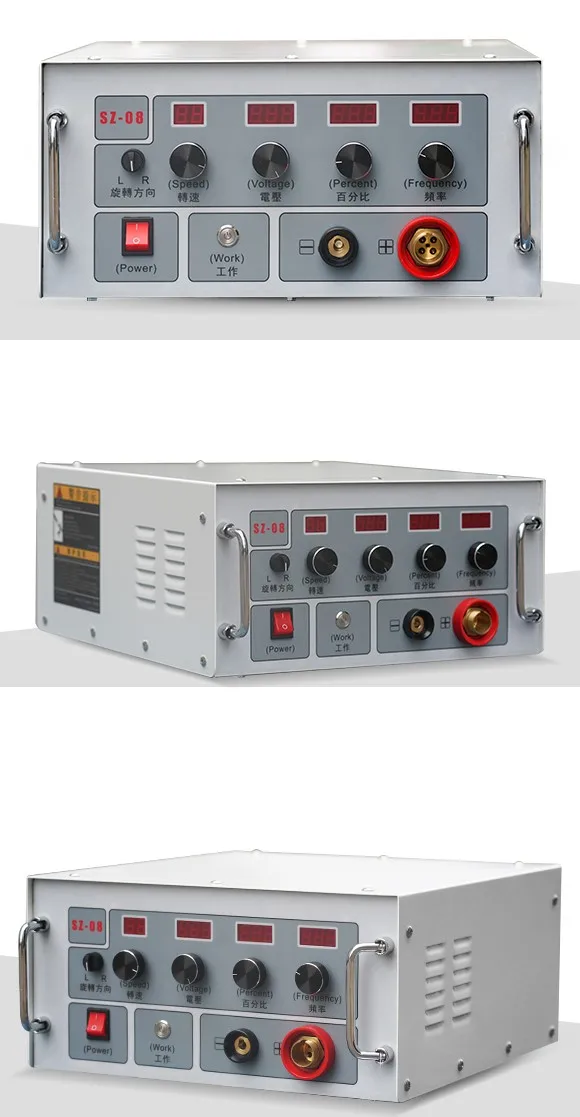

SZ-08 Electrical deposition cold welding equipment/ / ESD metal defect repairing machine

SZ-08 ESD cold welding machine/ aluminum shoe mould holes welding machine, mold abrasion welder



Parameters:

1.Model: SZ-08
2.Input power: AC220V
3.Power:600W
4.Voltage:20-100V
5.Frequency:50-500Hz
6.Percentage:10-100

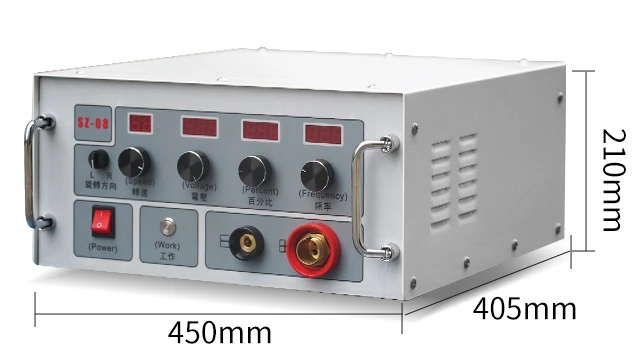

7.Size: 405mm*210mm*450mm
8.Net Weight:18KG, package weight: 25KG

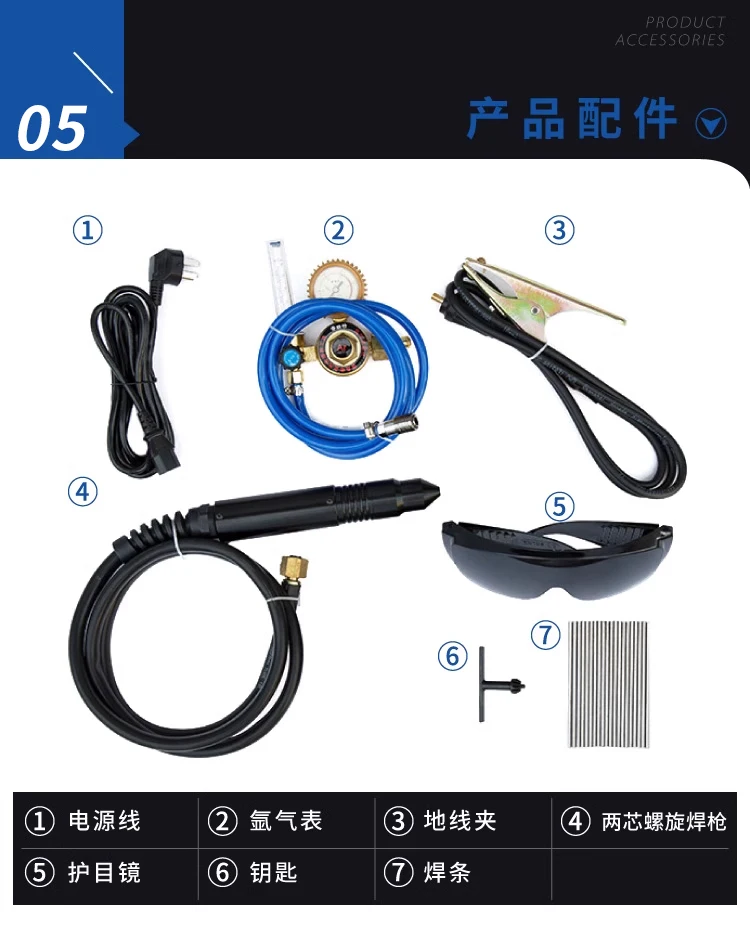

SZ-08 cold welding machine and main accessories:




Applications:



Electrical spark deposition cold welding machine application:

Main Application: repair/welding and strengthen nonferrous metal, black metal, and almost all metal conductor.

1. Application details:

Can weld/repair all kinds of dies, injection dies, die-casting, pressure casting dies, metal products, machine spare parts, etc

2. Suitable material

Aluminum material, aluminum alloy, copper material, copper alloy, low carbon steel, medium carbon medium, die steel, stainless steel, casting steel, cast iron, cast aluminum, tungsten carbide alloy, and all electrical conductor.

3. Suitable defect can be repaired /welded

Repair/welding pin holes, gas hole, burring, flash, bump, scuffing, edge chipping, pinhole porosity, crackle, abrasion, wear and tear, miscalculation in manufacture, defect in manufacture, welding defect.

4.  The position of the machine can welding

 Repair/welding sharp corner, sharp-edged orifice plate, groove or furrow,

side wall or jamb, bottom, deep cavitiy, flat surface, and etc.



Model SZ-08 also can weld/ repair brass, copper parts.

2.Can do surfacing rebuilding coating after welding, use tungsten bar to do coating, hardening, intensify metal surface.

3.With more fast speed and good repair result.

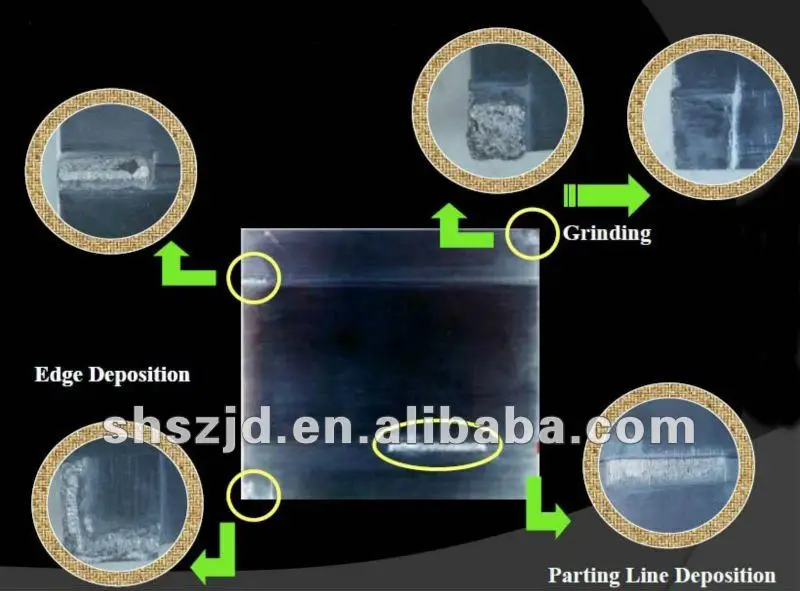

1: Aluminum shoe mould welding example:

Repair Aluminum  parts ( holes, abrasion, etc )

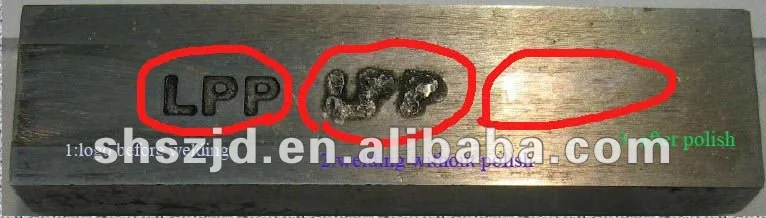

2. After grinding:



Weld Aluminum wheel hub:

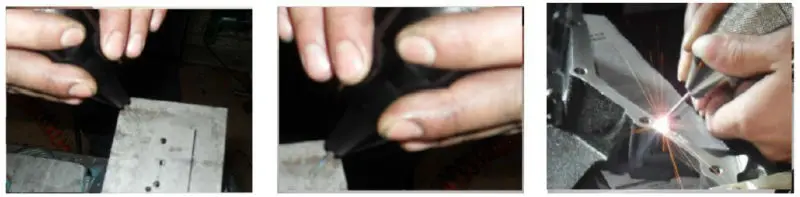

Hold the welding gun method in welding process:

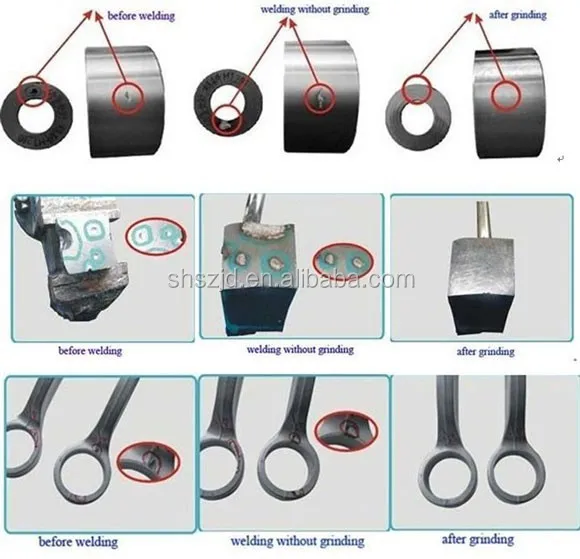

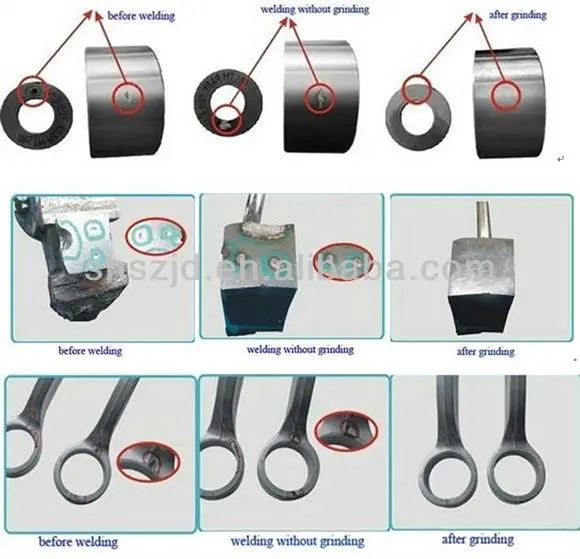

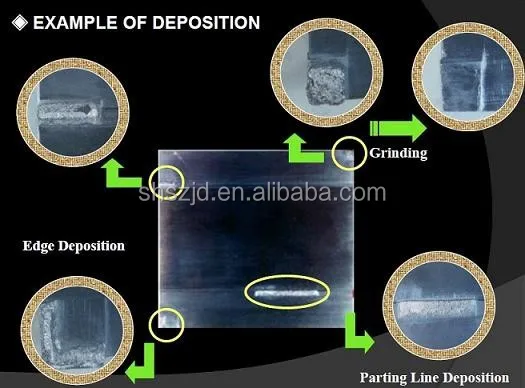

Welding examples:





Welding casting, foundry, steel, stainless steel parts (valve, pump, hydraulic cylinder, etc)









How to choose suitable cold welding machine?

01.Casting iron parts, nonferrous metal parts welding/ repairing, choose ESD (electrical spark deposition) cold welding machine; (our machine model XKS-01, XKS-02, SZ-3000, SZ-08);

02. Casting steel parts, precise work pieces welding/ repairing, choose precise cold welding machine/ intimate laser welding machine. (Our machine model SZ-1200, SZ-1100).



03. Soldering / welding together: only for stainless steel, steel, and aluminum sheets, choose precise cold welding machine/ intimate laser welding machine. (Our machine model SZ-1200, SZ-1100).

04. Weld mould flat surface wear out, oversize/dimension out of tolerance, choose model SZ-1200 or TXKS07-3



 SZ-08 welding/ repairing function:
Injection mould: Defects like wear out, bruising, scratches, hole, etc, eliminate products’ flash, burr, etc.

Die casting mould: Defects like etch, loss, damage, wear out, chap, fracturing, etc

Auto parts casting: automotive crankshaft, piston, cylinder, wheel hub, brake disc, clutch, exhaust pipe casting defects (such as sand hole, porosity, cracks).



Industrial machinery and machine tools: repair size tolerance or wear work pieces, such as repair machine guideway, large mechanical shaft, gear parts; hot roller, cold roller, hydraulic rod in engineering machinery, printing cylinder, and all other metal components parts defects.



Aviation and shipping manufacturing: Repair/ weld compressor shell, stainless steel precision parts, precision shaft and valve, etc

And other many industry and metal products welding/ repairing.
