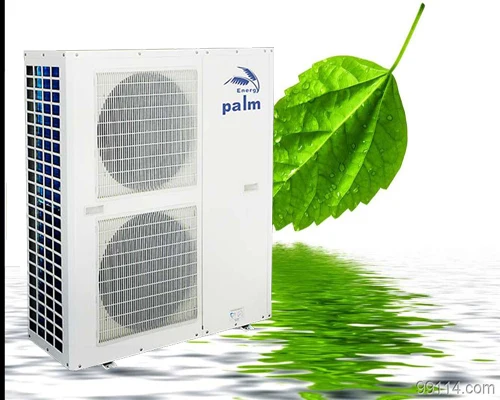

Ground source heat pump water heater

Product Overview

Description

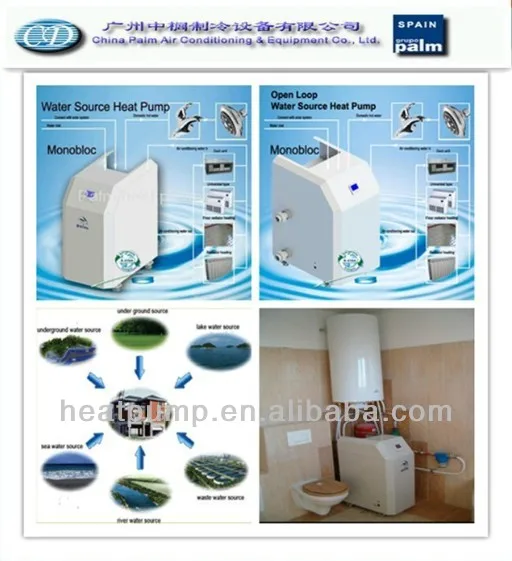

water source geothermal heat pump

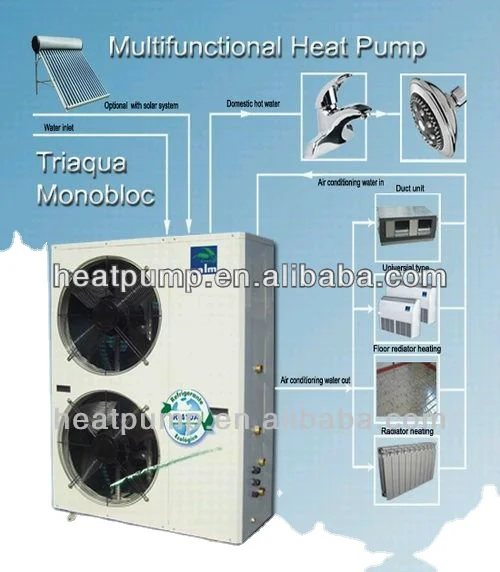

 1. room cooling, room heating and domestic hot water, flexiable functional combination.



 2. split and monobloc type available;

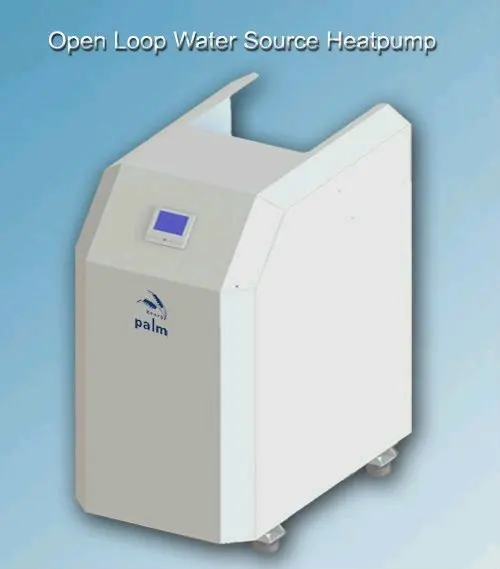

3. close loop and open loop available



 4. full rang from2kw,4kw, up to 30kw. Heat recovery function is also available as the optional.



5.  high temp version available, leaving water temp can be 70C,full range from 2kw up to 30kw.



 6. DC inverter available with 8kw and 15kw

electric water heater heating system



Water source Heat Pump  single unit with better price (5-30KW)

Water source heat pump Heat recovery is optional.

5 Times Energy Saving as Normal Gas or Petrol Heater.

Suitable for Frigid zone area.  No capacity loss in even -30C air temp.

Quite unit, free of neighbour complain.



Main Characters:

1.   Extrimly energy saving, super cost saving with R410a gas inside.
2.   Installation is easy and flexible.
3.   Can be connected with solar water heater system.
4   All water access parts are stainless steel to keep safe, healthy and non-pollution





Quality for reliability and save maintenance cost:
  Our parts are always choosend with the top brand in the world
  Heat exchanger: SWEP brand plate heat exchanger from Sweden.
  The compressor: Daikin brand Scroll type
   Heat expansion valve: Emerson brand
  Water pump: Wilo brand from Germany or Grundfos brand from Denmark
   Four way valve: Saginomiya brand of Japan
The above parts enable our heat pump to be trouble free products.





Model No			GH-2	GH-5	GH-8	GH-11	GH-15	GH-17	GH-19S	GH-25S	GH-30S
Heating	Nomical Capacity (W10ºC/W35ºC)	KW	2	4.5	8.17	10.95	14.55	16.6	18.81	25.55	30
	Power Input  (W10ºC/W35ºC)	KW	0.44	0.92	1.83	2.2	3.36	3.37	3.75	5.2	6.1
	COP(W10ºC/W35ºC)	KW/KW	4.55	4.89	4.46	4.98	4.33	4.93	5.02	4.91	4.92
	Nomical Capacity (B0ºC/W35ºC)	KW	1.7	3.2	7.2	9.1	12.2	13.4	15.1	21.00	25.4
	Power Input (B0ºC/W35ºC)	KW	0.42	0.8	1.8	2.25	3.12	3.25	3.5	4.80	5.8
	COP(B0ºC/W35ºC)	KW/KW	4.05	4	4	4.04	3.91	4.12	4.31	4.38	4.38
Cooling	Nomical Capacity	KW	2.1	4.1	9.64	12.35	15.09	16.9	18.88	25.3	30.5
	Power Input	KW	0.46	0.91	1.81	2.29	3.67	3.7	4.32	5.20	6.2
	EER	KW/KW	4.57	4.51	5.33	5.39	4.11	4.57	4.37	4.87	4.92
COP for heat recovery model		KW/KW	7.3	7.52	7.83	8.3	6.75	7.6	7.51	7.82	7.87
Power Supply			220-230V/50HZ/60HZ						380-415V/50hz
Max Output water temp		ºC	60
Mini water flow (Water Source side)		Litre/Hour	340	680	1000	1750	2400	3000	3000	4300	5200
Mini water flow (Heatpump side)		Litre/Hour	340	680	1000	1750	2400	3000	3000	4300	5200
Water source side Diameter		mm	DN25	DN20		DN25				DN32
Heatpump side diameter		mm	DN25	DN20		DN25				DN32
Packing size(mm)	L*H*W	mm	600x880x410			700x1080*460
Unit size(mm)	L*H*W	mm	550x760x350			650x960x400
Protection class			IPx4
Anti Shock class			Class 1
Refrigerant			R410a
Noise Level		dB	22	23	29	30	31	32		34	36
Regulation component			Emersion expansion valve
Condenser HX			Plate heat exchanger
Evaporator  HX			Plate heat exchanger
Net weight		kg	28	35	73	108	115	125	125	192	215
Gross weight		kg	33	39	78	113	120	130	130	197	220

Water source heat pump parameter



We provide 1% free spareparts with containered order and 2 year warranty of main parts for factory fault since shipment arrival.

We will send the spare parts by courrier method after confirm it is due to factory fault.

We don't cover the cost for failure from shipment, wrong installation and incorrect usage. Of course we can provide parts by customer's cost after warranty period.
