Polyurethane Sandwich PIR Foam Insulation Board Cold Room Panels Easy Install

Product Overview

Description

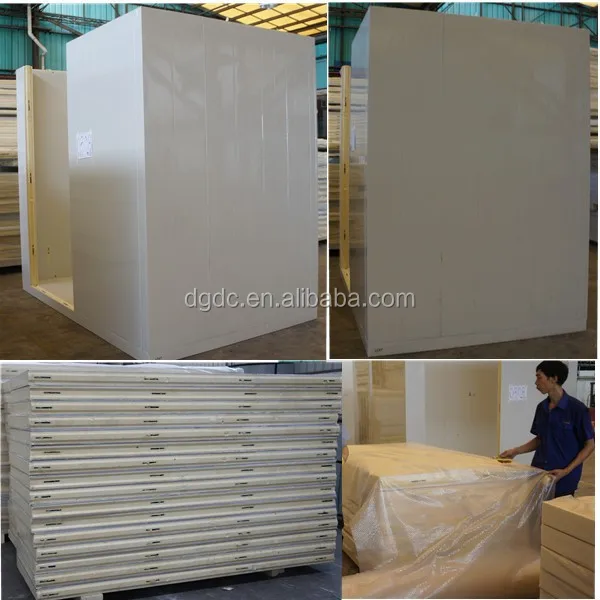

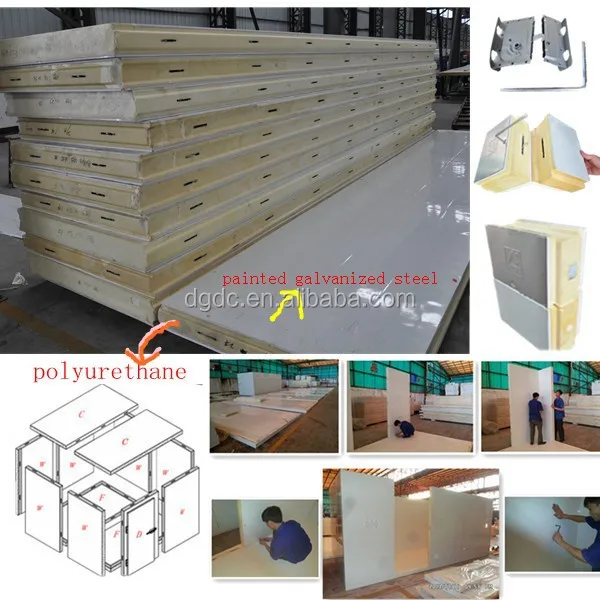

Polyurethane sandwich panel to assemble portable cold room

Features of  Polyurethane sandwich panel

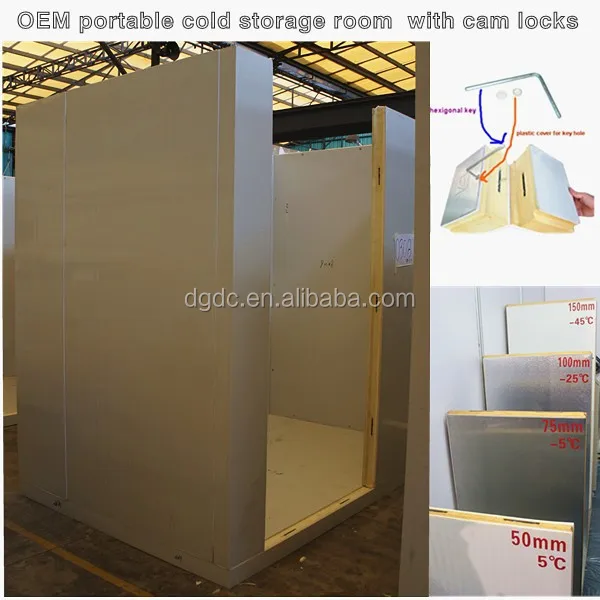

1.Panels are male and female type with cam locks, use hexagonal key to assemble.

2.Gasket around the polyurethane panel for better sealing performance.

3.used to construct mini size, mid-size and large size of cold rooms.





Test report for the modular polyurethane cam lock panel

cold room panels  foamed by high pressure,100% polyurethane insulation, enviromentally friendly,density about 43kg/m3,flame retardant injected to the panel while foaming.

No.	Inspection item	Unit	Technology Inspection	Insection result
1	Density	Kg/m3	32-50	43
2	Compressing strength (10% deformation)	Kpa	≥160	200
3	Bending stregth	Kpa	≥245	331
4	Absorbing rate	%	≤4	3
5	Heating coefficient	W/m.k	0.024	0.024
6.	Average burning time(vertical)	S	≤30	3
7	Average burning height(vertical)	S	≤250	250

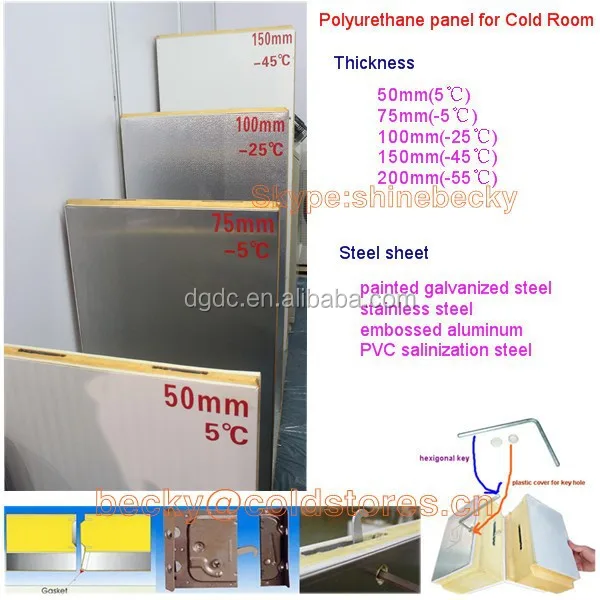

Thickness of  Polyurethane sandwich panel:

50mm(5degree C)

75mm(-5degree C)

100mm(-25degree C)

150mm(-45degree C)

200mm(-55degree C)



Steel sheet optional for the polyurethane insulation panel

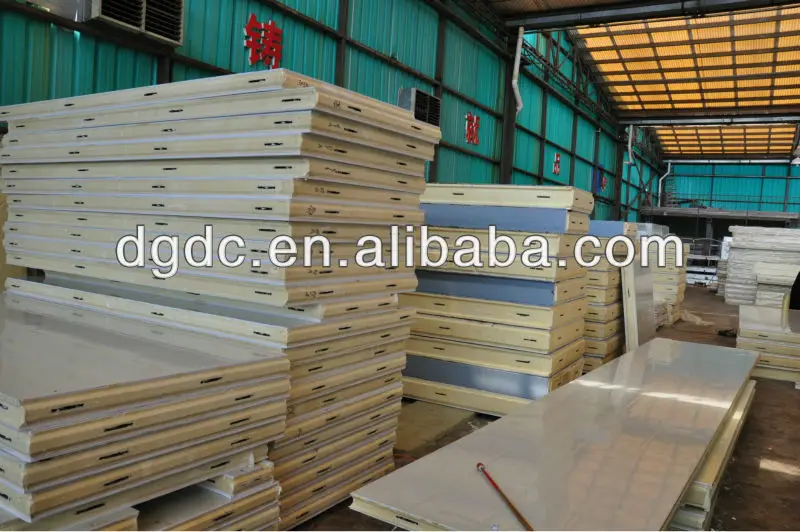

Painted galvanized steel

stainless steel

embossed aluminum

PVC salinazation steel



Polyurethane sandwich panel standard size

1.Standardwidth is 1183mm, maximum length can be 13.5m,in order to fit the container,the longest panel for oversea clients is 11.8m.

2.Customized panel size is acceptable.

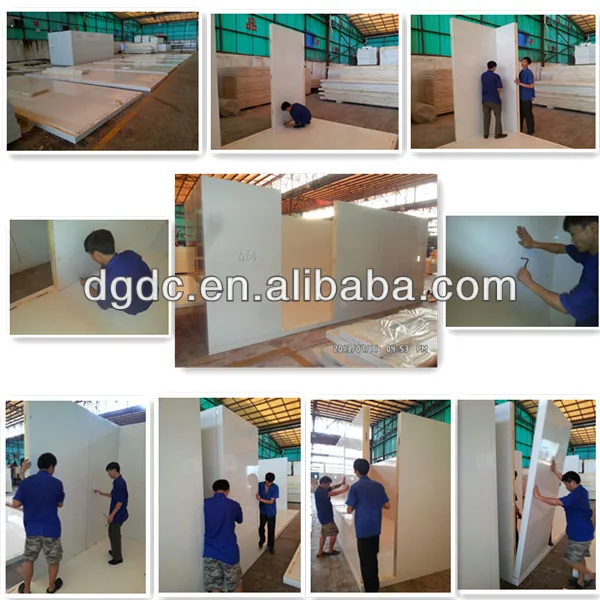

Use cam lock polyurethane panel to construct all kinds of cold room

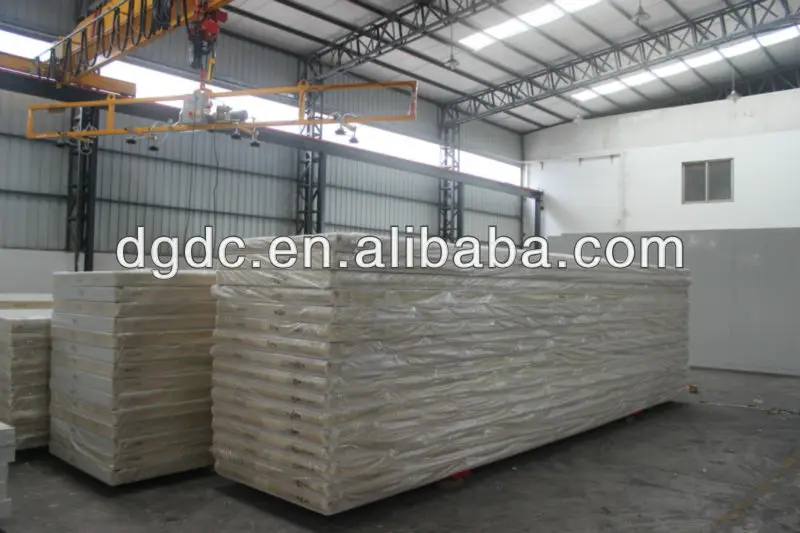

Standard packing of polyurethane panels-bubble papers

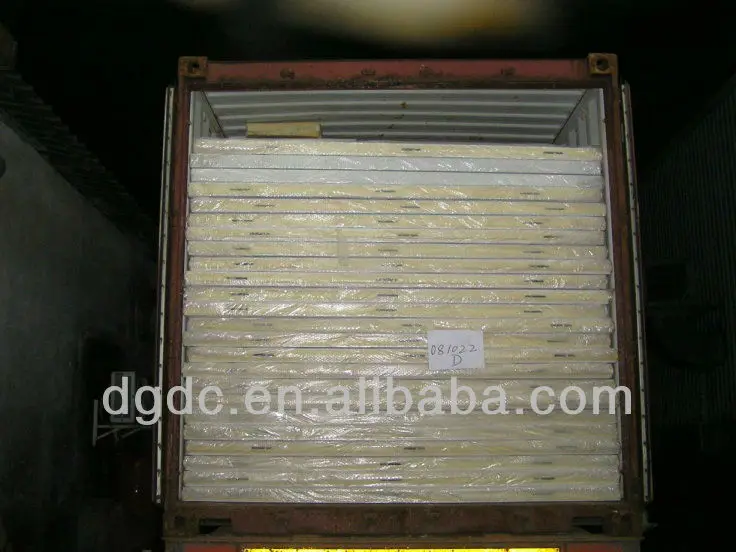

Loading of polyurethane panel

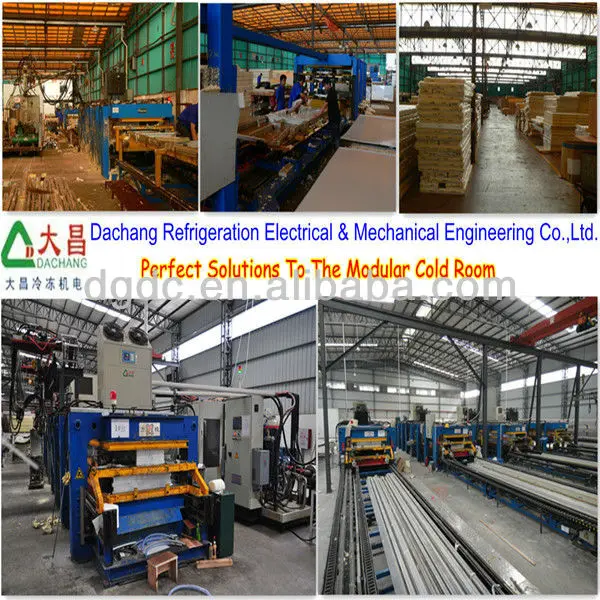

DACHANG company provide the pefect solutions to the modular cold room for 20years !

Certificate



 DACHANG company attend the related exhibitions every year.
