Other Fireproofing Materials
abrasion resistant aluminium foil glass fiber cloth 0.45mm heat insulation

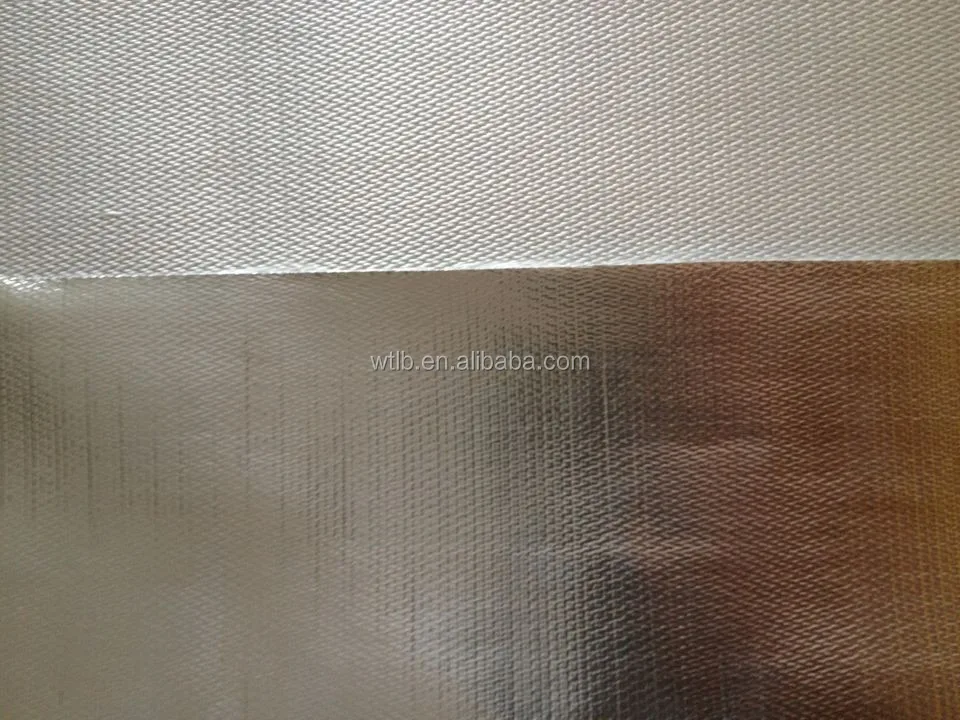

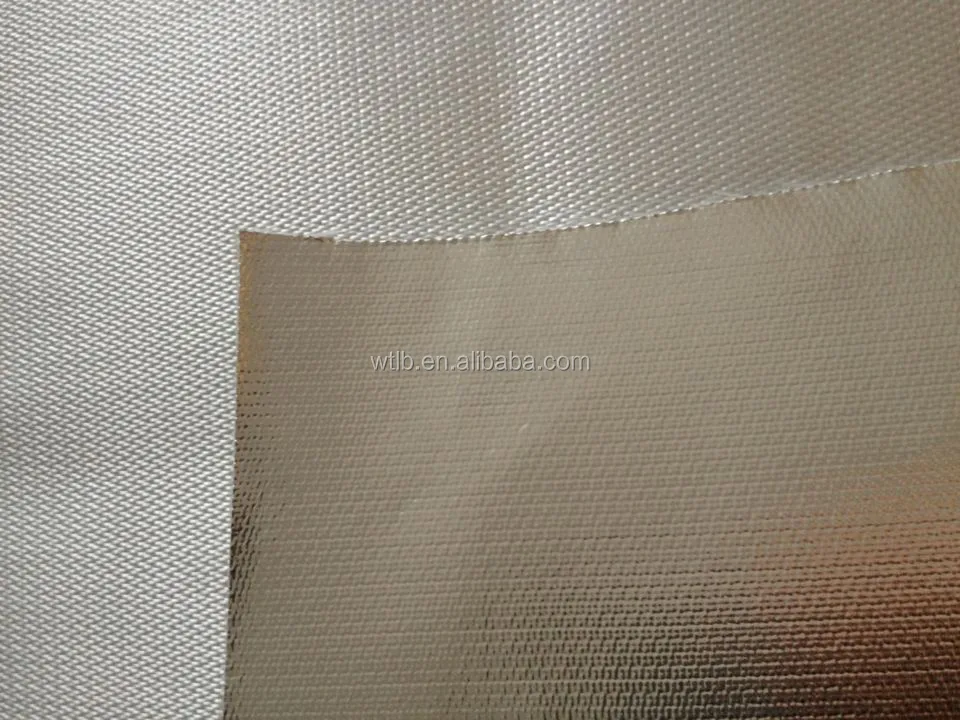

abrasion resistant aluminium foil glass fiber cloth 0.45mm heat insulation

Category: Other Fireproofing Materials >>>
Supplier: W.T Thermal Insulation Material Co. Ltd.

Price:

Quantity:

Product Overview

Description

AL-3732, Aluminum coated 430g fiberglass fabric 0.4mm:

Item No.		AL-3732
WEAVE		Plain and twill
THREAD COUNT	WARP	18 per cm	45per inch
THREAD COUNT	WEFT	13 per cm	33 per inch
WIEIGHT		430 g/M2	12.7 OZ/YD2
THICKNESS		0.43 mm	0.017 inch
COATING		Aluminum foil/Metalized film
COATING THICKNESS		7micron/18micron/25micron	0.28mil/0.7mil/0.98mil
TENSILE	WARP	6000 N/5cm	666 lbs/inch
STRENGTH	WEFT	4500 N/5cm	500 lbs/inch
WIDTH		101.6cm	40 inch
WIDTH		121.9cm	48 inch
SERVICE TEMPERATURE		Fiberglass is 550°, while mucilage is 300°

Aluminum foil coated fiberglass cloth

1.Structure:radiant barrier aluminum foil+adhesive+fiberglass cloth
2.thickness:0.1~3mm
3.width:1m,1.2m,1.5m

Ref. No.	Basic cloth	Thickness of Alu. foil (micron)	Overall Thickness (mm)	Weight (g/m2)	Width (meter)
AL7628	7628	7,14,18	0.2	200	1,1.2
AL3732	3732	7,14,18	0.45	430	1
AL666	666	7,14,18,25	0.7	700	1,1.5
ALFW600	FW600	7,14,18,25	0.6	620	1,1.5
AL2025	2025	7,14,18,25	0.75	600	1,1.2,1.5
AL3784	3784	7,14,18,25	0.9	900	1, 1.5
ALM24	M24	18,25	1	830	1,1.5
ALM30	M30	18,25	1.5	1000	1,1.5
ALM33	M33	18,25	2	1330	1,1.5

Besides,we also have aluminm foil varicosities series fiberglass:

Fabric weight:800g,1000g,1300g,1800g

Thickness:1mm,1.5mm,2mm,3mm

It is mainly used as the thermal insulating materials of steam heating pipelines, sound -proof materials in construction and protective layer of super glass wool with excellent functions of fire -resistant, anti-corrosion, heat isolation and sound absorbability. It can also be used as packing materials for the export equipment with the functions of damp proof, mildew proof, fire -existence and anticorrosion.

This cloth can be mainly used for wrapping materials of oil transportation pipelines and steam pipelines in petrochemical industry with the same effects as mentioned above.

Product:

aluminum foil fiberglass 110(110g/sqm,0.1mm):
