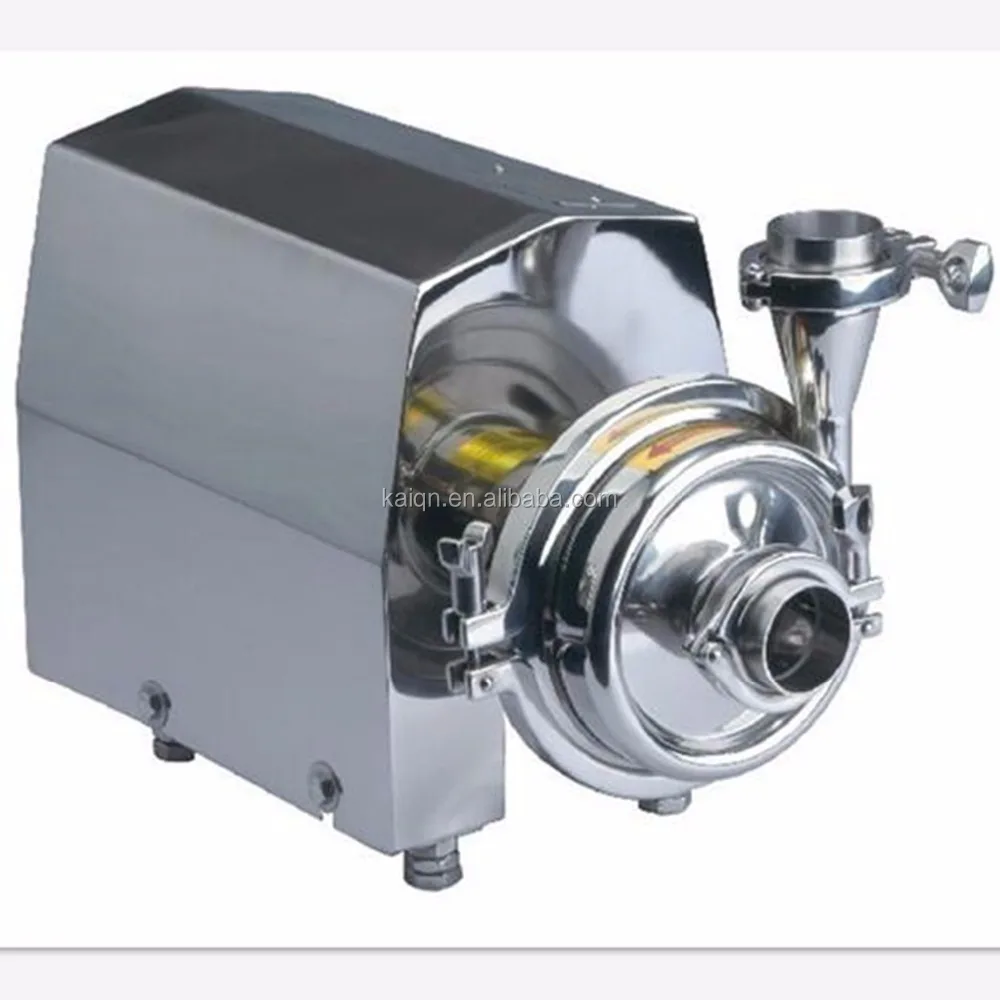

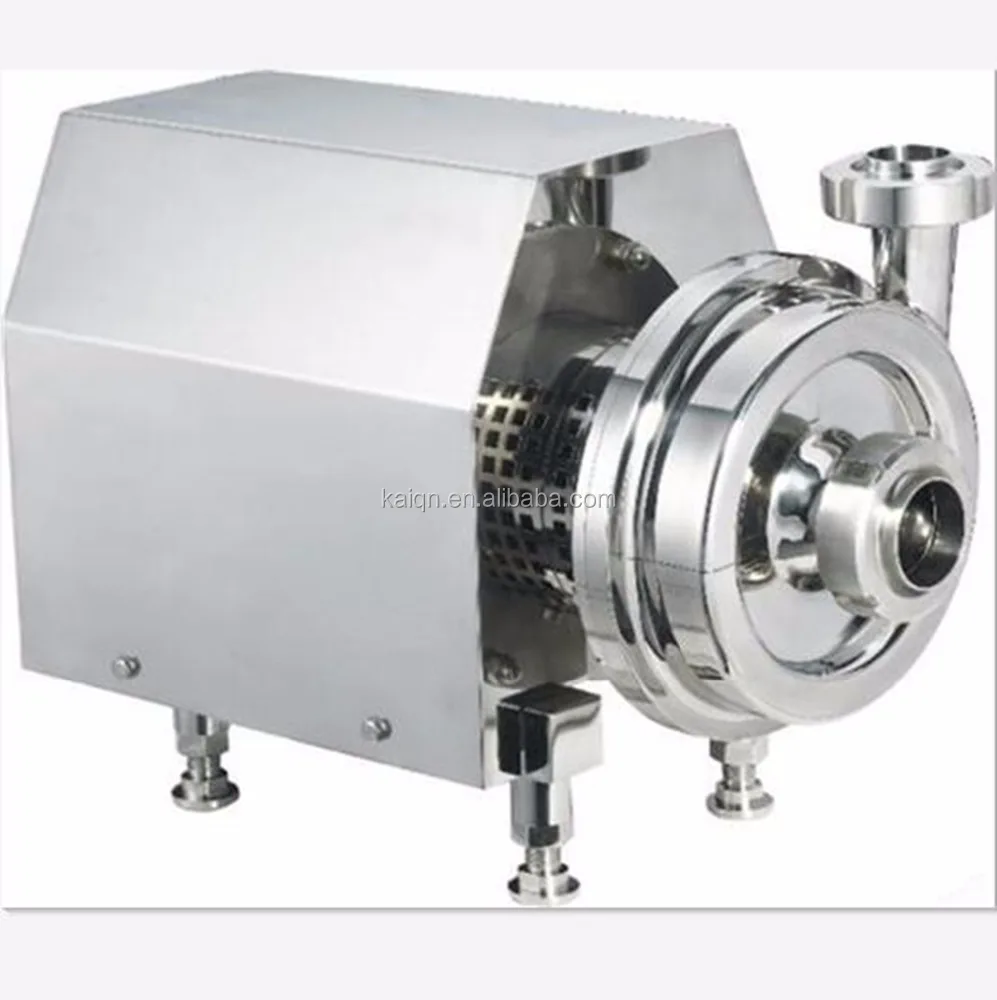

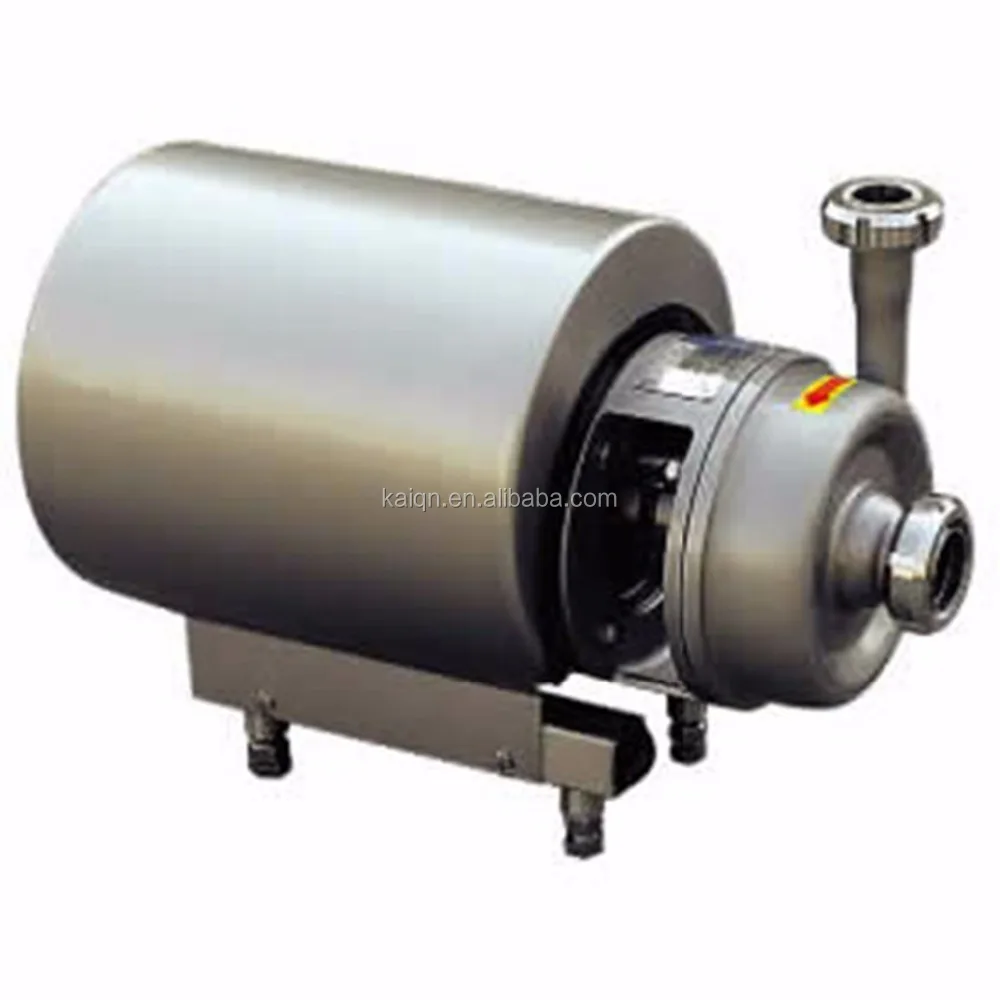

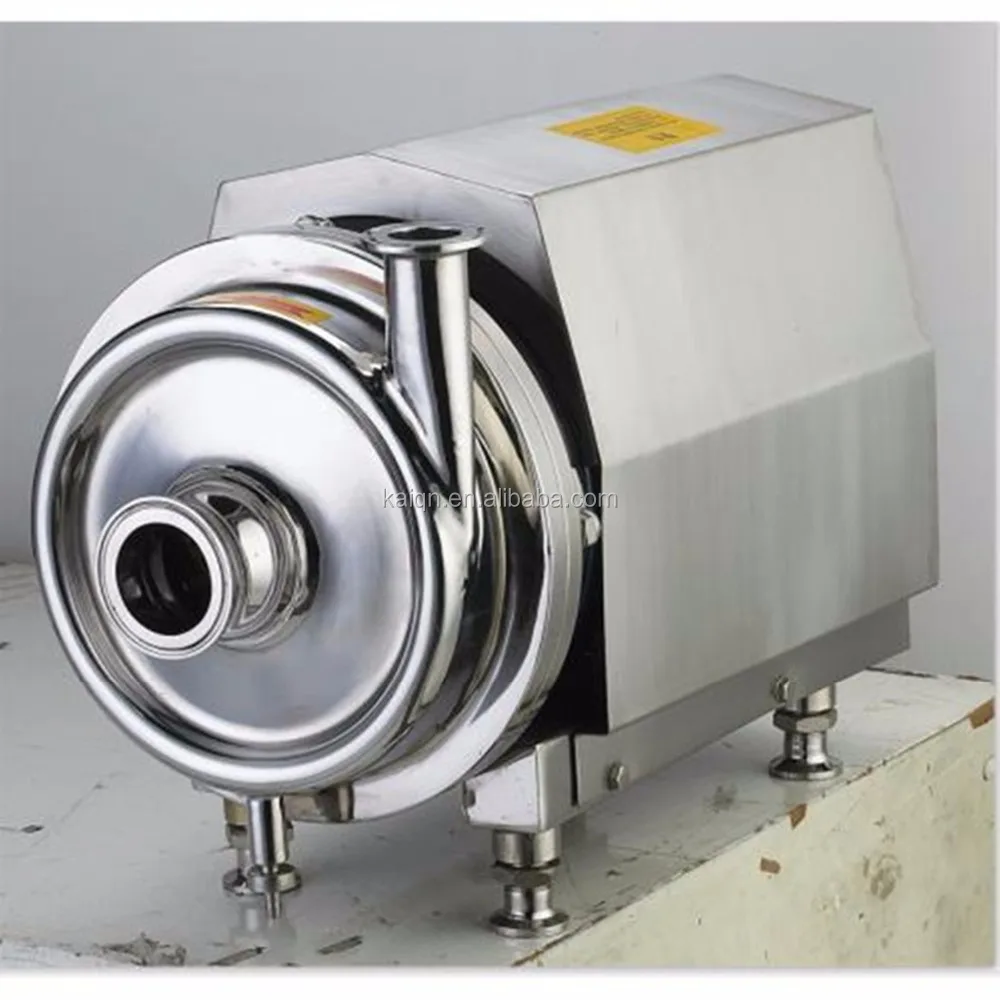

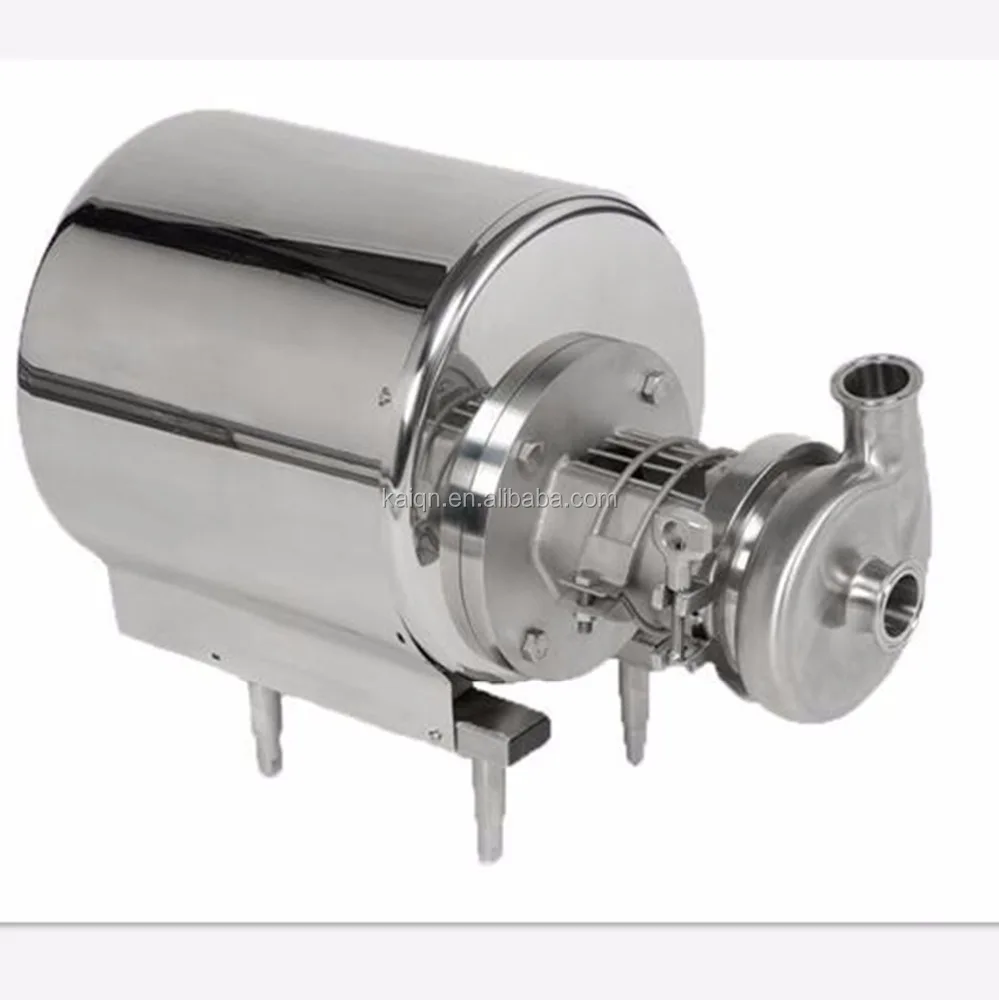

sanitary milk centrifugal pump

Product Overview

Description

Sanitary Beverage Pump











This series of beverage pumps as an ideal choice own a lot of advantages such as simple structure, easy removal, height-adjustable legs, shock-proof device, low noise, high efficiency, long time normal operation and convenient maintenance. Its smooth and soft handling to materials is in line with food sanitation requirements and ensures the original flavor of the products.



Classification of Centrifugal Pump

1. according to structure, it can be divided into three-foot pump and four-foot pump


2. according to material, there are SUS304 and SUS316L


3. according to motor species, it can be divided into ordinary motor, ABB motor and explosion-proof motor.

 Usages of Centrifugal Pump

This product is widely used in the food and beverage, dairy products, beer brewing, water supply,  cosmetic, biological engineering, and fine chemical industry project, is the ideal accessories of construction.





Rating Flux (T/H)	3	5	10	20
Raise distance(M)	18	24	24	24
Wing wheel diameter	126mm	150mm	150mm	165mm
Inlet pipe(mm)	DN40	DN50	DN50	D65
Outlet pipe(mm)	DN32	DN40	DN40	DN50
Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Power(Kw)	0.75	1.5	2.2	3
Motor speed(r/min)	2850	2850	2850	2850
Dimension(mm)	450×240×330	520×310×330	560×320×380	600×340×440
Weight(kg)	31	42	47	50









Sanitary Beverage Pump
