Original Korea SBC Linear Rail SBI30FL Linear Slider Block
- Category: >>>
- Supplier: Nanjing Shengkaite Bearing Co. ltd
Share on (60271347740):
Product Overview
Description

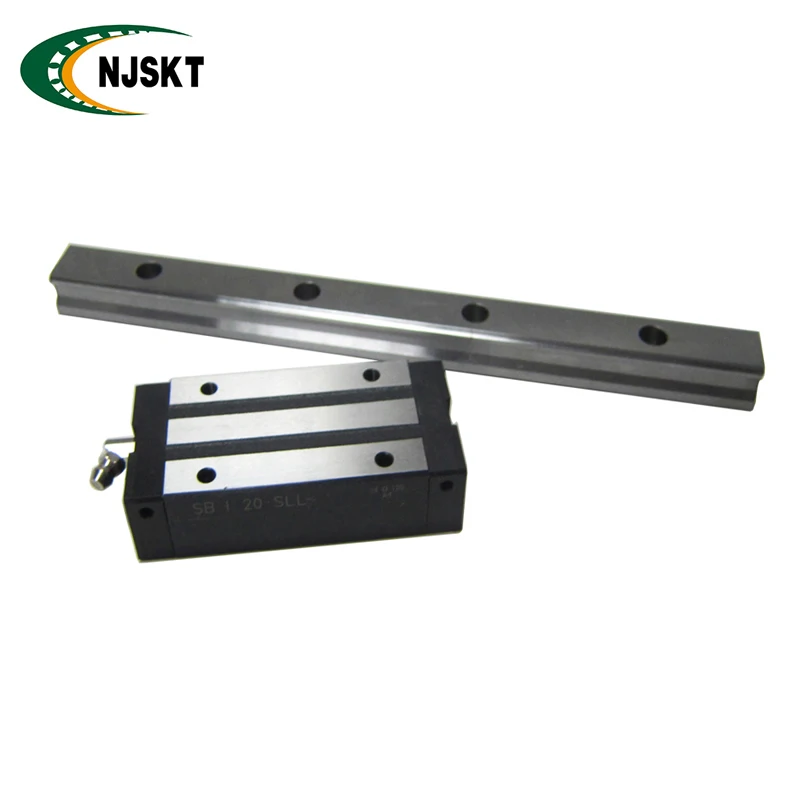

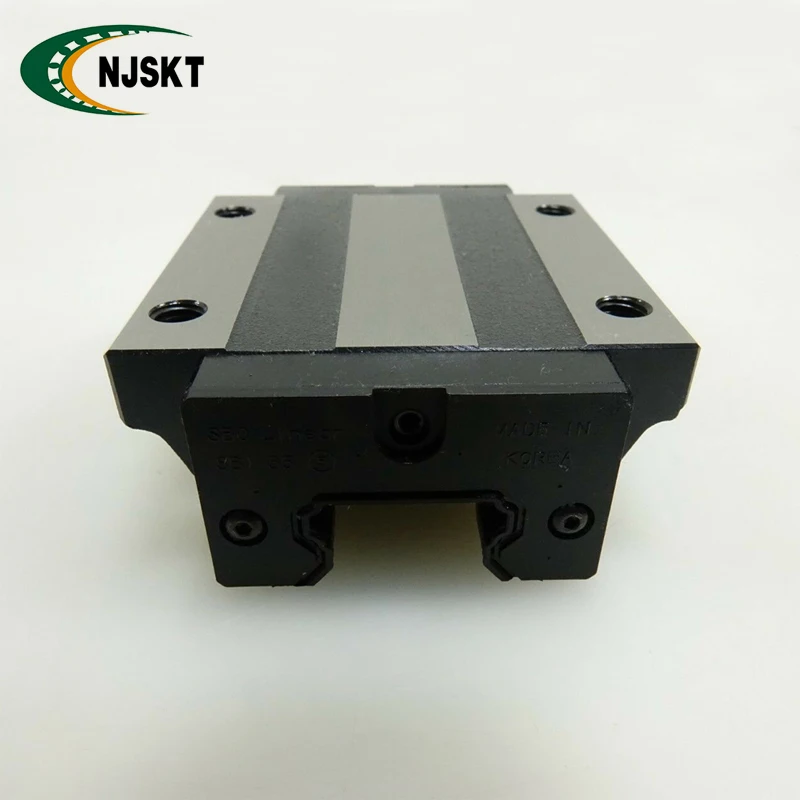

Original Korea SBC Linear Rail SBI30FL Linear Slider Block
Product Description
SBI High Load Type with all advantages of our SBG type,SBI Linear guide improves load capacity,and incrases speed capabilities.
Circular arc groove
- Two point contacr structure of circular arc groove.It keeps the function of self-aligning and smooth rolling performance.
45 degrees angle of contact.
- Four rows of circular arc groove contact ballls at an angle of 45 degrees provides the same capacity in all directions.
DF structure and low noise and high rigidity
- Optimized ball recirculation structurer and design provides low noise and high rigidity.
Country of origin :Made In KOREA
Please be advised the SBC linear guide is the length of 4000mm each pieces,We can cut the length for your need.And the products we are selling are original part.
Preload:
The preload is an internal load exerted on rolling elements in the linear guide block ,for the purposes of increasing the block rigidity and reducing clearances.CNC
Application:
CNC,NC lathe,Machining center,Industrial robot, Z axis for general industrial equipment,Etc
| Linear guide rail Details: | |
| A Different Name | linear guide rail, slide block, linear motion, linear guide |
| linear guideway, linear module, linear actuator,linear guideway | |
| Brand | SBC |
| modele | SBI30FL |
| rail lenght | 70mm/-4000mm lenght can provide |
| size: | following list |
| Minimum quantity: | 1 piece slide block and 100mm linear rail |
| Precision: | N, H, P |
| Pre-pressing | K0,K1.K2.K3 |
| Lubrication: | grease |
| Seal Types | open or sealed |
| Material: | chrome molybdenum alloy steel |
| Packing | original color box packaging,OrWooden Carrying Case. |
| Block Type | Square type block |

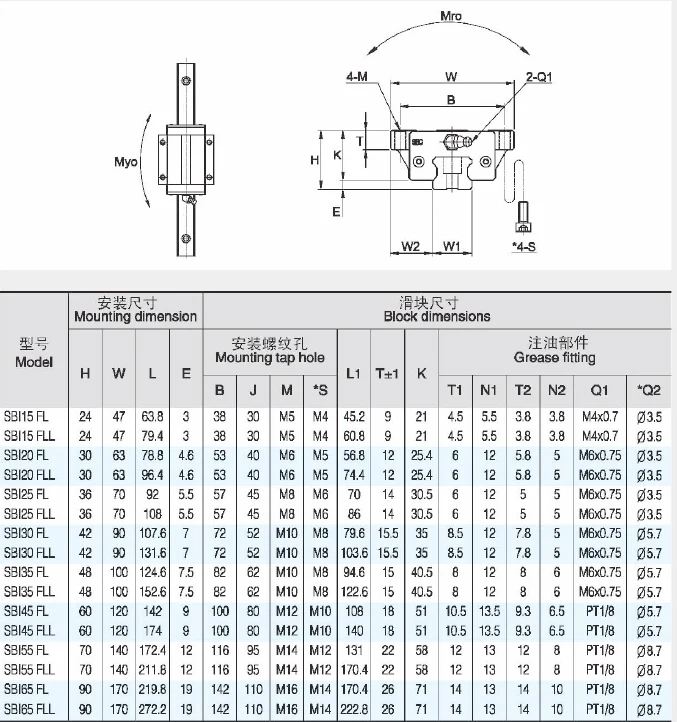

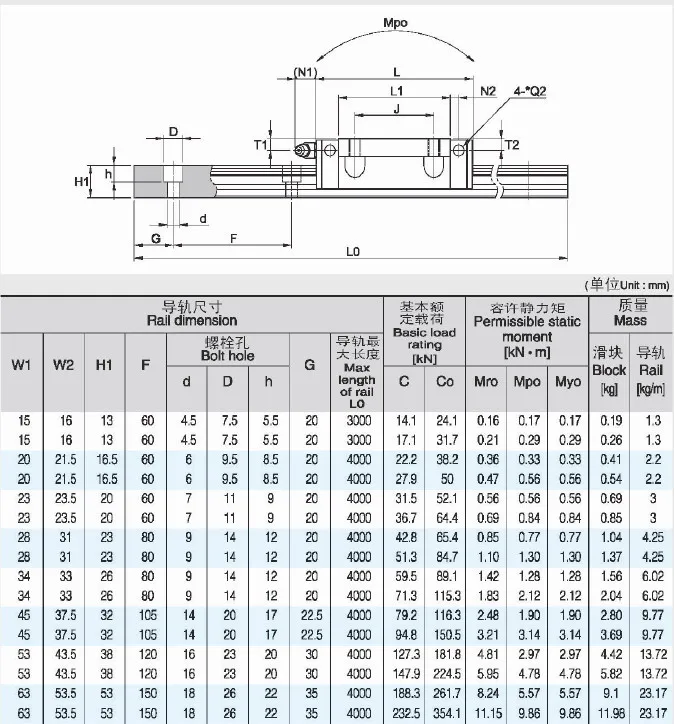

Drawing of Linear guide rail

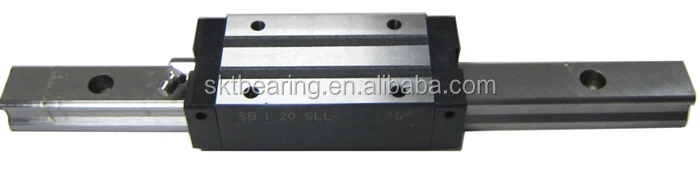

TBI linear guideway picture show

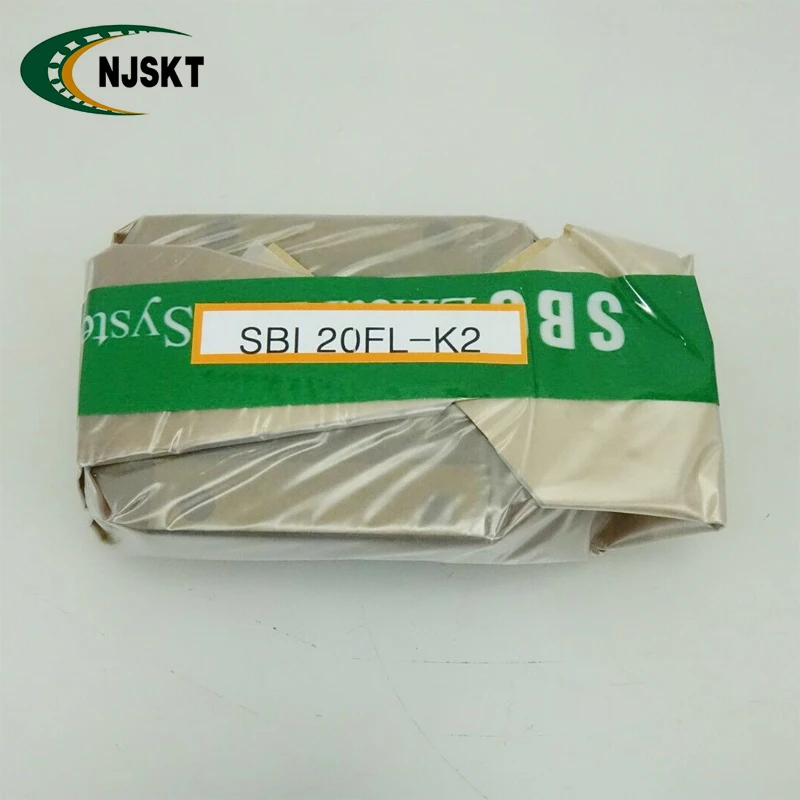

Packaging & Shipping
Our Services
MOQ:
- Standard size:1pc or 100pcs or 1000pcs accept,(Different model and size have different requirement)
- Non-standard size::500PCS to 1000PCS
Payment:
- T/T ,L/C, Western Union,PayPal, Credit Card
Sample:
- Free sample after deposit,or sample cost at buyer's cost(refundable)
Shipping:
- For Small orders (1pc-50pc)and samll Size,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
- For Big quantity (1000pc-100000pc), we will ship by sea.
Company Information
FAQ
High Original Korea SBC Linear Rail SBI30FL Linear Slide Block
