constantan sheet/constantan foil

Product Overview

Description



constantan sheet

Shape: wire, ribbon, strip
Stable resistance
Spool from flange to flange
Long life service

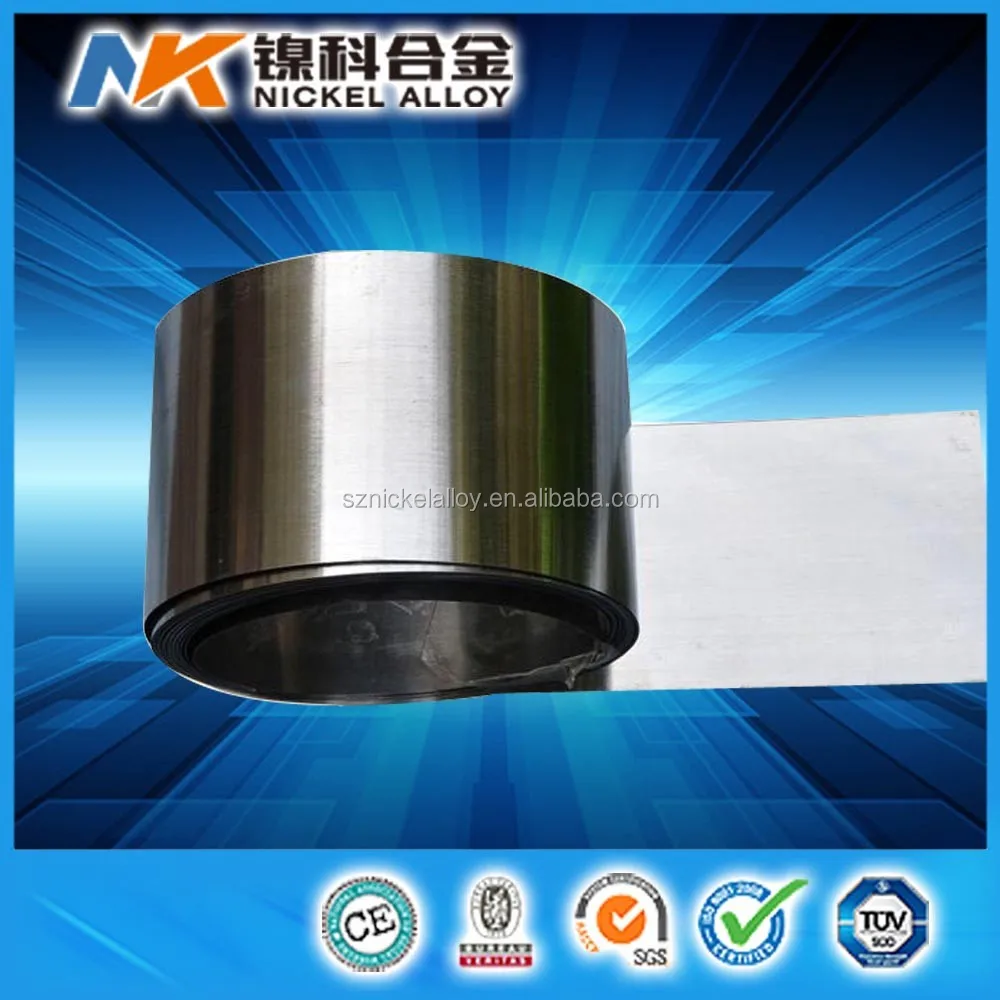

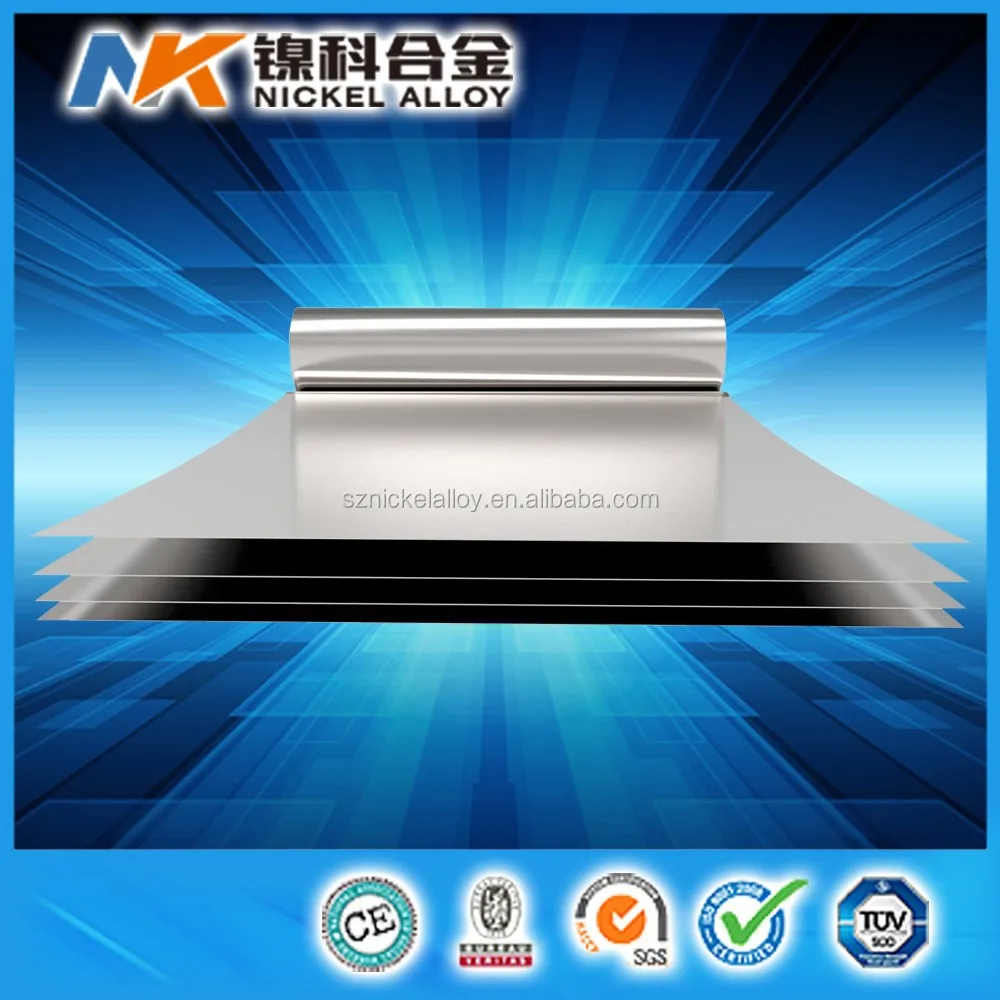

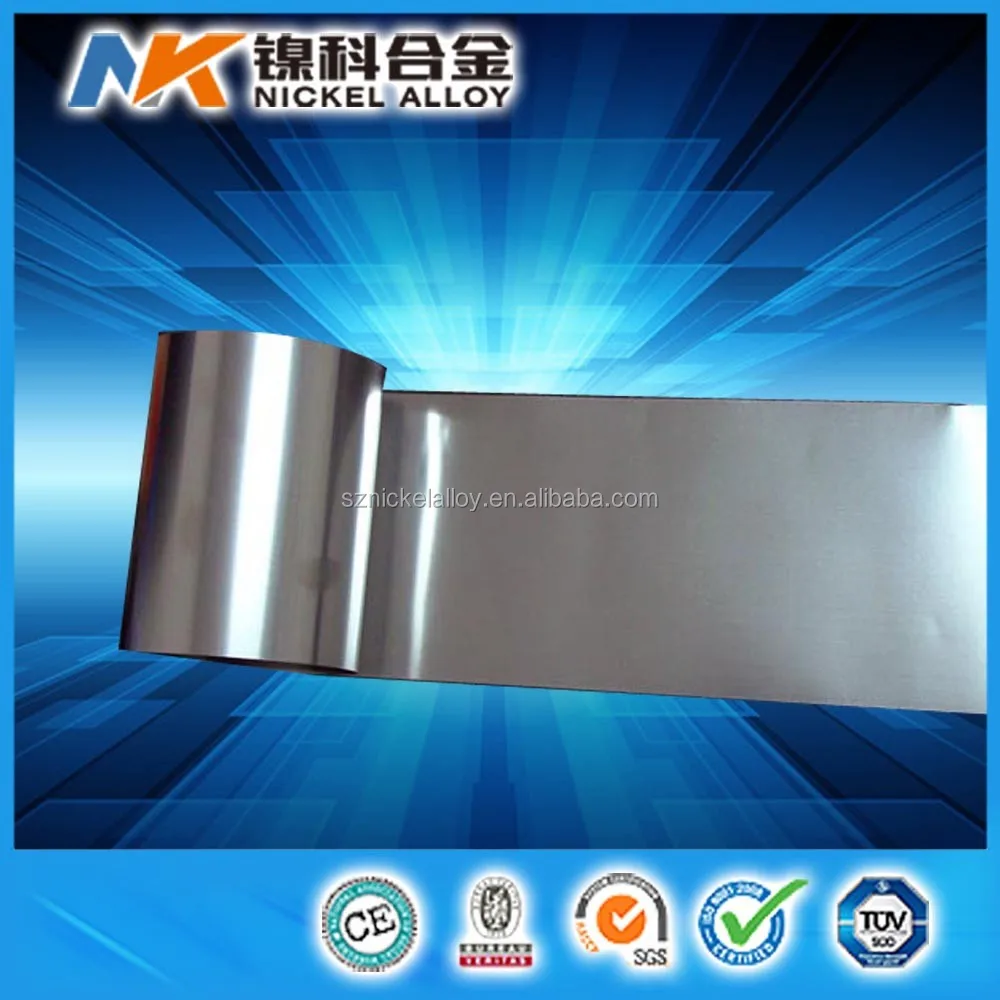

                                         constantan sheet/constantan foil

CuNi constantan alloy



CuNi alloy Grade: Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40 (6J40), CuNi44.

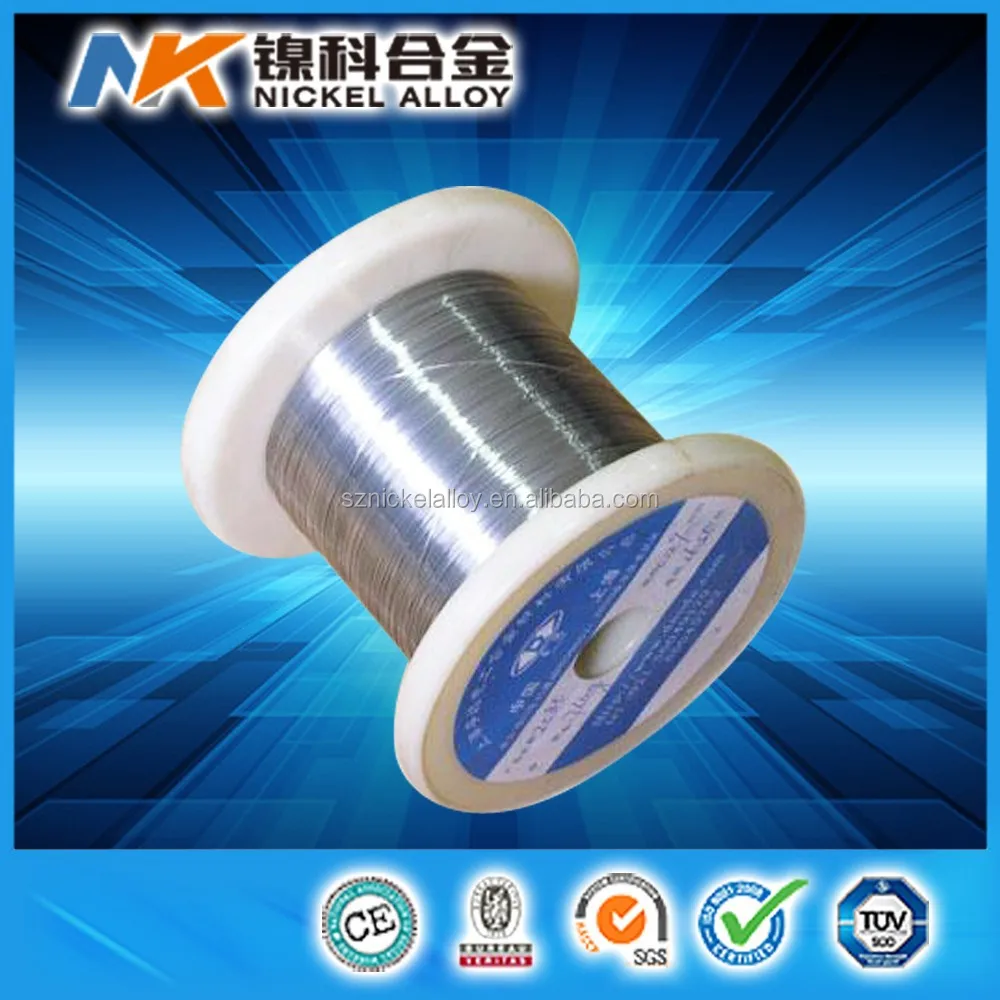

Our product are in the form of wire, ribbon, strip, foil.



Constantan (CuNi44)



CuNi44, also called Constantan, has a very low temperature coefficient, high electrical resistance, high ductility and non-corroding properties. It is suitable for use at temperatures up to 600°C (1110°F). As a very malleable, very ductile alloy, it has a very good resistance to oxidation.



The alloy is non-magnetic. It is suitable for electrical resistors, potentiometers, heating wires, heating cables and mats. Ribbons are used for heating of bimetals. Another field of application is manufacturing of thermocouples because it develops a high electromotive force (EMF) in association with others metals.



Dimension available
Wire: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.005*5.0-5.0*250mm
Bars: OD 4-100mm





Chemical Composition


Alloy	Ni%	Mn%	Fe%	Cu%
CuNi44	43	Max 0.5	-	Bal



Physical Data



Density	8.9 g/cm3
Specific Heat	0.41(J/kg 20°C)
Electrical Resistivity	0.049×10-6ohm.m
Melting Point	1210°C
Maximum Operating Temperature	600°C
Coefficient of linear expansion (coeff 10-6/°C)	14 from 20 to 1000°C



Typical Mechanical Properties



Mechanical Properties	CuNi44
Tensile Strength	420 Mpa
Elongation	25%



CuNi alloy wireis typically used in heating cables, fuses, resistors and various types of controllers.
As a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips weiding wire)

















Why Us:



•Good quality control in production process, ISO9001:2008,SGS,BV approved.



• Excellent quality and Competitive price, OEM is available.



• Available in an extensive range of stock or custom size.



• The whole process from material to finished products can be traced.



Our Service:



• Your inquiry related to our product & price will be replied within 24hours.



• Well-trained & experienced staff are to answer all your inquiries professional in English of course.



• OEM is highly welcomed. We have strong R&D team here to help.



• Good after-sale service offered, please get back if you got question.







Q1.Do you attend exhibition every year?



A .Yes



Q2.Is there any discount of the nickel wire?



A.  Yes. Bigger quantity will get a discount.



Q3.Information needed if I want a quotation?



A  Name, Standard, Material Grade(Chemical Composition), Size Quantity, Weight.



Q4. Can we visit your company/factory before place the order?



A. Yes. Welcome anytime



Q5: How does your factory do regarding quality control?



A. Quality is priority. We always attach great importance to quality controlling from beginning to end.



How to contact us?



Send your inquiry details in the below for free sample, click "send" now.
