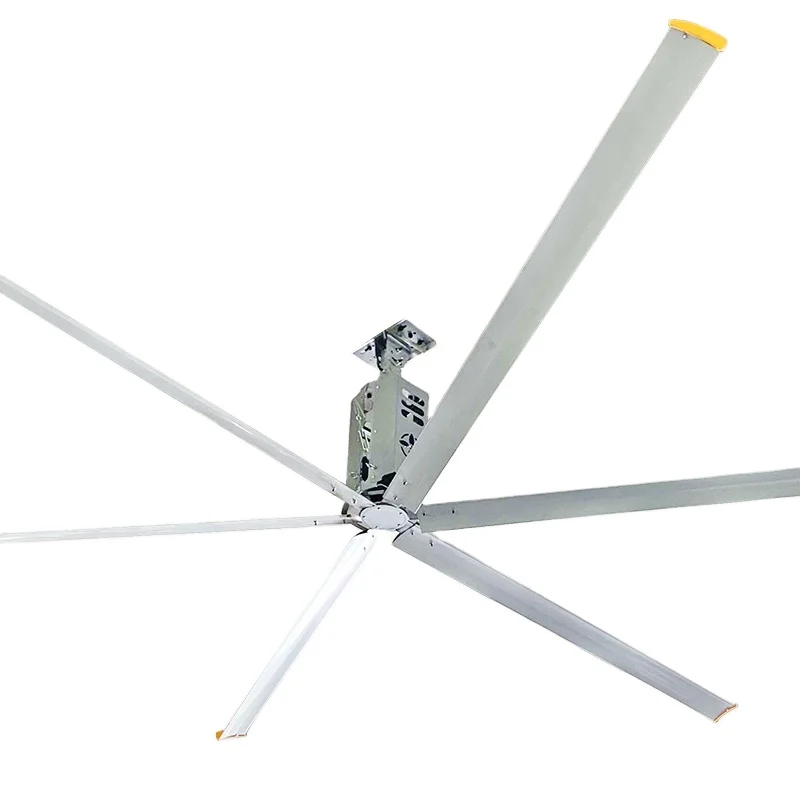

24FT HVLS Industrial Big Ceiling Fan Malaysia
- Category: Ventilation Fans >>>
- Supplier: Shanghai Aipu Fans Co. Ltd.
Share on (60271543937):
Product Overview
Description
Product Description
Product Name | Industrial HVLS ceiling fan |
Model size | AWF73 |
Brand | Aipukeji |
Diameter | 7300mm / 24FT |
Blade | 4/5/6/8/10 PCS |
* High air-volume HVLS fan
* Nord geared motor
* Danfoss VFD controller
* 6x Aluminum-magnesium alloy blades
* Highly efficient & energy-saving
* Area coverage up to 2000 sqm per fan
* Available sizes: 8.6m, 8m, 7.3m, 6.6m, 6.1m, 5.5m, 5.2m, 4.9m, 4.5m, 4m, 3.8m...
HVLS (High volume low speed) is the new solution of energy saving to solve the ventilation or cooling problem with large space. Our large energy-saving ceiling fans comes with maximum diameter of 8.6 meters, applying the HVLS principle and advanced technology manufacturing. One unit of 7.3m ceiling fan takes only 1.5KW even less power to cover area of 1,600 square meters, which is equal to the effect of 30 sets of small fans.
* Nord geared motor
* Danfoss VFD controller
* 6x Aluminum-magnesium alloy blades
* Highly efficient & energy-saving
* Area coverage up to 2000 sqm per fan
* Available sizes: 8.6m, 8m, 7.3m, 6.6m, 6.1m, 5.5m, 5.2m, 4.9m, 4.5m, 4m, 3.8m...
HVLS (High volume low speed) is the new solution of energy saving to solve the ventilation or cooling problem with large space. Our large energy-saving ceiling fans comes with maximum diameter of 8.6 meters, applying the HVLS principle and advanced technology manufacturing. One unit of 7.3m ceiling fan takes only 1.5KW even less power to cover area of 1,600 square meters, which is equal to the effect of 30 sets of small fans.
Product performance description
- High Volume Low Speed Ceiling Fan
1. Energy efficient design cuts facility energy costs up to 30%. An effective supplement to air conditioning providing 3% to 5% savings per degree of thermostat reduction.
2. Keep fresh air circulating to reduce bacteria, smoke, and mildew. Prevent damage caused by excessive moisture by helping keep these areas dry.
3. A cool and comfortable work environment allows your employees to perform at their best and deliver more effectively on company
goals.
goals.
Details Images
All the fasteners are Diameter of 14 mm high strength bolts and non-slipping self-locking nuts;
All ceiling fans are equipped with frequency conversion control system device;
All ceiling fans are equipped with H-beam buckle mounting parts;
All ceiling fans are equipped with preventing air turbulence tail and propeller blades.
Blade safety connection pieces connect the blades one by one to the blade brackets (Even if the blades brackets are broken, the fan would not falling off due to the connecting piece device.)

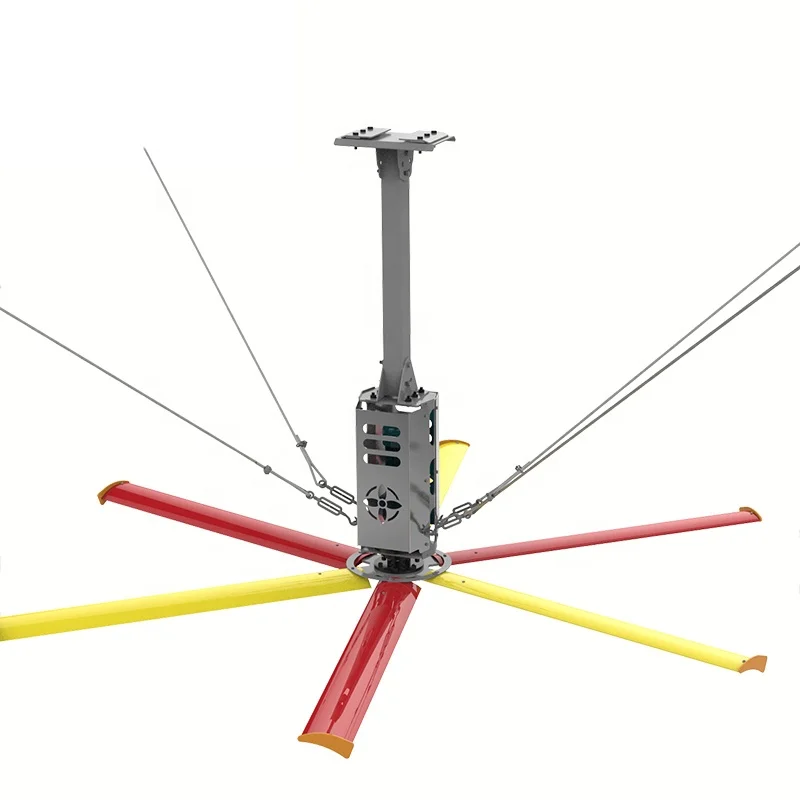

Each fan is equipped with 4 pcs of steel wire rope (enhance the stability of ceiling fan, to prevent the risk of loosening of screws)
Safety alarm device, built-in overload phase protection, timely alarm signal to ensure safe running. The perspective window is designed to observe the operating parameters of the fan conveniently
Motor System - imported Germany Nord motor
1. Low backlash assembly process and gear grinding technique, low noise2. Strength the bearing frame structure, increase oil seal
and strength the motor structure with trapezoidal shaft structure, higher safe;
3. IP55 protection grade, IE2 stardard
4. Passed CCC, CE, UL certificates
5. Can run on clockwise and counterclockwise direction
and strength the motor structure with trapezoidal shaft structure, higher safe;
3. IP55 protection grade, IE2 stardard
4. Passed CCC, CE, UL certificates
5. Can run on clockwise and counterclockwise direction
1. Famous brand electrical sets, with safety protection module inside which will interrupt the output automatically in case of some
accidents.
accidents.
2. Protection level is IP55, passing UL, EMC, ROHS certificates;
3. Safety & Protection: over-load, over-current, cutting off t he power automatically in emergency situation
3. Safety & Protection: over-load, over-current, cutting off t he power automatically in emergency situation
High strength aircraft grade magnalium, fluorocarbon painting on surface, aerodynamic fan blade design. Patented fan blade design:
3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss
of connecting components.
3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss
of connecting components.
Related Products
Packing&Shipping
The fan will be package into unfumigated wooden cases.
Package size:
80cm*80cm*50cm
250cm*26cm*28cm
GW: About 190kg
Company Introduction
Shanghai Aipu Fans Co., Ltd was established in Shanghai, China. Since its establishment in 2006, it has been manufacturing industrial-grade high-quality ceiling fan and providing the best product solutions for domestic and foreign customers' industrial production. Based on industry-leading motor technology and manufacturing technology, AIPU's products have achieved top quality in the field of industrial electric products with rich technical advantages and advanced management concepts, They are highlyrecommended by customers and has grown into an integrated manufacturing and trading company with core technology advantages.
Our Services & Strength
We have 8000 square meters of production base, equipped with high-precision automatic production machine. The products produced by the automatic machine have higher quality and higher cost-effective, and the automatic machine is also the guarantee of our high productivity. The factory is equipped with the latest production equipment and production technology, the establishment of a machining center, cutting center, welding center and testing center.
FAQ
Q1. Are you the factory?
A: Of course, we are large ceiling fan manufacturer in Shanghai with many years' experience.
Q2. What about the lead time?
A: It can be within 3-5 days after receive the payment if the order is less than 20 sets.
Q3. Do you have any MOQ limit for HVLS CEILING FAN?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order for HVLS CEILING FAN?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the specification parameter and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
A: Of course, we are large ceiling fan manufacturer in Shanghai with many years' experience.
Q2. What about the lead time?
A: It can be within 3-5 days after receive the payment if the order is less than 20 sets.
Q3. Do you have any MOQ limit for HVLS CEILING FAN?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order for HVLS CEILING FAN?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the specification parameter and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
