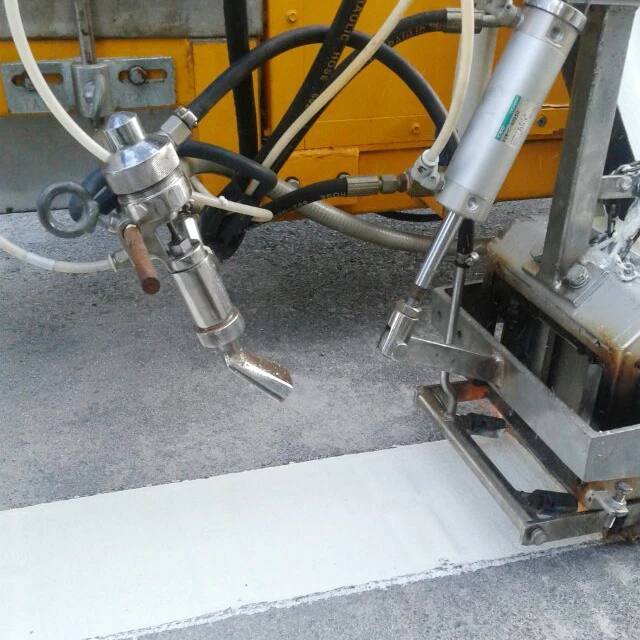

JLCRG Road Marking Paint Machine Line Striper

Product Overview

Description

Automatic Driving Yellow Paint Striping Machinery Roadway Marking





Thermoplastic Road Line Marking Paint Machine Width is 100, 150, 200, 300mm, and thickness is 1.5-2.5mm through adjusting the screeding knife.



1.Ideal machine for medium-sized and small marking jobs in urban areas and road.

2.The screeding structure makes the markings straight and beautiful.

3.Easily operative to ensure the marking speed and quality.

4.Dual-use machine,also can change marking shoe for zebra crossing marking.







Main Parameters of Automatic Driving Yellow Paint Striping Machinery Roadway Marking

No	Item	Specifications
1	Engine	37kw diesel engine
2	Heating mode	Liquefied gas fuel heating or conducting oil heating or automatic temperature control heating
3	Marking Mode	Equipped with one extrusion marking shoe
4	Standard Configuration	150mm Marking shoe
5	Marking Shoe=Line Width	100/200/250/300mm (Optional)
6	Marking thickness	1.0-2.0mm(adjustable)
7	Paint Tank	325L
8	Glass Beads Bin	120L
9	Air Compressor	0.6m3/min
10	Control system	Digital intelligent control
11	Size and Weight	5100*2450*2300mm 3500 kg

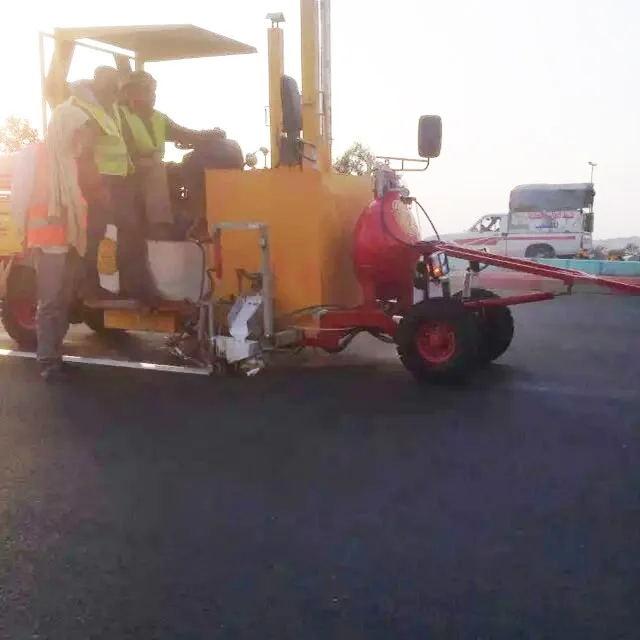

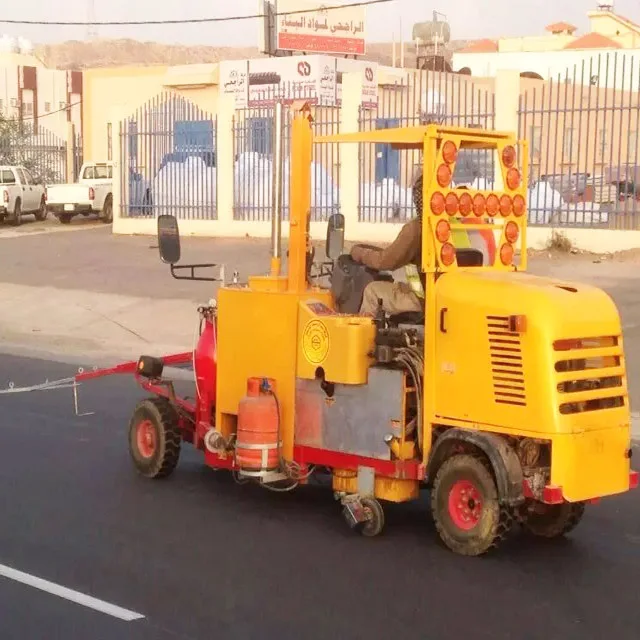

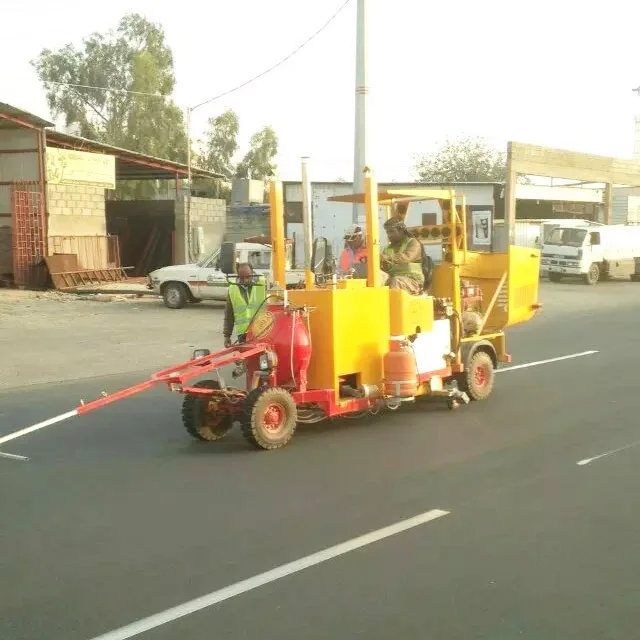

Driving Yellow Paint Striping Machinery Roadway Marking working site :

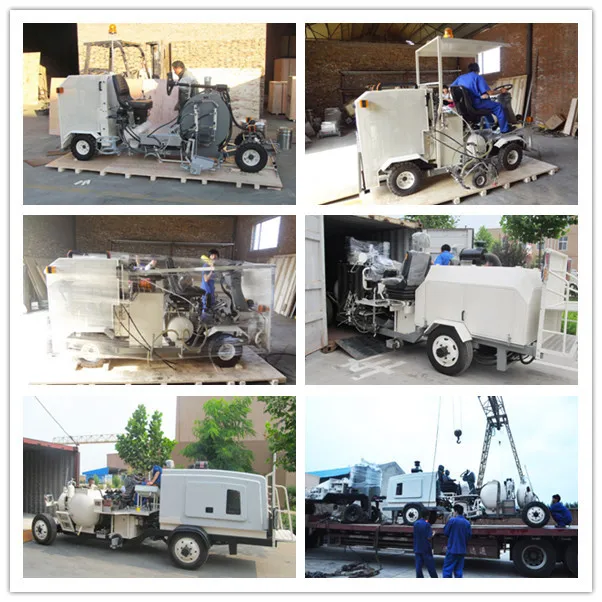

  Wooden package for Automatic Driving Type Road Line Marking Machine





JILI machinery supply three kind of road marking paint machine according to the paint material :



1. Thermoplastic road marking machine series;

2. Cold paint road marking machine series

3. Two-component road marking machine series



According to different marking ways , the thermoplastic road marking machine can be divided into 3 type:

1. Thermoplastic screeding type

2.Thermoplastic extrusion type

3. Thermoplastic spraying type

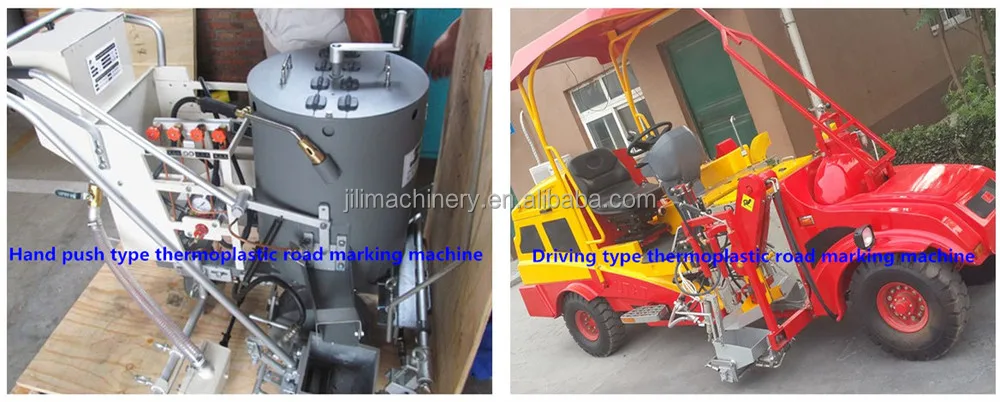

The working type could be driving type marking, self propelled type marking or hand push marking .





The thermoplastic road marking equipments needs a set of numerical equipments to  compelet  the construction .



It is usually including the following parts.

1. Thermoplastic pre heater

2. Road marking machine

3. .Pre-marking machine

4. Primer





The cold paint road marking is different from thermoplastic road marking . It can complete only by one unit road marking machine.

It can be divided into high pressue airless type and low pressure air spray type .

The working type could be driving type marking, self propelled type marking or hand push marking



We would like to be helpful for your road constricon.
