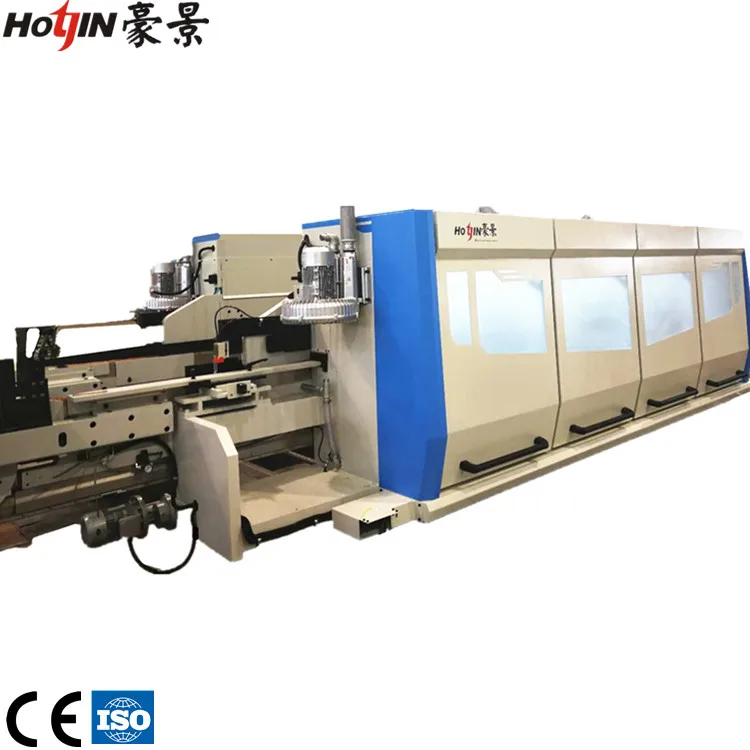

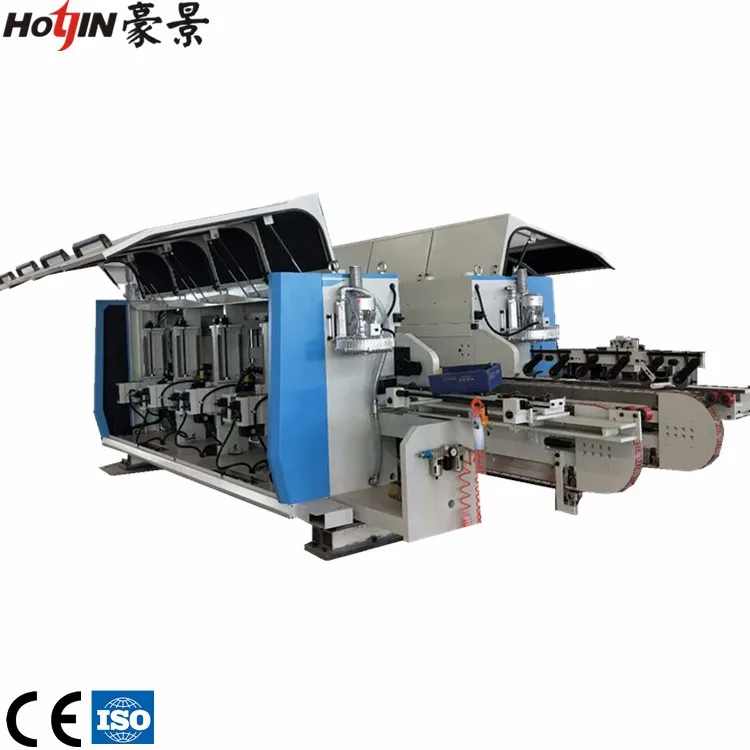

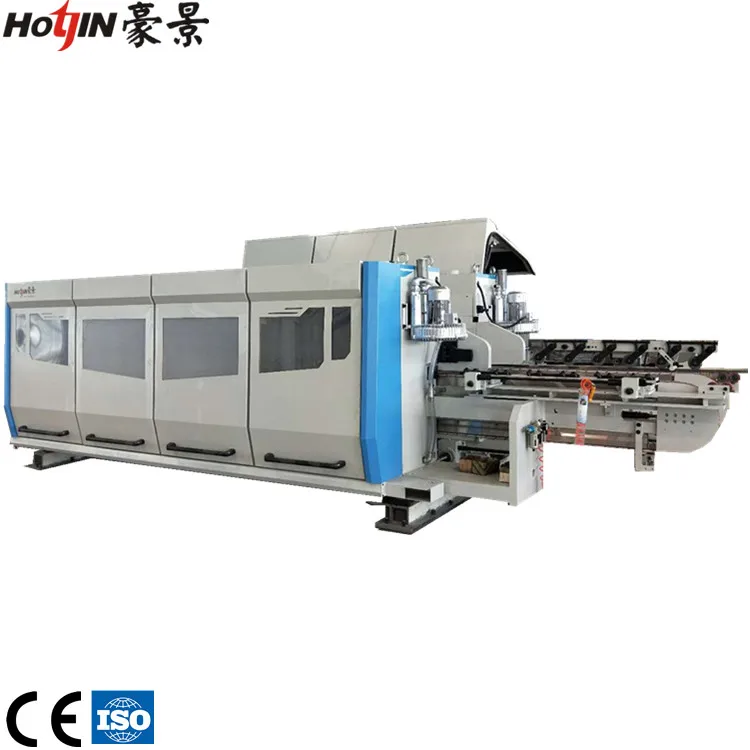

wall panel double end tenoner

production line explanation:

Flooring double end tenoner production line Hotjin FPR, the whole line adopts automatic operation, the main machine is track-through type with highly intensive U-shaped guide rail, which ensures the operational linearity and the synchronicity of double rails.This automatic production line is mainly applicable to the continuous production of floor, advanced design, simple structure, easy operation, intensive automation and reliable performance.

Technical parameters

A.Floor size: Length:1000-3600mm
                             Width:185-800mm
                             Thickness:6-25mm
B.Speed of production line:60-80 m/min
C.Direction of production line:Left
D.electric control:Working voltage: 380V,50Hz
       Control voltage: 220V,50Hz &24V (DC)
E.Air Pressure: 0.6-0.8Mpa
      Air capacity: 3 m³/h
F.Equipment's color:
      Main body: RAL7035 greyish white
      Lines of body: RAL5012 light blue
      Warning color: RAL1016 LY.yellow
G.Capacity count:

Longitudinal double end tenoner(Model: DTL6/08/10D)

Function: It used in the forming processing of the long side of plate, is six stations 10 shafts, One station is space.

Basic configuration:

1.Double chain,straightness precision is 0.02mm;
2.The chain is bearing rolling,error of pitch is 0.005mm;
3.Upper press with manual adjustable to meet corresponding floor thickness, it use widen V speed chage belt to ensure synchronize;
4.Adjustable fixed running rule of left side;
5.Adjustable elasticity side pinch roller of right side;
6.Passive elasticity upper press roller of feeding port;
7.Have blower system in chain, make sure chain inside positive pressure, reduce dust into;
8.Tool tip use slider to control height difference, the wear resistance of slider is well, the hardness of surface more than 650 ensure chain pad the same height, the precision of height is 0.02mm;
9.The tool tip upper press use high wearing spray painting alloy material, use air pressure to bring steady pressure, the air pressure can adjust;
10. Have 4 motors in each side, angle according ro request +22.5°to 90°or -45°to -90°adjust. Have a space station, each station has a Dia. 120mm dust hood;
11. The cutter shaft use T lead screw adjust, show distance on the numerical indicator, have dialgage delicate adjusting, the precision can achieve to 0.01mm;
12.The equipment have noise enclosure, inside has noise cotton;

Parameter of the main machine:

1.Working width:185-800mm
2.Working thickness: 6-25 mm
3.Height of working table:1100 mm
4.Rotate speed of cutter shaft:6000-7000 rpm
5.Feeding speed:40-80 m/min
6.Motor power of cutter shaft: (Inverter control)
The 1st station power (each left and right):8 kw,
The 2nd station power (each left and right):5.5kw,
The 3rd station power (each left and right):8kw,
The 4th station power (each left and right):5.5kw,
The 5th station power (each left and right):5.5 kw,
The 6th station power (each left and right): space
7.Feeding motor power: 5.5 kw(Inverter control)
Blower motor power:2.2kw X2
Width adjusting motor: 1.1kw
8.Cutter diameter: Φ220-250XΦ40
About cutter we suggest use hydraulic system, the other motor need to notes specially.
9.Dust hood diameter
Station 1st 2nd 3rd 4th 5th :Φ120mmX12
Machine cover diameter:120mmX2
10.Weight:6500 Kg
