2440*600*10mm xps Tile Backer Board fireproof insulation board
- Category: >>>
- Supplier: Hangzhou Tyco Industrial Co. Ltd.
Share on (60271821296):
Product Overview
Description
Details Images

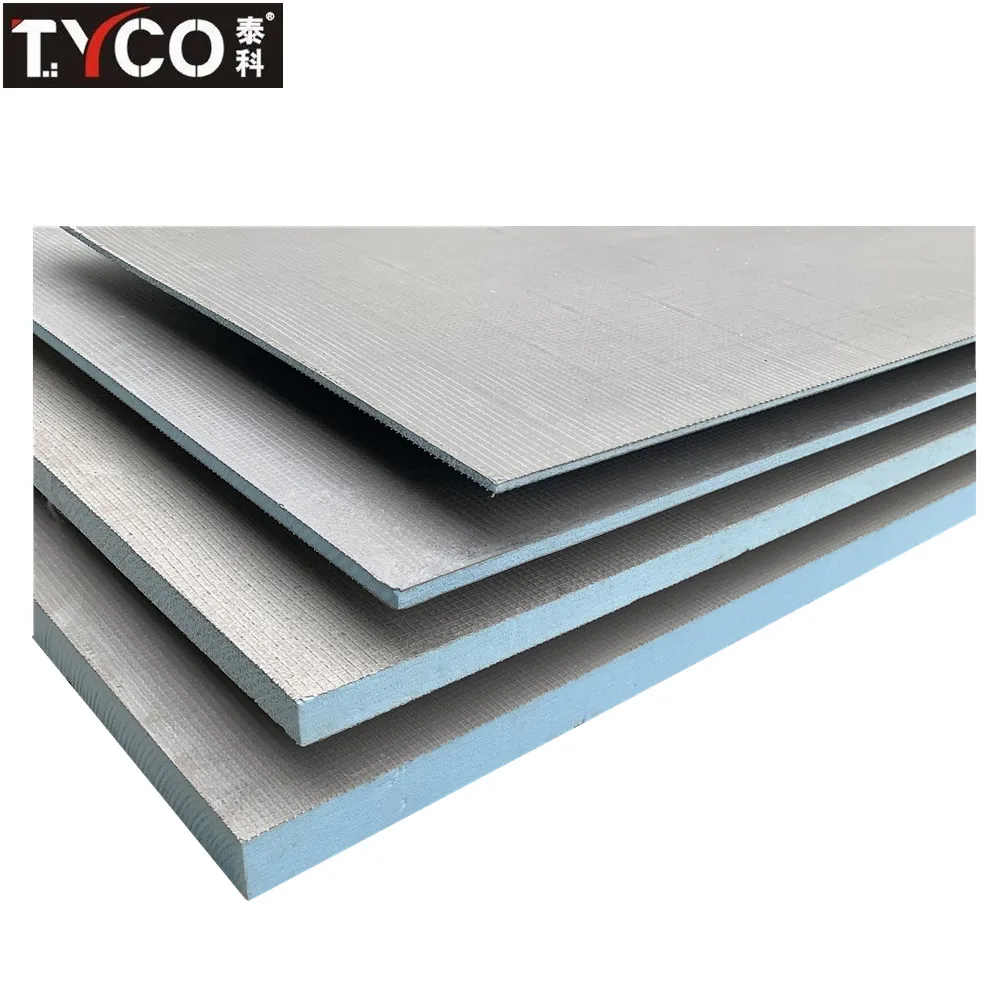

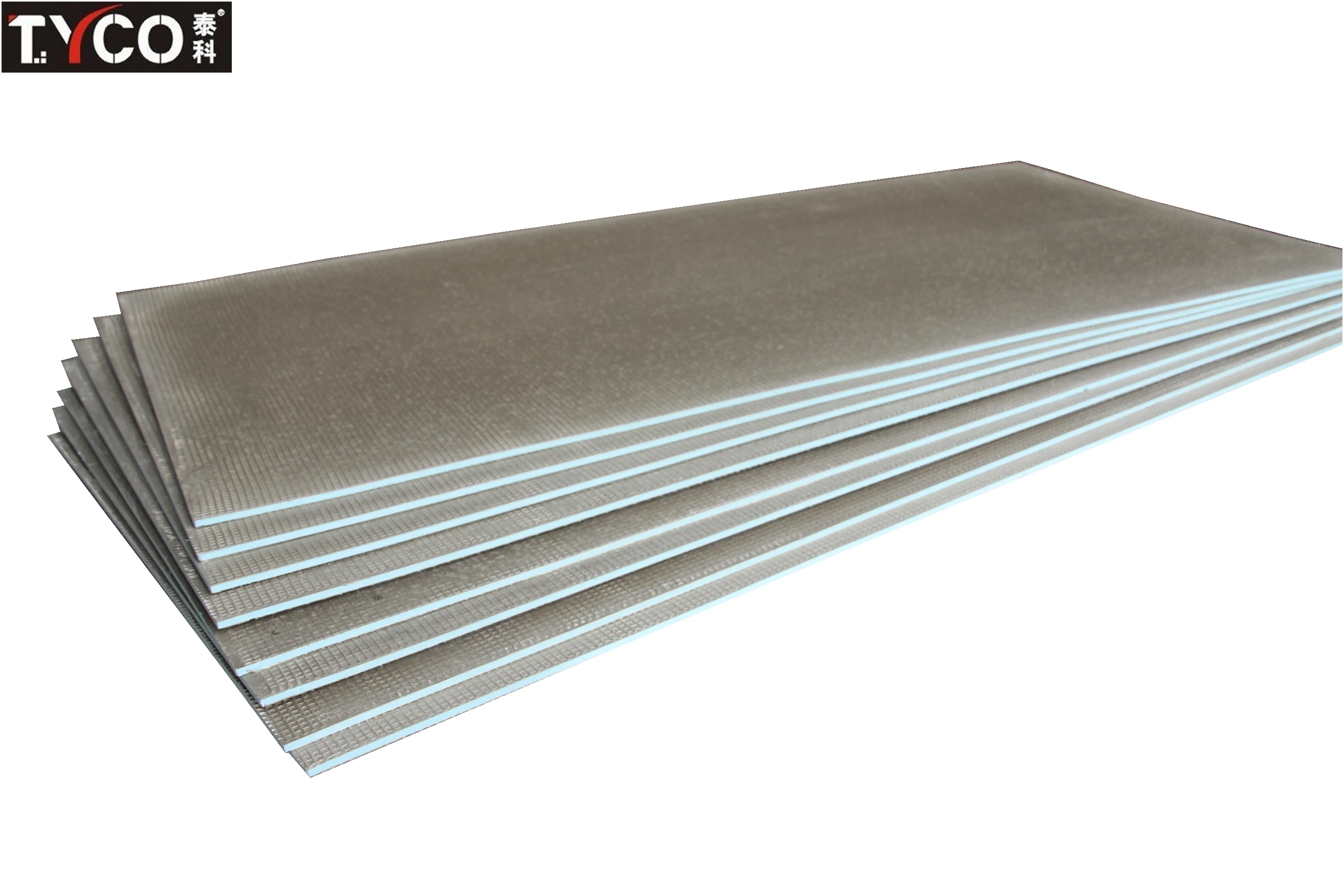

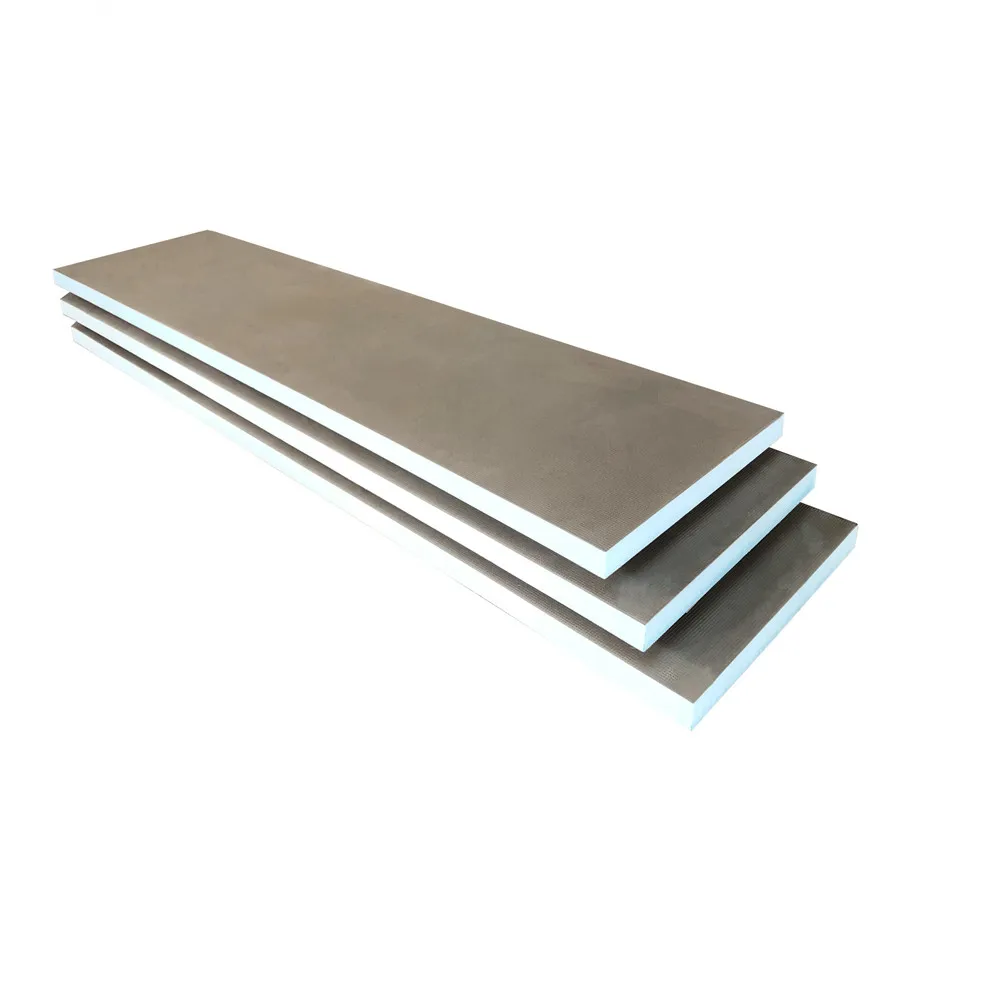

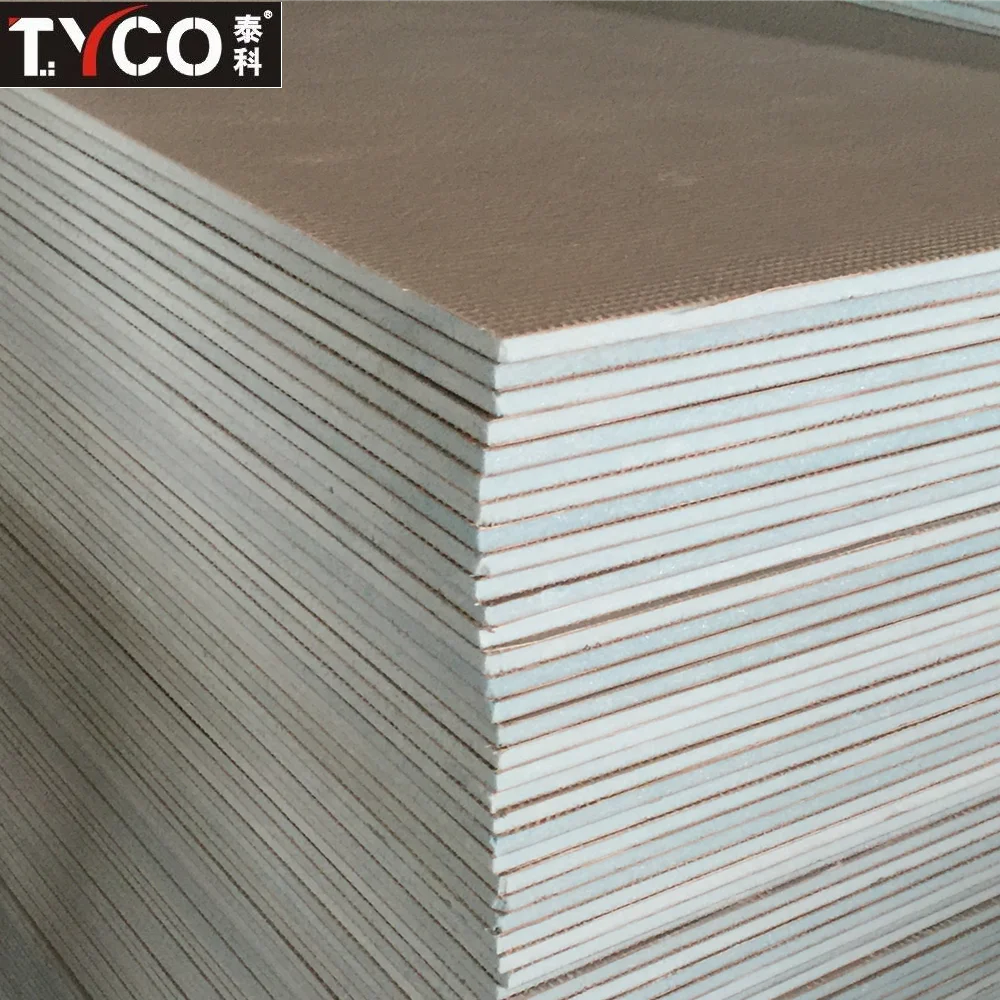

XPS TILE BACKER BOARD
They are widely used in the under floor heating system as a structural tile backer boards. Wet Room Tile Backer Board also can be used in the floor, wall and ceiling by acting as a very efficient moisture and thermal barrier.
Characteristics:
* Waterproof and dimensionally stable
* Low weight, one board(1200*600*10mm) is around 1.8KG
* Easy to cut(by knife or Saw)
* Excellent for wet rooms
* Excellent sound insulation(12mm board, 20 db)
* Environment friendly(free of CFC and HCFC)
* Easy to be tiled
* Waterproof and dimensionally stable
* Low weight, one board(1200*600*10mm) is around 1.8KG
* Easy to cut(by knife or Saw)
* Excellent for wet rooms
* Excellent sound insulation(12mm board, 20 db)
* Environment friendly(free of CFC and HCFC)
* Easy to be tiled
Technical Data:

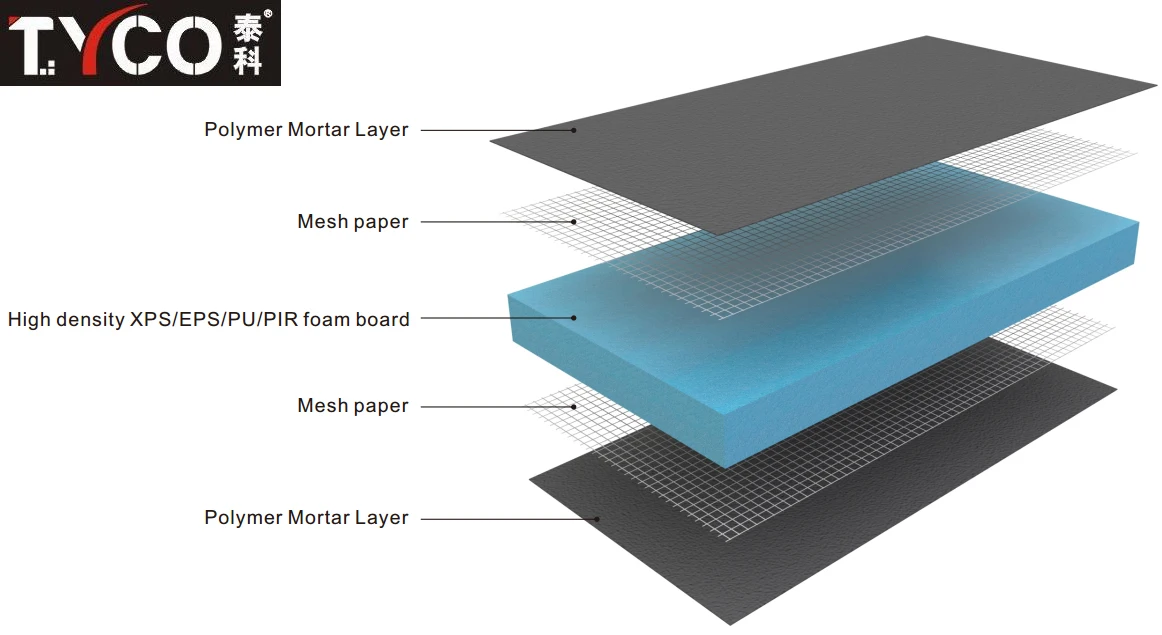

Raw Material | xps foam board,fiberglass mesh,cement coating | ||||||
Density | 32~35kg/cubic meter | ||||||
Compressive strenght | 250-700kpa | ||||||
Thermal conductivity | 0.028~0.03W/M*K | ||||||
Color | grey surface,blue inside | ||||||
Function | heat insulation, waterproof, fireproof, soundproof | ||||||
Package | carton/pallet | ||||||
Delivery time | 10-30 days after deposit | ||||||
Available Sizes:
Item No. | Lenght | width | thickness | ||||

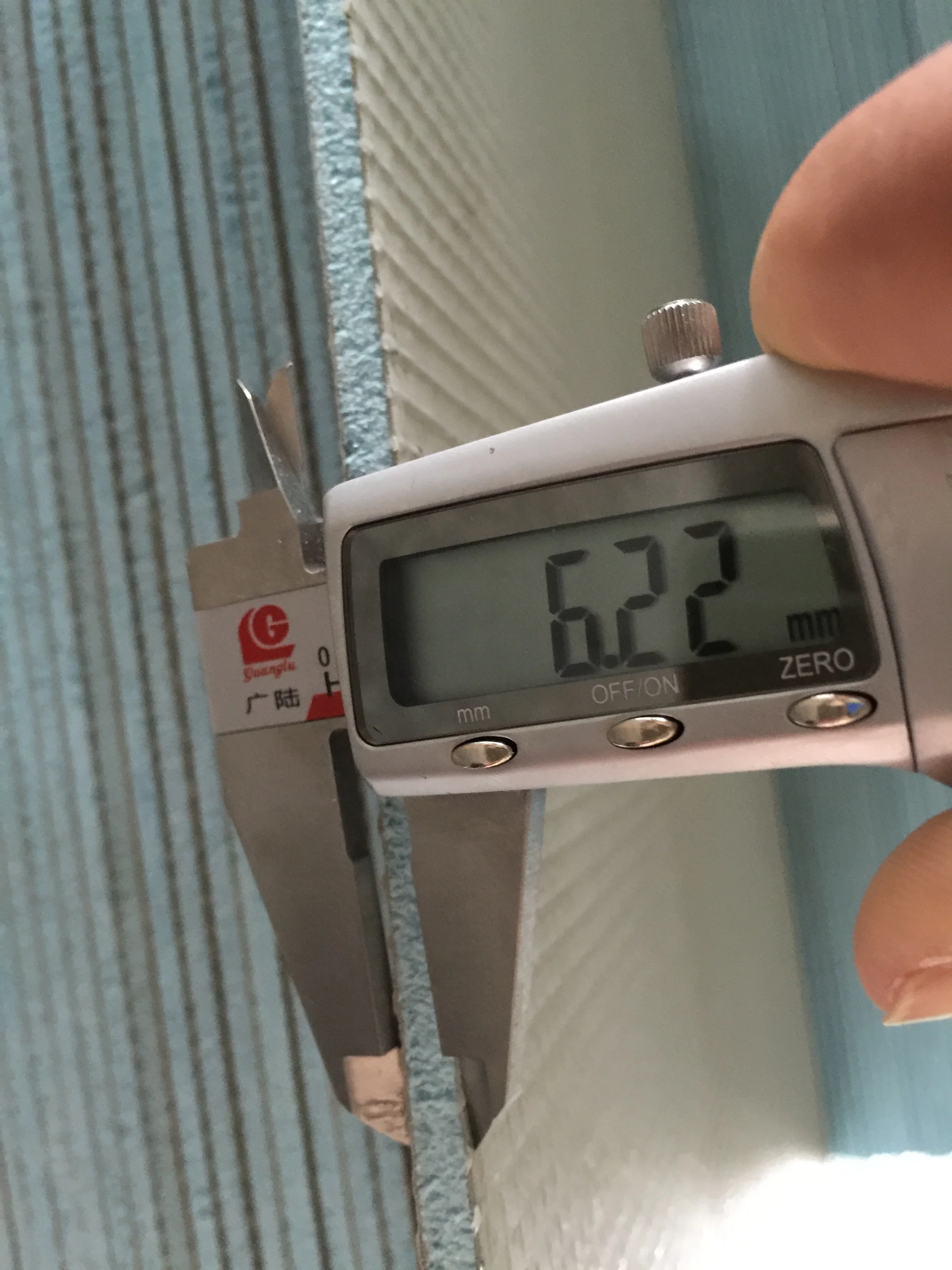

XTB12006 | 1200mm | 600mm | 6mm | ||||

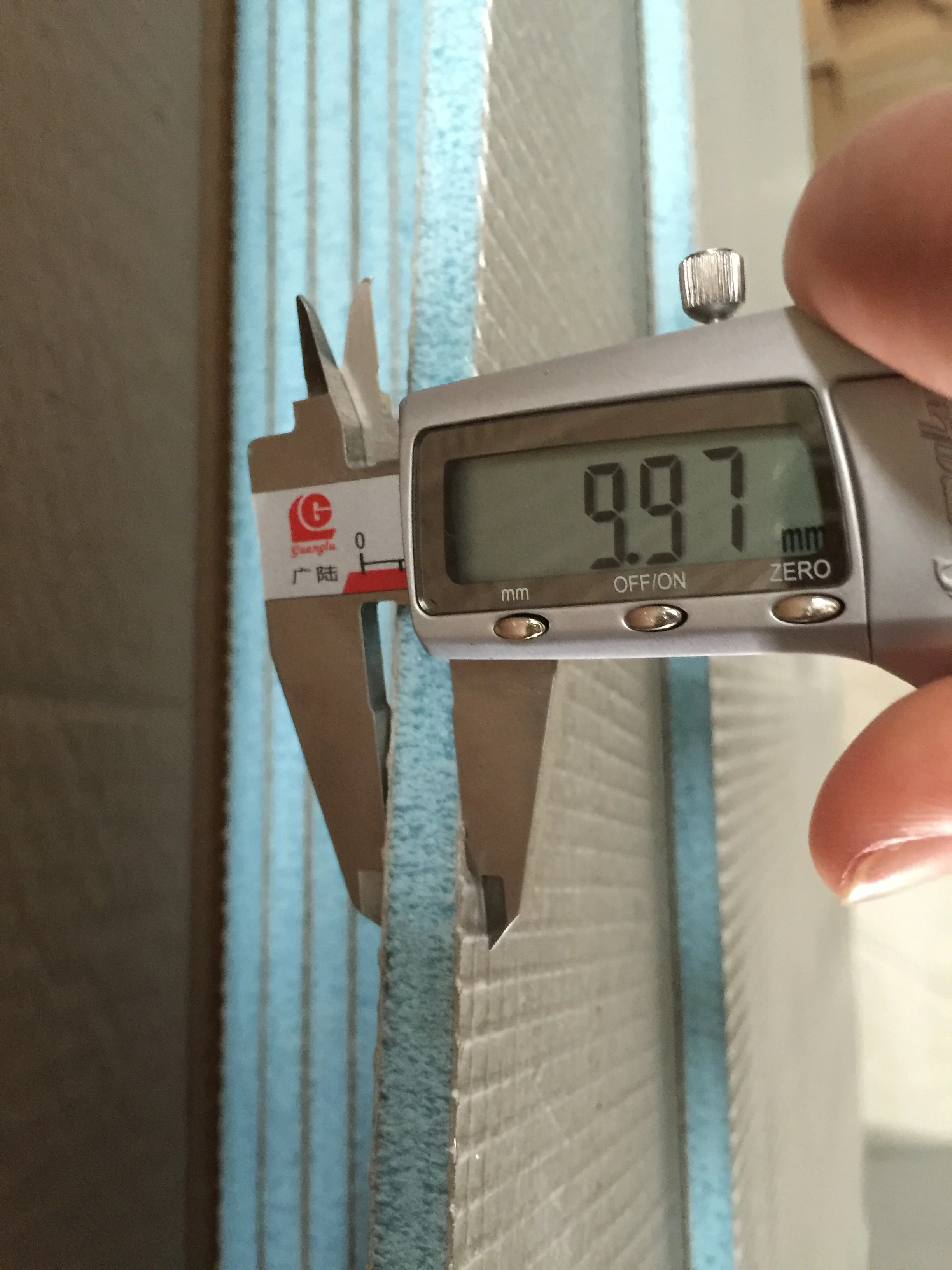

XTB12010 | 1200mm | 600mm | 10mm | ||||

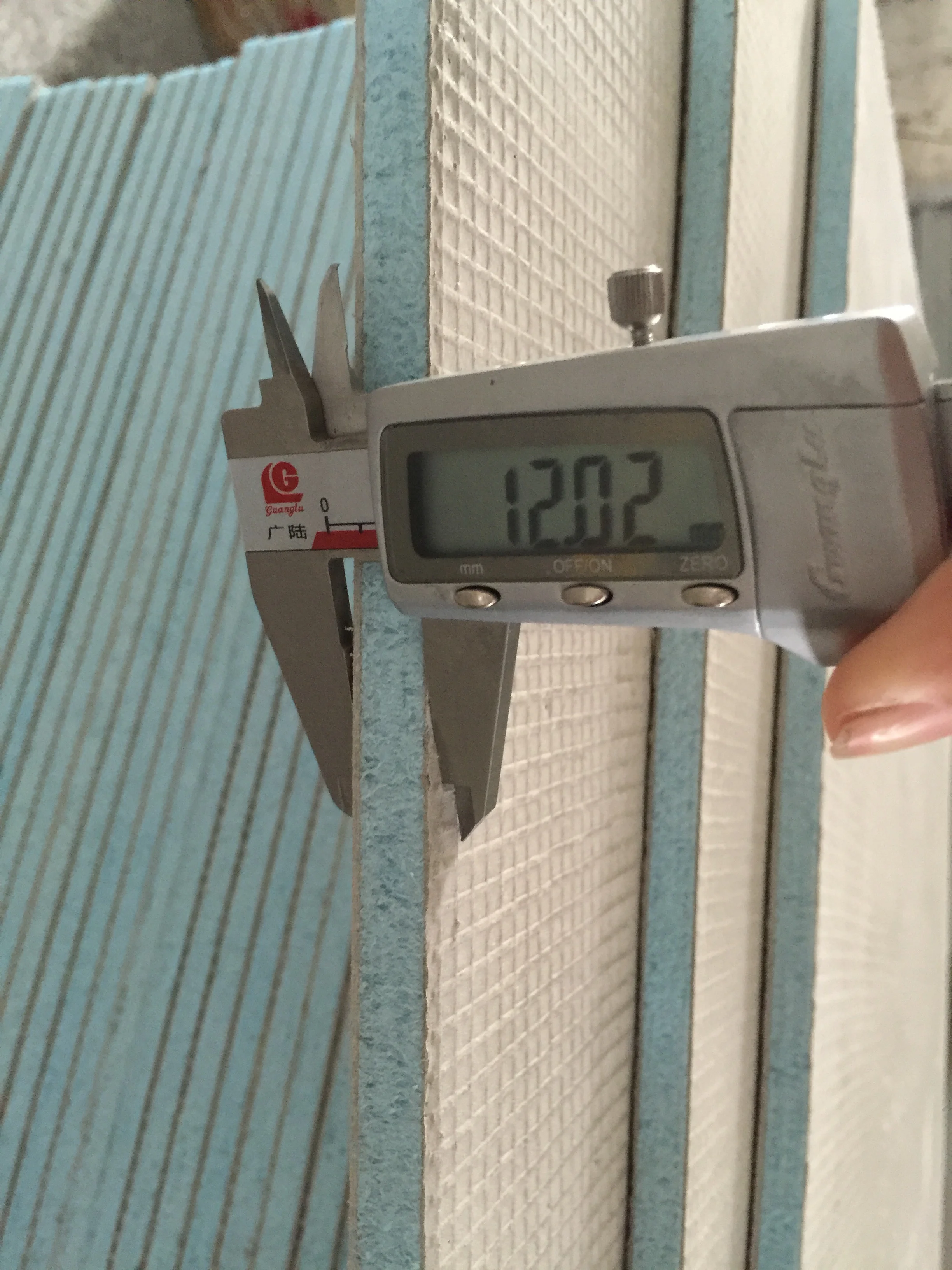

XTB12012 | 1200mm | 600mm | 12mm | ||||
XTB12020 | 1200mm | 600mm | 20mm | ||||
XTB12030 | 1200mm | 600mm | 30mm | ||||
XTB12050 | 1200mm | 600mm | 50mm | ||||
XTB24410 | 2440mm | 600mm | 10mm | ||||
XTB24412 | 2440mm | 600mm | 12mm | ||||
XTB24420 | 2440mm | 20mm | |||||
XTB24430 | 2440mm | 600mm/900mm | 30mm | ||||
XTB24450 | 2440mm | 600mm/900mm | 50mm | ||||
American popular size | ||
Item No. | Width*Length*Thickness | |
XTB1524914 | 3'x5'x1/2" (914*1524*12.7mm) | |
XTB244914 | 3'x8'x1/2" (914*2440*12.7mm) | |
XTB244122 | 4'x8'x1" (1220*2440*25mm) | |
XTB2461194 | 4"x8"x1"(1194*2460*20mm) | |
XTB2481215 | 4"x8"x1"(1215*2480*20mm | |
Welcome to send us your specific size, OEM & ODM is available! | ||

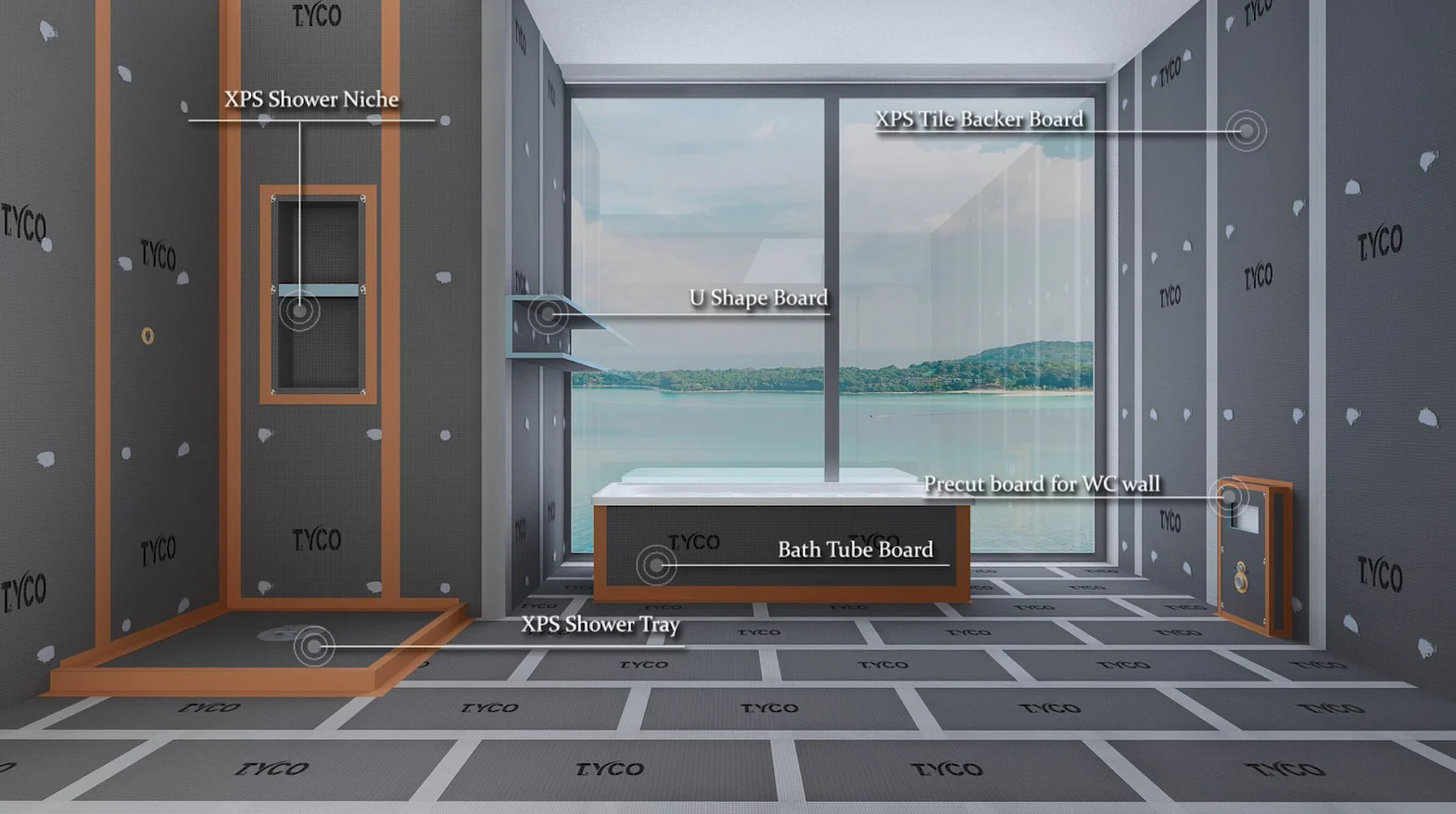

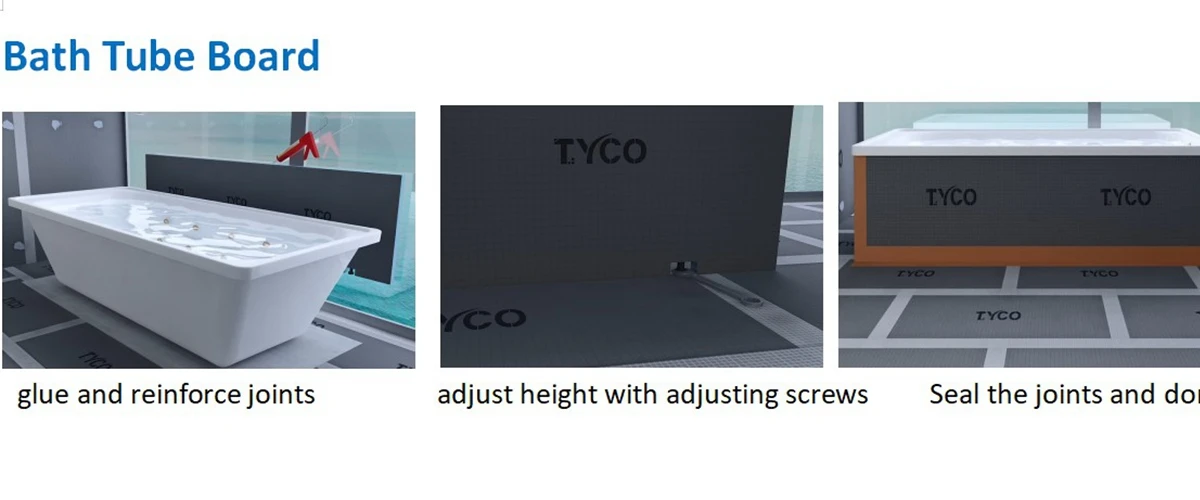

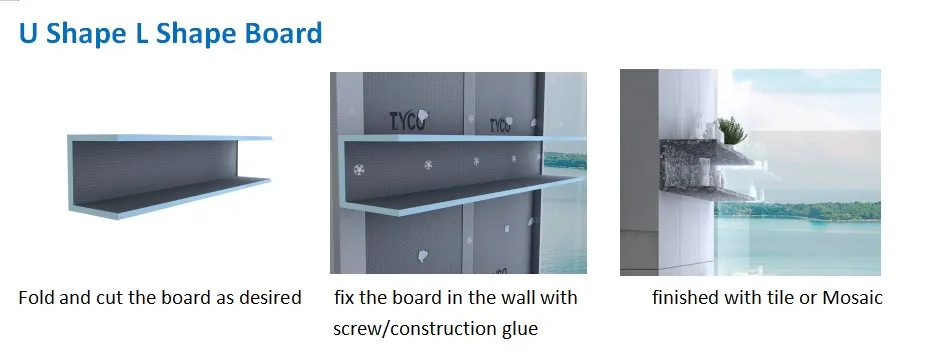

Application
Installation Instructions
Step 1
Make sure the floor is clean, level and dirt free. Using a floor trowel comb a thick bed of tile adhesive over the sub floor. (for
best results use a cement based adhesive).
best results use a cement based adhesive).
Step 2
Lay the TYCO Insulation board down in place pressing it down firmly. If possible lay the backing boards out in brick like fashion.
When tiling the floor leave a 20mm gap from the edge of the wall for the connection to a thermostat.
When tiling the floor leave a 20mm gap from the edge of the wall for the connection to a thermostat.
Step 3
Lay the TYCO Insulation board down in place pressing it down firmly. If possible lay the backing boards out in brick like fashion.
When tiling the floor leave a 20mm gap from the edge of the wall for the connection to a thermostat.
When tiling the floor leave a 20mm gap from the edge of the wall for the connection to a thermostat.
Step 4
Now lay your chosen heating system onto the
insulation backing board and fix into position. Cover the heating element using your chosen floor type.
insulation backing board and fix into position. Cover the heating element using your chosen floor type.

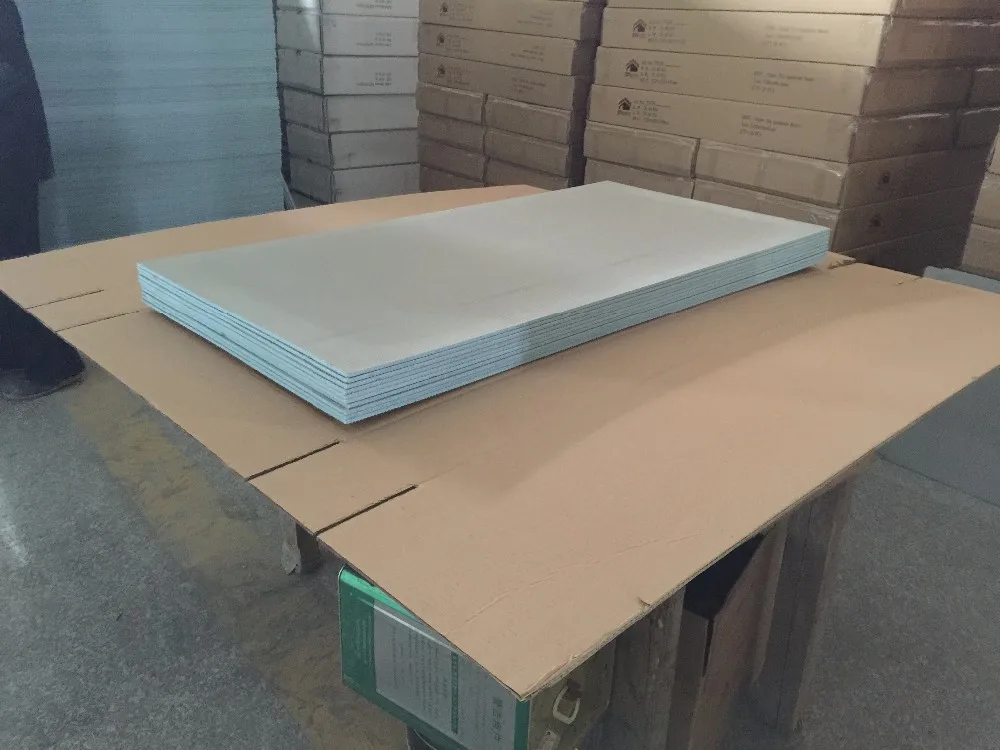

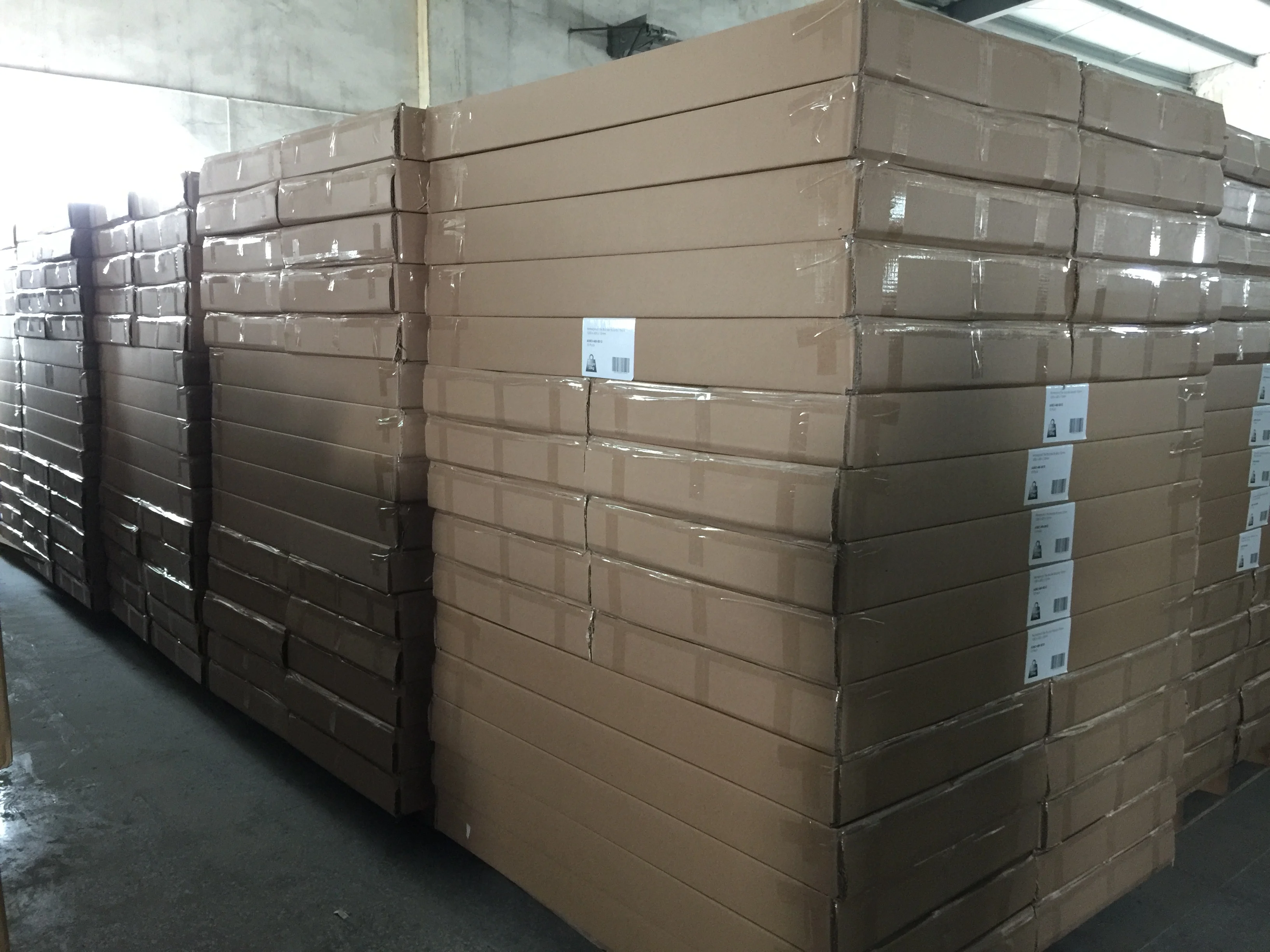

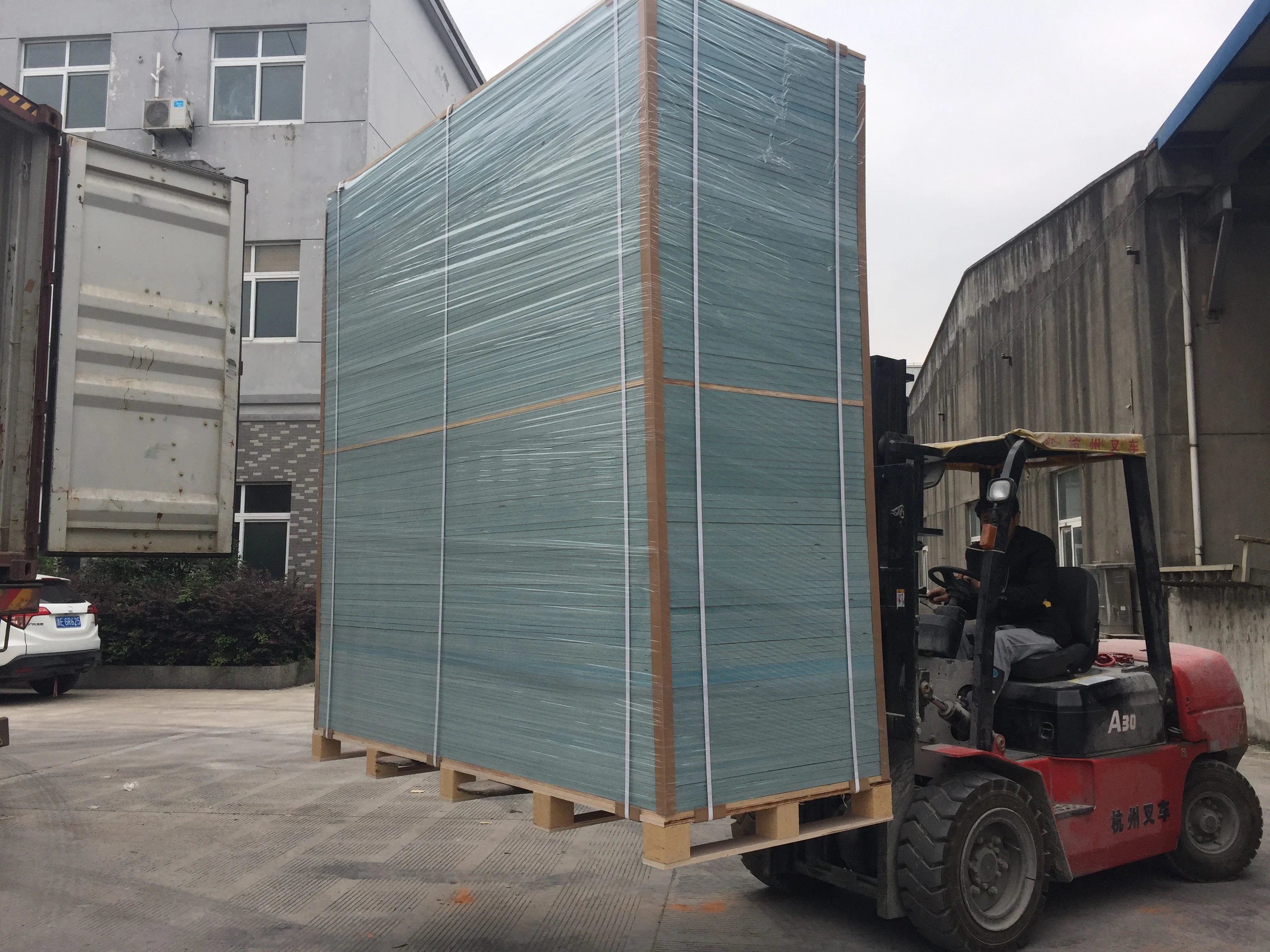

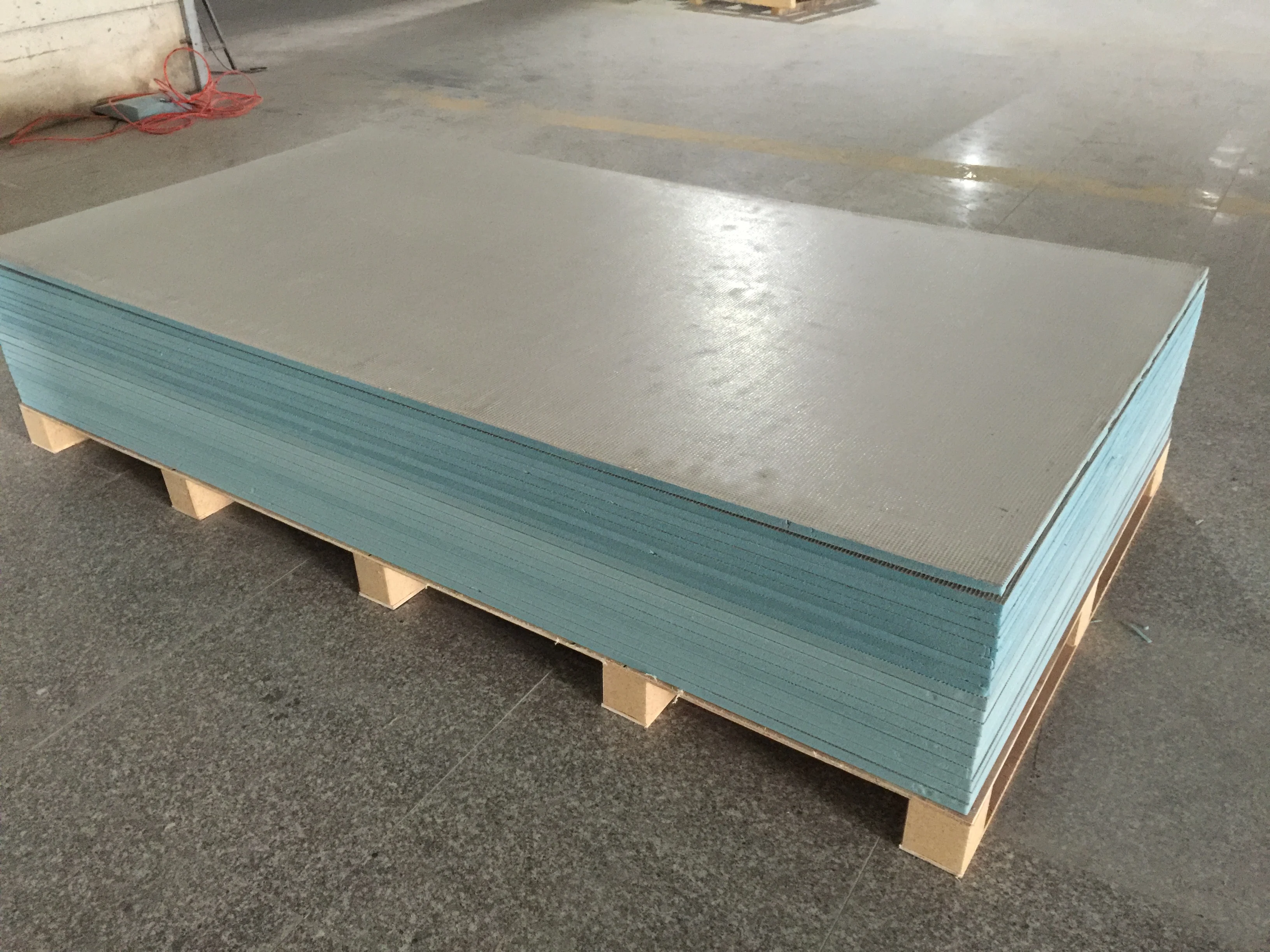

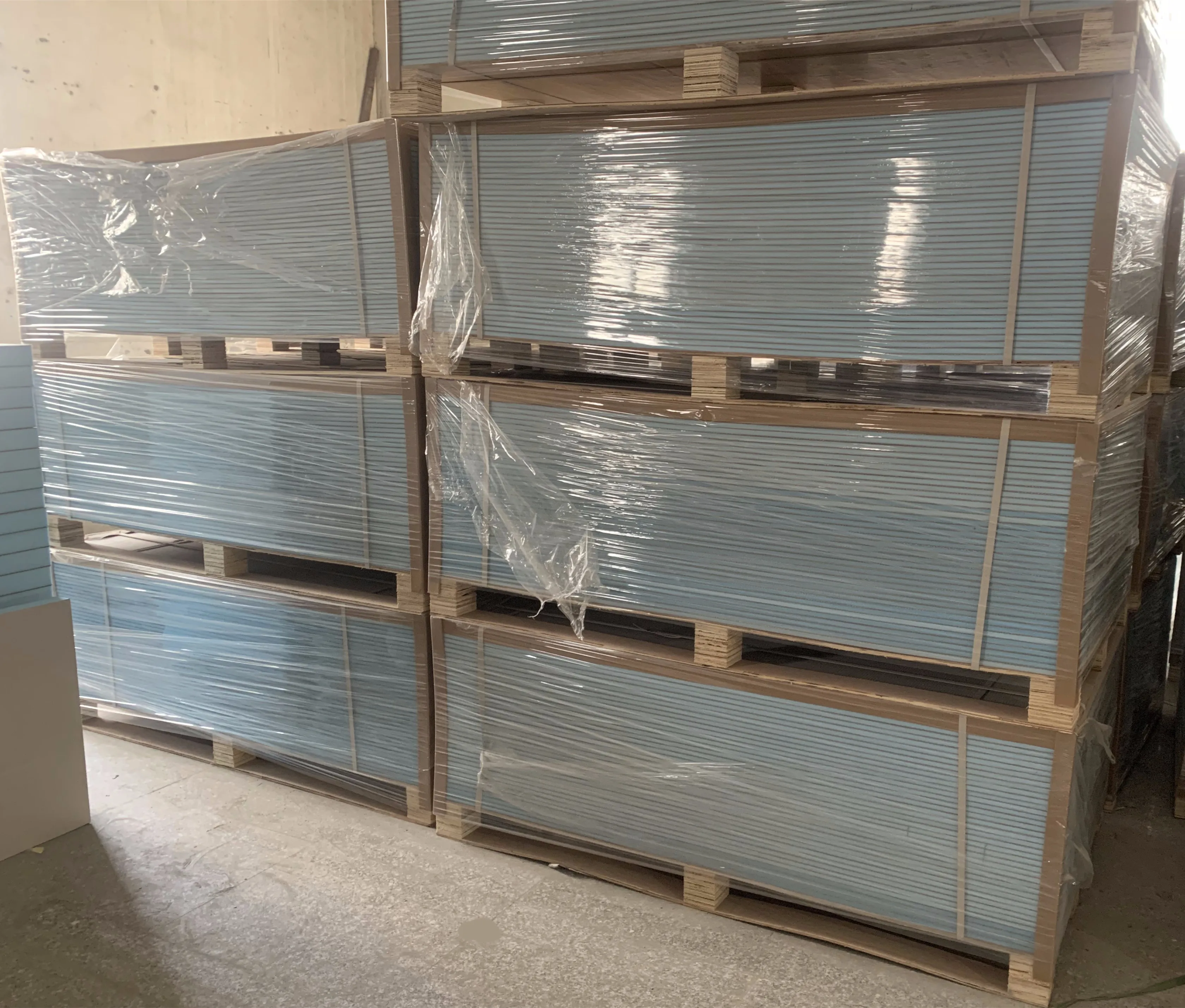

Packing & loading
Carton packing or pallet packing
Related Product

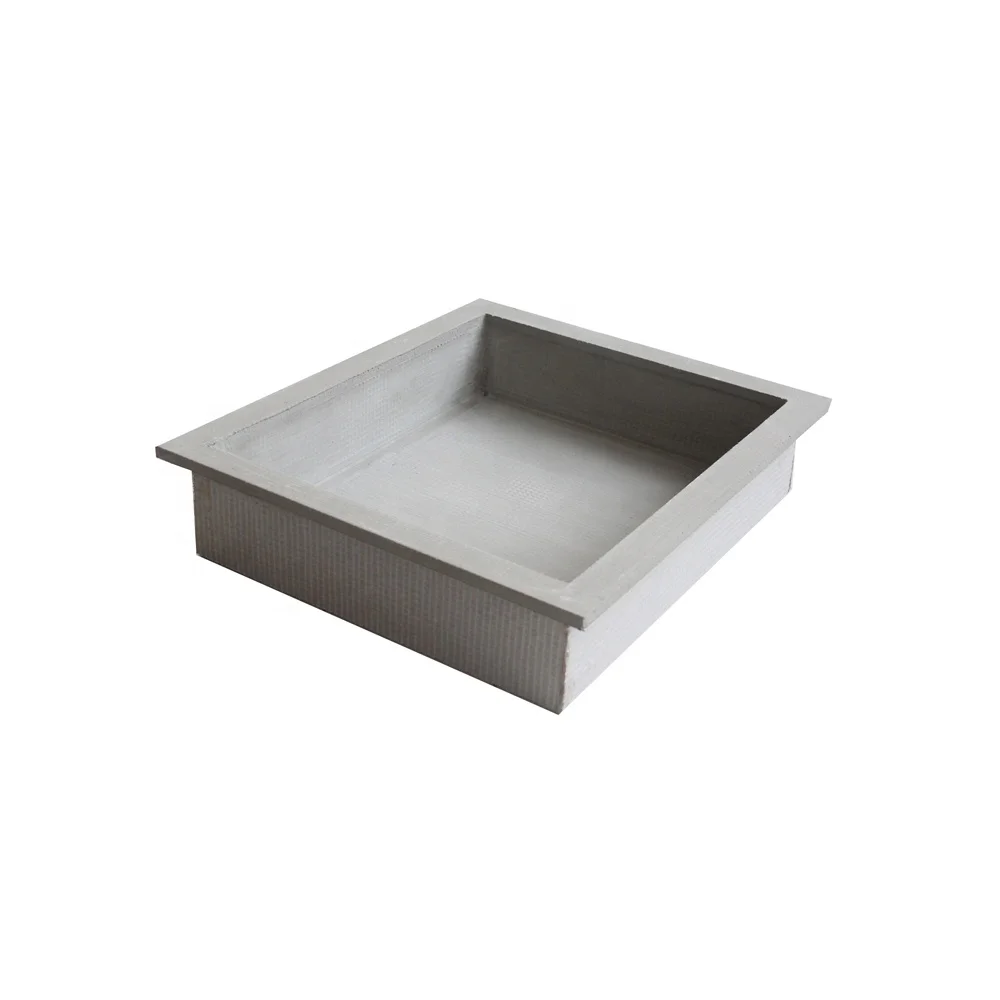

Shower Niche

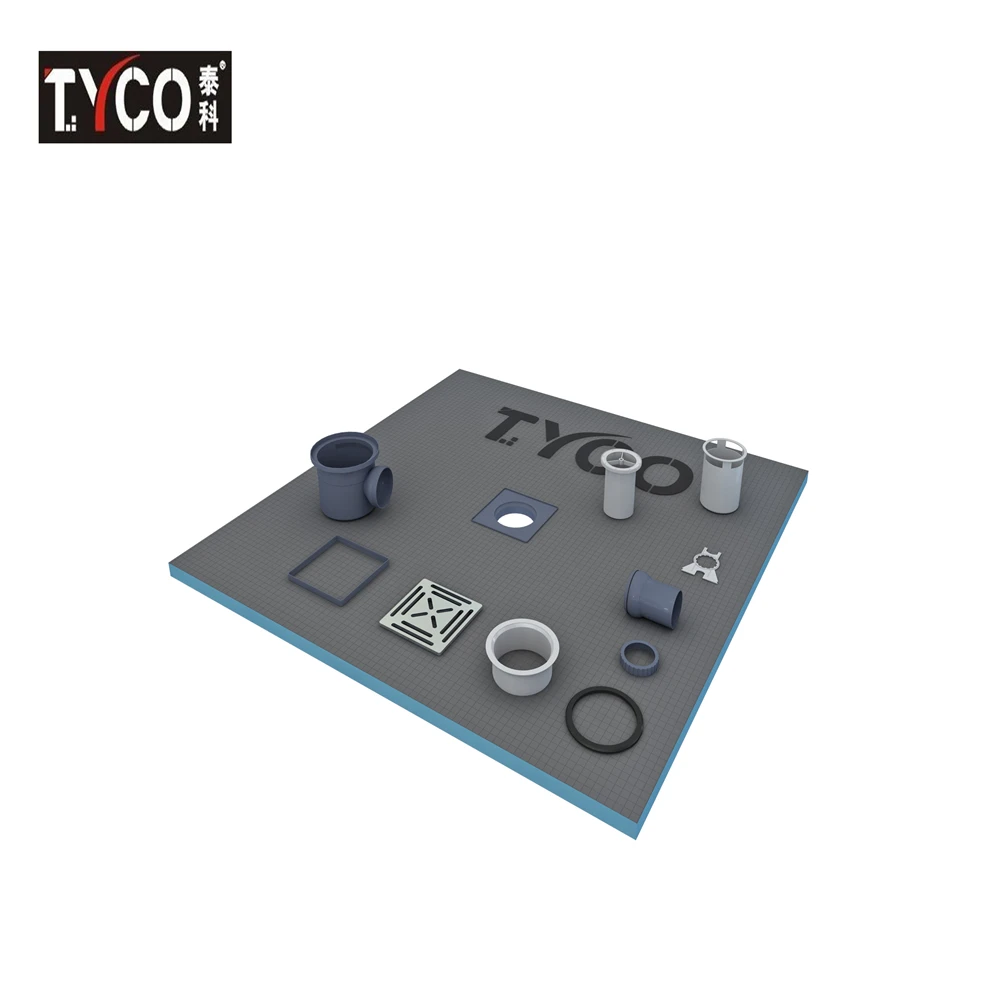

Shower Tray

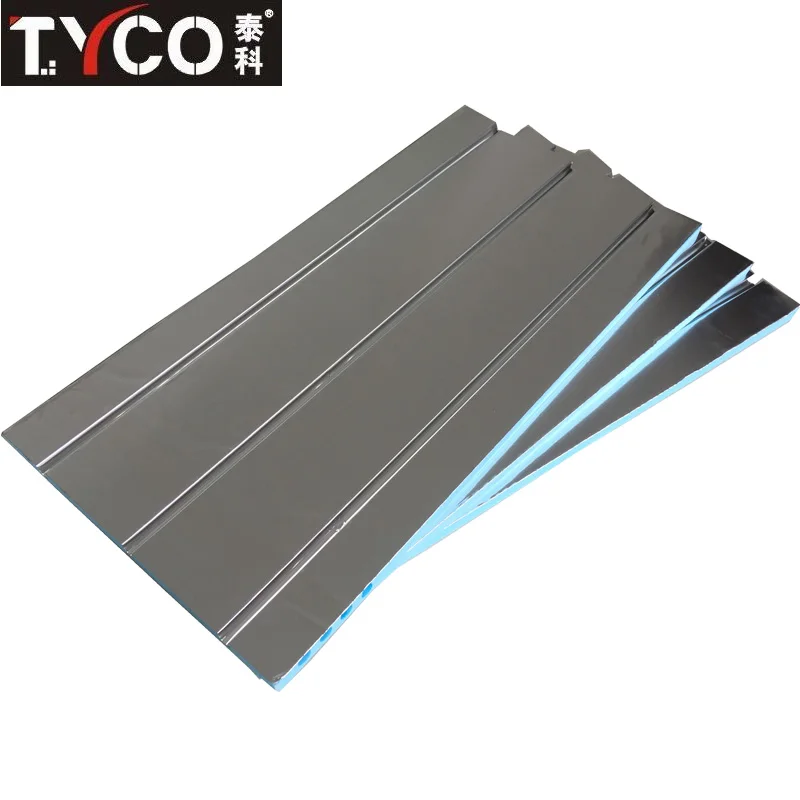

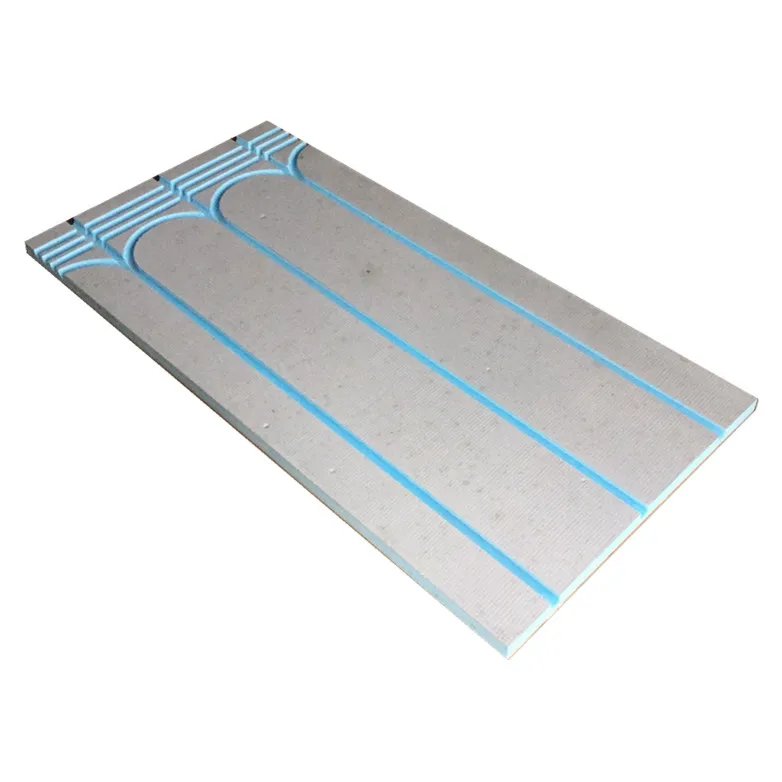

Under floor heating board

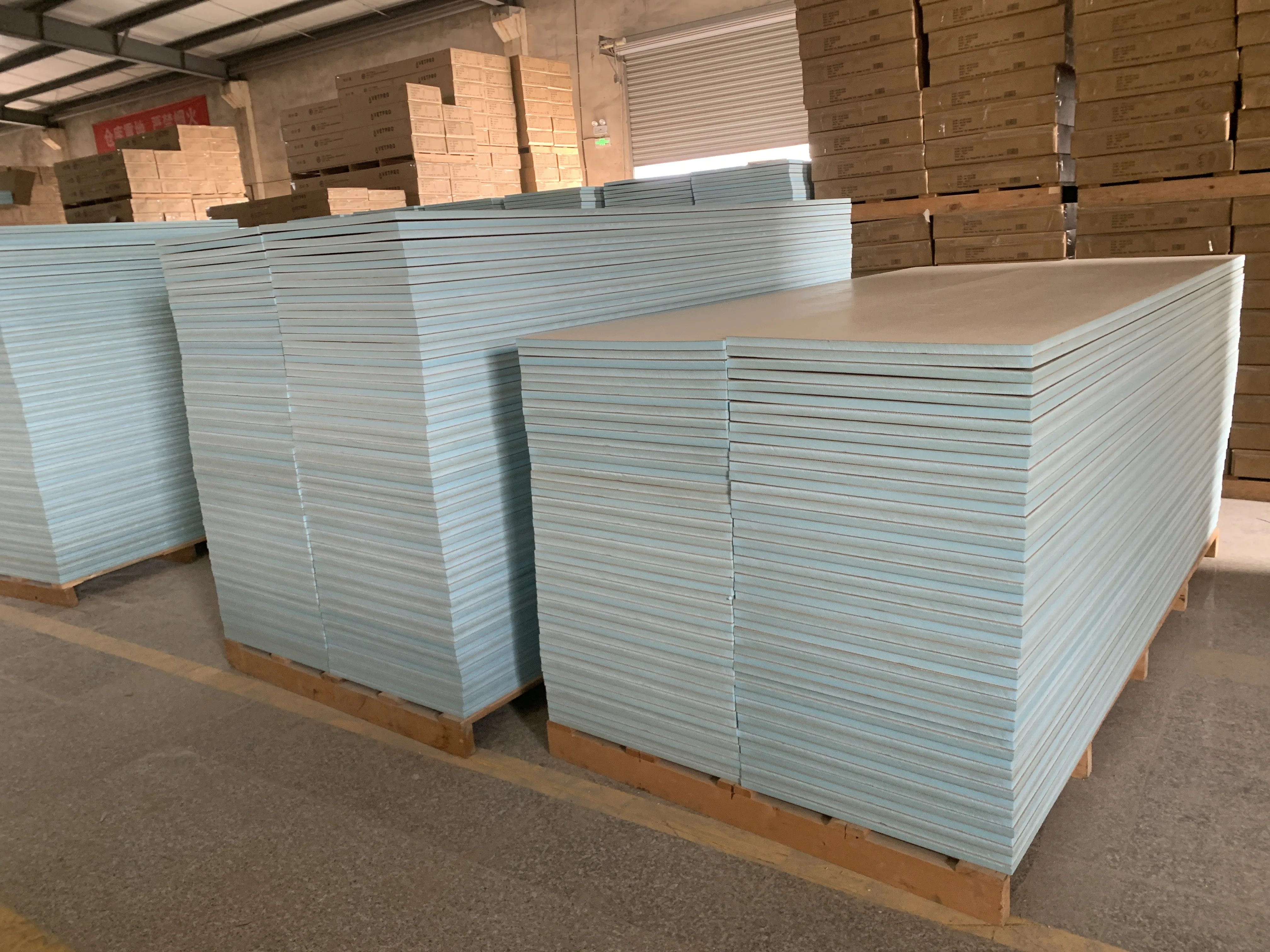

Tyco factory
