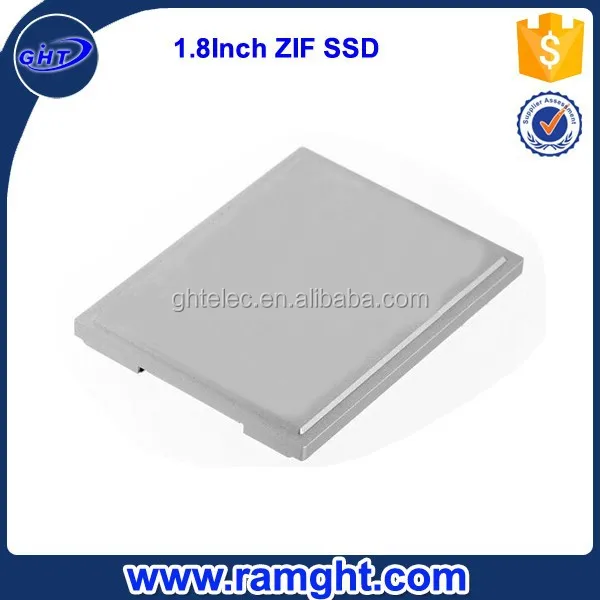

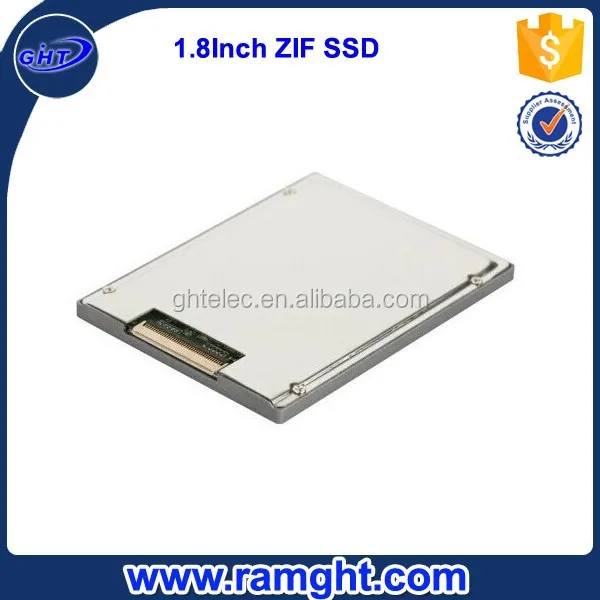

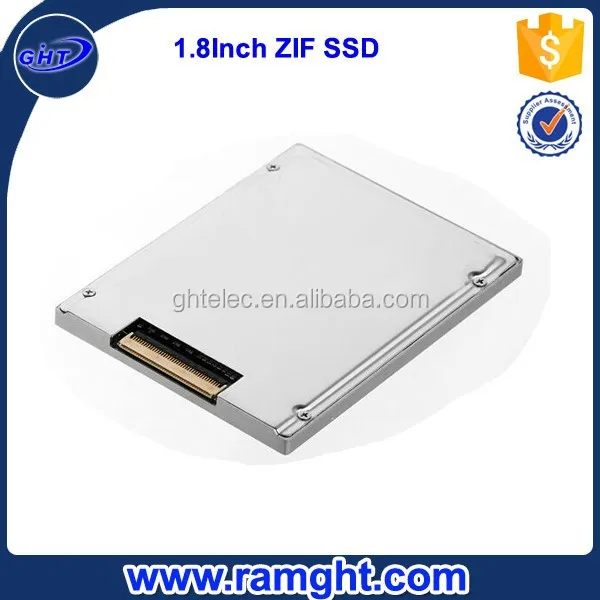

SM2236 1.8 ssd zif 128gb hard drives

Product Overview

Description

SM2236 1.8 ssd zif 128gb hard drives





Based Specification
Control chip		SM2236
Interface		ZIF2
Capacity		128GB
Flash type		MLC NAND Flash
Read/Write Performance
Sequential Read		113MB/s
Sequential Write		60MB/s
Response Time		0.2ms
Power Consumption
Power Supply		3V
Standby		0.3W
Maximum Ripple		70 mV(peak to peak)
4KB Random Write		1.5W
Reliability
Write endurance:		8 years @ 100G write/day(32G)
Read endurance:		unlimited
MTBF:		1,000,000 hours
Data retention:		10years @ 25°C
ECC:		Supports BCH ECC 8/15 bits in 512 bytes
Static and dynamic wear-leveling
Bad block management algorithm
Environment
Storage temperature:		-10~85 °C
Operation temperature:		0~77°C
Humidity:		5%~95%
Vibration		20G (40 to 2000Hz)
Shock		2000G at 0.3ms
Testing platform		Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel.RAM,nForce520 chipset,Professional SP3
Testing software		HDBench3.4.0.3, IOMeter 2006.07.27
Physical Size		71*54*5 mm
Weight		40g
Warranty		3 years
Certification		CE,ROHS,FCC,TUV
