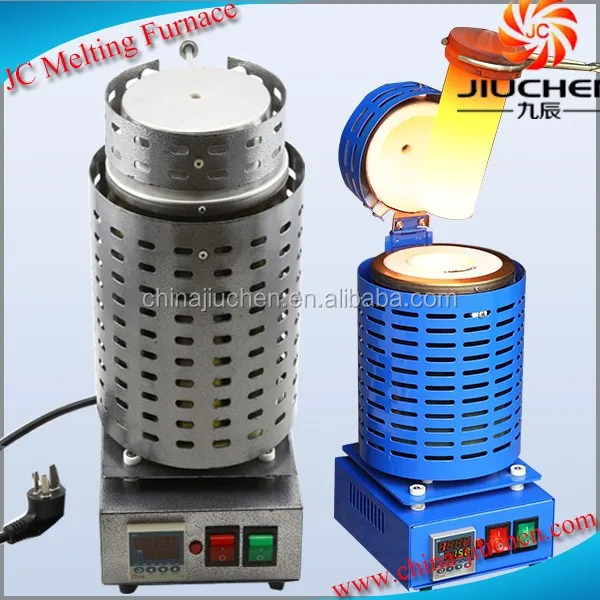

220V 1150C 2102F Portable Electronic Mini Small Melting Furnace

Product Overview

Description

220V 1150C 2102F Portable Electronic Mini Small Melting Furnace

The world's workhorse for melting metals. Designed to be hand-held for easy pouring directly to the flask. Also used for reclaiming, alloying and refining metals.



Some of the Metals that can be melted with this Furnace;
Aluminum, Gold, Lead, Silver, Sterling Silver, Tin & Zinc



Efficiently melts non-ferrous alloys for casting or ingot pouring

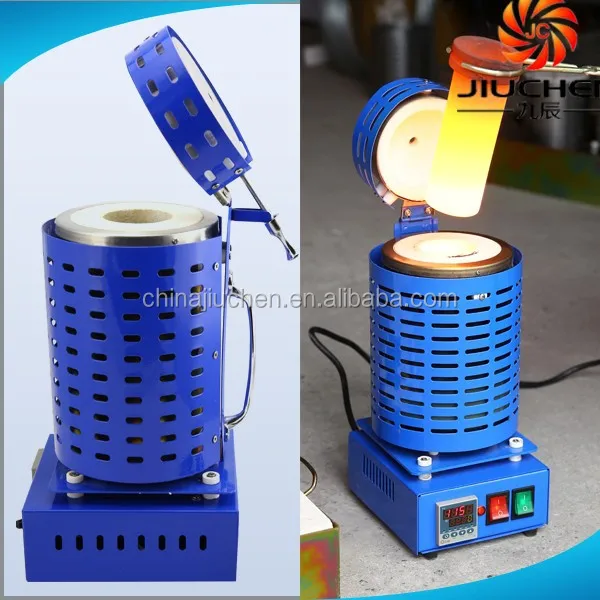

The furnace can be hand poured from the easy grip handle or with crucible tongs supplied with the unit

JC unit has a LED display with touch pad digital readout that allows precision control



Features found on all JC ElectroMelt furnaces:

• Safety lid switch
• Built in pyrometer

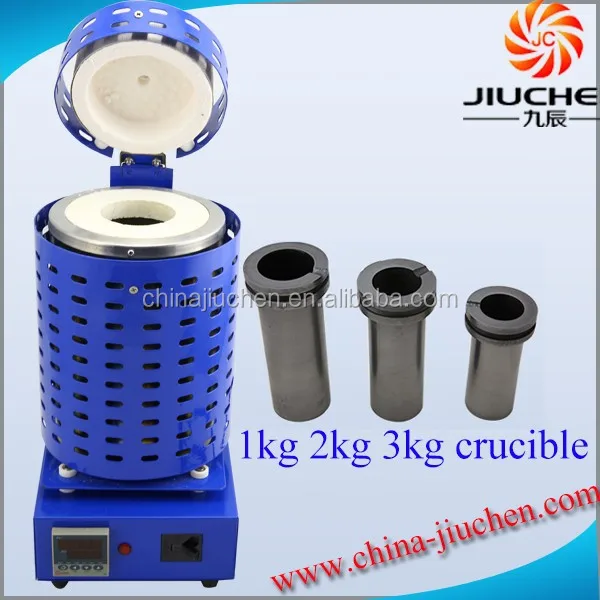

• Graphite crucible
• Graphite stirring rod
• Extended life heating element
• Available in 220 V
•

JC Furnace Automatic thermostat controls monitor the precise temperature you require, regardless of metal quantity. The furnace holds temperature within ±5°F (±3°C) to a working temp of 2102°F (1150°C), reducing metal temperature overshoot and protecting against element burnout.
•Digital pressure–sensitive touchpad and LED display.
•CE/UL and CUL–certified with insulated lid.
•Built–in pyrometer and extended–life heating element.
•Graphite crucible and stirring rod.
•Automatic shut off/on.

Advantages of Mini Small Melting Furnace

MODEL	Melting Capacities	Electrical Specifications	Net Weight	Heating  Speed to 2102 ºF /1150℃
JC-K-220-1 JC-K-110-1	1kg(14K gold: 821g,26.4 troy oz) 2kg(14k gold:1648g,53 troy oz) 3kg(14k gold:2799g 90troy oz) 4kg(14k gold:3750g ,120 troy oz)	220V,1000watts, 4.5amps  110V,1000watts, 9amps	5kg(9.9lbs)	25-30minutes
JC-K-220-2 JC-K-110-2	1kg(14K gold: 821g,26.4 troy oz) 2kg(14k gold:1648g,53 troy oz) 3kg(14k gold:2799g 90troy oz) 4kg(14k gold:3750g ,120 troy oz)	220V,1500watts, 6.8amps  110V,1500watts, 13amps	5kg(9.9lbs)	15-20minutes

One Furnace Unit delivery with:

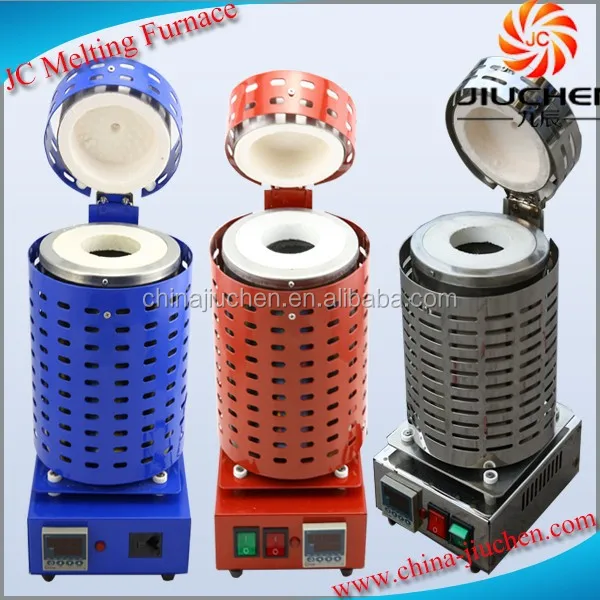

Model JC-K-110-1(110V 1kw) Red,Blue ,Gray color is optional

1-1kg graphite crucible1-crucible tongs.1-replacement fuse.1-insulating heat glasses.1- gloves.

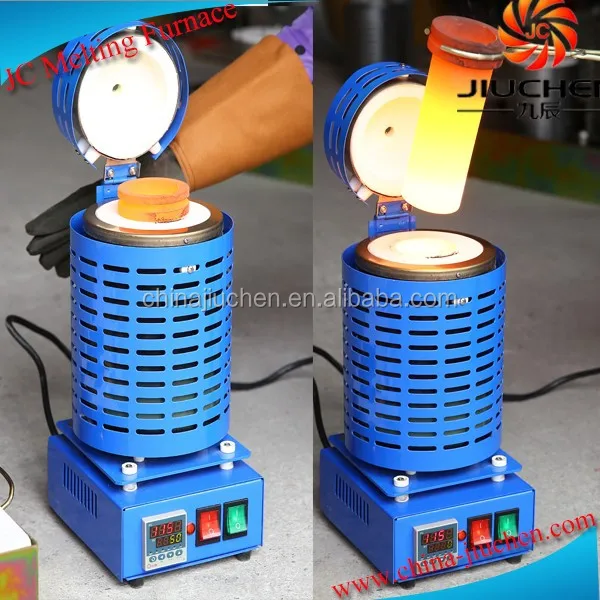

Gold bar melting Operating Process as follows

Step 1 Put gold bar into the crucible.

Step2 Heat up the furnace with 15 minutes

Step3. Take out the Melting crucible from the furnace,then put it on tray.

Step4.Pour slowly the gold liquid from the crucible.

Step5.Wait the liquid cooling in the mould within several seconds.

Mini Small Melting Furnace Instruction

The furnace has two on/off switches: the GREEN switch turns on the temperature thermostat allowing you to set the desired melting temperature.

The RED switch turns on the heating element to start the melting process.







The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you enter into the furnace. The top read-out (PV) displays the actual temperature inside the crucible during operation.



To set the desired melting temperature, turn on green on/off switch. Wait a few seconds; the bottom (SV) readout should show the default temperature setting of 1950°F.



To change the temperature setting, simply press the left arrow key to move the cursor to the proper desired digit and press the up or down keys to adjust it up or down. Adjust each digit to the desired setting.

When you are ready, place the metal pieces or grain in the crucible and set the crucible in the furnace. Close the lid.

Press the red button to start the melting process.

When the metal is molten and has reached casting temperature, turn off the red switch. Open the lid and pour the metal into your prepared flask.

Mini Small Melting Furnace Furnace Shipping

We can accept T/T,Paypal,Western Union,Escrow,the best and fast way is Paypal.

We choose DHL/Fedex/UPS usually takes about 3-5 working days to the destination

We will send the goods within 3 working days after the full payment has been confirmed

Warranty and Return:

All the products have been tested before ship out.

All products electrical parts have 1 year warranty,including temperature controller,relay, thermocouple,heating elements have 6 months warranty,including chamber,heating coil etc.

If there is no man-made problems,we will replace or repair for you freely.
