Product Overview

Description

0.5ton-10ton LX Model Single Girder Overhead Suspension Crane Overhead Hang Crane:

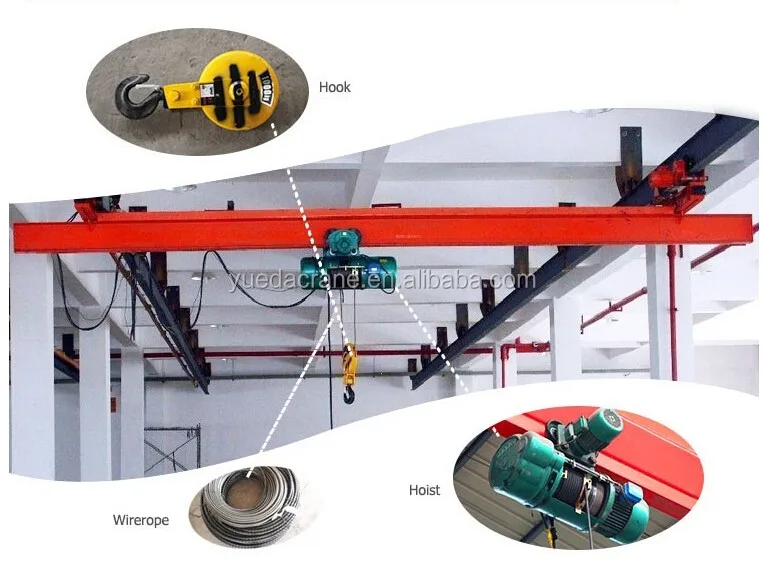

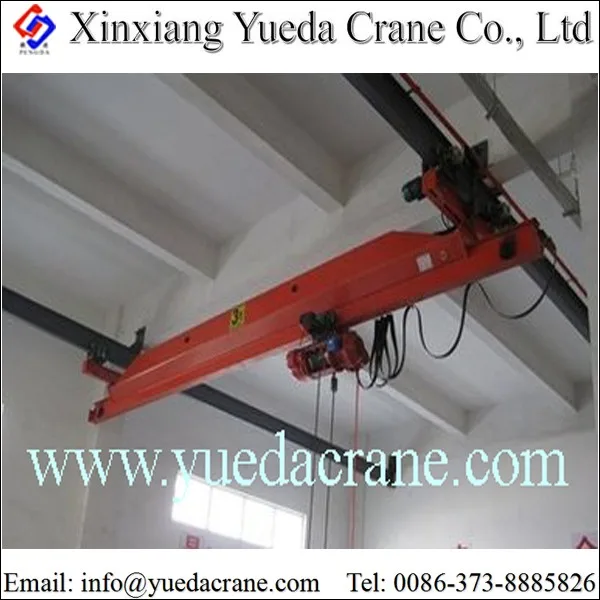

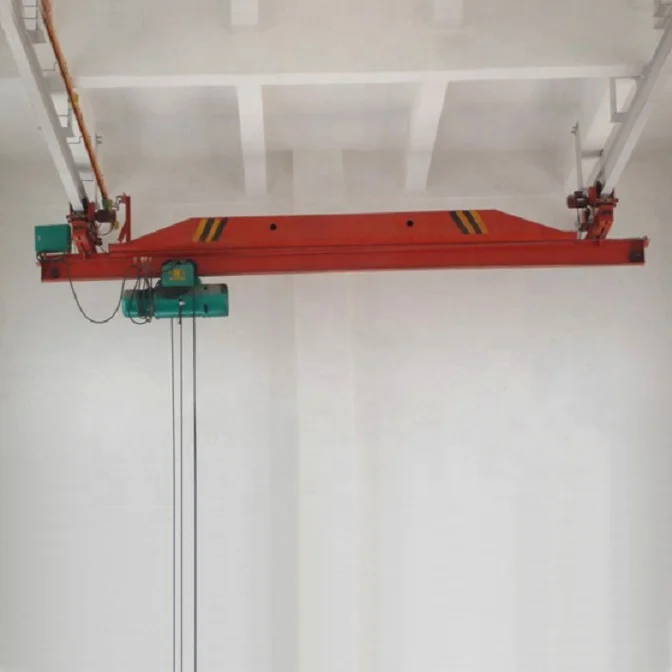

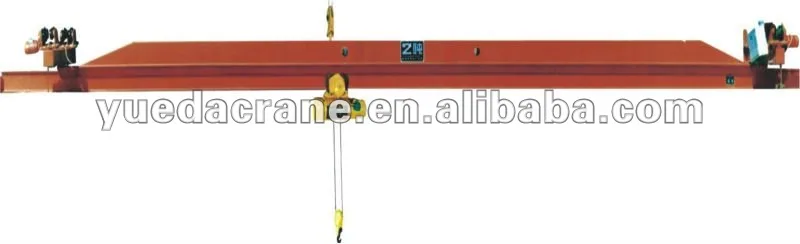

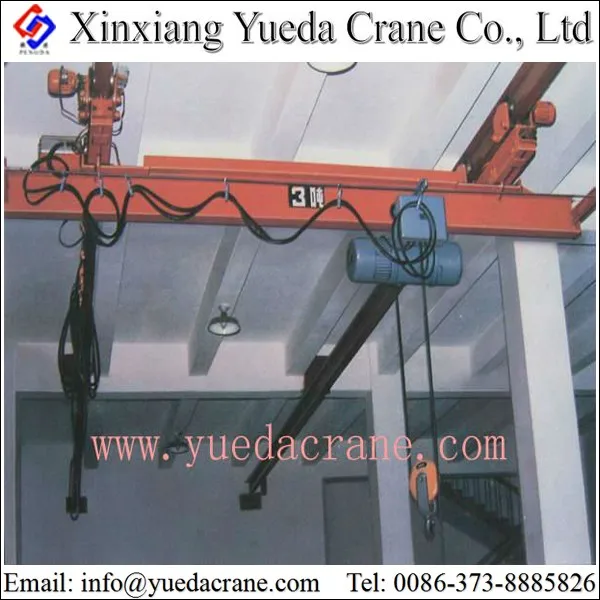

    LX model single girder suspension crane(single beam hung crane) is traveling under I-section or H-section steel beam, it use CD1,MD1 electric hoist for hoisting equipment, it is a light duty track traveling crane with trajectory which applies to and used at machinery, assembling sites and warehouses. This overhead crane adopts ground contralling and works at a temperature of -20--+40 centigrade.

    This suspension crane(overhead crane) is prohibited to use the equipment at combustible, explosive or corrosive environment.

    The crane's capacity: 0.5T, 1T, 2T, 3T, 5T, 10T.

    The crane's span: from 3m to 16m.

The general details of single beam suspension overhead crane
Capacity	0.5ton, 1ton, 2ton, 3ton, 5ton, 10ton
Span(rail to rail center)	3m~16m
Lifting height	6m, 9m, 12m, 18m, 24m, 30m
Lifting speed(m/min)	8(or 8/0.8), 7(or 7/0.7)
Cross travelling speed(m/min)	10, 20, 30
Long travelling speed(m/min)	10, 20, 30
Duty Class	A3/A4
Power source	380V, 50HZ, 3 phase (or other standard)
Working temperature	-20~40℃
Control model	Pendant pushbutton or remote control

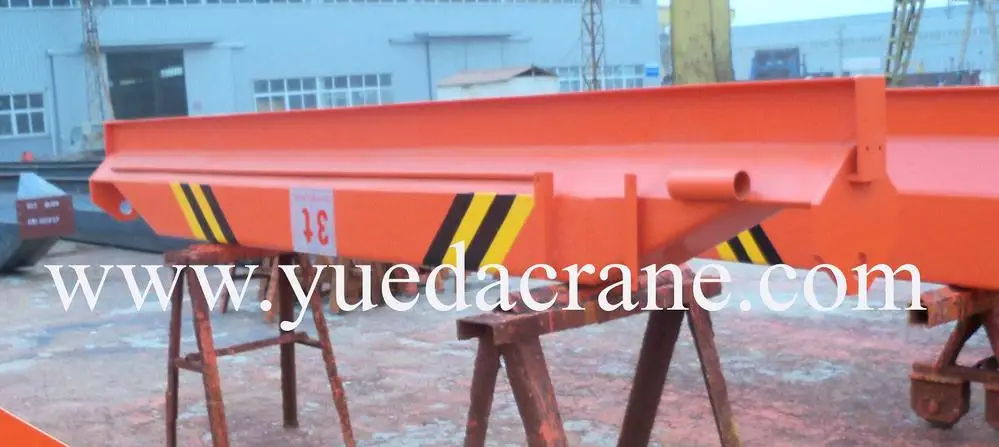

The main beam of single beam hung crane, it is box frame:

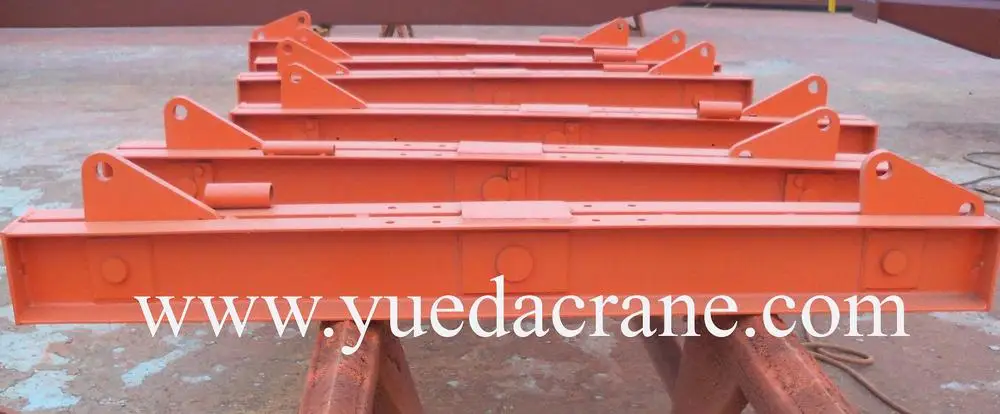

The end carriage of single beam hung crane:

The travelling mechanism of end carriage:

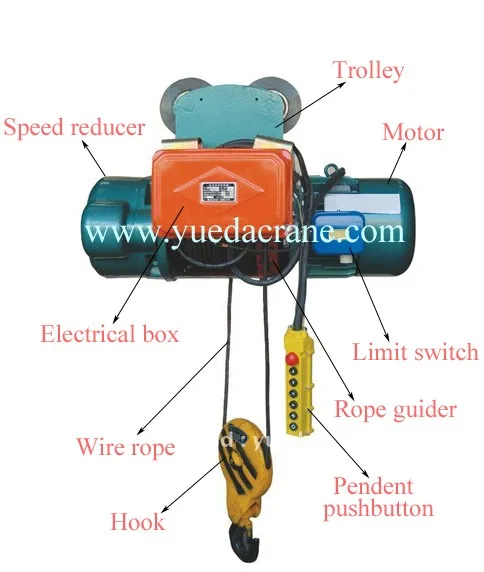

The lifting mechanism is wire rope electric hoist:

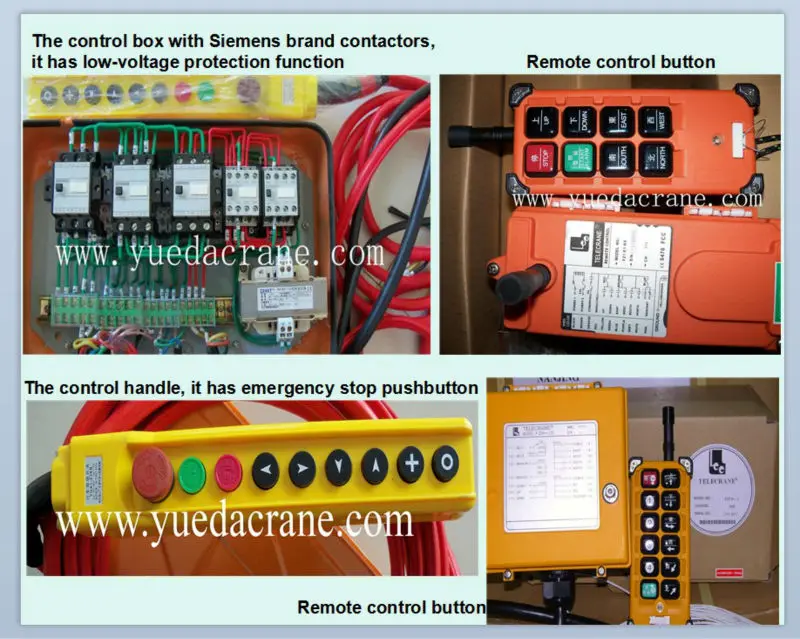

The electrical control box of bridge crane with Siemens or Schneider brand contactors:



The package and shipment of single beam suspension crane:
