DYEGOO cheap high accuracy waterproof GPS tracker GT003 car motorcycle

 Specification

Feature

1.For fleet and vehicle

2.Work voltage:9V-50V

3.oil cut function

4.300 MAH Lithium battery inside

5.ACC Alarm;Speed Alarm;Shake Alarm

6.LED instructions

7.GPS Blind memory to 1000points

8.Auto power on

9.platform free use for 1 year

10.APP for Android and Apple portable device

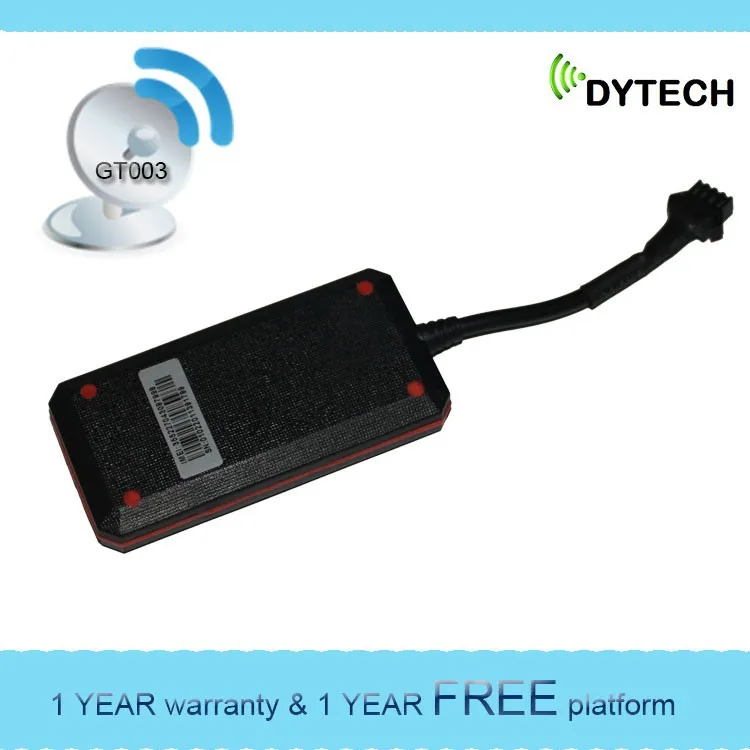

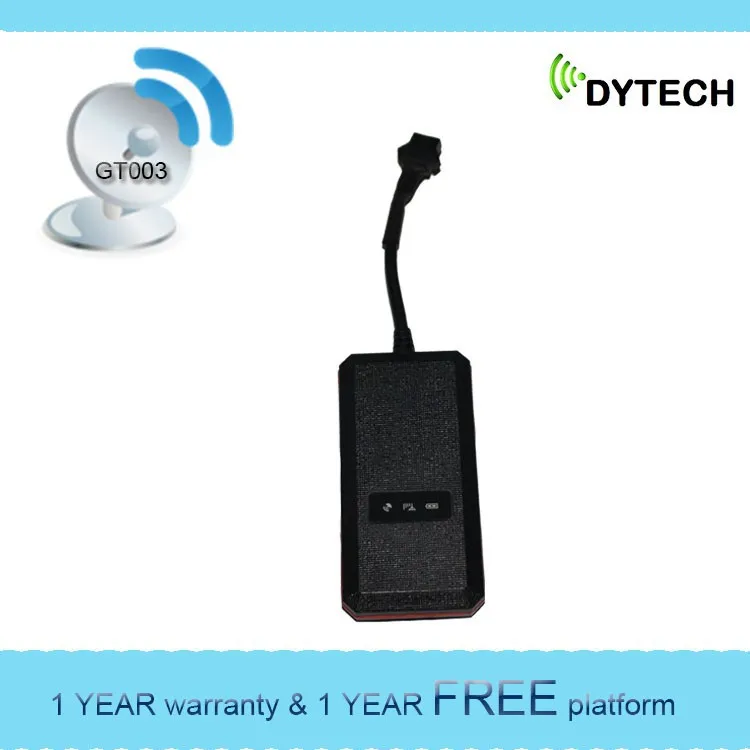

Picture of tracker

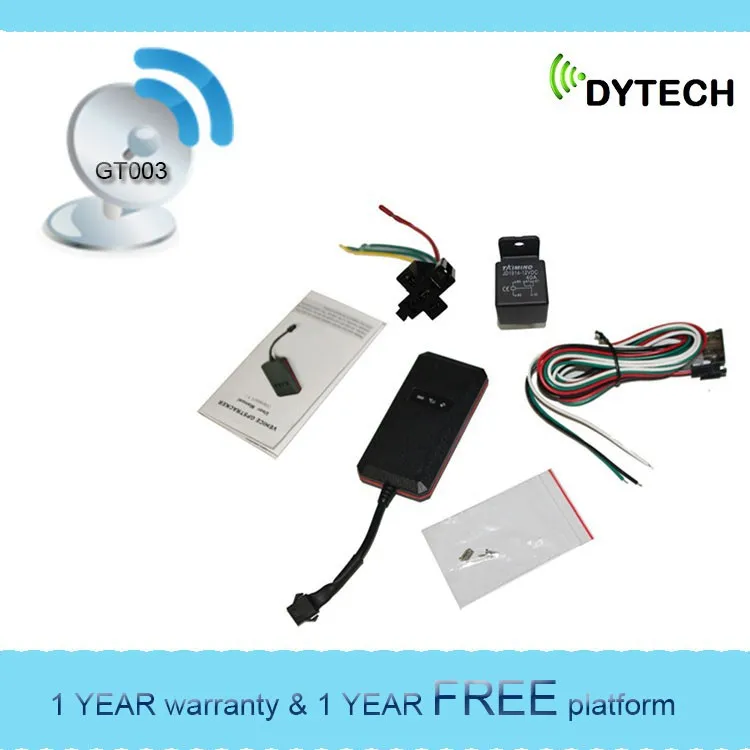

Picture of details

Remarks

1.GPS\\GSM antennas are built-in design,it can be artistic.

2.Device ID is exclusive and applied to identity the tracker.

3.Red waterproof block is used to fill up the gap and protect the inner parts in wet condition.

4.GPS antenna mode is built-in design and made of ceramic,it can be anti-jammer very well.

5.GPS chip  is adapted to u-blox 7020 chip, its position accuracy reaches to 5m.

6.GSM chip can support SIM card of worldwide bands of 850/900/1800/1900MHZ.

7.GSM antenna mode is adapted to MTK MT6260D chip,has dual core, can transmit data  by TCP and SMS.

8.DC-DC circuit can convert the voltage 6~50V of engine to 5V for tracker to work normally.

Picture of wiring program

 Device wiring requirements

1.The device power supply is DC 6-50V. The red line is positive pole while the black line is negative pole.

2.The negative pole of power supply connectswith ground or the metals. Please do not connect with other ground lines.

3.When finishing the power supply wire connection,please make the plug of power supply to the device.

4.If need to add relay control oil circuit, please install the white line according to the diagram delow.

5.If need ACC detection,please connect the green line to car’s ACC, if need SOS detection, please connect the green line

to ACC button(ACC or SOS alternative,the default is ACC).

Places for installation

Application of platform

1.Platform

//www.19gps.net

2.GPRS Setting

For use platform,please set the GT003 as follow:

Example:

803# 118.193.48.237#7018#           set platform IP,

port 802#cmnet#                              set APN

If in the country need APN user Name,APN user password,the setting as follow:

Example:

803# 118.193.48.237#7018#                  set platform IP,

port 802# internet.fido.ca# fido# fido#   set APN Example for use our platform:

3.Login

Remarks:

You can use your cellphone to scan the QR Codes to download the APP as below:

Choose language

Choose login ways

Login as:

0+IMEI last 11bit numbers

Example:

IMEI:355227042128041 Login as:027042128041 The default Password: 123456

Remarks:

1.The platform free use for 1 year.

2.Another platform is //www.20gps.net , the way is same to //www.19gps.net.

Portable device APP

 giftbox

canton box

1. Can you offer the gps tracker protocol so as to use other platform or connect other service?

   Re: Yes,we can offer, you can use our own platform as well as others.

2. Can i get the mananger account to manage my all clients device?

   Re: Of course ,and you have the authority to register the account for your clients.

3. How many does one account conducts?

   Re: No limit of the quantity for one account.

4. which kind of moblie system can you support?

  Re: Support IOS &Android APK software.
