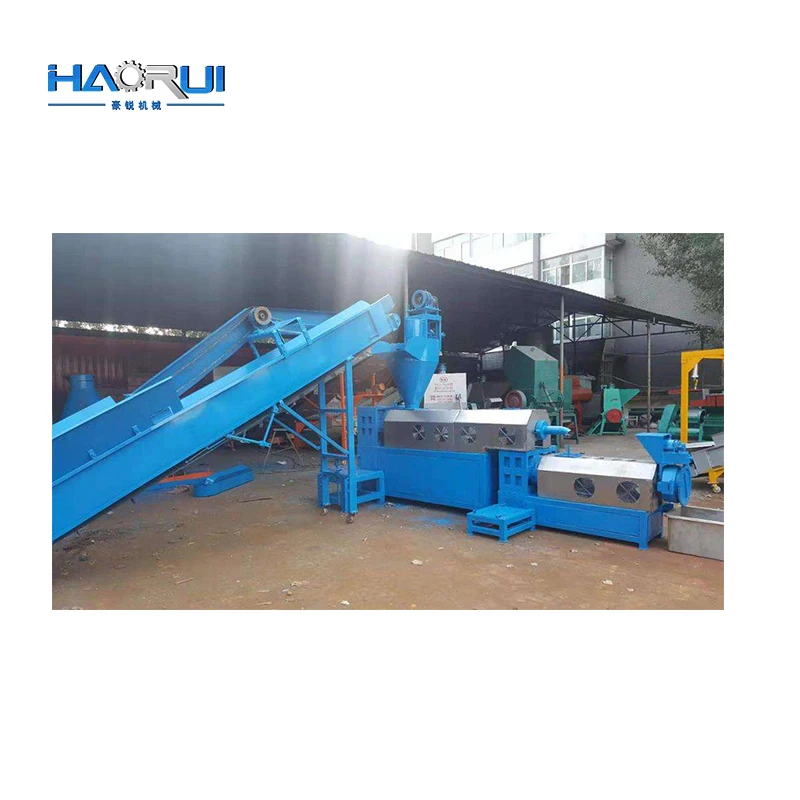

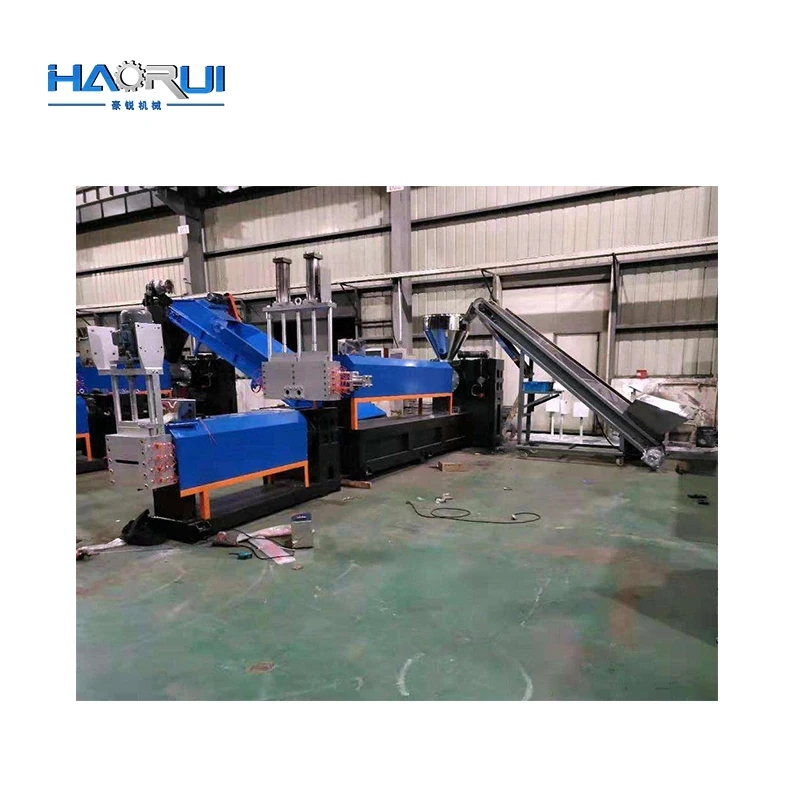

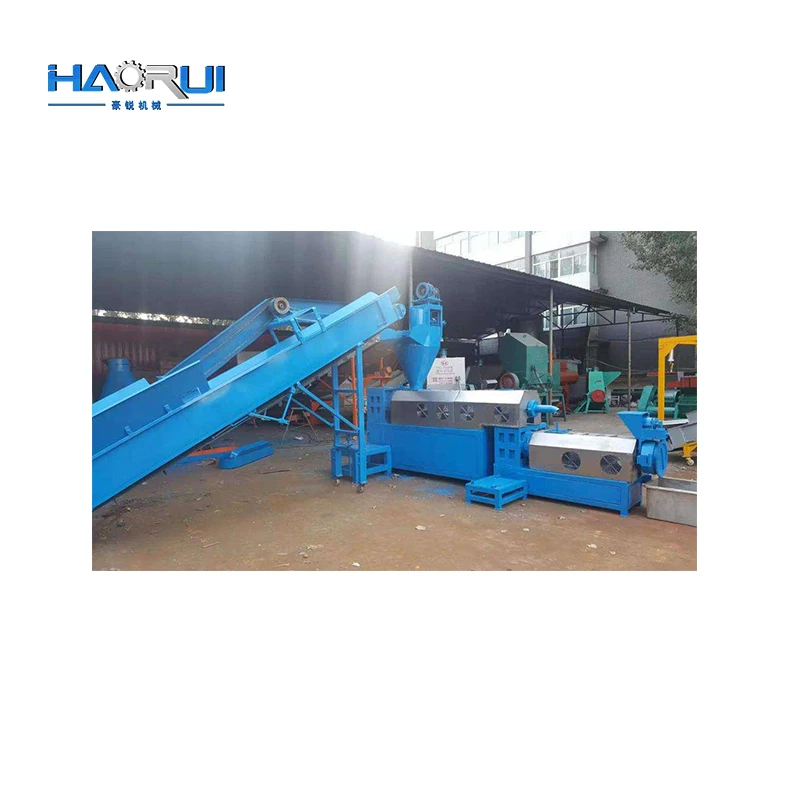

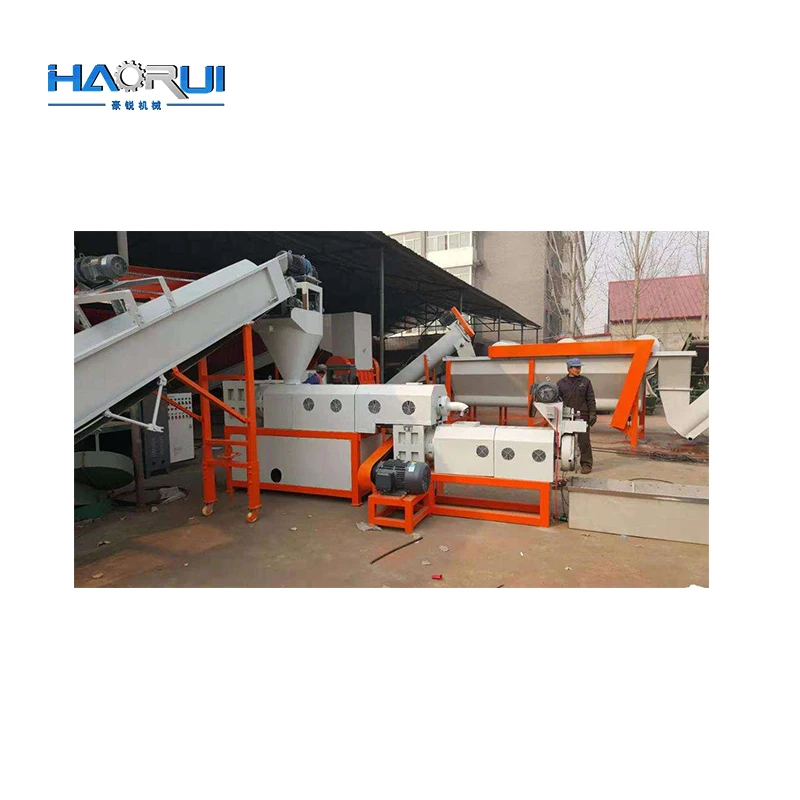

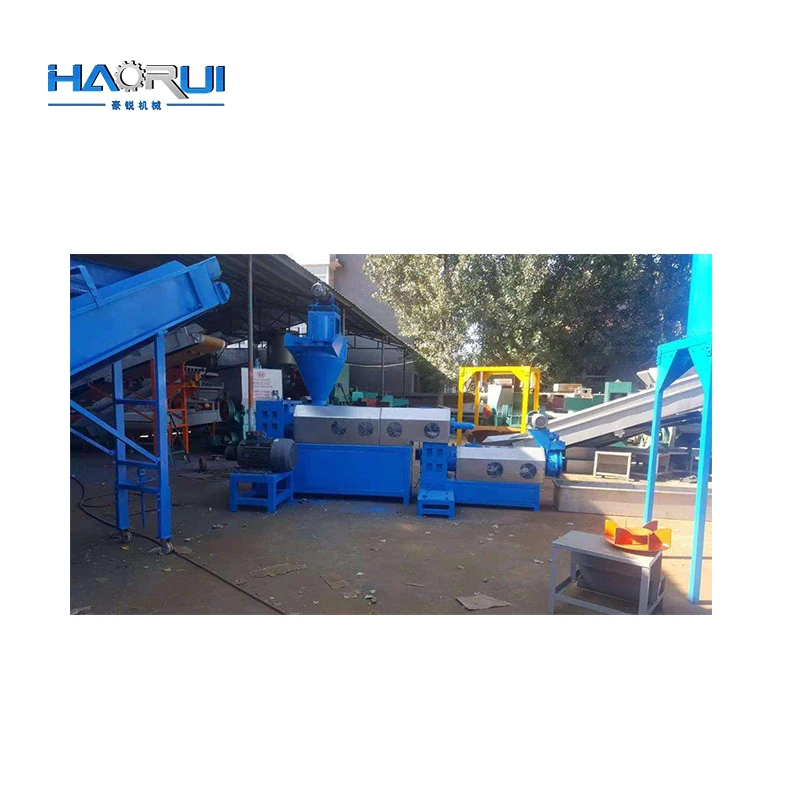

PP PE PET PC PVC plastic flakes Granulator machine Pelletizing machine
- Category: >>>
- Supplier: Baoding Haorui Machinery Manufacturing Co. Ltd.
Share on (60272654898):
Product Overview
Description
Product Despriction
Machine name | PP PE PET PC PVC plastic flakes Granulator machine Pelletizing machine | ||||||
Capacity | 1000kg/h | ||||||
Machine size | 5tons | ||||||
Voltage | 380V or according to customer | ||||||
Weight | 15m*3m*4m | ||||||
Power | 80kw | ||||||
Warranty | 1 years | ||||||
Flakes size | 10mm 12mm 14mm 16mm ect | ||||||

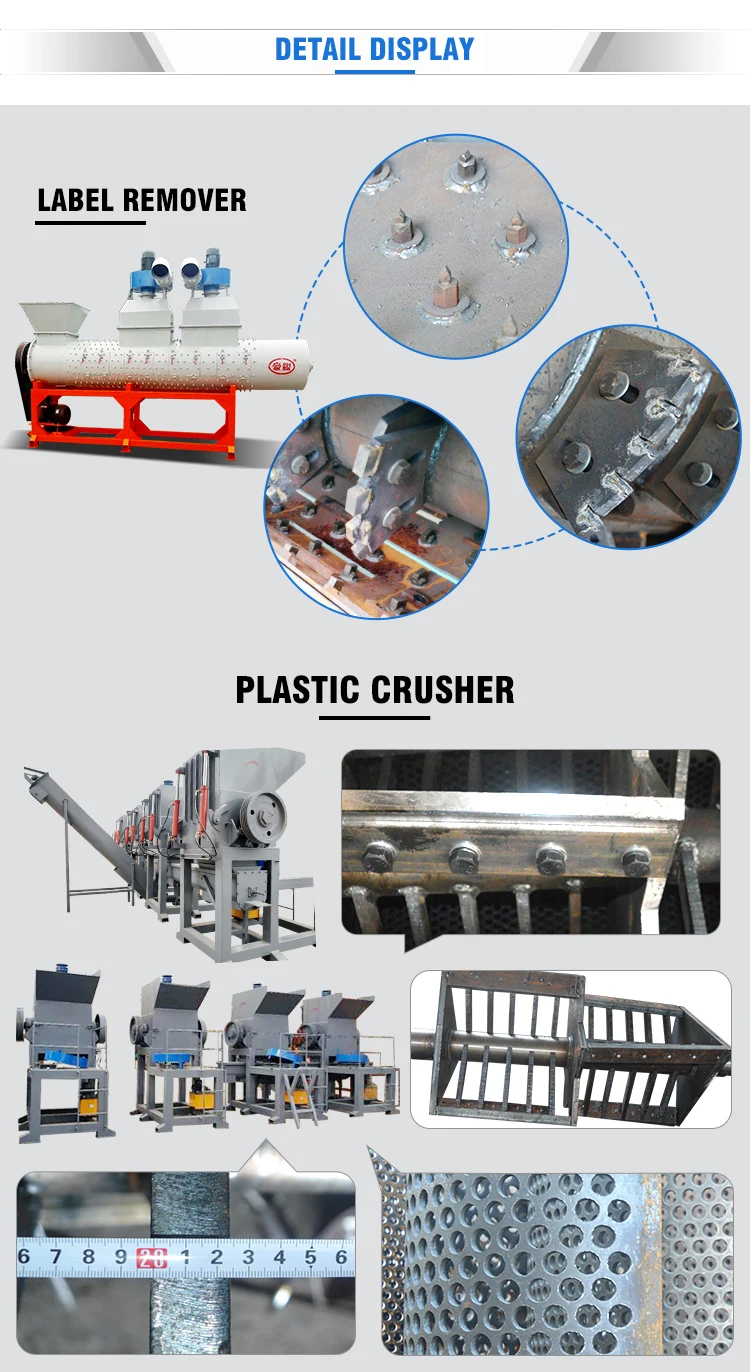

Detail Display
Label remover
Usage: remove the pvc labels of the PET bottles
1. knife material:alloy
2. Capacity:1000kg/h
3. Shafts:single shaft
4. Spare parts：motor,fan, V-belt ,protective cover
Usage: remove the pvc labels of the PET bottles
1. knife material:alloy
2. Capacity:1000kg/h
3. Shafts:single shaft
4. Spare parts：motor,fan, V-belt ,protective cover

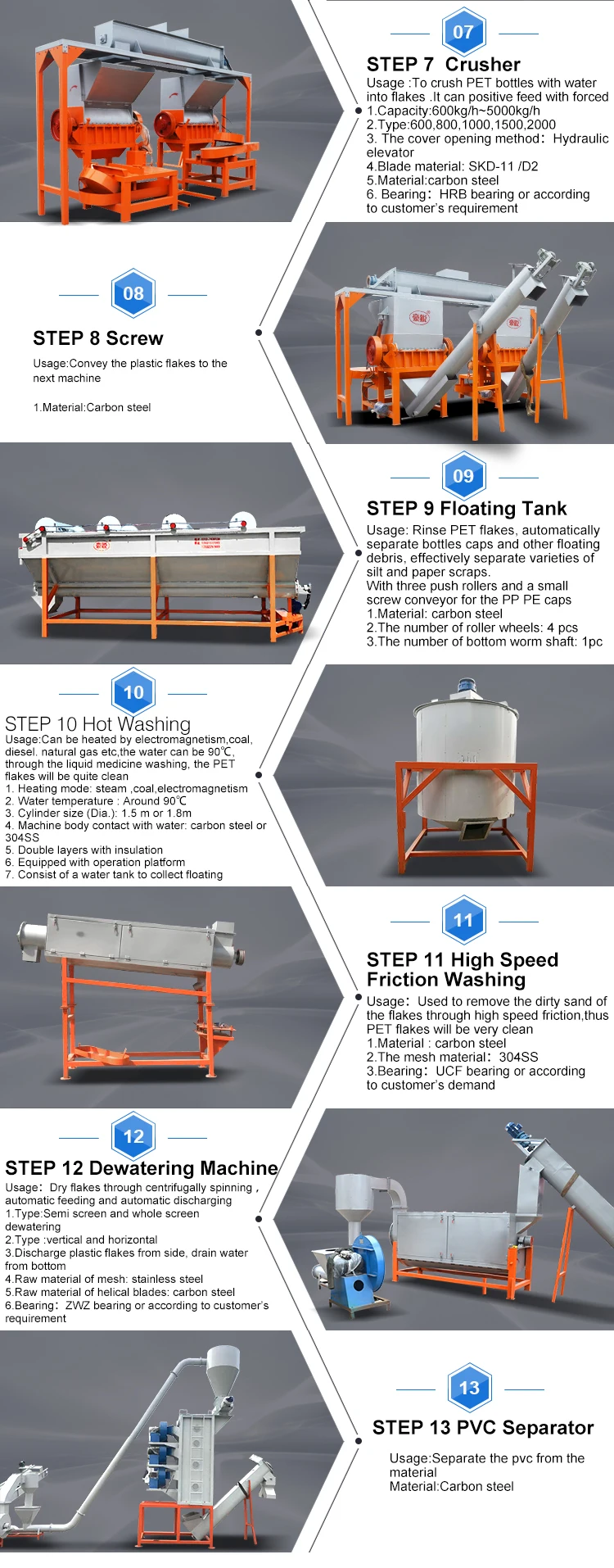

Plastic crusher
Usage: To crush PET bottle with water into flakes.
1. Capacity:1000kg/h
2. Type:1000type
3. The cover opening method: hydraulic elevator
4. Blade material:SKD-11
5. Material:carbon steel / 304SS
6. Bearing: Chinese famous brand (HRB brand)
Usage: To crush PET bottle with water into flakes.
1. Capacity:1000kg/h
2. Type:1000type
3. The cover opening method: hydraulic elevator
4. Blade material:SKD-11
5. Material:carbon steel / 304SS
6. Bearing: Chinese famous brand (HRB brand)
Floating tank
Usage:rinse PET flakes, automatically separate bottles caps and other floating debris ,effectively separate varieties of silt and paper scraps With three push rollers and a small screw conveyor for the PP PE caps1. Material: carbon steel
2. Number of roller wheels:4pcs
3. Number of bottom worm shaft:1 pc
Dewatering machine
Usage: Dry flakes through centrifugally spinning,automatic feeding and discharging the flakes
1. Whole screen type dewatering machine
2. Type: Horizontal
3. Discharge the PET flakes from side, drain water from bottom
4. Mesh material: 304 stainless steel
5. Helical blades material:carbon steel
6. Bearing: ZWZ bearing( Chinese famous brand)
Usage: Dry flakes through centrifugally spinning,automatic feeding and discharging the flakes
1. Whole screen type dewatering machine
2. Type: Horizontal
3. Discharge the PET flakes from side, drain water from bottom
4. Mesh material: 304 stainless steel
5. Helical blades material:carbon steel
6. Bearing: ZWZ bearing( Chinese famous brand)
Flakes size:10mm 12mm 14mm 16mm ect
Recommend Products

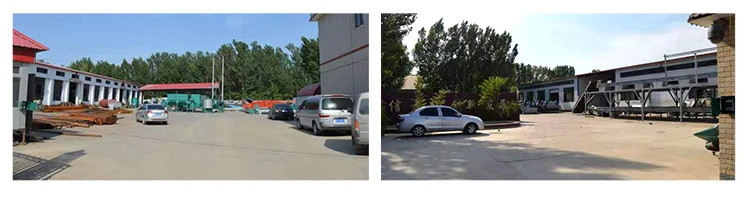

Company Profile
Baoding Haorui Machinery Manufacturing Co.,ltd was established in 1992,is a professional manufacturer and exporter that is concerned with the design,development and production of PET bottle crushing and washing machine, PP PE plastic bag / film crushing and washing machine, granulator.
We have over 300 employees, an annual sales figure that exceeds USD10million dollars and are currently exporting30% of our production .
There are over 100 technicians in our workshops which covers 20000 square meters. Over 28 years of plastic recycling machines production experience ,enable us to be TOP3 plastic recycling machine factory in China. Our own R&D team make our machine designunique, OEM and ODM service are also welcome. Our main products include bale opener, label remover, plastic crusher, floating tank, screw feeder, high-speed friction washer , hot / cold washer, dewatering machine, pipe dryer and so on.
We insist on the principle of “quality is first” and inspect the machine after producing “ which make our market more popular in Domestic and we have gained a global sales network reaching Middle East,Africa,South America,South East, South Asia and so on
We have over 300 employees, an annual sales figure that exceeds USD10million dollars and are currently exporting30% of our production .
There are over 100 technicians in our workshops which covers 20000 square meters. Over 28 years of plastic recycling machines production experience ,enable us to be TOP3 plastic recycling machine factory in China. Our own R&D team make our machine designunique, OEM and ODM service are also welcome. Our main products include bale opener, label remover, plastic crusher, floating tank, screw feeder, high-speed friction washer , hot / cold washer, dewatering machine, pipe dryer and so on.
We insist on the principle of “quality is first” and inspect the machine after producing “ which make our market more popular in Domestic and we have gained a global sales network reaching Middle East,Africa,South America,South East, South Asia and so on
Our Advantage
Free accessories for customer:
1. One set of plastic crusher blades( 10pcs worthy 300dollars)
2. One piece of plastic crusher screen (worthy 60dollars)
3. Some belt for motor
1. One set of plastic crusher blades( 10pcs worthy 300dollars)
2. One piece of plastic crusher screen (worthy 60dollars)
3. Some belt for motor
Certifications
Packing and Delivery
Packing with film, pallet or wooden case.(according to customers' request).
FAQ
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades—Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
Q: How about the rate for removing the labels by Label remover?
A: Compressed bottle: more than 96%
Un-compressed bottle: more than 98%
Q:What’s the temperature of steam washer ?
A: Usually 80-90℃ ( If the temperature is over 100℃, the Flake will be roll.so the best temperature
is 80-90℃)
Q: What’s the moisture after Horizontal dewatering machine?
A: About 1.8%. Adopt Swedeen SKF bearing, with bearing layer on the surface of screw blades
for longer working life.
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades—Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades—Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
Q: How about the rate for removing the labels by Label remover?
A: Compressed bottle: more than 96%
Un-compressed bottle: more than 98%
Q:What’s the temperature of steam washer ?
A: Usually 80-90℃ ( If the temperature is over 100℃, the Flake will be roll.so the best temperature
is 80-90℃)
Q: What’s the moisture after Horizontal dewatering machine?
A: About 1.8%. Adopt Swedeen SKF bearing, with bearing layer on the surface of screw blades
for longer working life.
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades—Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
