High temperature insulation Al2o3 alumina ceramic porcelain tube
- Category: >>>
- Supplier: Sta Refractory (zhengzhou) Co. Ltd.
Share on (60272678702):
Product Overview
Description
Specification
1. alumina porcelain Tube
2.Max working temperature 1800
3. High Purity 99.7%
4. Excellent Insulation
Product Description
High temperature insulation Al2o3 alumina ceramic porcelain tube
The Alumina ceramic tube are constructed of pure 99.7% Al2O3 that has superior gas and vacuum tightness and excellent insulating properties even at elevated temperatures. The alumina ceramic tube/rod/bar is an ideal wear-resistance material for delivering the sand, mine, ash dregs and molten aluminium, has excellent conductivity, high machinery strength and high temperature resistance, can resist to the acid, high temperature, corrosion and static electricity. Al2O3 is the most important technical ceramic material. It is characterized by high hardness, high compressive strength and corrosion resistance even at high temperatures. Through the content of Al2O3 in the material,these properties can be tailored to the application of customer. Other material like Mullite, Zirconia, Silicon Carbide, Silicon Nitride bonded Silicon Carbide is also available.
Features of alumina porcelain Tube
1. High quality: Max working temperature 1800C, high abrasive resistance.
2. Various sizes for your choose, diameter from 1-120mm, length from 10-2000mm
3. Various processing methods make right tubes for different usage, including extruding, casting, pressing etc.
4. Tubes can be grinding, drilling holes etc according to the requirements of customers.
5.Stiffness texture.
6. Large quantity in stock can provide fast delivery and very competitive prices.
Main performance index of alumina porcelain Tube
| performance index | Measuring unit | High purity alumina | Alumina | High alumina |
| Al2O3 | % | 99.7 | 99.3 | 85 |
| SiO2 | % | less than0.1 | — | — |
| Density | g/cm3 | 3.95 | 3.88 | 3.2 |
| Water absorption | % | 0 | 0.01 | 0.2 |
| Cld compressive strength | Mpa | 450 | 350 | 200 |
| 20 degree Celsius leak rates | Torr/L.sec | less than10-11 | less than10-11 | less than10-11 |
| Twisting in high temperature | mm | 1700 degree Celsius 0.2 allowance | 1600 degree Celsius 0.2 allowance | 1400 degree Celsius 0.2 allowance |
| Bonding in high temperature | 1700 degree Celsius non-caked | 1600 degree Celsius non-caked | 1400 degree Celsius non-caked | |
| 20—1000 degree Celsius coefficient of thermal expansion | mm.10-6/degree Celsius.m | 8.6 | 8.2 | 8.2 |
| Thermal conductivity | W/m.k | 25 | 25 | 25 |
| Electric insulation strength | KV/mm | 20 | 20 | 15 |
| 20 degree Celsius direct current insulating resistance | Ohm/cm | 10 14 | 10 14 | 10 14 |
| High-temperature insulation resistance | 1000 degree Celsius MΩ | ≥0.08 | ≥0.08 | ≥0.08 |
| 1300 degree Celsius MΩ | ≥0.02 | ≥0.02 | ≥0.02 | |
| Thermal shock resistance | 1550 degree Celsius 6 times not cracked | 1550 degree Celsius 6 times not cracked | 1300 degree Celsius 3 times not cracked | |
| Maximum service temperature | degree Celsius | 1900 | 1800 | 1400 |

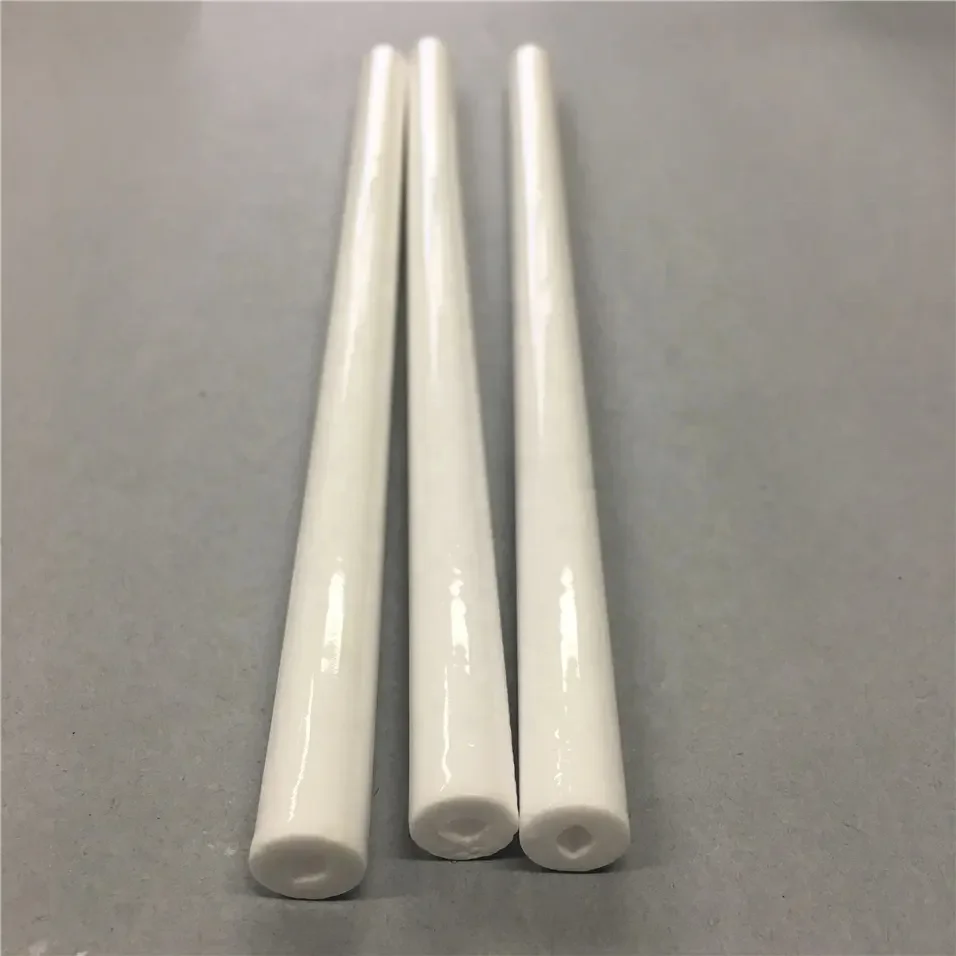

Product Show
Product Line of alumina porcelain Tube
Standrad Size of alumina porcelain Tube
| Furnace Tube | |||||||||||
| Diameter OD/ID (mm) | 30/25 | 40/34 | 50/44 | 60/53 | 70/63 | 80/70 | 85/75 | 90/80 | 100/90 | 110/100 | |
| Max Length (mm) | 2000 | 2000 | 2000 | 2000 | 2000 | 1700 | 1600 | 1600 | 1500 | 1200 | |
| Thermocouple Protection Tube | |||||||||||
| Diameter OD/ID (mm) | 1.6667 | 1.5 | 1.6 | 10/7 | 1.5 | 1.4 | 1.5 | 1.3333 | 1.2143 | 20/16 | 25/19 |
| Max Length (mm) | 300 | 1000 | 1600 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Thermocouple Insulator | |||||||||||
| Single Bore | Double Bores | Four Bores | |||||||||
| Diameter OD/ID (mm) | OD1-12 ID0.5-8 | OD1-12 ID0.2-4 | OD1.6-12 ID0.35-3.5 | ||||||||
| Max Length (mm) | 2000 | 2000 | 2000 | ||||||||
Other sized alumina porcelain Tube can be made according to your need!
Packaging & Shipping
alumina porcelain Tube
Alumina or Aluminium Oxide(Al2O3) in its various of levels of purity is used more often than any other types of advanced ceramic materials. Alumina cermaic is a kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, spark plugs etc.
Why Choose STA
1. Your inquiry related to our products or prices will be replied within 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. All our products have 1-year warranties.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
6. Guarantee samples quality same as mass production quality.
Factory
STA is a leading manufacturer for laboratory high temperature muffle furnace, tube furnace, vacuum furnace, atmosphere furnace, dental singtering furnace, bottom loading furnace, bogie hearth furnace, mosi2 heating elements, sic heating elements , alumina ceramic tube pipe, refractory material, ceramic fiber board blanket.
Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.
STA protect your irreplaceable data and valuable equipment with the most dependable and popular line of uninterruptible industrial products.
STA distinguishes itself from other industrial company by the extraordinary results it delivers. Our ability to routinely produce these results derives from our unique combination of the following advantages:
1. Unmatched experience and expertise.
2. Proprietary benchmarks, best-practice methodologies, and work processes
3. Highly flexible and responsive team deployment.
OEM SERVICE
1.You give us an inquiry or leave a message.
2.We will quote to you.
3.Negotiation payment after all details confirmed.
4.We will send the goods to you timely.
5.If you need special and customized design,the delivery time will be based on the quantity and
specifications according to your requirement.
6.Devery time:7 days after your payment.
7.After-sale service: We will take responsibility of any problem caused by manufacturer, offer 100%
satisfied guarantee
FAQ
Q:Why choose STA?
A:35 years experience.Point to point service.Reasonable price.Multiple selections.
Q:Which payment terms you will accept?
A: T/T, West Union,Moneygram or Other.
Q: What is the delivery time?
A: For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days; Others the delivery time is from 15 days to 20 days according to different products request.
Q: What logistic shipping ways you can send the products?
A: We can send goods out by sea, by air or by express according to per customer's requirement.
Q: What about your after-sale service?
A: Our warranty time is one year for defects in materials or workmanship. During this period, we will replace the bad components free of charge for customers,but this warranty does not cover consumables and failures
because of abusing, misusing, accident or unauthorized alteration or repairing. Heating element is not included inside.
