32 Port MA5616 IP DSLAM ADSL2 Card Huawei ADLE Service Board

Share on (60272859448):


Price:

Quantity:


Product Overview

Description


32 Port MA5616 IP DSLAM ADSL2+ Card Huawei ADLE Service Board






Product Description








ADLE is a 32-channel ADSL2+ over POTS service board. It has a built-in splitter with 600-ohm impedance and provides the ADSL2+ over POTS access service.This board is for Huawei IP


DSLAM MA5616.





Functions Supports



  • 32 channels user ports

  • ADSL2+ over POTS access services

  • Annex A, Annex L and Annex M transmission modes

  • Upstream transmission using the UTOPIA port at a rate of 800 Mbit/s

  • Single ended loop testing (SELT)

  • Board power-off for energy conservation

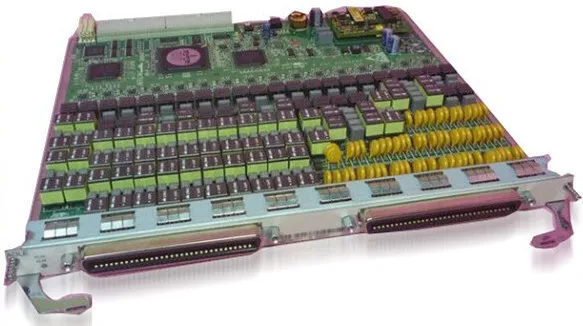

Appearance













Applications

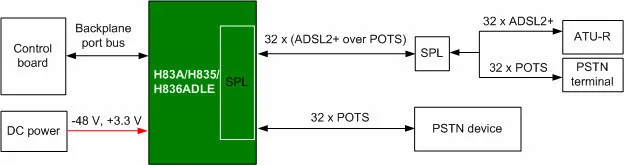

Figure 1 External connections of the ADLE board

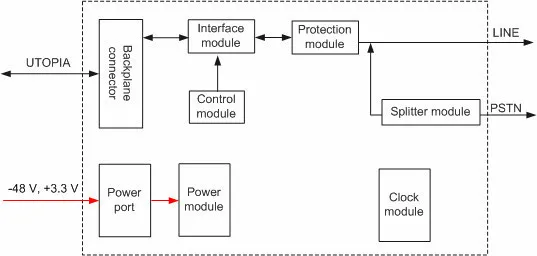

Figure 2 Working principle of the H83A/H835/H836ADLE board







The basic working principle of the H83A/H835/H836ADLE board is as follows:



  • The splitter module separates the ADSL2+ signals from the POTS signals.

  • The interface module isolates signals to meet the requirements for board hot swapping and provides information about board hardware management.

  • The control module controls the board software loading and board running, and manages the board.

  • The power module powers other function modules of the board.

  • The clock module provides the working clock for other function modules of the board.






Specifications







1. 32 channels user ports;
2. ADSL2+ over POTS access services;
3. Board power-off for energy conservation.






Packaging & Shipping





1.Trade terms: FOB,CIF,CFR,etc


2.Price Terms: L/C,D/P,T/T,Western Union,PAYPAL


3.Payment Terms: T/T in advance


4.MOQ:  1 pcs


5.FOB Price:US $1 - 1,000 / Piece


6.Port: Shanghai


7.Lead time: Within 5 working days after receipt payment.


8.Shipment: Express, Air, Sea


9.Supply capability: 200 Piece/Pieces per Week


10.Sample availability: Yes( not free)


11.Package information: carton package with Huawei original package



















Our Services





We can provide detail documents and remote help for device installation and configuration.


Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)


Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days ,


returned goods must keep original state and it’s accessories are complete.
