200w led modular flood light ,adjustable floodlight IP66 waterproof outdoor lighting COB and SMD LED Chips CE illumination lamp
- Category: >>>
- Supplier: Zhongshan Xiuben Lighting Co. Ltd.
Share on (60273060582):
Product Overview
Description
200w led modular flood light ,adjustable floodlight IP66 waterproof outdoor lighting COB and SMD LED Chips CE illumination lamp
| Project | Attribute | Project | Attribute |
| Wattage | 100w | Certification | CE&RoHS |
| Material | die-casting Aluminum | IP Grade | IP65 |
| Color indexc(CRI) | Ra ≥80 | Lamp Luminous Flux(lm) | 16000 |
| Life Span | 50000hrs | Warranty | 2yeas |
| Input VoItage | AC85~265V | Frequency(Hz) | 50-60Hz |
| Model Number | led outdoor flood light | Power Factor | 0.95 |
| 1. flood lighting led: |
1. Optical light distribution, no glare, no light pollution, high lighting effect and high uniformity.
2. High power factor, energy conservation and environment protection.
3. Surface treatment: coating treatment, high weather-ability, and rich colors.
4. Integrated heat dispersion of the housing; artistic and novel appearance design.
Matters Needing Attention
1. The light’s waterproof grade is IP65, able to withstand rains, but it can’t work under water.
2. Cut off power supply before and in installation process. If the product is damaged due to mal-operation, it shall not be guaranteed. Please have it mounted by a professional.
3. The light’s operating ambient temperature is between -25°C and 45°C. The temperature of operational site shall not exceed 45°C, to ensure the light’s service life.
4. Since the light power is high, when power line is arranged, it’s necessary to select a proper power line according to actual power, and supply power in single phase.
5. Please don’t dismount the light without authorization. Please contact professional maintenance personnel or the manufacturer if the light isn’t lit or is faulty otherwise.
Specification
| 2. flood lighting led Specification: |
Images
| 3. flood lighting led Images: |

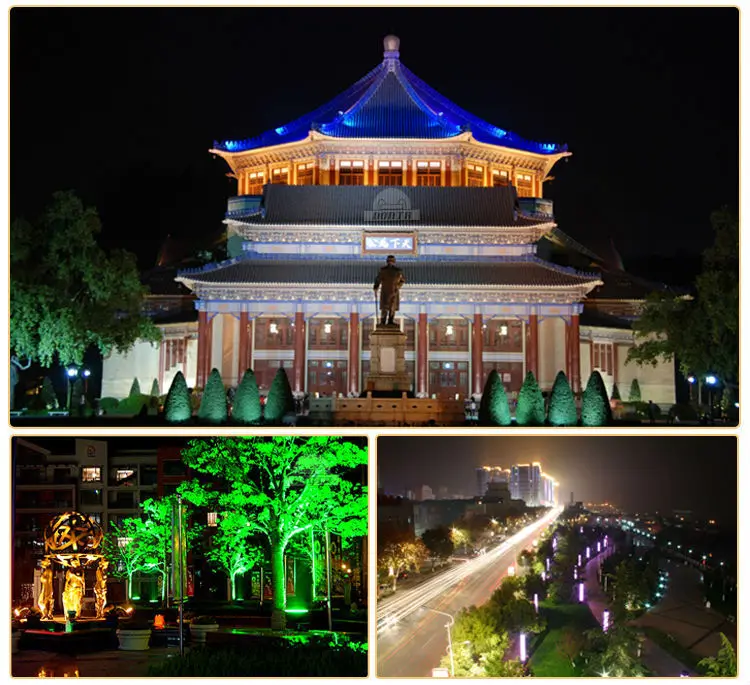

Suitable for wall,advertising board, store, square,garden lighting,etc.
Install
100w flood lighting led
Installation Process of flood lighting led
1. Fasten the light directly to mounting stem or mounting surface with screws through the 5-mm mounting hole site on the mounting bracket.
2. After the product is fixed, it’s feasible to loosen the spin screws on the housing. Then, adjust the angle of the bracket. That is, adjust the installation angle of the light.
3. When the light is mounted, the wires and joints should be sealed off, to prevent electric leakage.
4. When power line is connected externally, it’s necessary to take corresponding waterproof and anti-leakage measures.
5. No fire safety rule can be violated when the light is in use.
6. Cut off power supply before and in installation process, and the light must be installed by a professional. The connection mode of 0.75-mm2 three-core cable: the red wire is live wire, blue wire is null wire and yellow wire is ground wire.
