HS721 Manual Pneumatic Pressure Comparator

Product Overview

Description

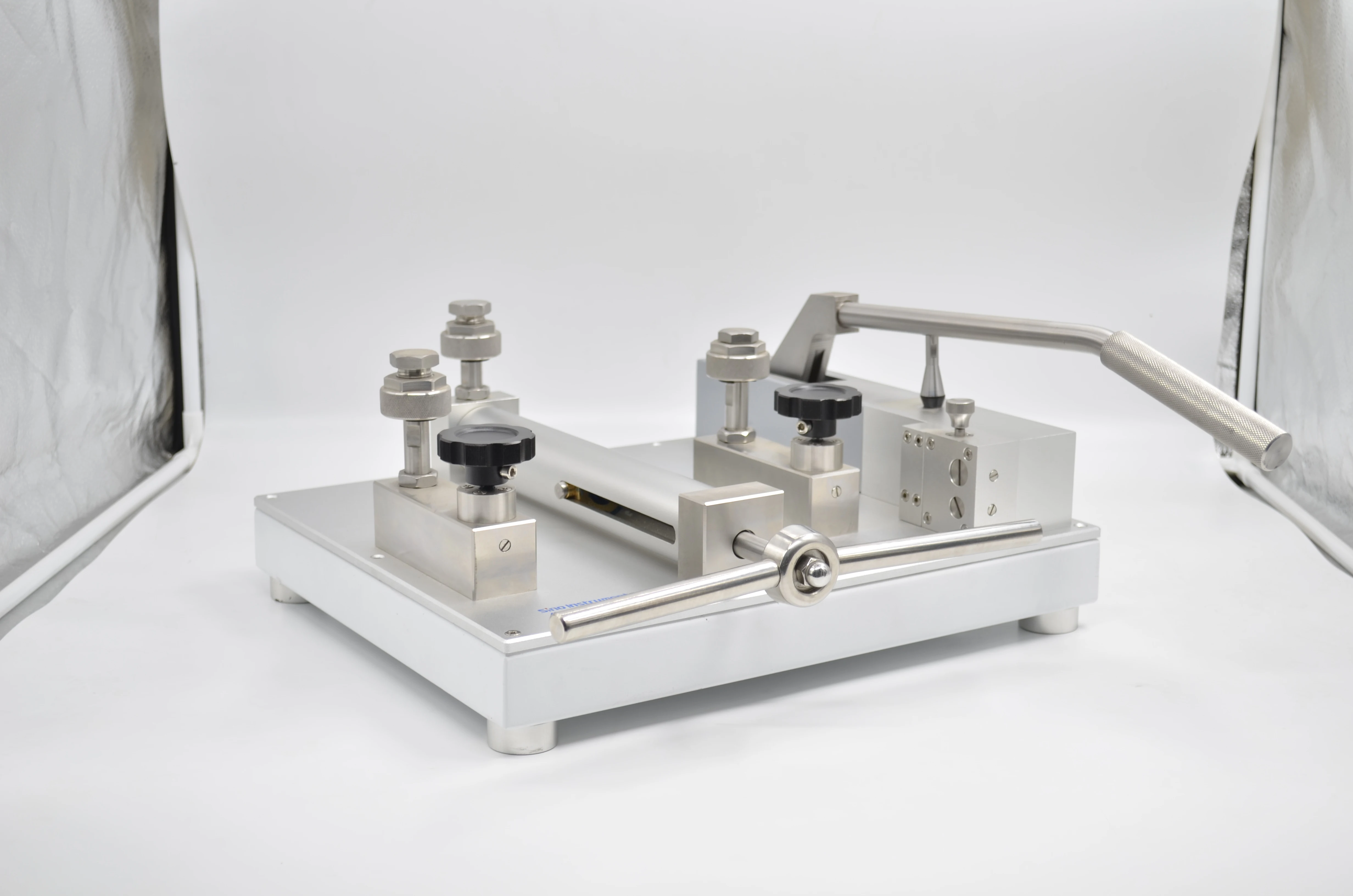

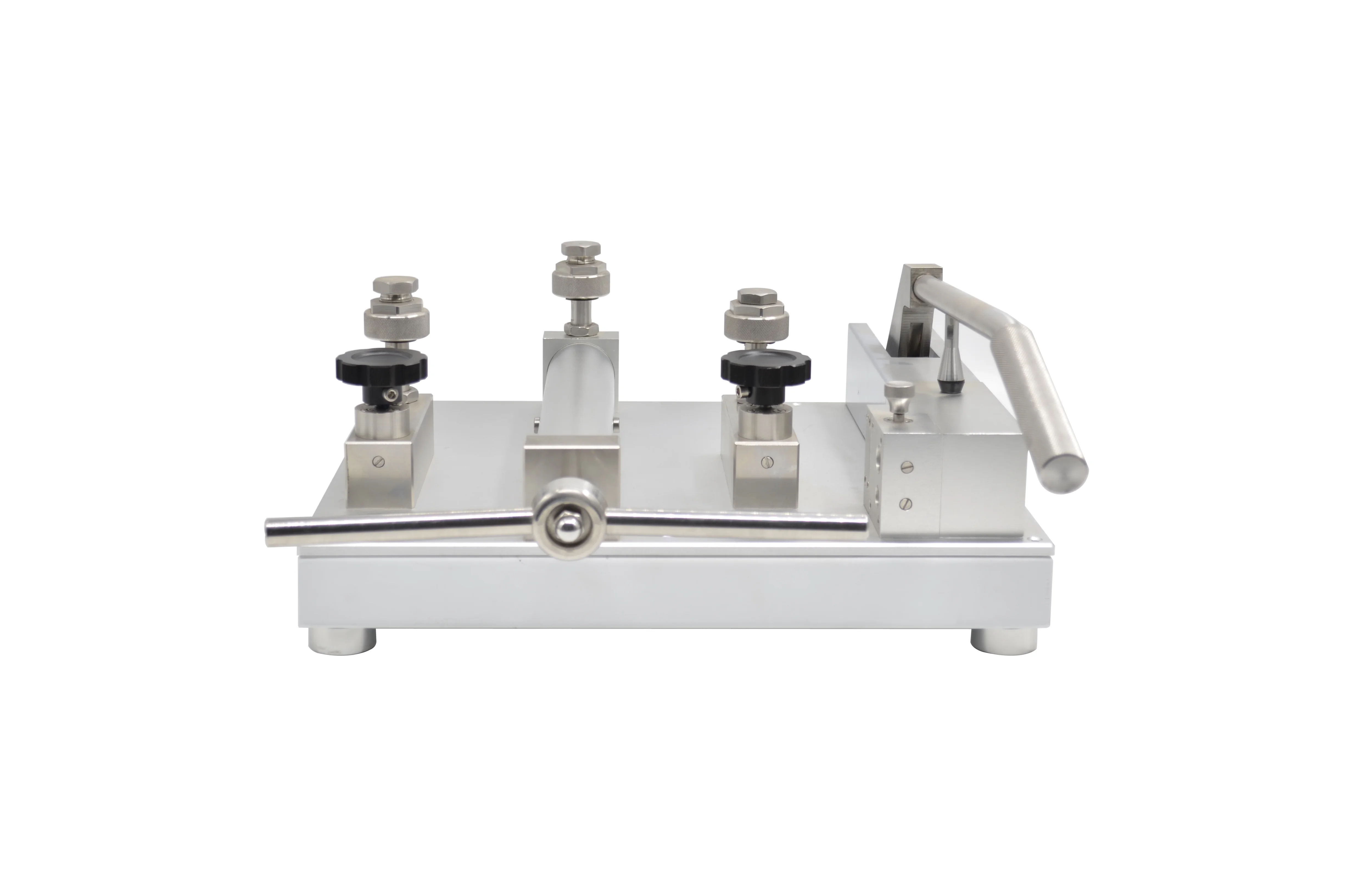

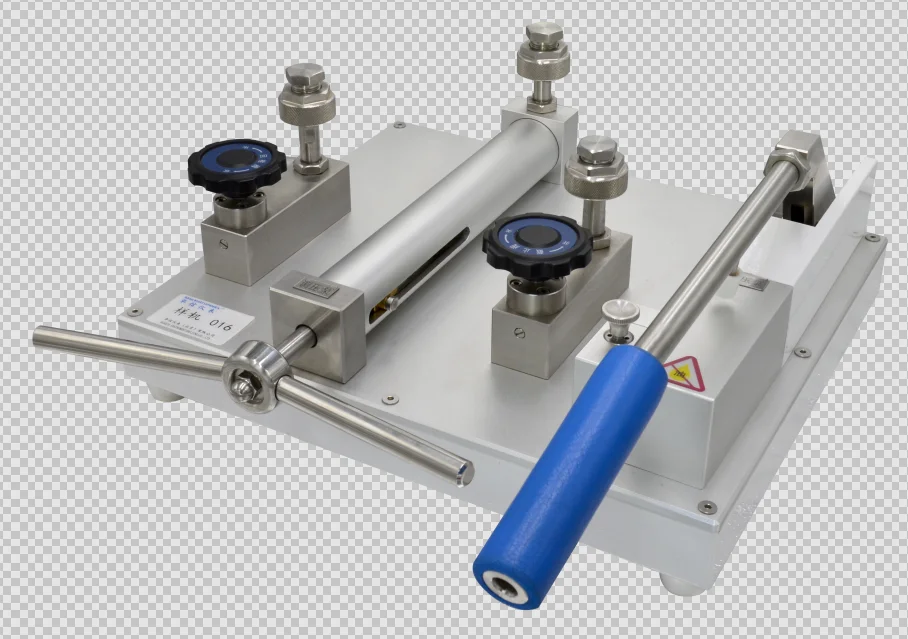

HS721  Manual Pneumatic Pressure Comparator



HS721  Pneumatic Pressure Comparator   is designed with a reverse valve, generated pressure from vacuum to 140bar.The F-adjust valve could accomplish 0.1mbar pressure resolution. Having 3 outputs with fast fittings, which is more effective to calibrate the under test pressure instruments . A built-in gas-oil isolator keeps the pump from oil impurity avoid some unnecessary maintenance.Especially the lever lead screw design makes user operate in economize labor. It widely calibrates pressure instruments in the laboratory.


Characteristics
 Food grade stainless steel and hermetic technology in the military industry
 High precision, stable pressure generating, easy operation.
 Wide pressurized range, high vacuum degree
 High reliability, Wide micro-adjusting range





Technical Specification
Pressure Range:	(-0.95~60/140) bar
Working Medium:	Air

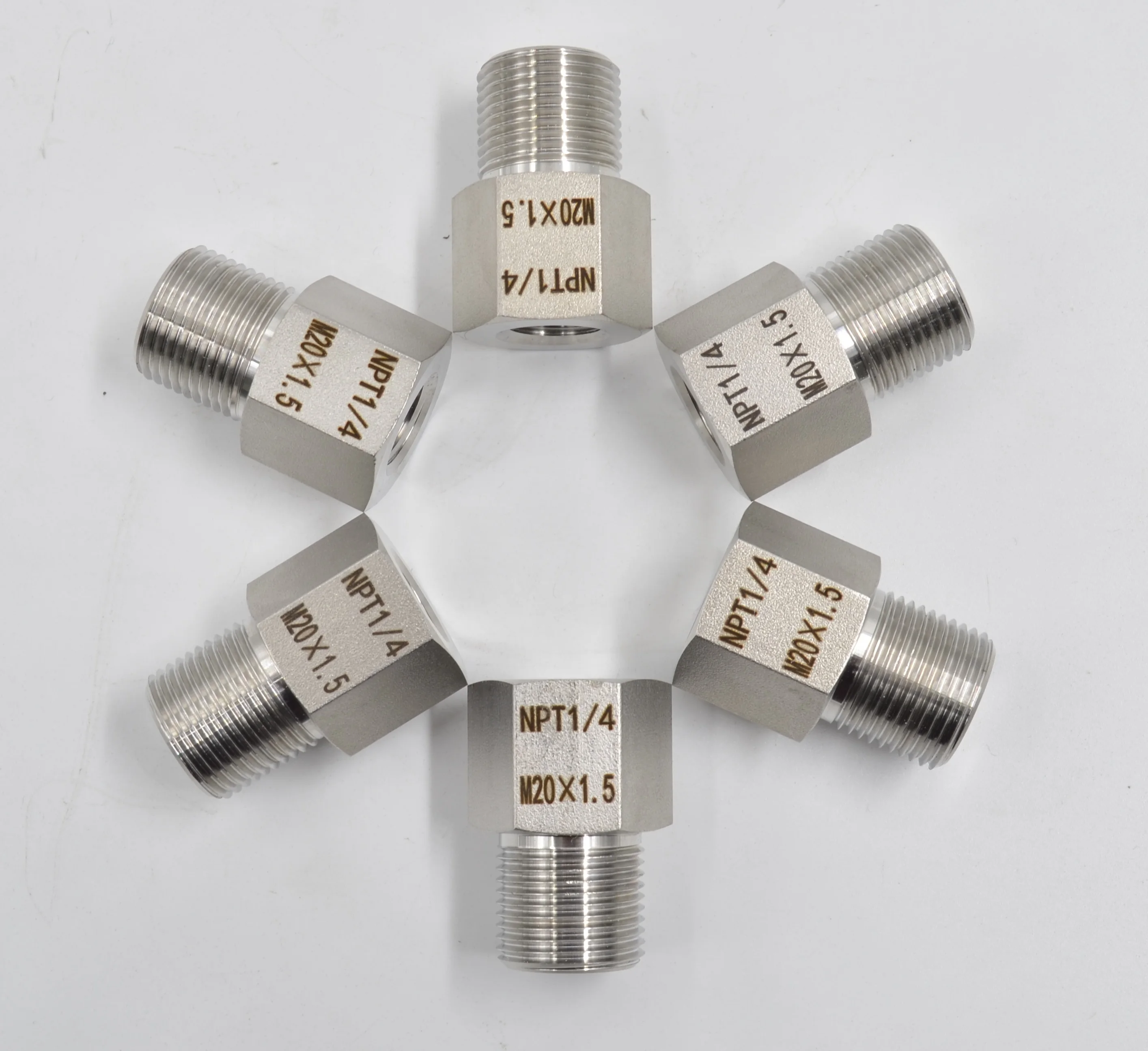

Output Interface:	M20×1.5 Female*3pcs
Weight:	14.5kg
