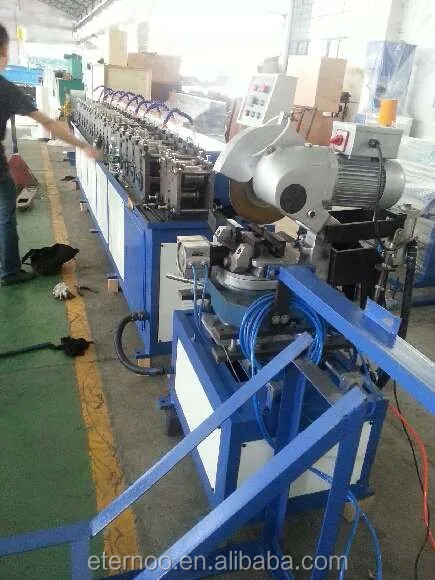

Post Tension Flat Duct Production Line 50*20mm,70*20mm

Product Overview

Description

Post Tension Flat Duct Production Line 50*20mm,70*20mm



 Post Tension Flat Duct Production Line 50*20mm,70*20mm

1. 1.      Equipment parameter:

Raw material	Galvanized steel strip
Strip thickness	0.4mm,0.35mm
Strip width	About 165mm
Production speed	15-18m/min
Equipment power
Equipment voltage	380V-50HZ,3PH
Controller voltage	220V, 50HZ, 3PH

1. 2.      Working procedure:

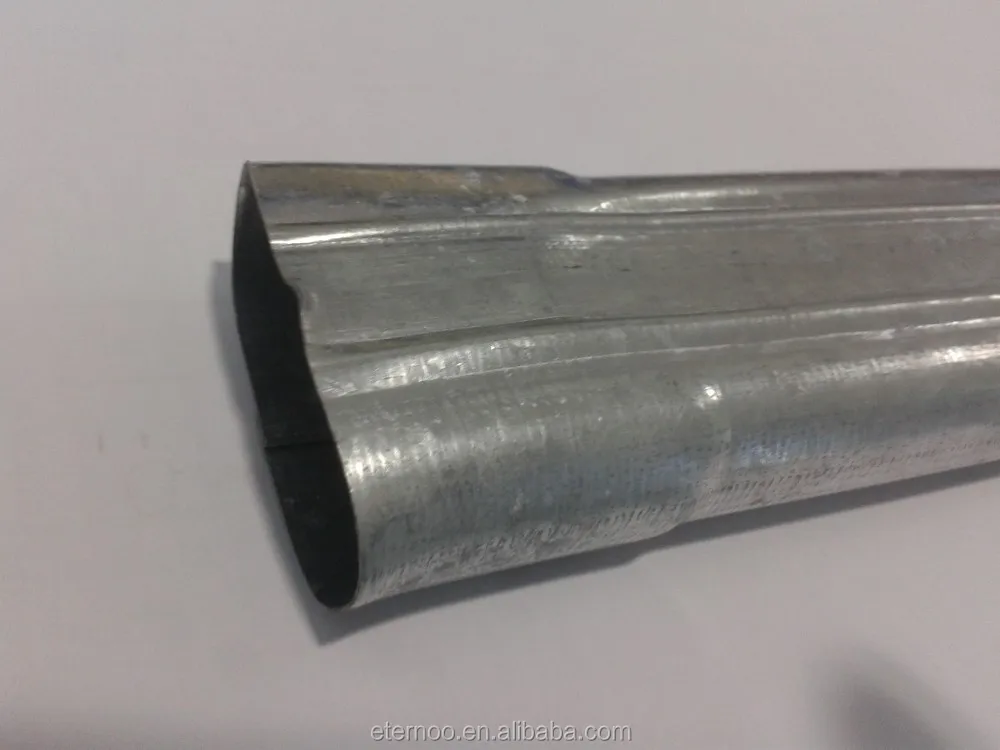

Decoiler→roller machine→cutting off→ end product(oval duct)

1. 3.      Decoiler: 3 -4 tons capacity

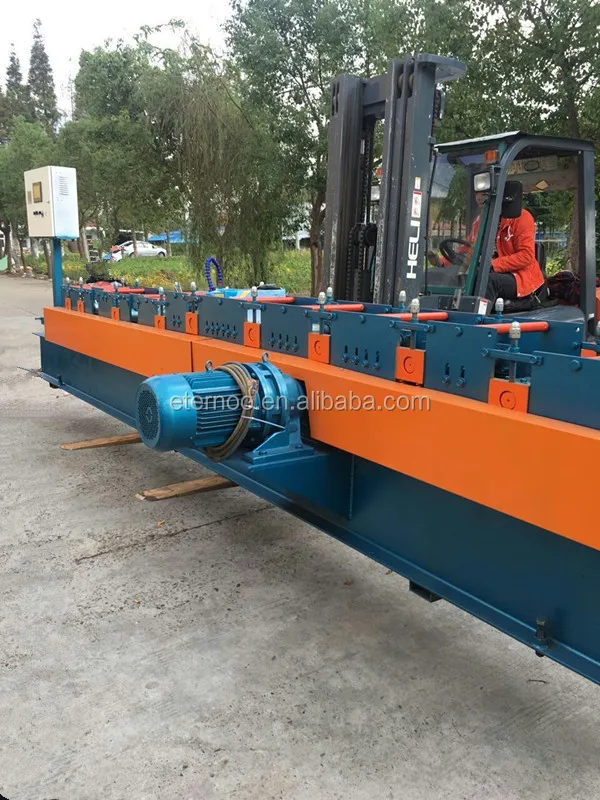

2. 4.      Roller machine:roller: Cr12 steel, wear-resisting and long lifetime.

Machine power: 4.5KW

1. 5.      Cutting machine: Auto cutting saw, 1.8KW
2. 6.      Control box: PLC controlling, can set program for customized duct length
3. 7.      We can also match duct buldging machine
4. including duct buldging machine
5. Post Tension Flat Duct Production Line, we could also supply bar chair machine
