Small manual wire coil winding machine GDY series transformer winding machine
- Category: >>>
- Supplier: Zhu Tang (Suzhou) Technology Co. Ltd.
Share on (60273244812):
Product Overview
Description

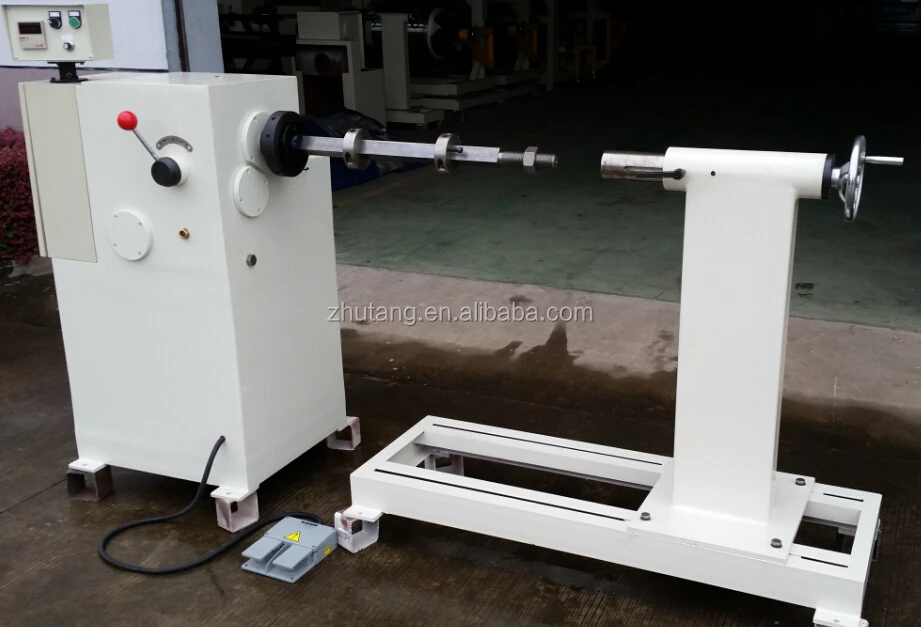

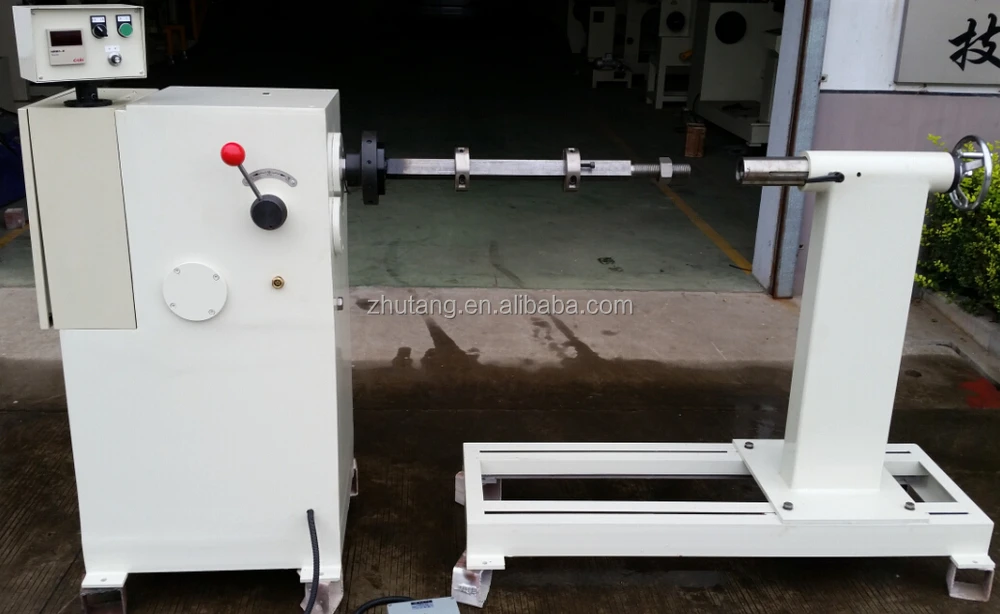

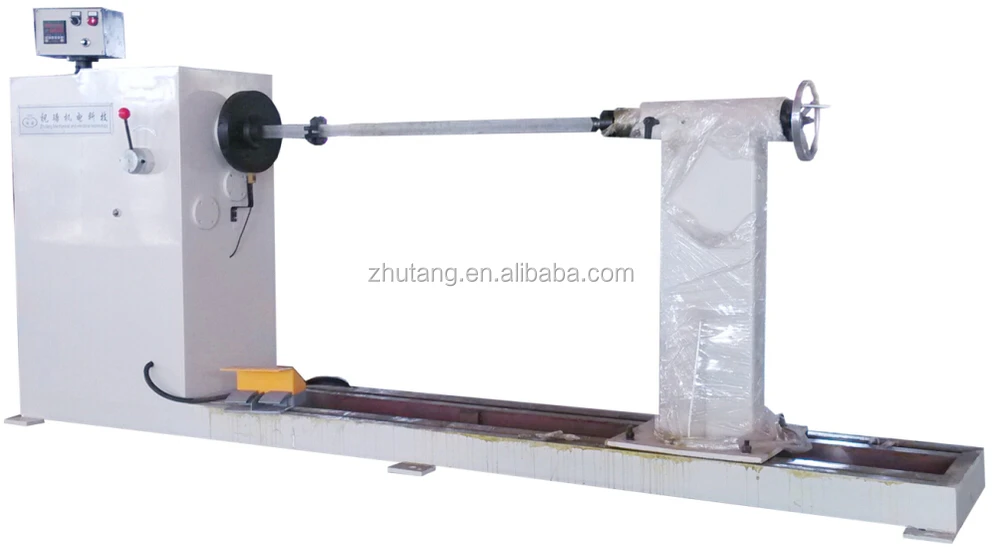

Small manual wire coil winding machine GDY series transformer winding machine:

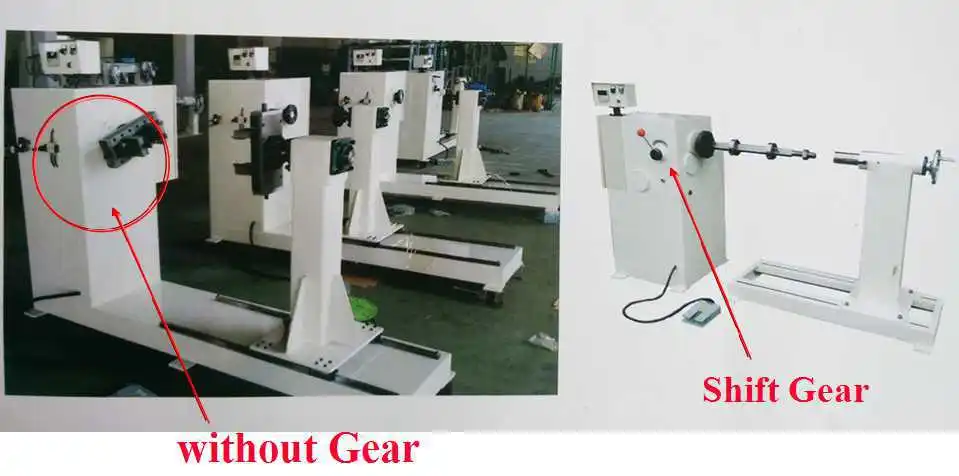

GDY-1T High&Low-voltage winding machine is capable of winding medium and small transformers of various specifications. Using mechanic shift gear with three different transmission ratio, electronic invertible counter and imported frequency converter in speed change, the machine is smooth to start up and good in self locking. Low in noise and convenient to operate, the machine performs qualified winding work.
Main Technical Parameters:
Main Technical Parameters | ||||
NO. | Item | Parameters | ||
GDY-0.5T | GDY-1T | GDY-2T | ||
1 | Winding speed (r/min) | 0-300 | 0-200 | 0-80 |
2 | Maximum torque (N.m) | 260 | 500 | 2500 |
3 | Maximum load (kg) | 500 | 1000 | 2000 |
4 | Center height | 800 | 900 | 900 |
5 | Power of motor (kw) | 2.2 | 3 | 5.5 |
6 | Counter by electronic reversible counter (with blackouts memory function) | |||
7 | USES frequency conversion control stepless speed regulation | |||
8 | Lose electric braking functions | |||
