| ---Product Description--- |
Automotive Air Conditioner Temperature Sensor NTC Thermistor 2KOhm 3941With High Accuracy is a specific temperature sensor made of NTC thermistor, epoxy resin coating , AWG cable , connector , using to measure and monitor temperature in car , temperature would be mesured and displayed on HUD . It is a high accuracy sensing element and helpful . And,we can design and produce all kinds of Auto temperature sensor probe for all kinds of car brand such as HONDA,TOYOTA , GREAT WALL,CHANGFENG , BYD,BMW,AUDI, BUICK, FORD, LIEBAO ,and so on. |
| 1. Wide variety of installation fixtures and probes are available to suit customer needs. 2. Small size and fast response. 3. Long-term stability and reliability 4. Excellent tolerance and inter changeability 5. Lead wires can be terminated with customer-specified terminals or connectors |
| Applicable for temperature measuring devices such as below :
- Air conditioners - Refrigerators - Freezers - Water Heaters - Potable Water Heaters - Air Warmers - Washers - Disinfection Cases, - Washing Machines - Driers, - Thermotanks - Electric iron - Closestool - Rice cooker |

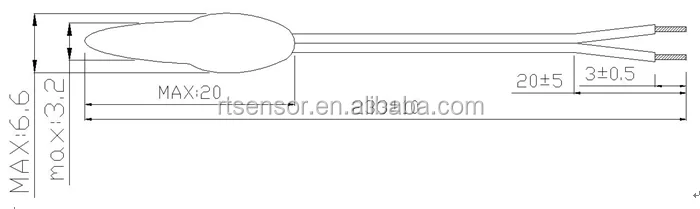

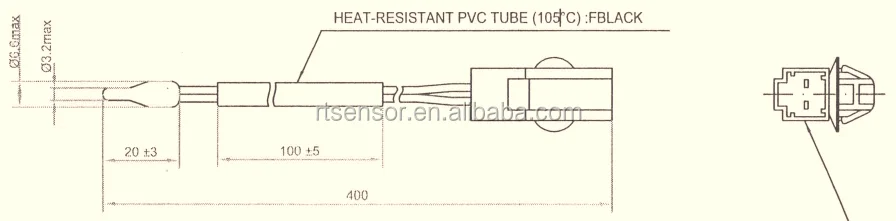

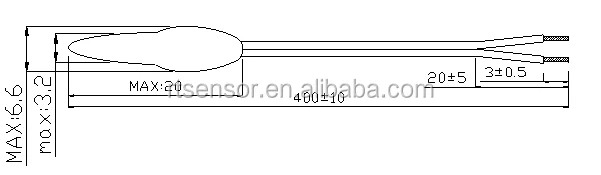

| Dimensional Drawing 400mm
233mm

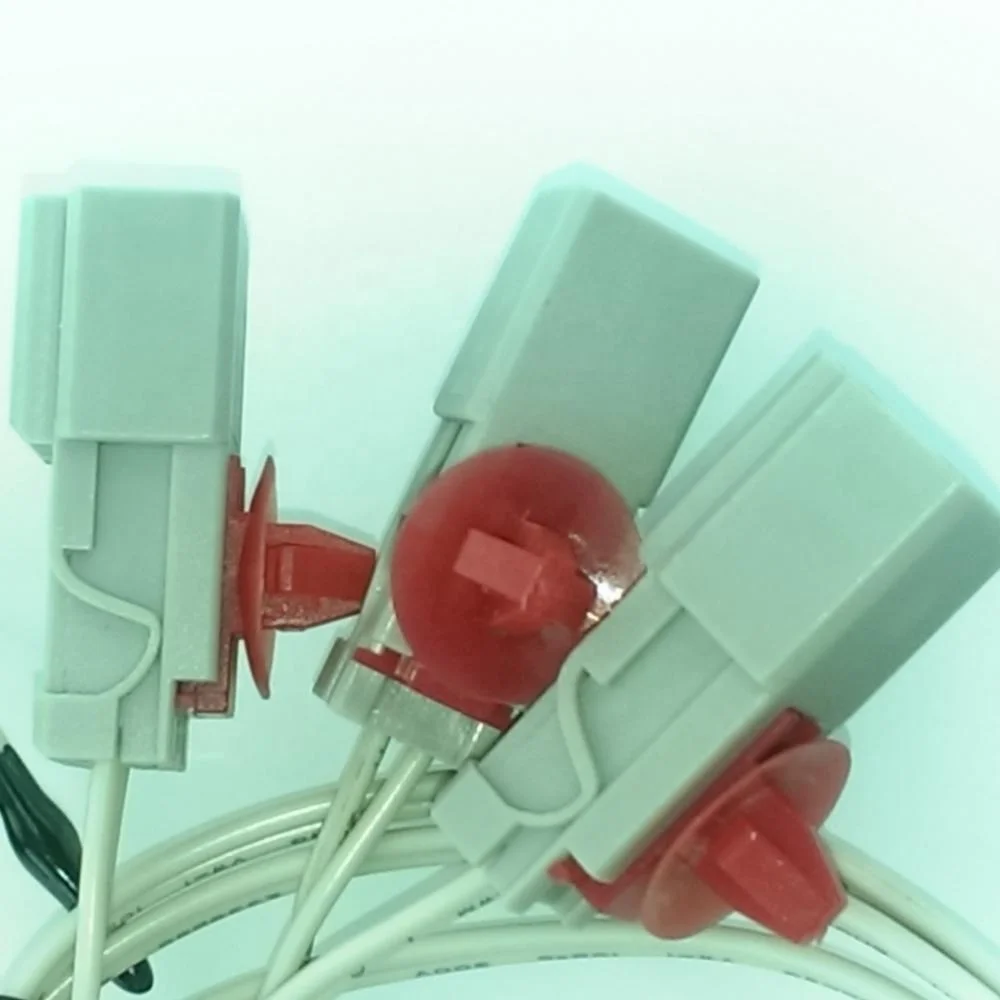

With faston connector
NO | Material Name | Item/PN | 2-1. | Lead wire | 2651 #20AWG TS 21*0.18mm ,OD:1.85*3.8mm ,105℃ 300V Grey White | 2-2. | Thermistor | R=6.65KΩ±1.5% R=2KΩ±3.5% B=3914K±1% | 2-3. | Epoxy Resin | Black |
NO | Item | Sign | Test Conditions | Min. | Normal value | Max. | Unit | 4-1. | Resistance at 0℃ | R0 | Ta=0±0.05℃ PT<0.1mw | 6.55 | 6.65 | 6.75 | kΩ | 4-2. | Resistance at 25℃ | R25 | Ta=25±0.05℃ PT<0.1mw | 1.93 | 2 | 2.07 | kΩ | 4-3. | B Value | B0/25 | | 3874 | 3914 | 3953 | k | 4-4. | Dissipation factor | σ | Ta=25±0.5℃ | 1.5 | | / | mw/℃ | 4-5. | Time constant | τ | Ta=25±0.5℃ | / | / | 3 | sec | 4-6. | Insulation resistance | / | 500VDC | 100 | / | / | MΩ | 4-7 | High-voltage Insulation Test | / | 1500VAC | 5 | | | Sec | 4-8. | Operating temp.range | / | / | -10 | / | +100 | ℃ |

|
| Customized packing is available . | Packing | Bulk; 20pcs/small package, 600pcs/ big package
| | Shipping | By express ; <100KG By Air : >100KG By Sea : >300KG |
|

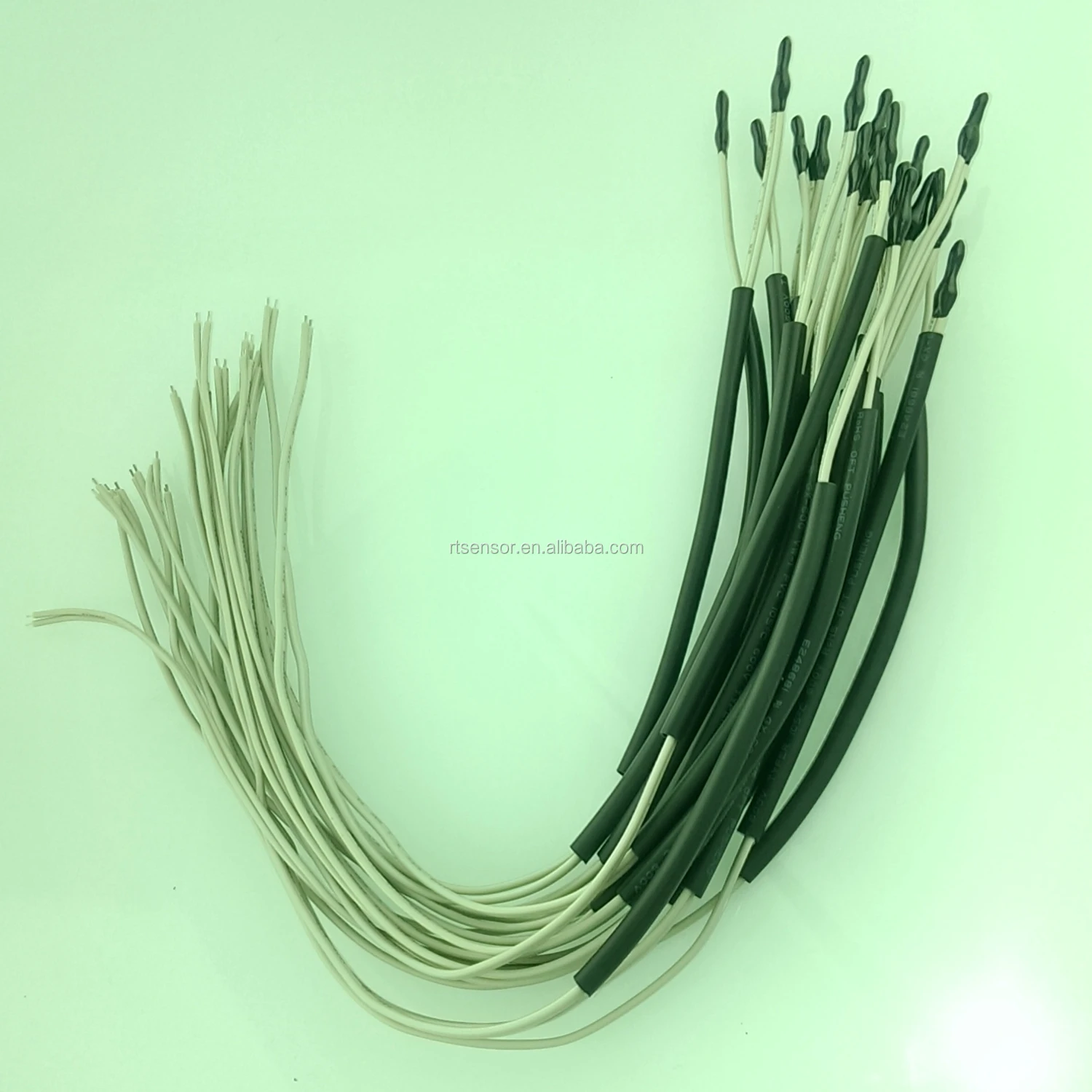

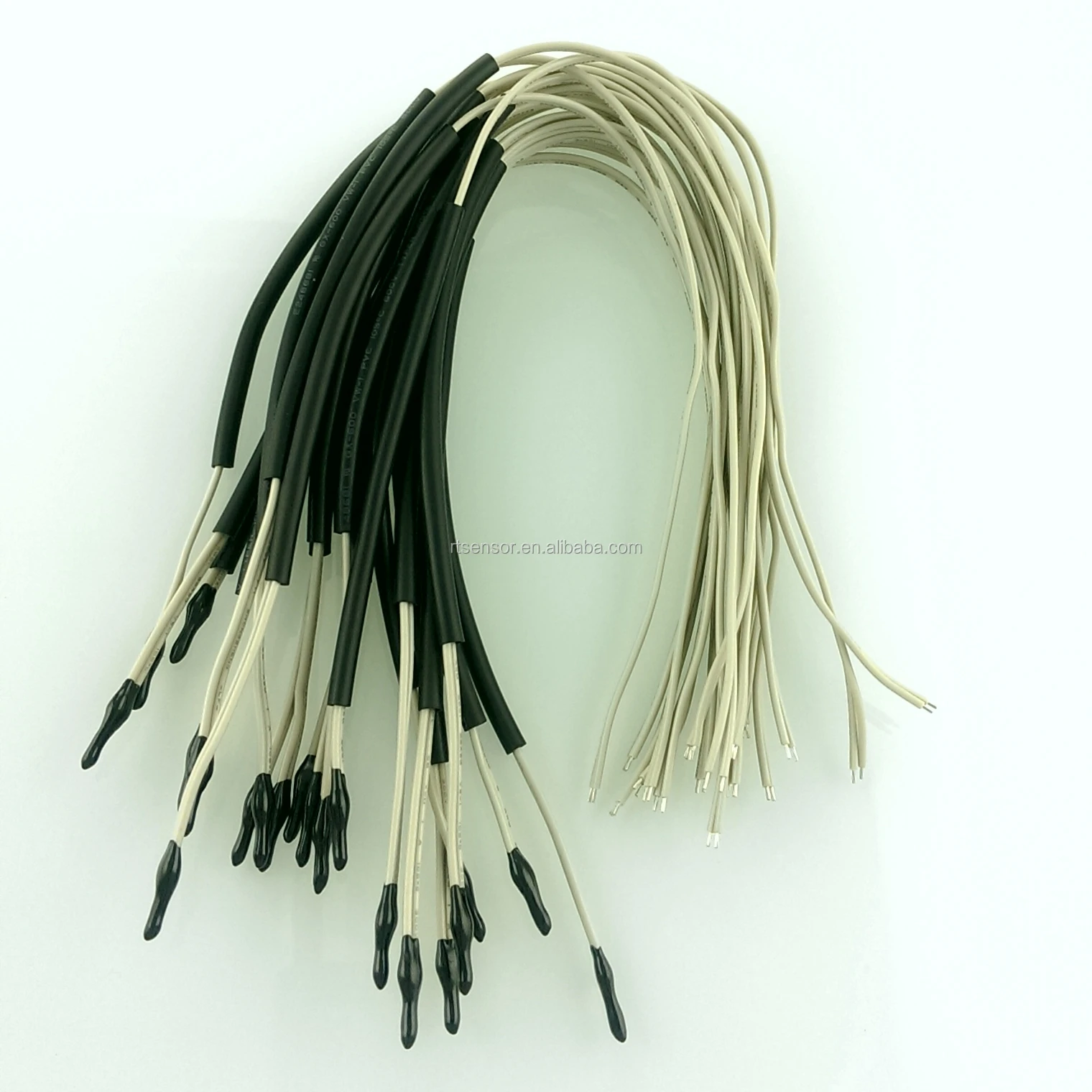

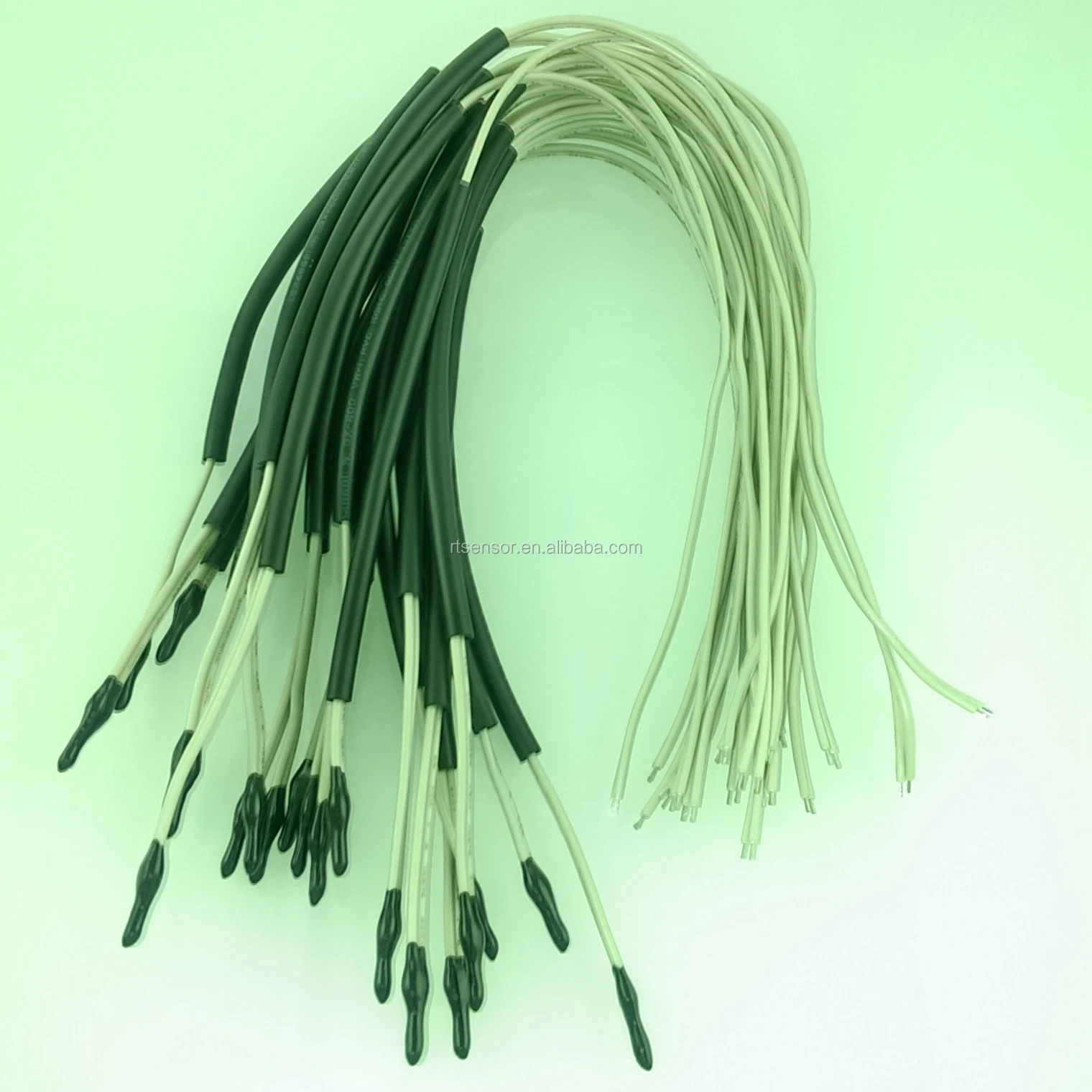

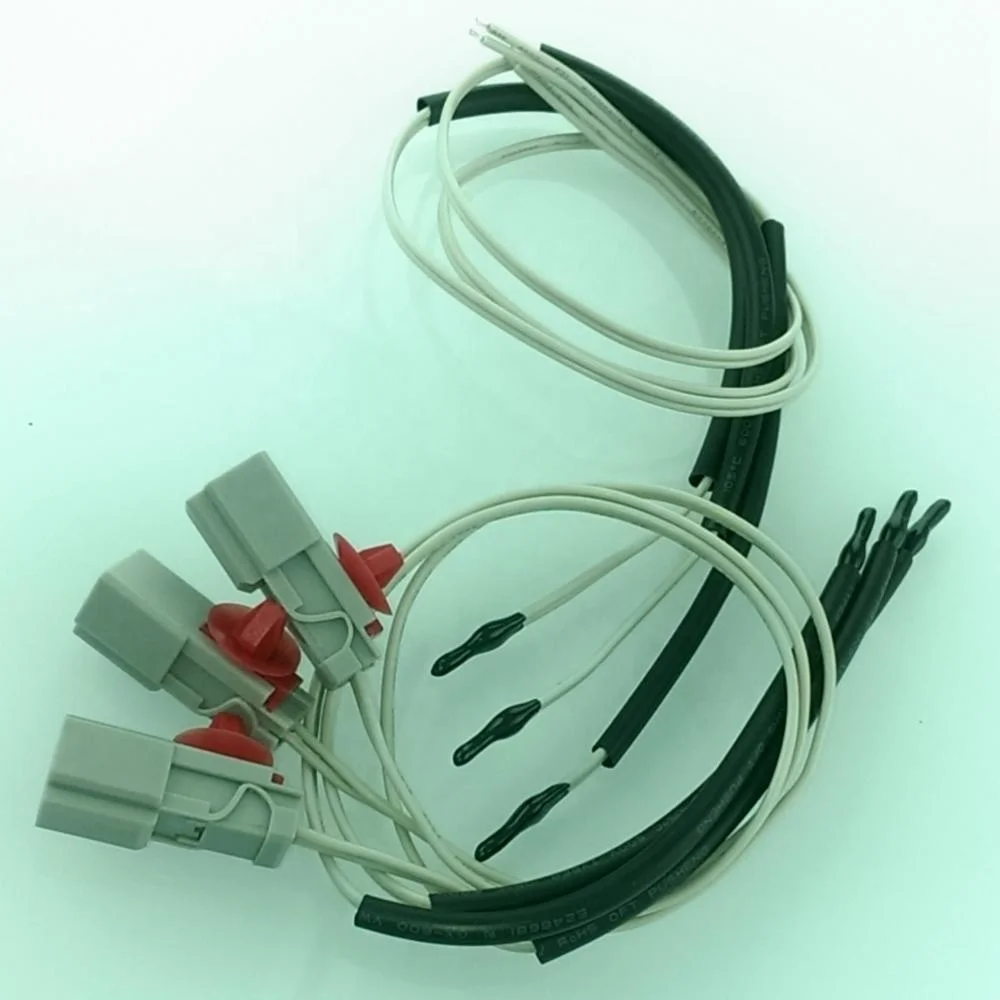

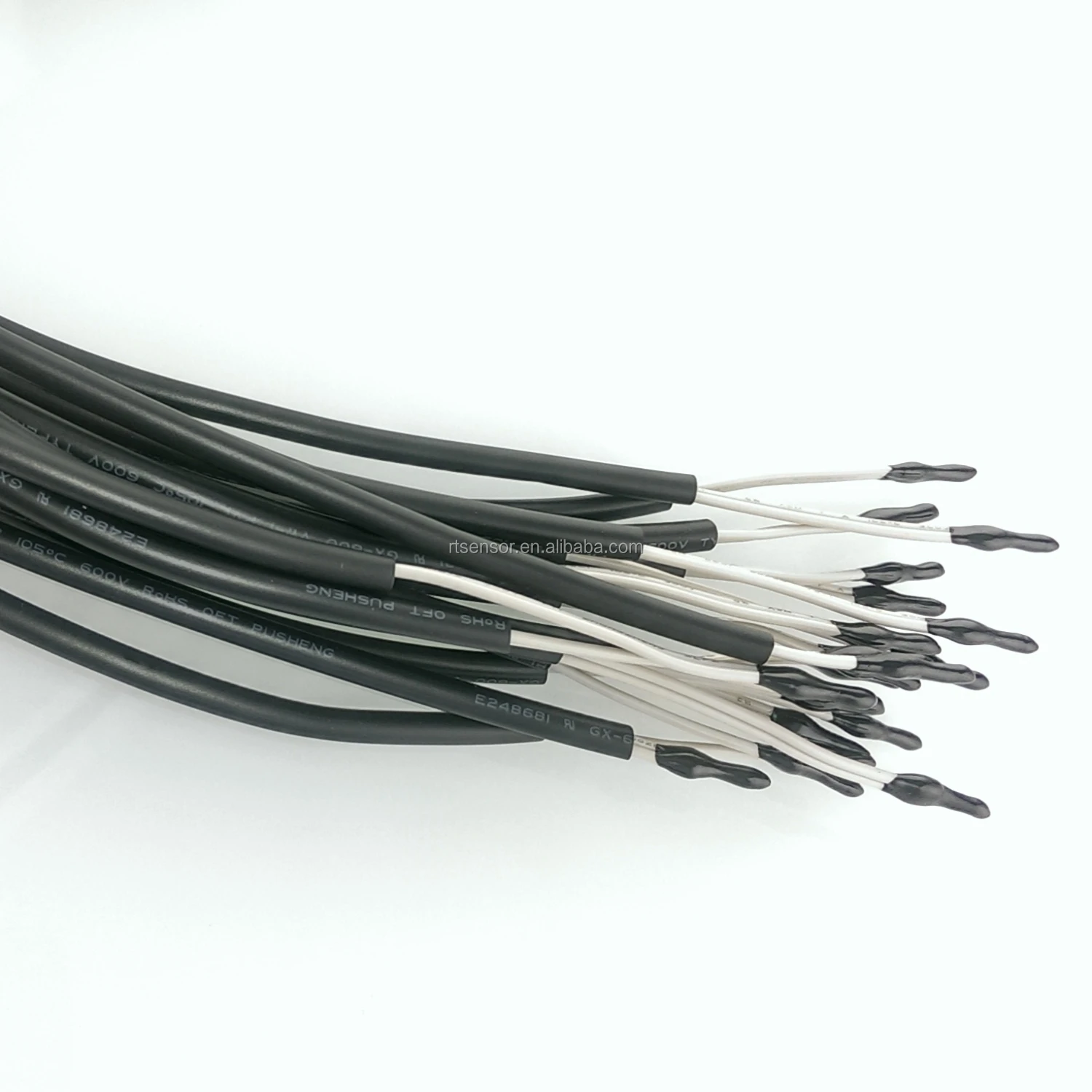

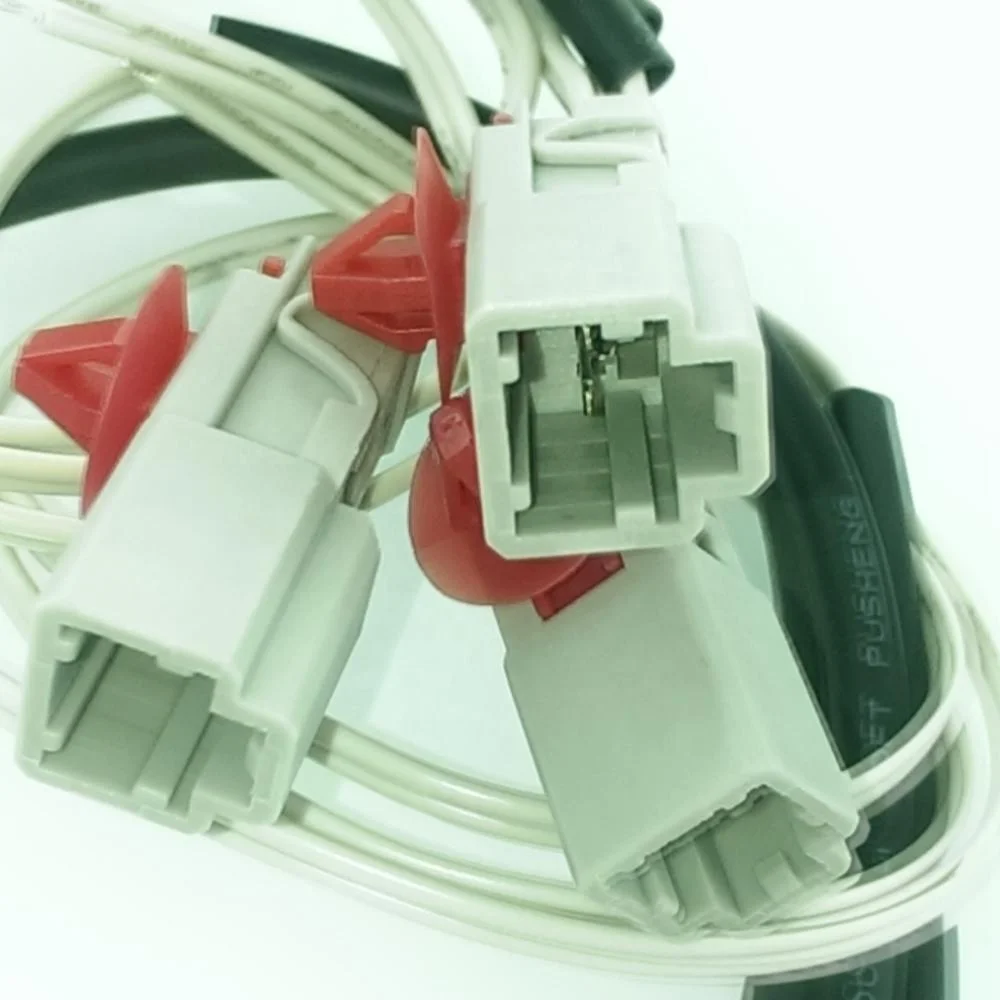

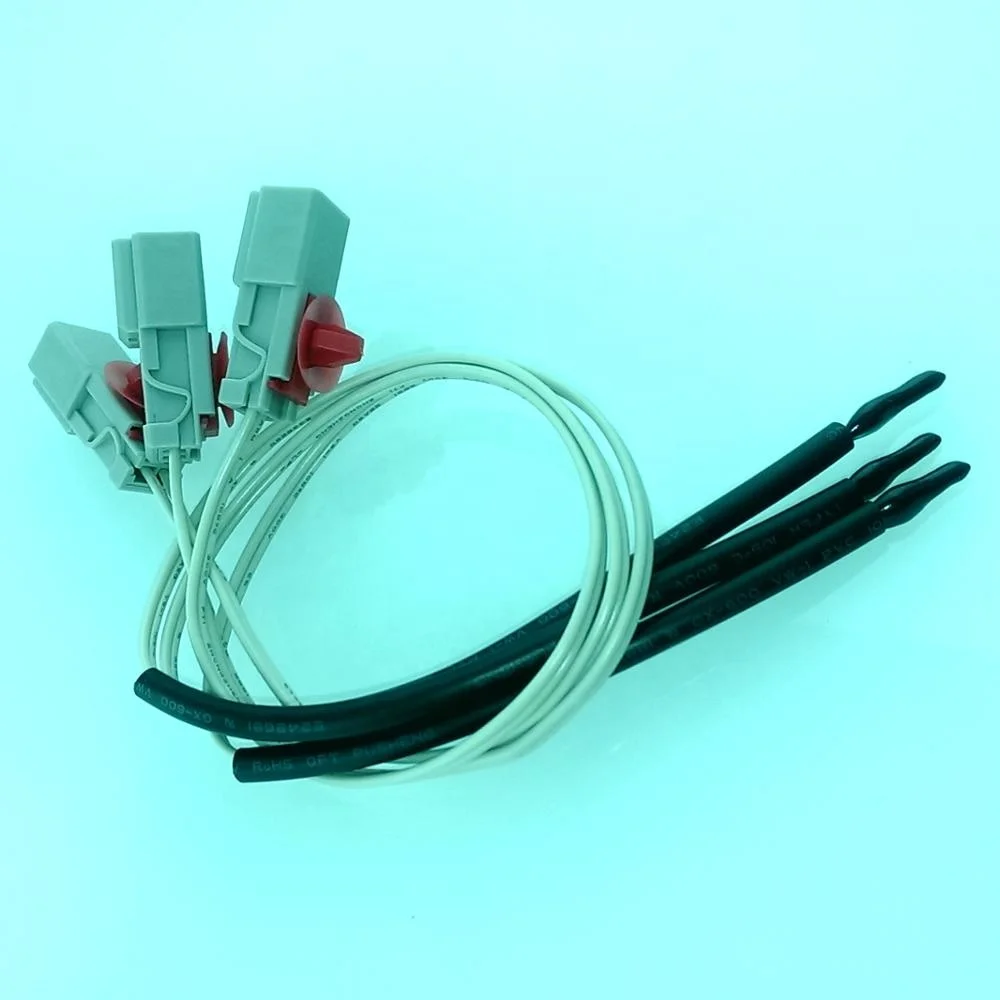

| ---Actual Product Photos--- |
|
- Product R&D and production Base
- Only direct factory marketing windows
- On behalf of buy ,inspection ,delivery , payment
- Low cost shippment advisor
- Provide technical supoort & advices freely for whole course
|
|  |
