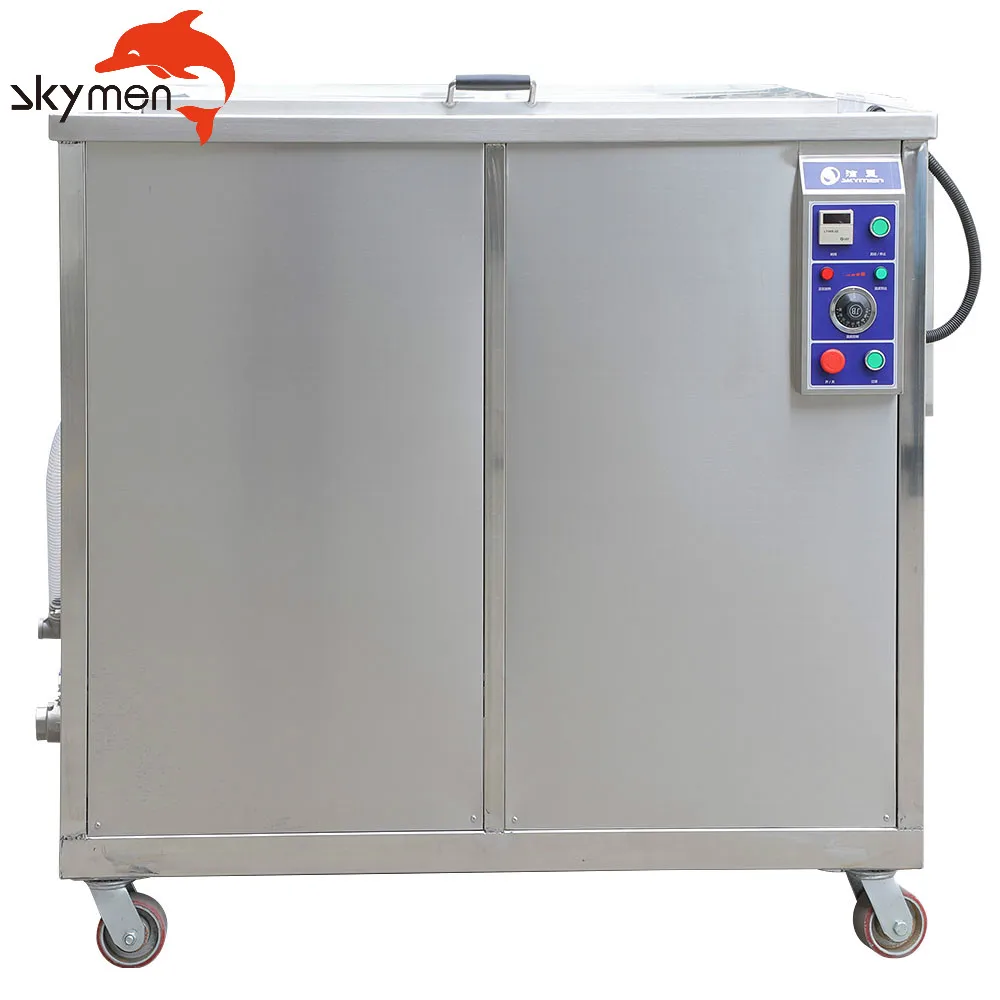

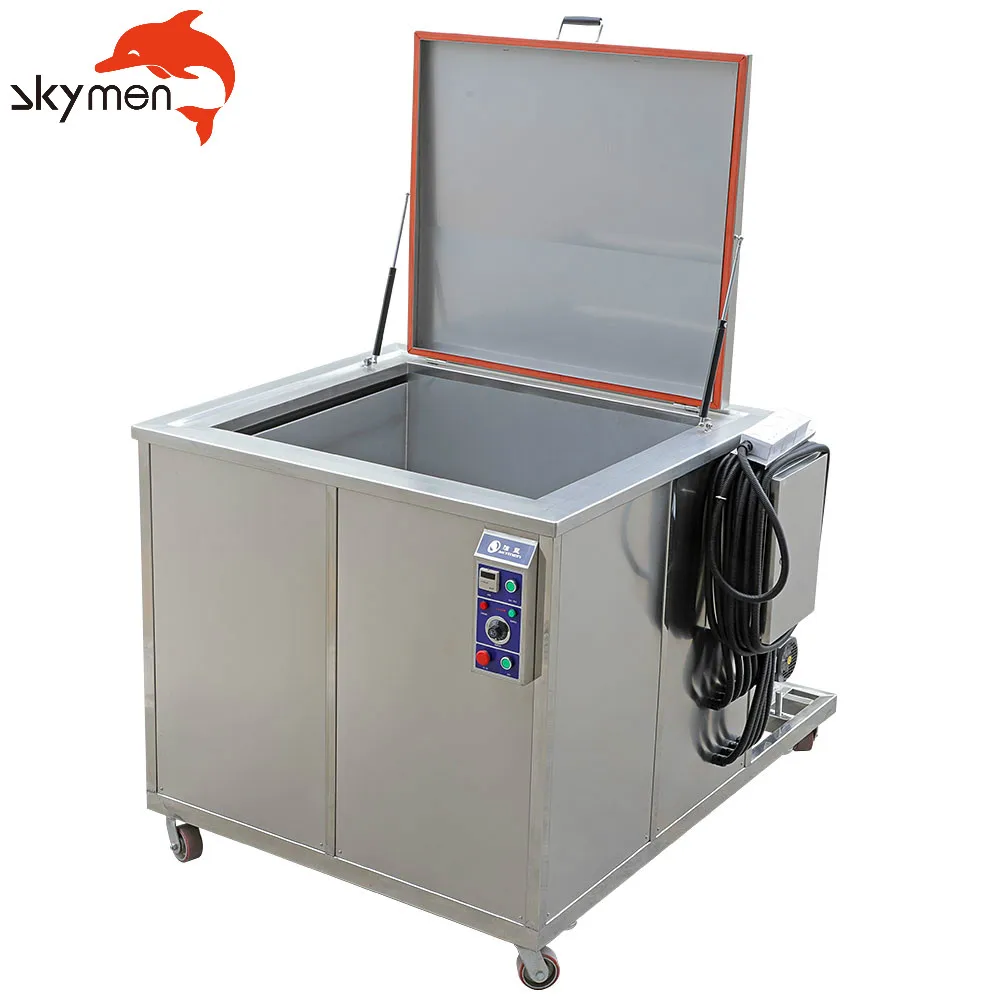

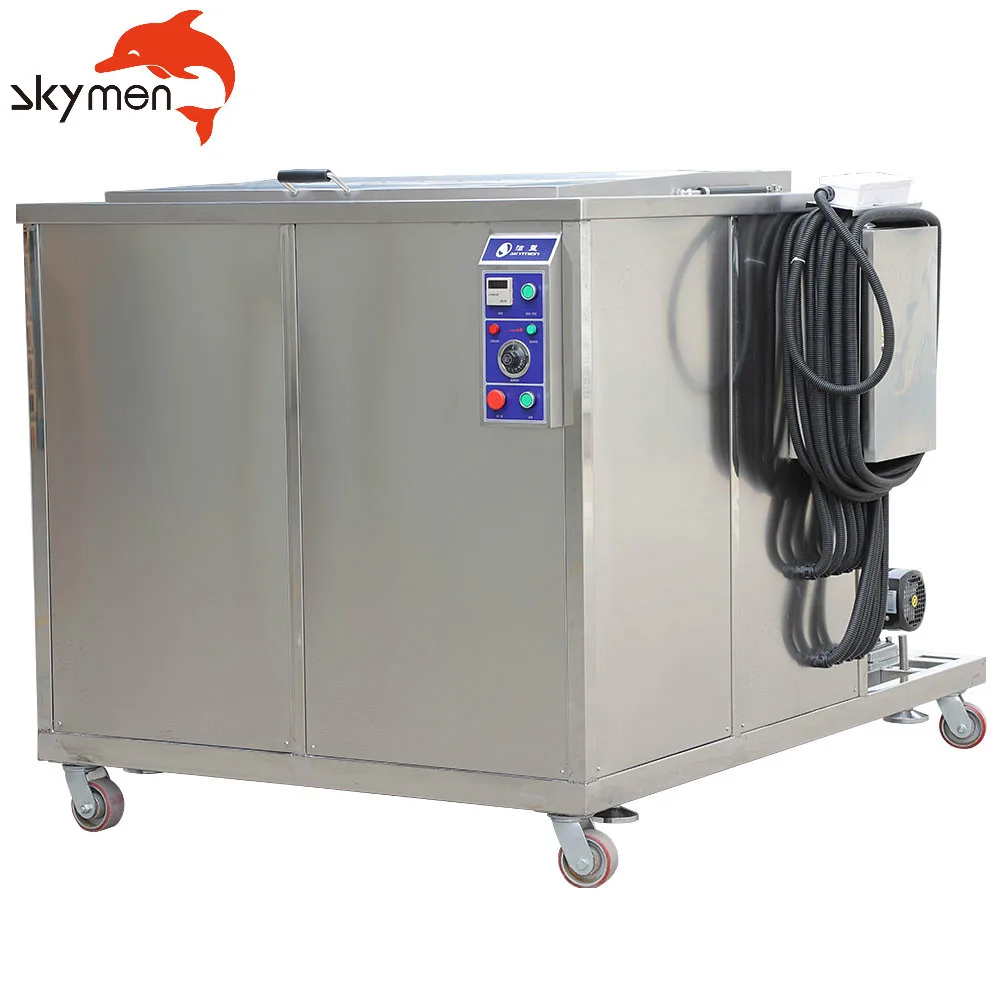

Stainless steel 304 made tank ultrasonic cleaning machine 540Liter JP 1108ST

Product Overview

Description

Stainless steel 304 made tank ultrasonic cleaning machine 540Liter JP-1108ST



Today, cleaning by ultrasound is the most modern fine cleaning method.
The electric high-frequency energy created by an ultrasonic generator is transformed into mechanical energy by   piezo electrical transducer systems and is then transmitted into the bath.
This process creates millions of tiny vacuum bubbles which implode due to the variations of pressure caused by the ultrasonic activity. Highly energetic liquid jets are created. These jets remove dirt particles from surfaces and even from the smallest grooves and bores.







What affect cleaning result?

Basically, the cleaning result depends on four factors:



1. Mechanical energy

Ultrasonic energy is probably the most important mechanical factor in the cleaning process. This energy must be transmitted  through a liquid medium to the surfaces which are to be cleaned.
The present unit is fitted with the innovative sweep function device: electronic oscillation of the sound field (sweep function) prevents the formation of zones of low performance in the ultrasonic bath.



2. Cleaning solution
For saponification and removal of the dirt particles a suitable cleaning agent is required. We have a large range of cleaning solution on offer.



3. Temperature

The effect of the cleaning medium is improved by the optimised temperature of the cleaning liquid.



4. Cleaning period

 The cleaning period depends on the degree and the kind of contamination and on the correct selection of ultrasonic energy, cleaning agent and temperature.



Features:

ultrasonic cleaner heat element

Adjustable ultrasonic power

Original BLT type transducer

SUS 316L stainless steel tank

Adaptable for continuous operation

Adjustable thermo controller

Adjustable ultrasonic power

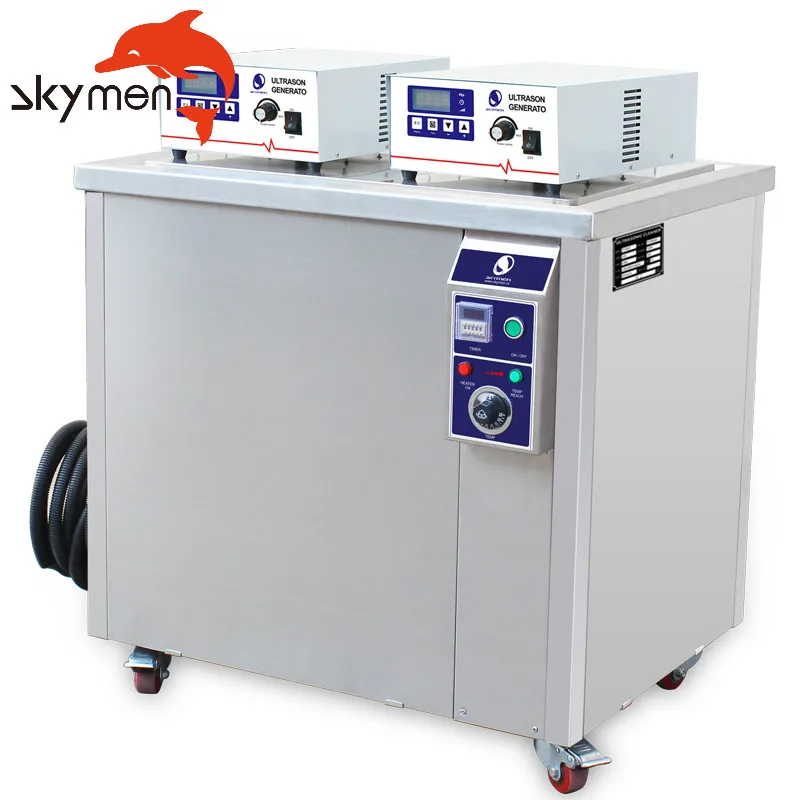

With separate control ultrasonic electronic generator

sweep mode control available

digital timer & heating control

boost mode& oil skimmer upon clients requirement

oil filter system and lifting system are available

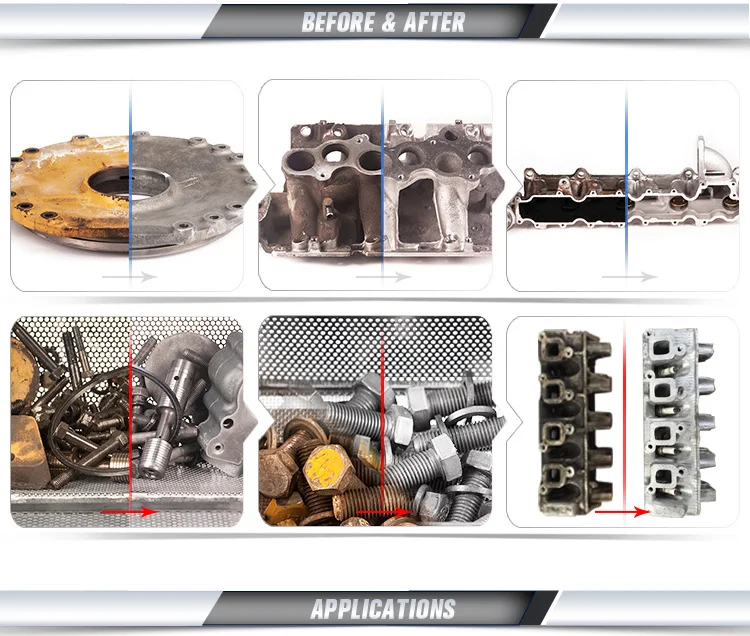

 Recommend for Bearings, transimission, cylinder head, srews, and so on metal parts

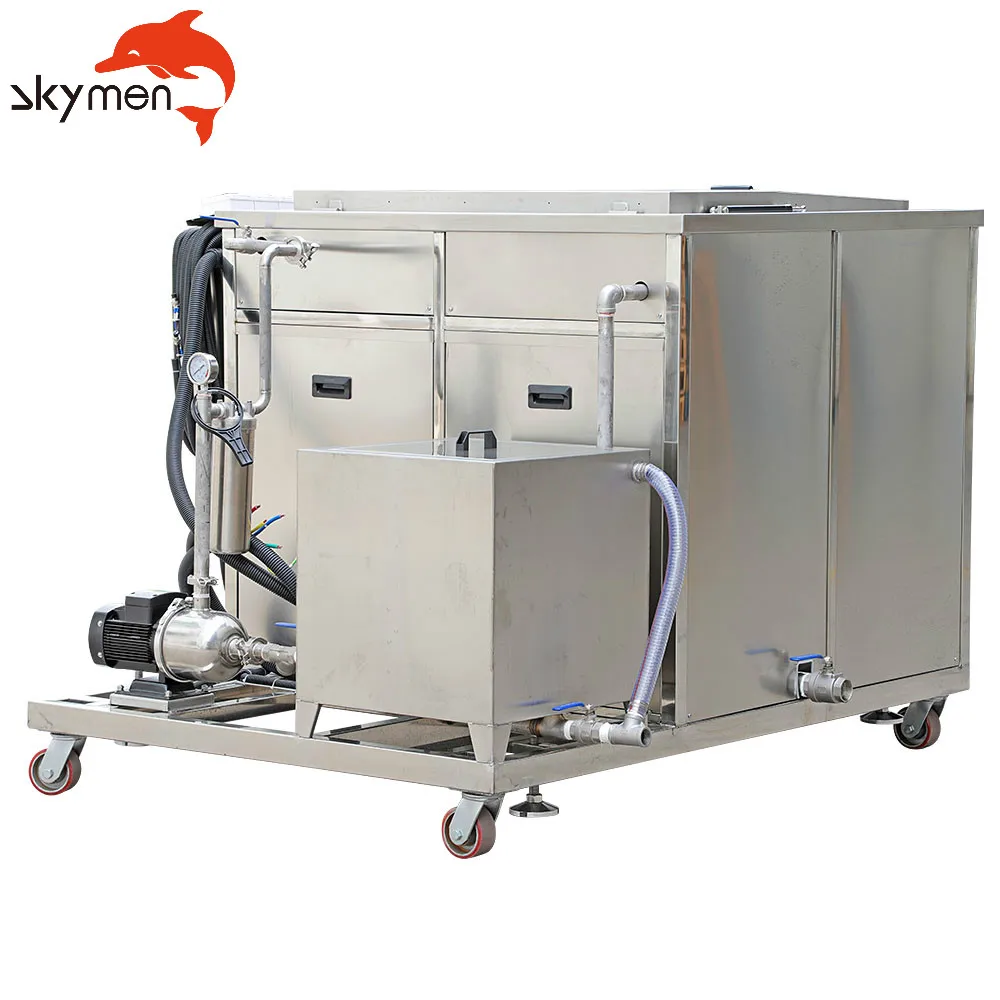

Oil filter system:







Functions:

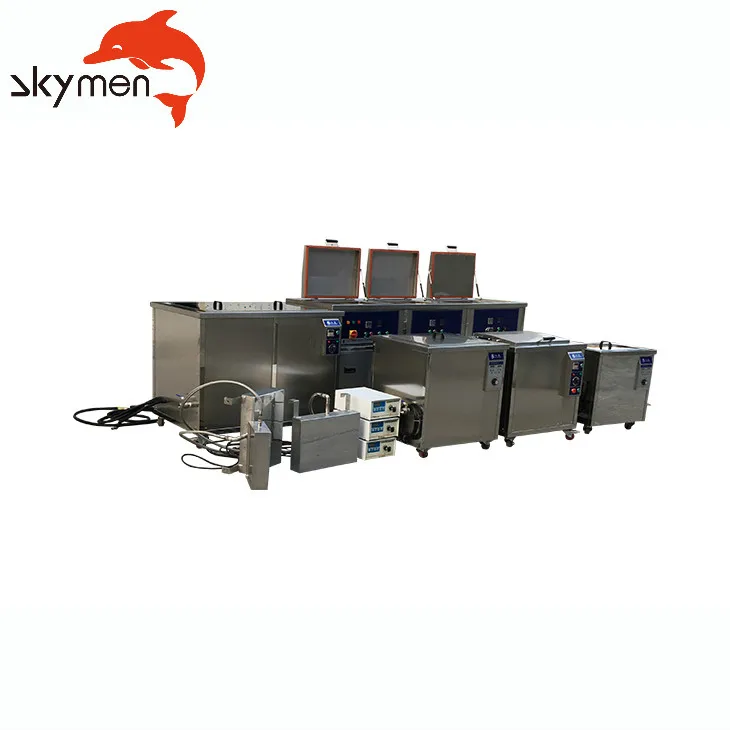

JTS series single tank ultrasonic cleaner equipment system includes replaceable transducer box and generator.

The transducer box and generator can be both build-in or separate,but work together to operate filter ultrasonic cleaning process with transducer box immersible mounted in fluid tank,

one side or both side or bottom mounted inside the tank.

The number and placement of transducers is selected to give maximum results in ultrasonic cleaner tank with any cleaning load.

Specification of tank dimension and transducer boxes are custom made available.

Either for mould of  filter ultrasonic cleaning can receive perfect cleaning efficiency.



Model: Skymen™		JTS-1012	JTS-1018			JTS-1024	JTS-1030	JTS-1036	JTS-1072
TANK'S WORKING DIMENSION (mm)	L1	355	406			500	500	500	1000
	W1	305	305			355	406	460	600
	H1	355	460			500	500	550	600
OVERALL DIMENSION (mm)	L2	535	586			680	710	710	1320
	W2	485	485			535	586	640	780
	H2	750	680			720	720	770	820
TANK'S TOTAL CAPACITY		38L	56L			88L	101L	126L	369L
TANK'S MATERIAL		SUS304 / SUS316L
IN-TANK SURFACE FINISHING		Hard-Cr Plating Treatment ( 20+ microns )
HOUSING'S MATERIAL		Stainless steel
ULTRASONIC FREQUENCY*		28kHz / 40kHz
ULTRASONIC TRANSDUCER		12	18			24	30	36	72
ULTRASONIC OUTPUT POWER (MAX.)		600W	900W			1200W	1500W	1800W	3600W
ELECTRONIC GENERATOR		KG600	KG900			KG1200	KG1500	KG1800	KG3600
		Build-in	Separate
HEATER'S (HOT PLATE) POWER		1.5kW		3kW				4.5kW		9KW
CLEANING TANK’S POWER REQUIREMENT		AC 220V / 240V, 1, 15AMP						AC 220V / 240V, 1, 25AMP
GENERATOR’S POWER REQUIREMENT		----			AC 220V / 240V, 1, 13AMP
68kHz / 80kHz / 120kHz are also available
