Light weight fire resistant 650 thermal insulation calcium silicate board

Product Overview

Description

Light weight fire resistant 650 thermal insulation calcium silicate board





650 calcium silicate board is a new type of micro-porous structure rigid insulation materials, uses silicon oxide, calcium oxide, and the reinforcing fibers as its main raw materials, made through mixing, heating, gelling, molding, autoclaving and drying processes. It is known as the stability in different temperature, asbestos-free and high thermal insulation properties at 650C.



650 calcium silicate board Characteristics:

1.    Super light weight

2.    Low thermal conductivity,

3.    High rupture and compressive strength,

4.    Waterproof

5.    High insulating effect

6.    High efficiency

7.    Asbestos free



650 calcium silicate board Application:

It is widely used in power plants, petrochemical plants, pipeline systems equipment, as well as heating pipe network system and non-corrosive to stainless steel.



650 calcium silicate board techical index



Item		Unit	DK-25	DK-22
Density per ASTM 303		kg/m3	≤250	≤220
Maximum service temperature		°C	650	650
Thermal conductivity per ASTM C 518/C1114	25	W/m.k
	50		≤0.060
	93		≤0.065	≤0.065
	149		≤0.072
	200			≤0.077
	260		≤0.087
	300			≤0.088
	371		≤0.102
	400			≤0.106
	500			≤0.127
	538		≤0.111
Linear heat shrinkage per ASTM C 356		%	≤2.0	≤2.0
Flexural Strength per ASTM C 203		Mpa	≥0.344	≥0.30
Compressive strength per ASTM C165		Mpa	≥0.689	≥0.45
Weight loss by Tumbling per ASTM C421 (First 10 minutes)		%	≤20
Weight loss by Tumbling per ASTM C421 (Ten 10 minutes)		%	≤40
Hot surface performance per ASTM C 411(650°C)		%	1/4" (6) (no through-cracking)
Surface burning characteristics per ASTM E841	Flame Spread Index		0
	Smoke Index		0
Moisture content per ASTM C 1616		%	≤20
Non-combustible property Per ASTM E 136			pass
Chiorine content			ASTM C 795

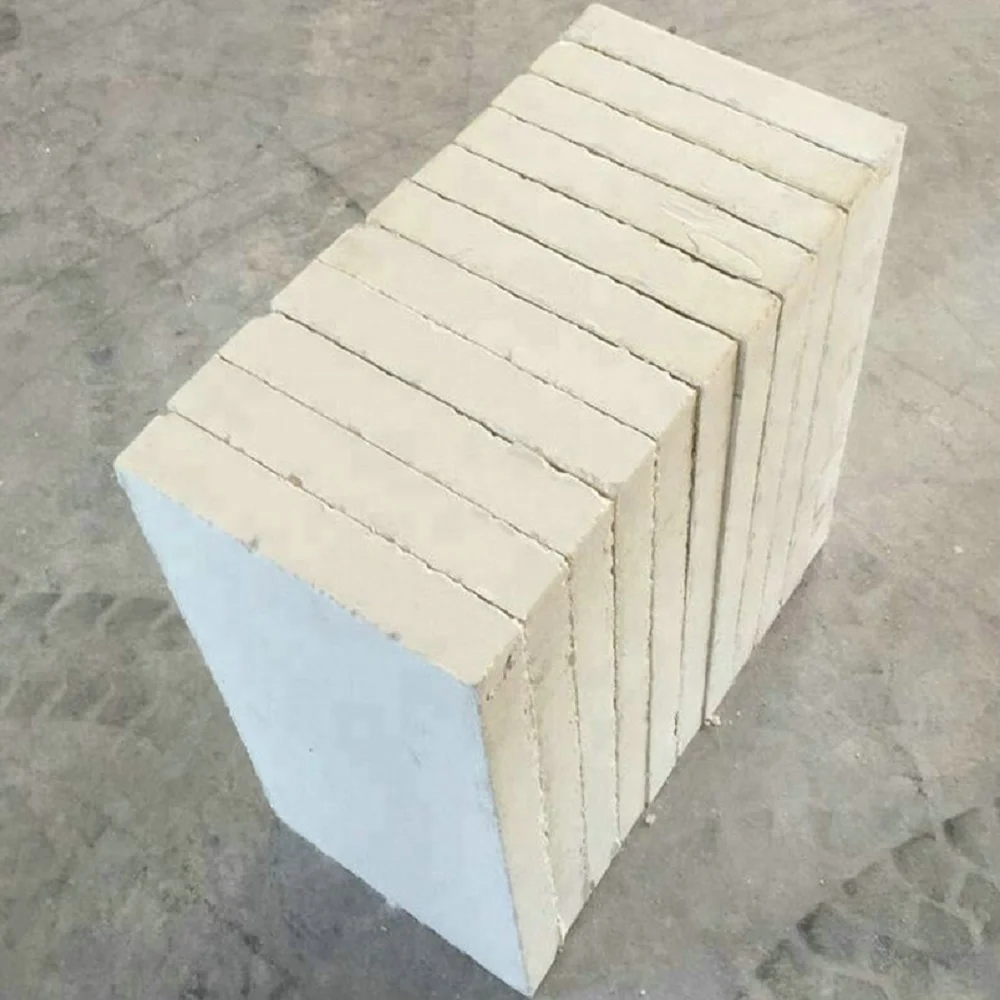

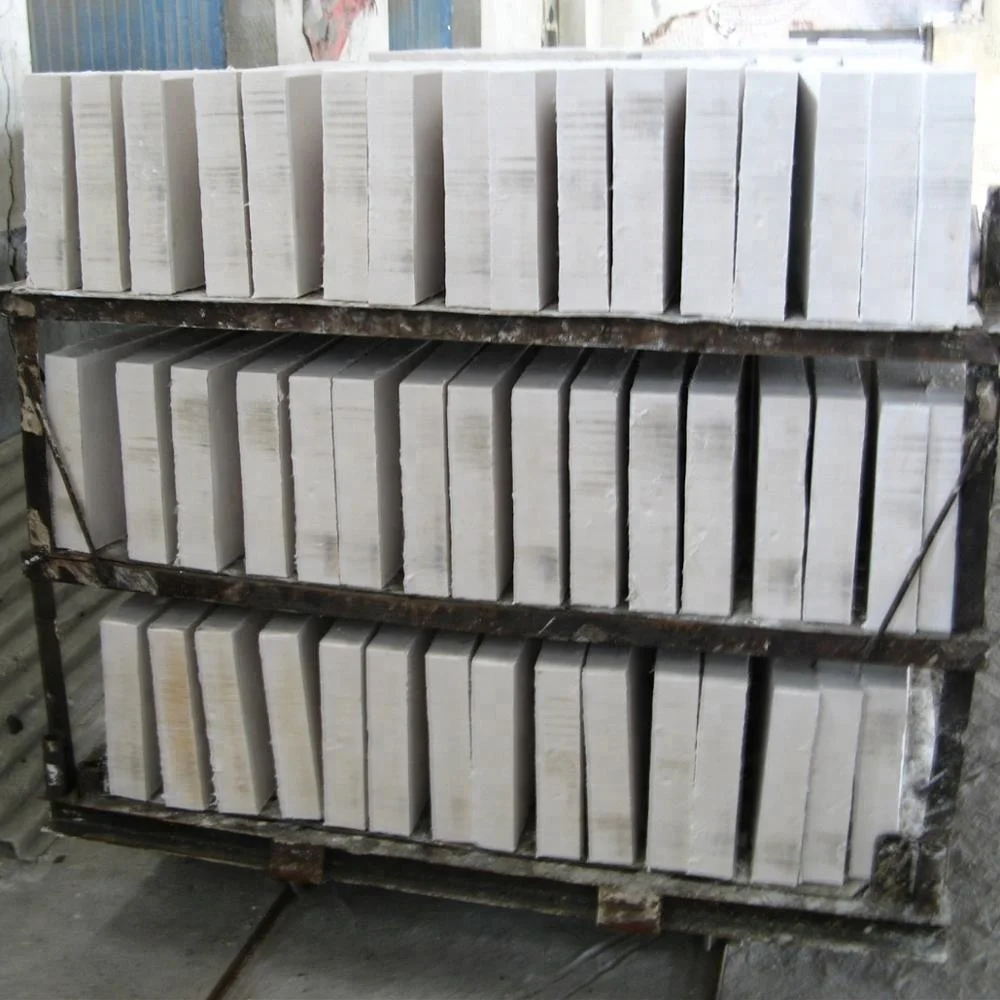

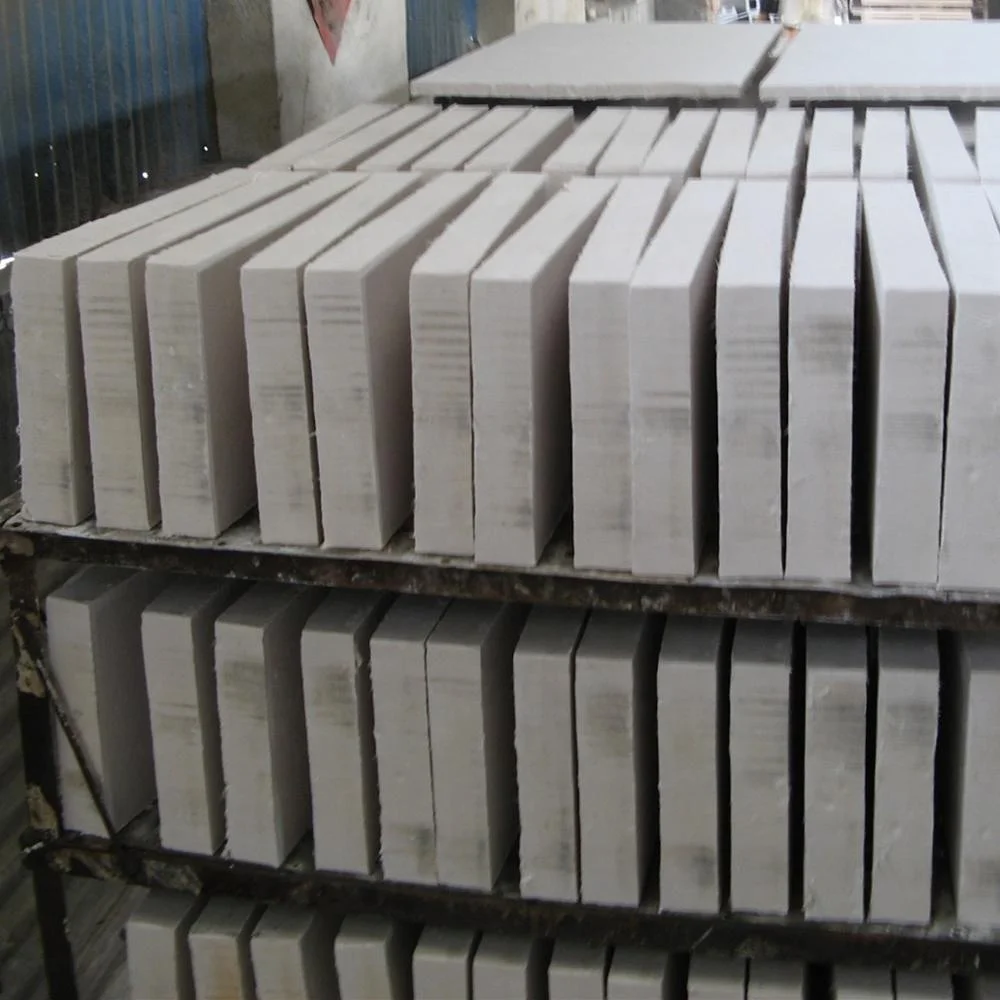

pictures of 650 calcium silicate board







Package of 650 calcium silicate board: inner plastic bags,outer cartons and pallet with heat shrinkable film.

We also received OEM service, the package can be designed according to your requirements.

Shipping of 650 calcium silicate board: By vessel or by train from any Chinese port, Samples can be delivered by International express.

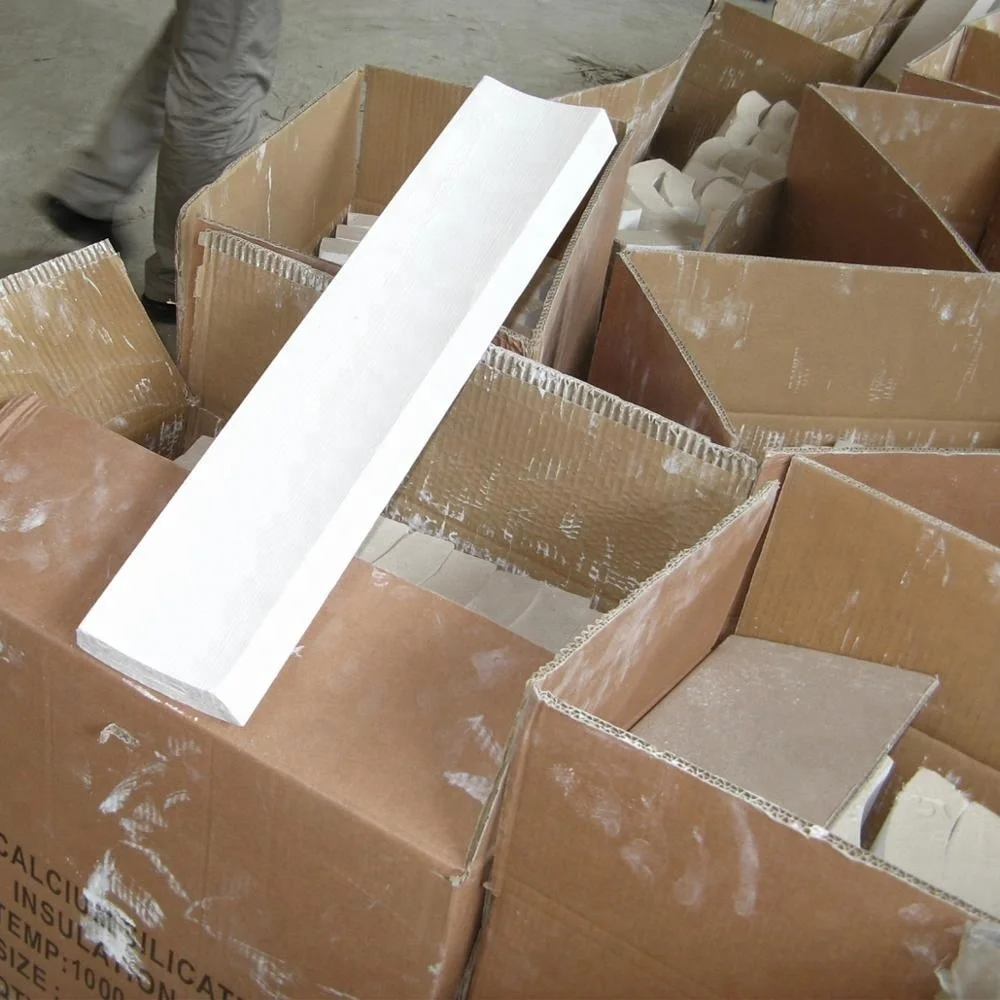

Package pictures of 650 calcium silicate board

1. Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.



2. Free sample

650 calcium silicate board Sample and trial order are accepted for the quality evaluation.



3. Strict quality control

Arrange production on time and control quality strictly.



4. Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5. Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service







DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.





1. How can I get your prompt quotation for 650 calcium silicate board?

We can give you reply with quotation quickly if you kindly send the inquiry with following factors: working temperature, bulk density, dimension (length*width*thickness), and quantity.



2.What's the MOQ of trial order?
No limit, we can offer the best suggestions and solutions according to your condition.

3: What is the MOQ(minimum order quantity )?

Not limit.



4. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are available for us.



5.After an order is placed, when to deliver?
15-25days after confirming the order.

6. Does your company accept customization?
We accept OEM service.

7. How to solve the quality problems?
If the products don’t conform to customer’s samples or have quality problems, our company will be responsible for it.



8. What is the HS code?

The HS code is 68099000



9. Is there any cost for the sample?

We provide free sample but don't bear the freight



10. How can I contact you?



....
