Specifications of our China Factory Anti-vibration wireless tilt sensor for satellite receiver
Small size and light weight.
Entirely industrial device.
Performance stability and credibility.
Trend of the tilt displayed by positive and minus sign.
Cost effective and ease of integration.
Support multi output signal.
Support different operating voltage
Aluminium alloyed case, waterproof and dustproof

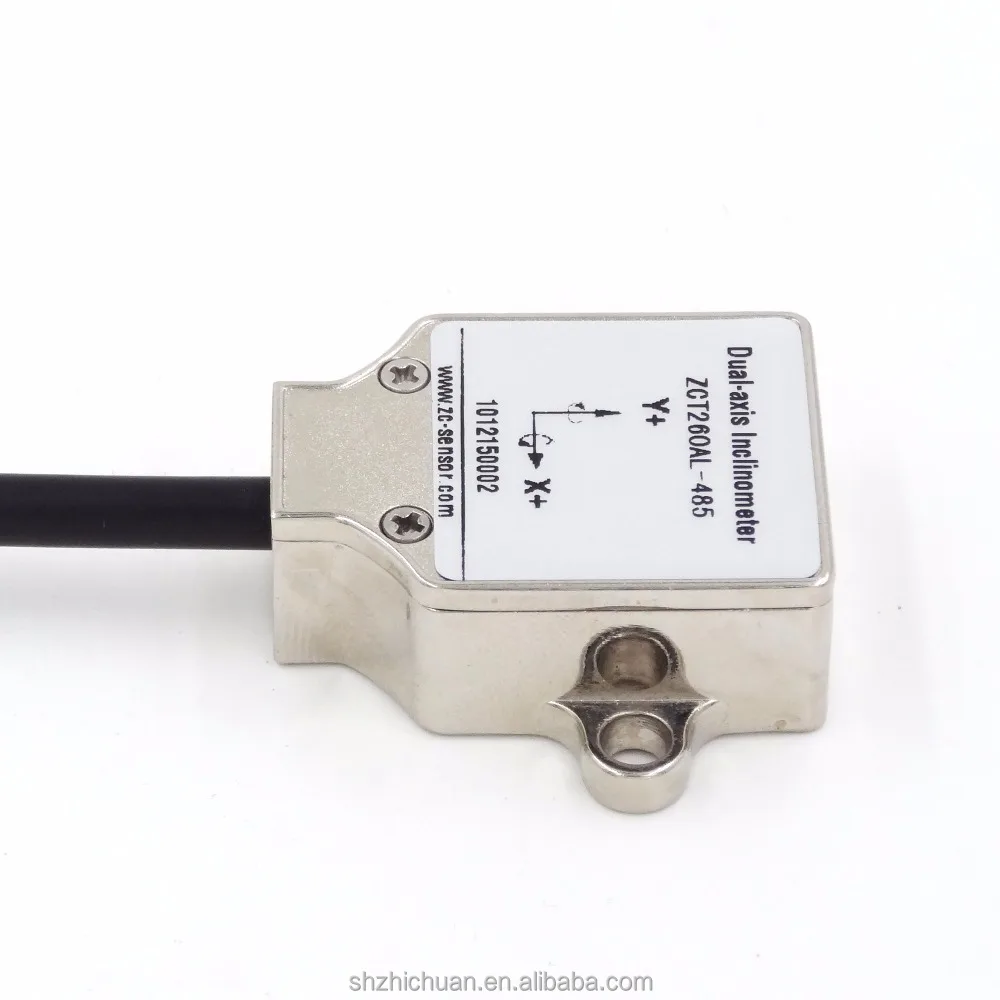

Description of Factory Supply Anti-vibration wireless tilt sensor for satellite receiver
ZCT260AL-485 is a low cost 2-axis tilt sensor which is developed and produced by Shanghai Zhichuan Electronic Tech Co.,Ltd. Its measuring range is ±60 degrees.
Features of Factory Supply Anti-vibration wireless tilt sensor for satellite receiver
It can communicate with PC via RS485 half-duplex way. It has zero setting function and response frequency adjustment function as well as optional Baud rate
Applications of Factory Supply Anti-vibration wireless tilt sensor for satellite receiver
Angle measuring, leveling adjustment, zero setting.
Medical appliance, Automobile facia.
Mining machine and petroleum drilling equipment.
aerial work platform monitoring.
Tilt switch(seven on/off signals)
Security control,monitoring,alarm system.
Angular measurement of arm,dam,construction,bridge.
Aligning control,bending control
Technical parameter of Factory Supply Anti-vibration wireless tilt sensor for satellite receiver
Parameter
Value
Unit
Remark
Measuring Range
±60
degree
Resolution
0.1
degree
Repeatability
0.3
degree
@25°C
Accuracy
0.5
degree
RMS @25°C
Temperature Drift
≤1.5
degree
-20~+60°C
Response Frequency
1~7
Hz
FILT commands to set,lack 3Hz
Operating Voltage
5
V(dc)
±0.5V
Operating Current
≤50
mA
Operating Temperature
-40~+85
°C
Size
46*41*13.5
(mm)

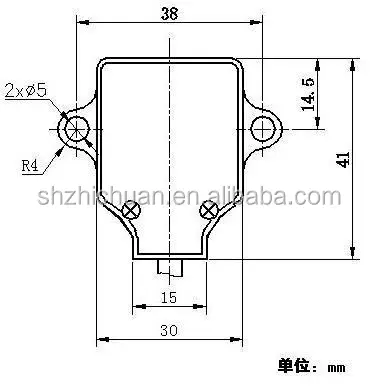

Size and wire connection of Factory Supply Anti-vibration wireless tilt sensor for satellite receiver
