Full automatic type/tope quality best price china manufacturer economic planetary/double paddle mixer

Product Overview

Description

Full automatic type/tope quality best price china manufacturer economic planetary/double paddle mixer

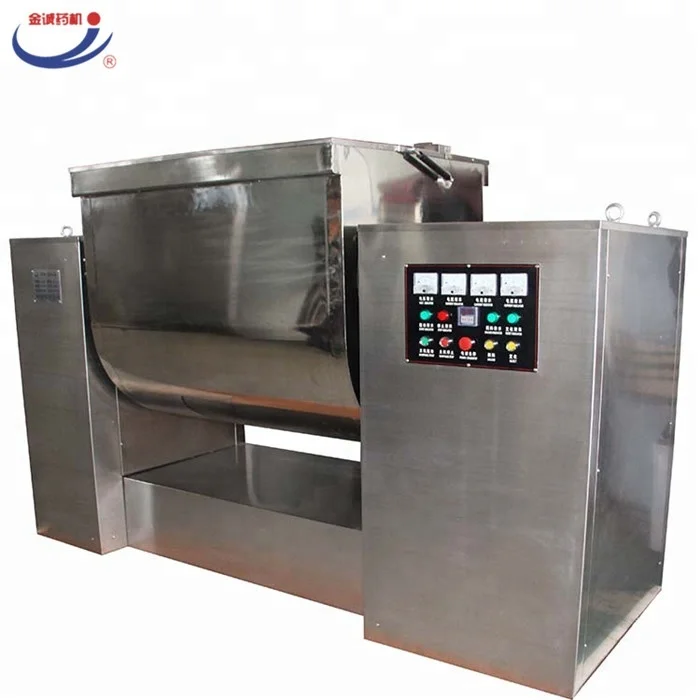

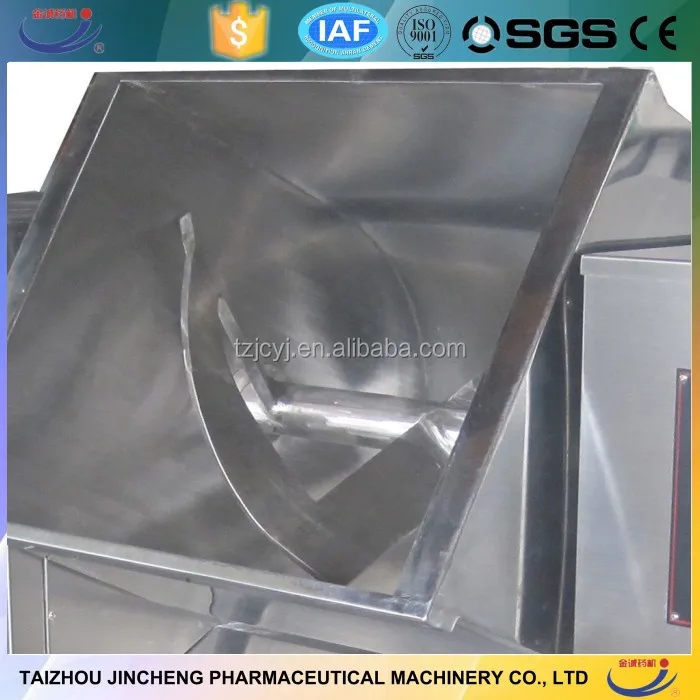

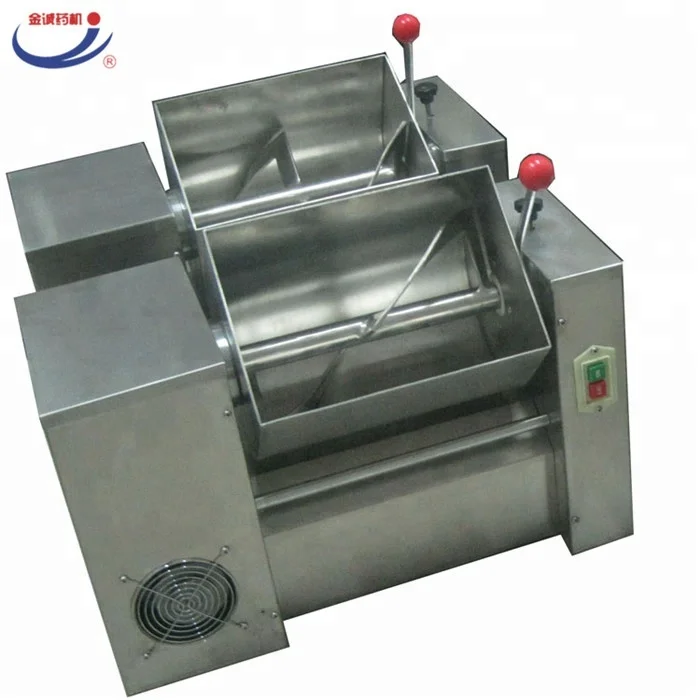

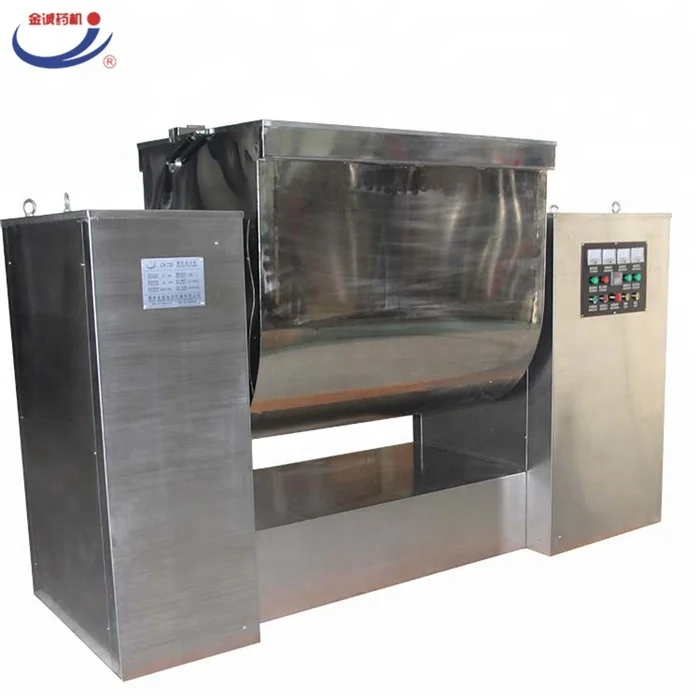

This mixer machine is designed for thoroughly mixing powders or pastes. It is a horizontal through type mixer with single stirring arm. The stirring arm is removable so that it is easy to clean. The parts’ surfaces which may touch the mixing materials are made of stainless steel, so they are good corrosion-resistant. The mixing trough can automatically reverse for discharge the mixture.



 Applications:



1.For mixing dry powders or small granules with good flowability in Food,Chemical and Pharmaceutical industry ;

2.Mixing vessel volume: 10-1000L;

3.GMP design

4. Vacuum feeder can be equipped to achieve automatic feeding and prevent dust.

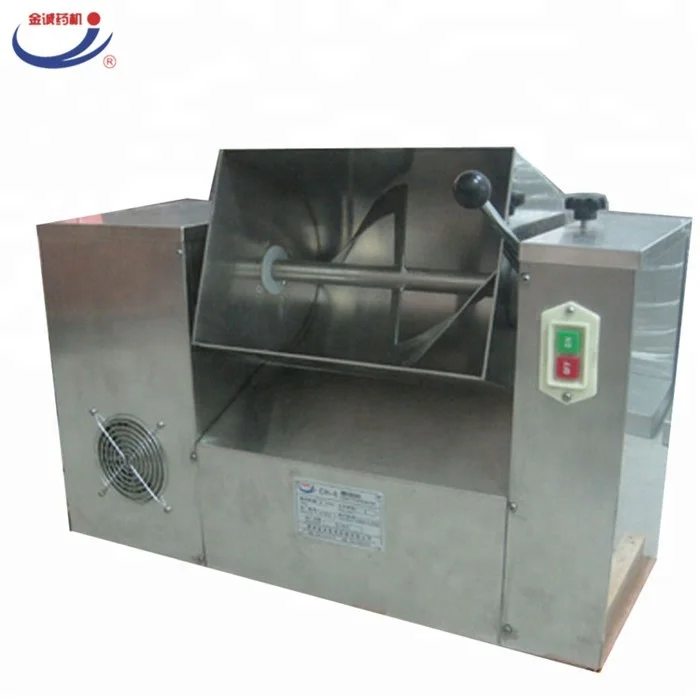

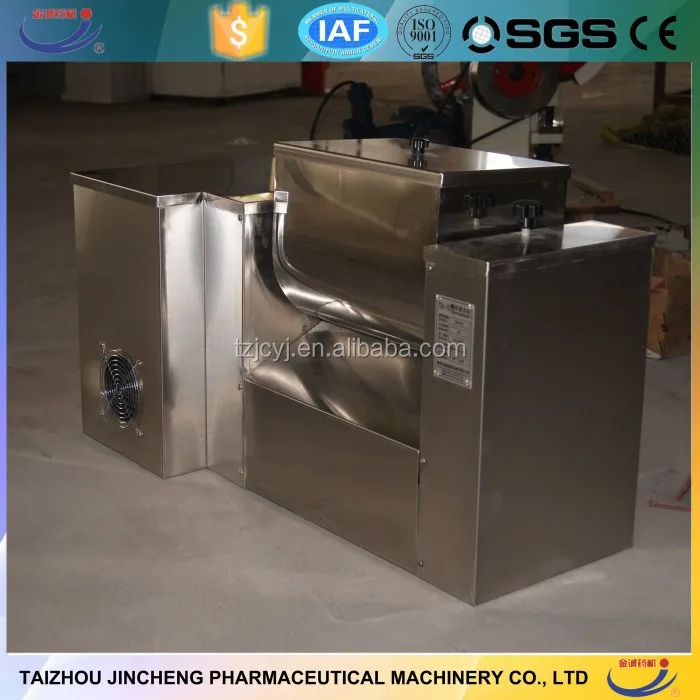

Lab Series Trough Type Mixer Technical Parameter

Model	Working Capacity(L)	Rotary speed of main shaft(r/min)	Motor Power(KW)	Machine Dimensions(mm)	Net Weight(kg)
CH-10	10	24	0.55	600×270×420	67

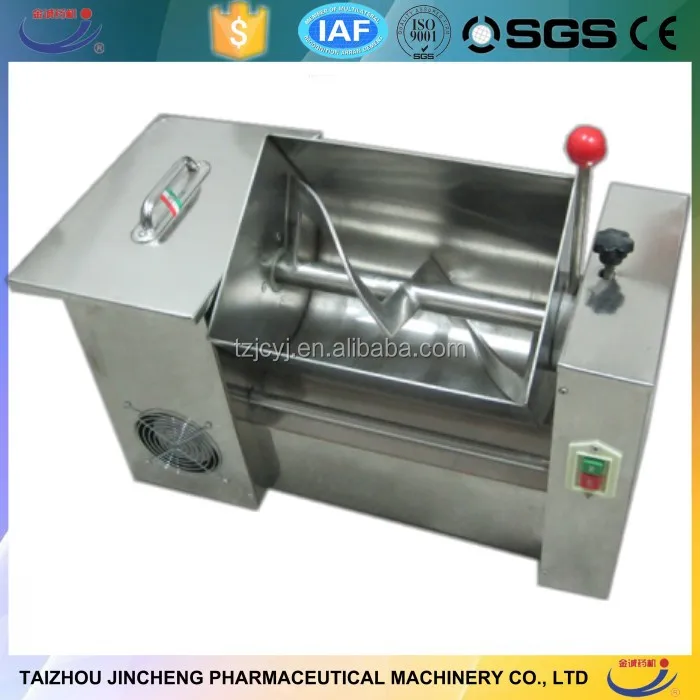

CH-20	20	24	0.75	700×320×580	80











Chute Type Mixer Technical Parameter



Model	Working Capacity(L)	Rotary speed of main shaft(r/min)	Motor Power(KW)	Material Pouring Motor Power(KW)	Machine Dimensions(mm)	Net Weight(kg)
CH-20	50	24	1.1	0.55	1000×425×800	260
CH-100	100	24	2.2	0.75	1390×450×900	300
CH-200	200	24	4	0.75	1300×600×1190	850
CH-300	300	24	5.5	1.5	1900×680×1200	950
CH-400	400	20	7.5	1.5	2150×730×1220	1100
CH-500	500	20	7.5	1.5	1800×1100×1400	1100
CH-600	600	18	7.5	1.5	2000×1300×1600	1300
CH-800	800	16	11	3	2600×920×1700	1500
CH-1000	1000	14	13	3	2650×980×1850	1800





Sculls Slotted mixer Technical Parameter

Model	Working Capacity(L)	Rotary speed of main shaft(r/min)	Hopper Flip Angle(degree)	Stirring Motor Power(KW)	Material Pouring Motor Power(KW)
WSH-50	50	24	115°	2.2	0.75
WSH-100	100	24	115°	3	0.75
WSH-200	200	24	115°	4	1.1
WSH-300	300	24	115°	5.5	1.5
WSH-400	400	24	115°	7.5	1.5













 Taizhou Jincheng Pharmaceutical Machinery Co.,Ltd is a member of China Association for Pharmaceutical Equipment. Our factory is located in Taizhou, Jiangsu Province, near by the China Medecine City on the verge of Yangtze River

We adhere to "People-Oriented" "Scientific Management" principles and actively engaged in the research and development of new products since founded. After years of experience, we have successfully developed many kinds’ pharmaceutical machines, such as Universal Grinder, Rotary Granulators, Groove mixer, Dimensional Mixer, V-Type Mixer, Hot Air Circulation Oven, Rotating Tablet Pressing Machine, Single Punch Tablet Pressing Machine, Pill Making Machine, Sugar Coating Machine, High Efficiency Coating Machine, which are wildly used in Pharmaceutical, Chemical, Food, and Scientific Research.  We won the trust and high praise from our customers due to our outstanding quality and perfect service.



"Quality best, Customers first" is our principle, "Honest and Innovation" is our goal, we wholeheartedly service for every customer from home and abroad with high-quality and efficient products and would like to cooperate with you to create a better future.







1 How to Order

1. Customer send us an inquiry.

2. Confirmmachine type, order quantity, price, lead time, payment term etc.

3.Our sales send the Proforma Invoice with company seal.

4. Customer make the payment for deposit and send us Bank receipt.

5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time

6. Production products photos will send to you for approval.

7. Clients make payment for balance and Ship the goods .

8. Order is finished when you receive the goods and satisfy with them .

9. Feedback to us boutQuality , Service, Market Feedback & Suggestion.And we can do better

2 About after sell service

Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .

3 About goods shipping

We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service

24 hours online to solve any problem .

Your email will be reply within 12 hours .

Your satisfy is our pursuit .sincerely hope our cooperation









  Sincere thanks for scanning our products, and your satisfaction will be our greatest pleasure.









What we also Provide

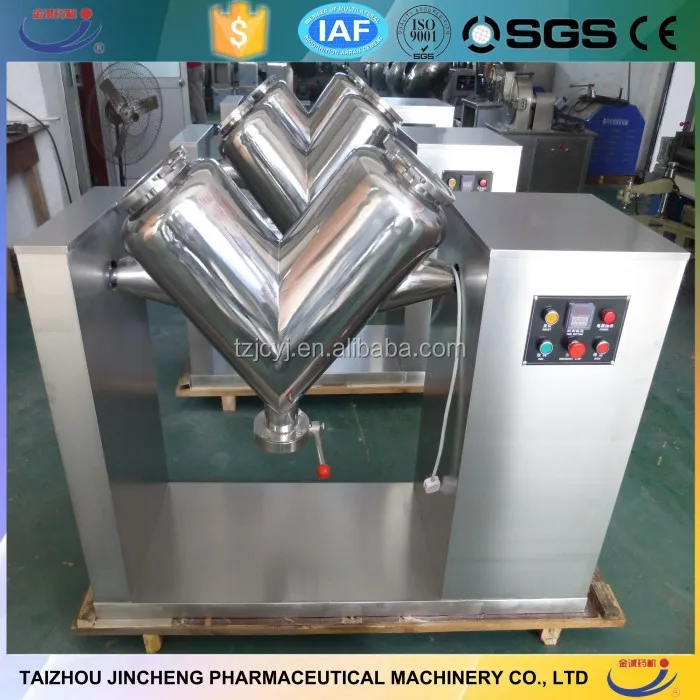

                 V type mixer                                           Three dimensional swing mixer

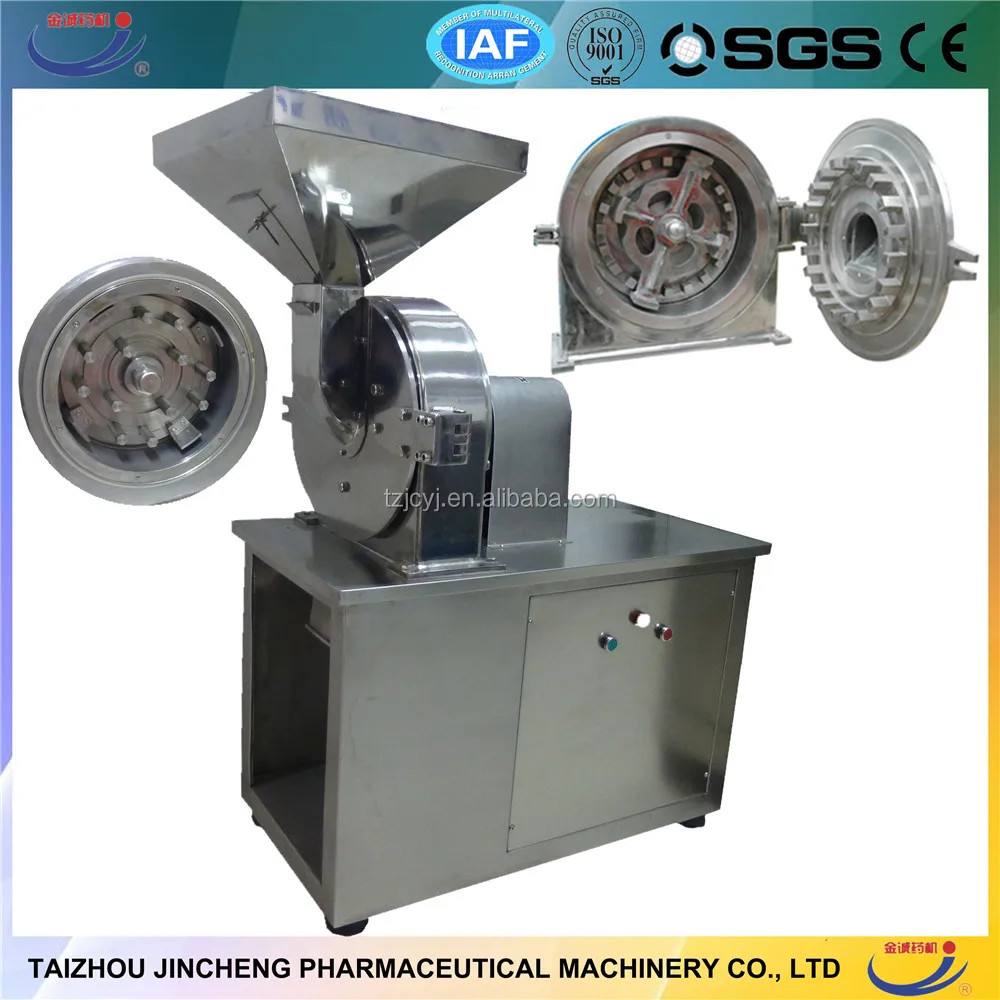

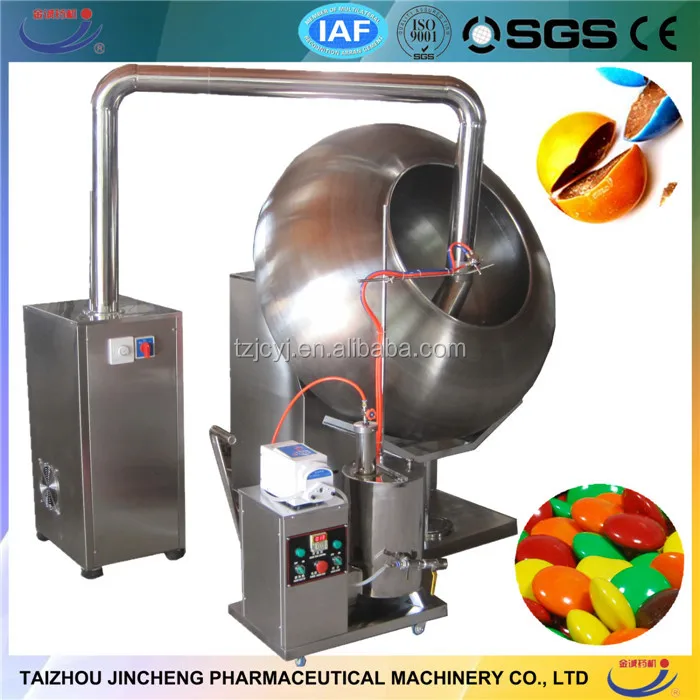

                 Sugar Coating Machine                              Universal Grinder
