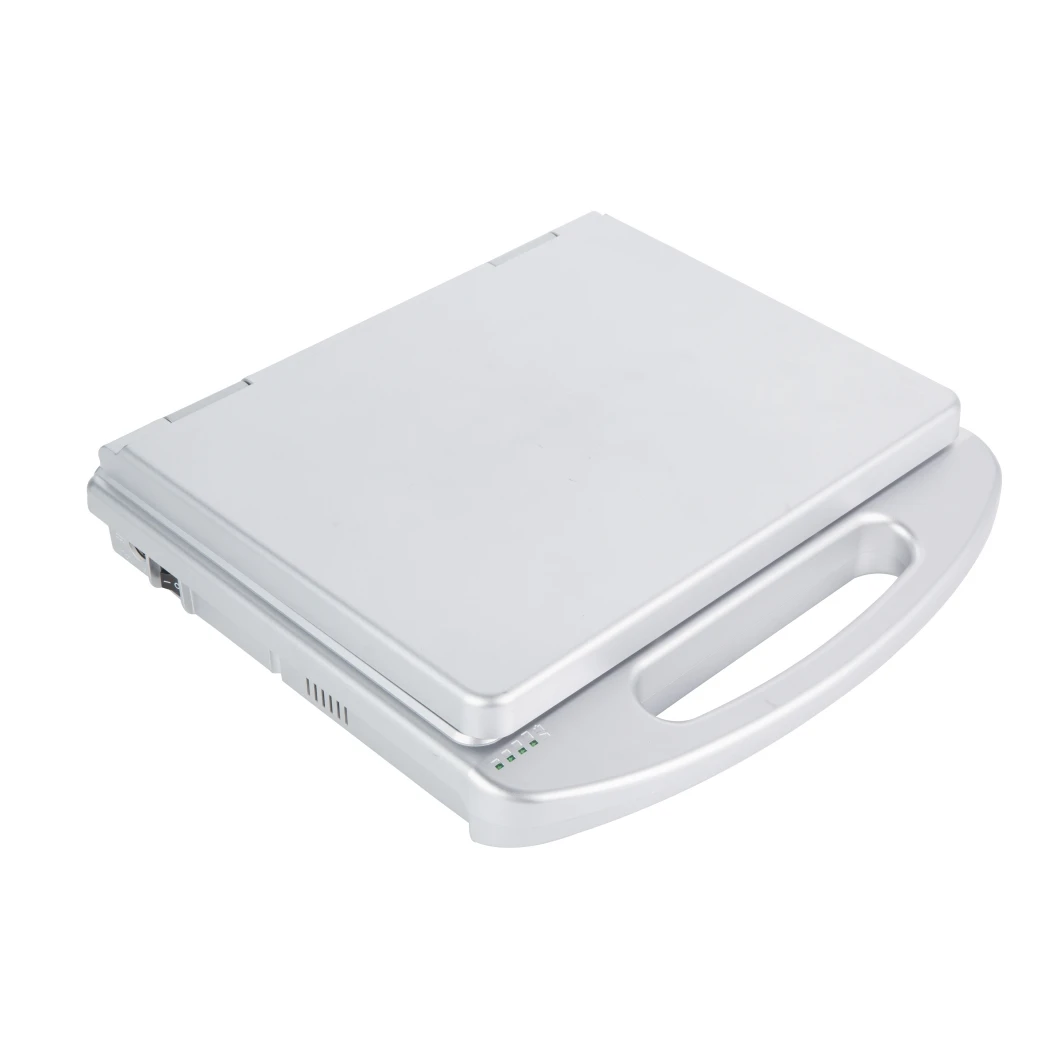

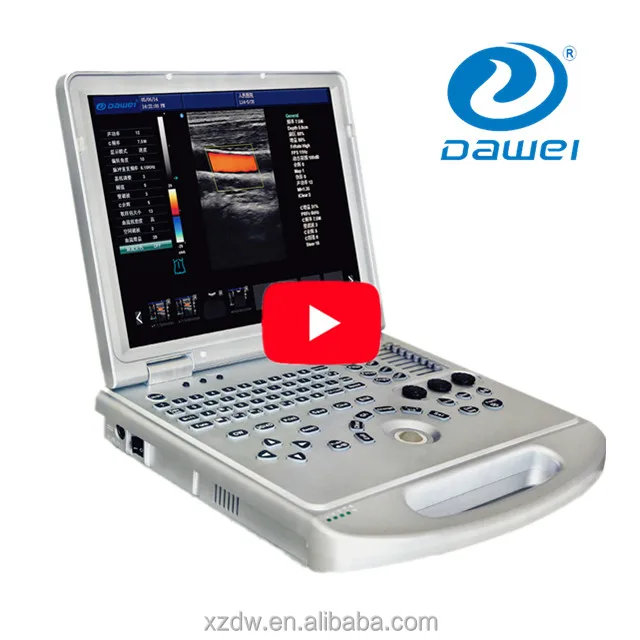

Portable echography machine/ laptop ultrasound scanner/portable echo machine color doppler

Product Overview

Description



1, 15-inch high resolution LED monitor



2, standard PC LED backlit silicon gel keyboard



3, one key regulation, easy operation



4, rechargeable built-in battery



5, abundant peripherals: DICOM3.0, VGA, video out, USB etc

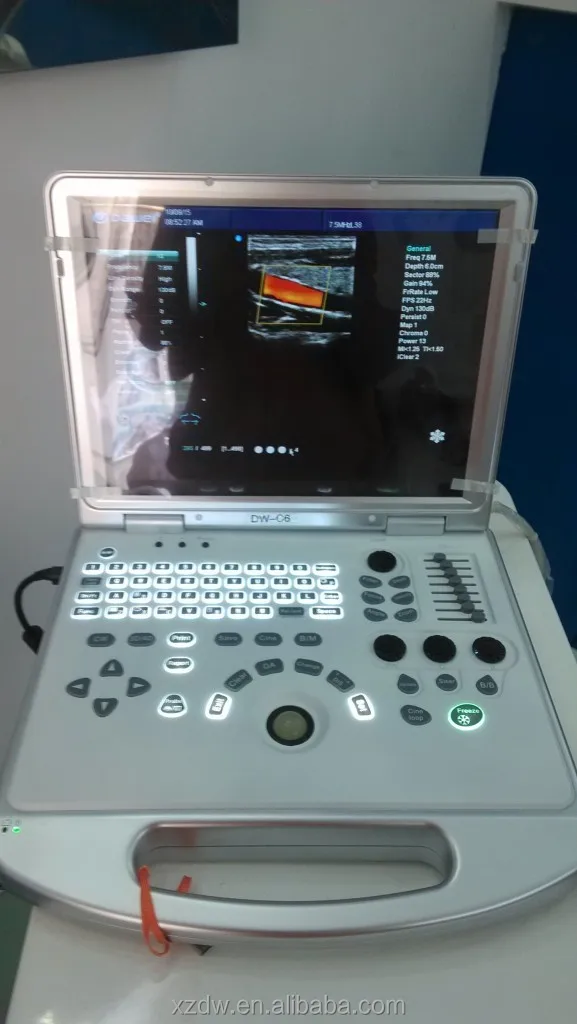

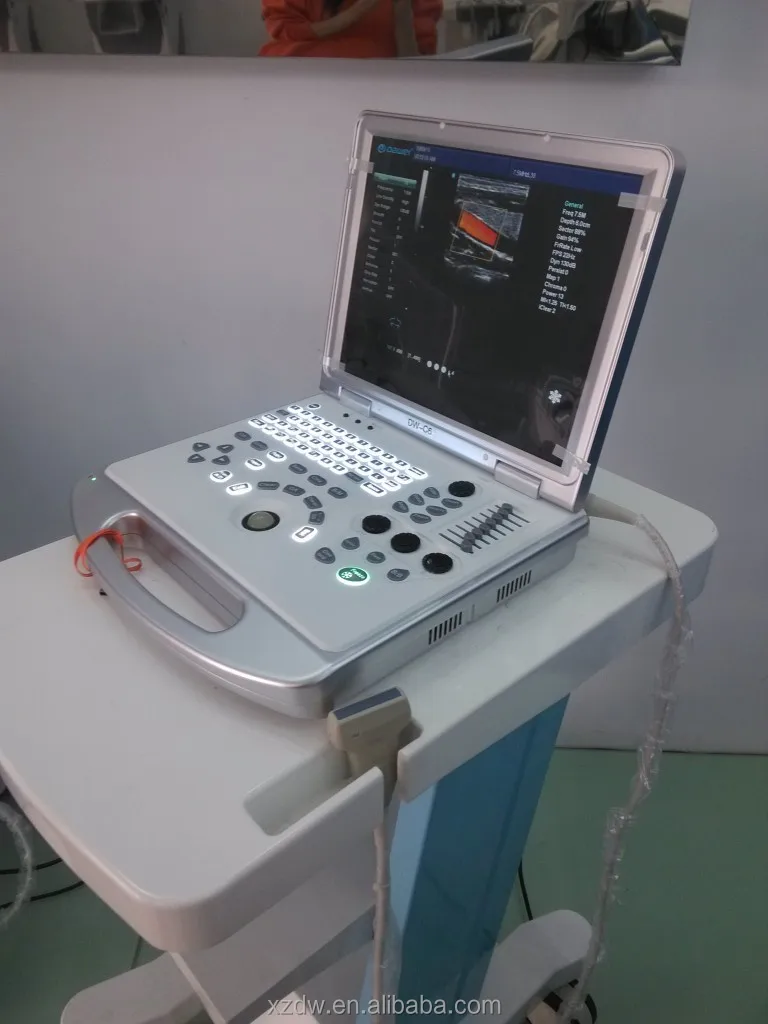

Portable echography machine/3D laptop ultrasound scanner/portable echo machine color doppler

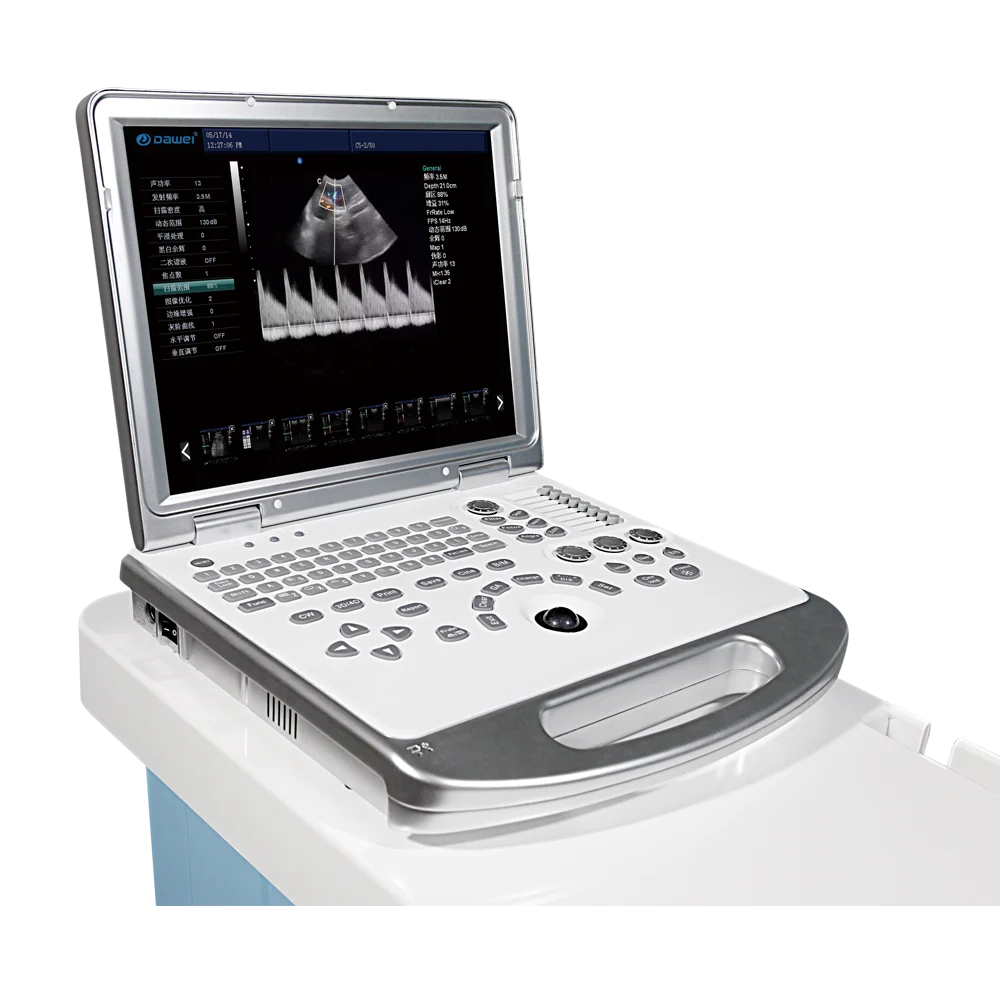

DW-L5  (DW-C60Plus)

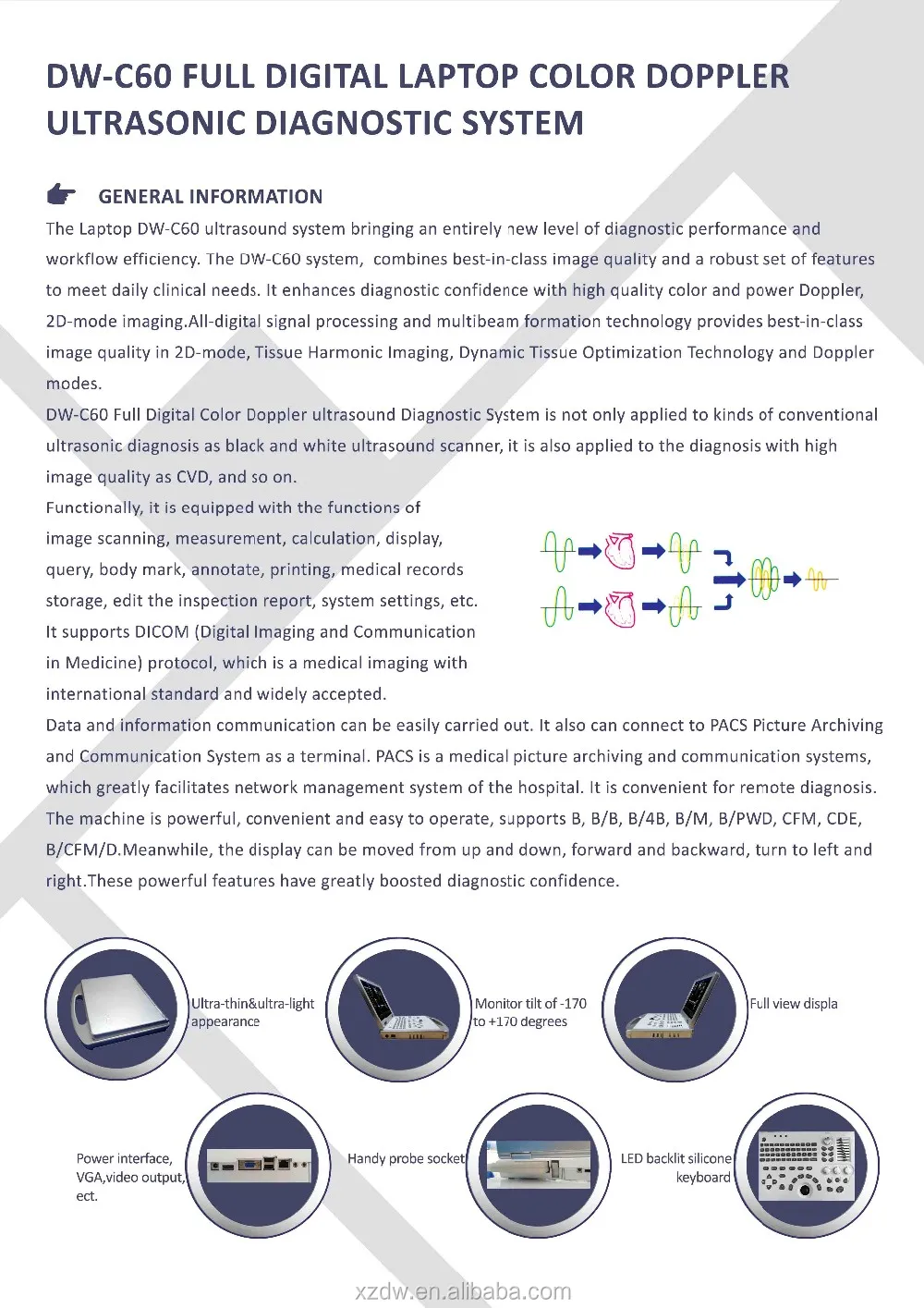

LAPTOP COLOR DOPPLER ULTRASONIC SYSTEM

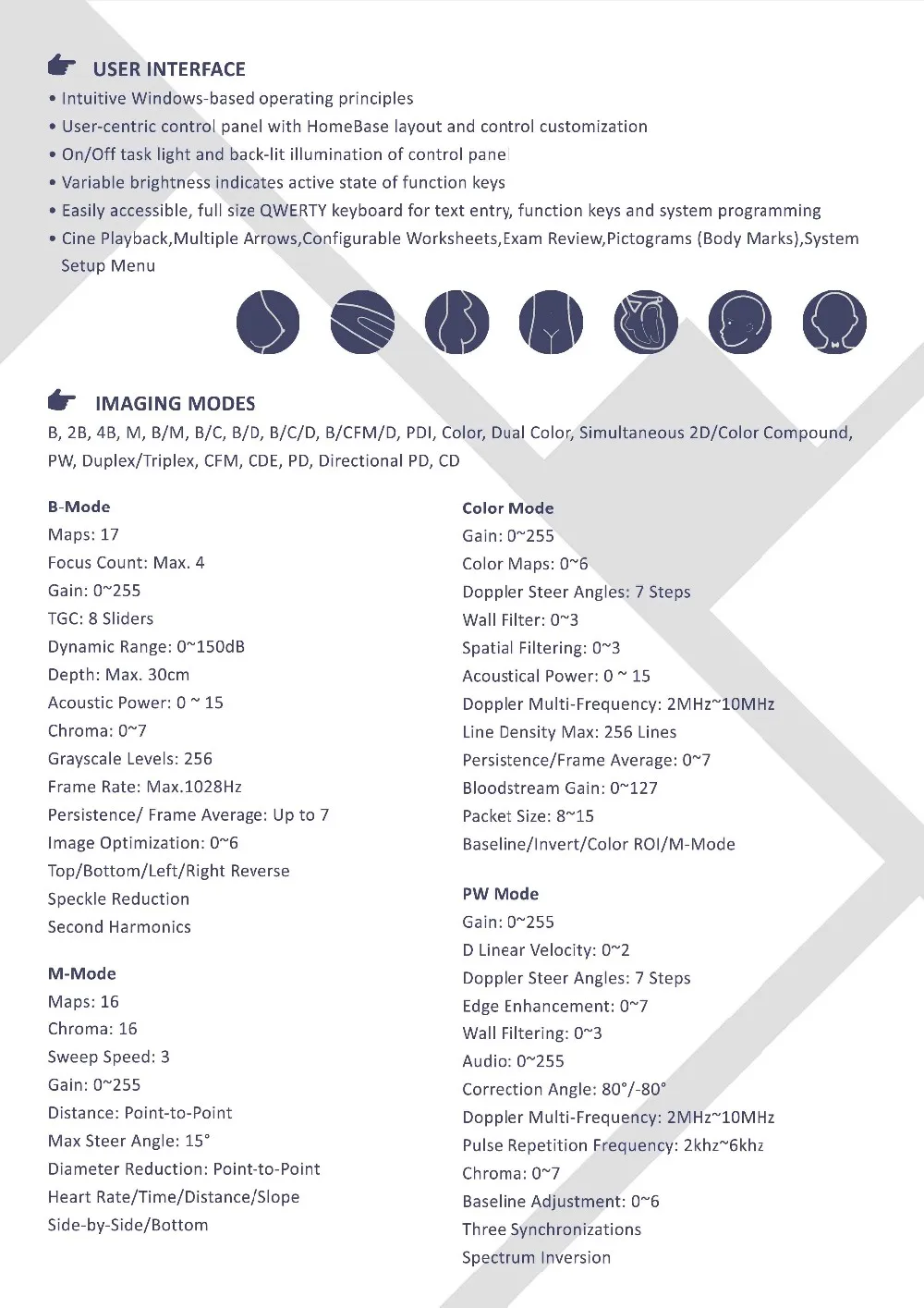

Display Mode:

Black and white image : B, 2B, 4B, left B | M, B | D, PW, M, B partial enlarged mode

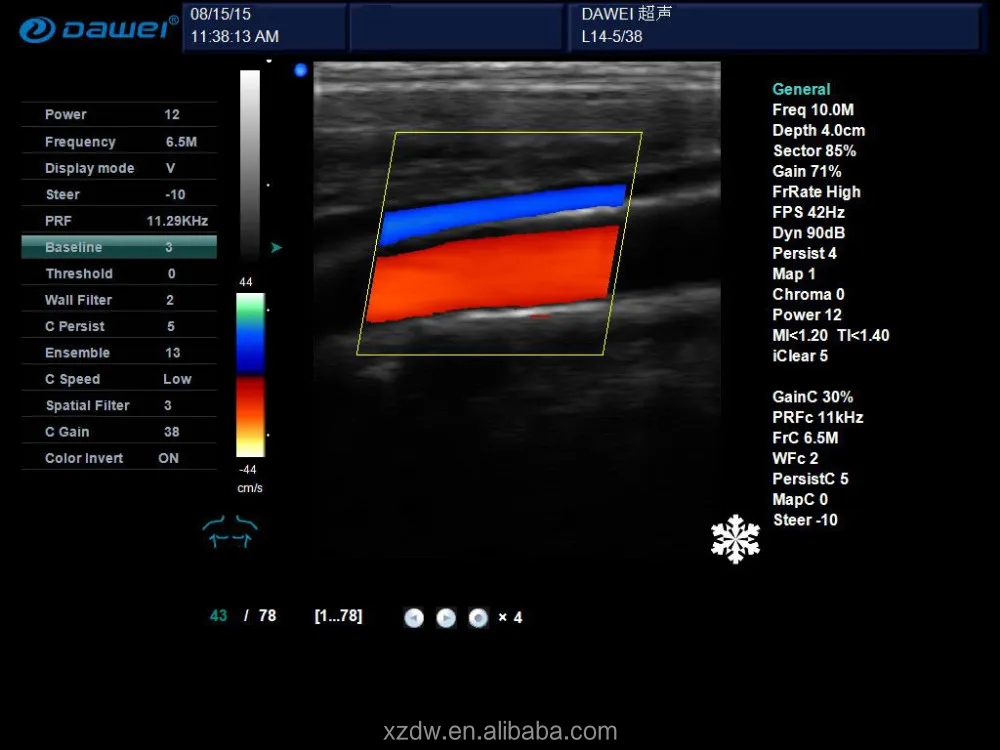

Bloodstream image : Spectrum : B / D, B / C / D CFM: B | C | D, B | C | M, B | C

pairs in real time , PW, CFM, CPA

Color flow image adjustment parameters : a Doppler frequency , sampling frame

position and size , baseline color gain, the deflection angle , the wall filter, the

cumulative frequency.

Display depth:Continuously adjustable



Focus:

Electronic focus + Acoustic lens focus

Launch with a single focus, bifocal , trifocal and four focus work

Receiving continuous dynamic focusing



Signal processing / Doppler sound:

Dynamic Filtering

Quadrature demodulator

The total gain adjustment

Composite Gain Technology: 8-segment TGC and D-AGC

B -, C -, D- , respectively, the total gain is adjustable

Low pass filter

Subsample

Emitter voltage regulation

Doppler tone adjustable stereo output



Image processing:

Logarithmic conversion and dynamic range compression

Temporal filtering

Spatial filtering

Frame correlation

Edge Enhancement

Grayscale conversion

B | M or M -type scanning speed

Line density control

Scan angle / width control

Image optimization

Flip the image around

Image upside down

Flip the image in black and white

Multi-angle image rotation

Choose a color grayscale inversion Article

Tissue blood flow images and image processing complex

Black and white image resolution 1024 × 768 × 8bit (256 gray levels )

Color Image Resolution 1024 × 768 8bit × 8bit × 8bit color coding



Specialist image selection ( optional ):

Select the abdomen : liver, gall bladder , spleen , kidney, pancreas subjects



The basic measurement and calculation functions:

B -mode basic measurements: distance, angle, perimeter and area ( ellipse method ,

track method ) , volume histograms , cross section

M -mode basic measurements: heart rate, time , distance, speed



Obstetric measurement and calculation functions:

Obstetric report

Measurement of amniotic fluid index calculation (AFI)

Calculated ratio (BPD / OFD, FL / AC, FL / BPD, HC / AC)

Estimation of fetal weight

By the LMP, BBT projections gestational age and expected date function

Fetal physiology score (Fetal Biophysical Score)

Fetal growth curve



Andrology measurement and calculation functions:

Prostate , testicular and other measurements to calculate

Prostate -specific antigen predicted PPSA, prostate specific antigen density calculated

PSAD



Gynecological measurement and calculation functions:

Uterus, left ovary , right ovary , left follicle , the follicle and other measurements to

calculate the right



Urology measurement and calculation functions:

Left kidney, kidney , bladder, residual urine volume (Residual urine vol) and other

measurements to calculate



Peripheral vascular measurement and calculation functions:

Area stenosis , diameter stenosis measurement and calculation



Small organ measurement and calculation functions:

Thyroid, breast , and other measurements to calculate mass



Orthopaedic measurement and calculation functions:

Left hip , right hip measurement



Cardiac function measurement and calculation:

Heart measurement software package - providing heart rate, speed, left ventricle ,

aortic , mitral , ventricular ( right / left ventricle ) and other analytical measurement

methods

Area stenosis percentage (% Area Sten), percentage diameter stenosis (% Diam Sten)

Body surface area BSA



Display information:

Probe information , display mode, the depth of focus , the dynamic range of standard

body , the probe position mark , sound power , patient information, medical institution

name, the measurement value, time and date , the scale , the scanning direction ,

gamma curve , the probe current work

Frequency, frame rate , B mode overall gain , C mode overall gain , D model of the

total gain , menus, comments, gray belt, puncture guide line , PRF, wall filter , blood

-related , cumulative frequency , TI heat index , MI machinery index

Storage function:

Probe parameter storage

Image Storage

Cine storage

Measurement results are stored

Report storage

Grayscale :256 gray

Interface Language:Optional English



Trackball function:

According to the working status and menu execution , completion of various

operating functions

Control multiple electronic device, position the cursor , complete the measurement

Function



Options:

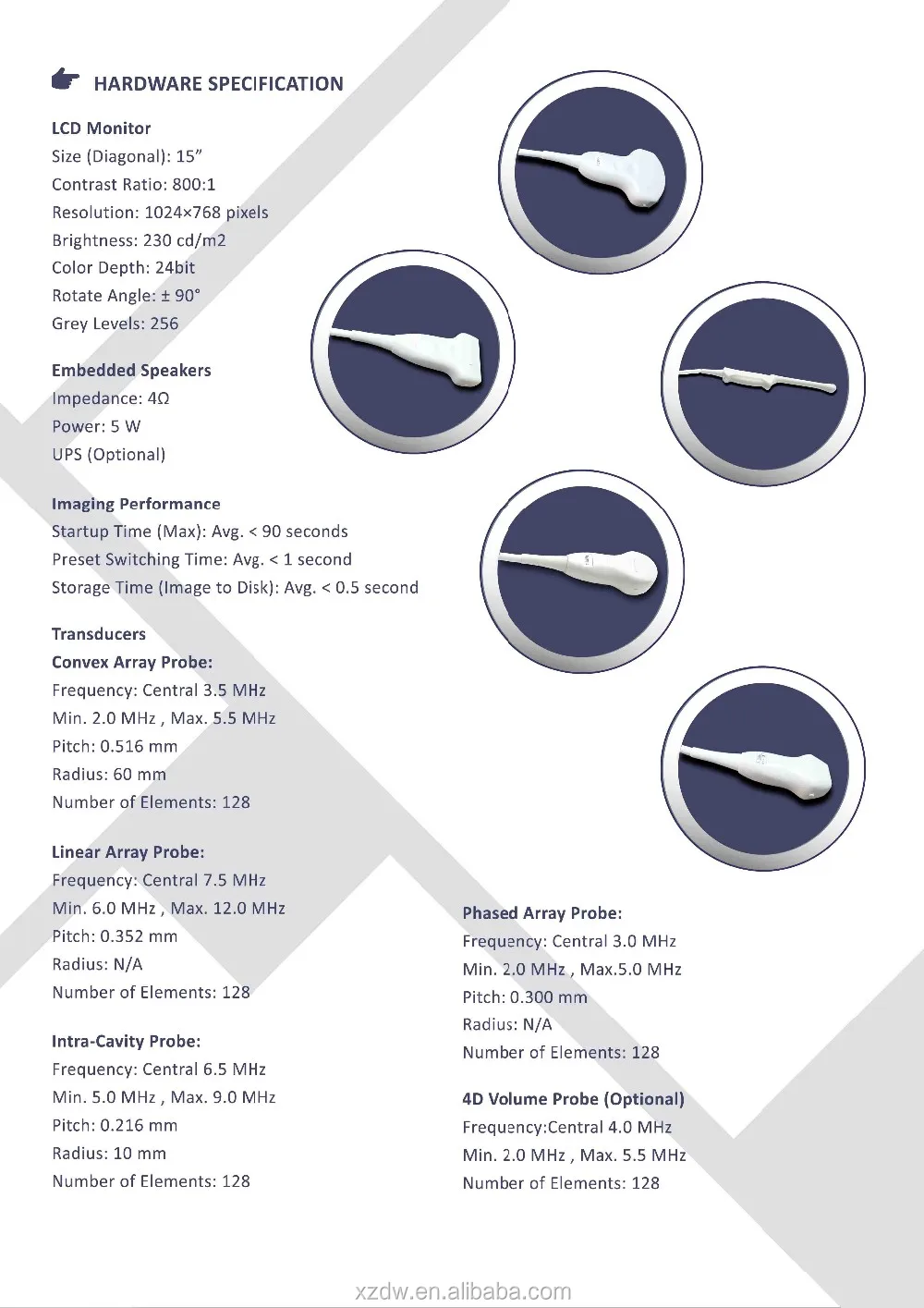

3.5Mhz convex probe, 6.5Mhz trans-vaginal probe, 7.5Mhz Linear

Probe, Phased array probe, Volume Probe, DICOM 3.0



Main Spec.



Model	DW-L5  (DW-C60Plus) doppler digital ultrasound scanner
Monitor	15" LED
Display mode	B, 2B, 4B, B/M, M, B/C, B/D
Probe interface	single
Net weight	about 13.8kg
Output interface	DICOM 3.0, VGA, video out, USB
Main power supply	AC220V±22V , 50/60Hz
Standard configuration:	Main unit 3.5MHz Multi-freq Convex Probe(2.5MHz-4.5MHz)
Options:	1) 6.5MHz High frequency Trans-vaginal probe 2) 7.5MHz High frequency linear probe 3) 7.5 MHz Multi-freq rectal Linear Probe 4) Trolley 5) Clinical report 6) USD storage





Scanning mode	convex / linear / micro-convex
Detecting depth	≥300mm
Language	Chinese/English.
Blind Zone	≤4 mm
Geometry precision	lateral≤5% ,axial≤5%
Dynamic scope	0-150dB
Gain control	The total gain, 8-segment TGC
Image conversion	up/ down, left / right, black / white
Puncture guide	The puncture guide line can be displayed under B mode
Body marks	115
Magnification	×0.8, ×1.0, ×1.20, ×1.50, ×1.80, ×2.0  (16 kinds)
Gray scale	256
Pseudo-color	7 kinds
Permanent image storage	8 frames
Cine loop	1024 frames
Measurement	distance, perimeter, area, heart rate, gestational week (BPD, CRL, GS, FL, AC )



Portable echography machine/3D laptop ultrasound scanner/portable echo machine color doppler

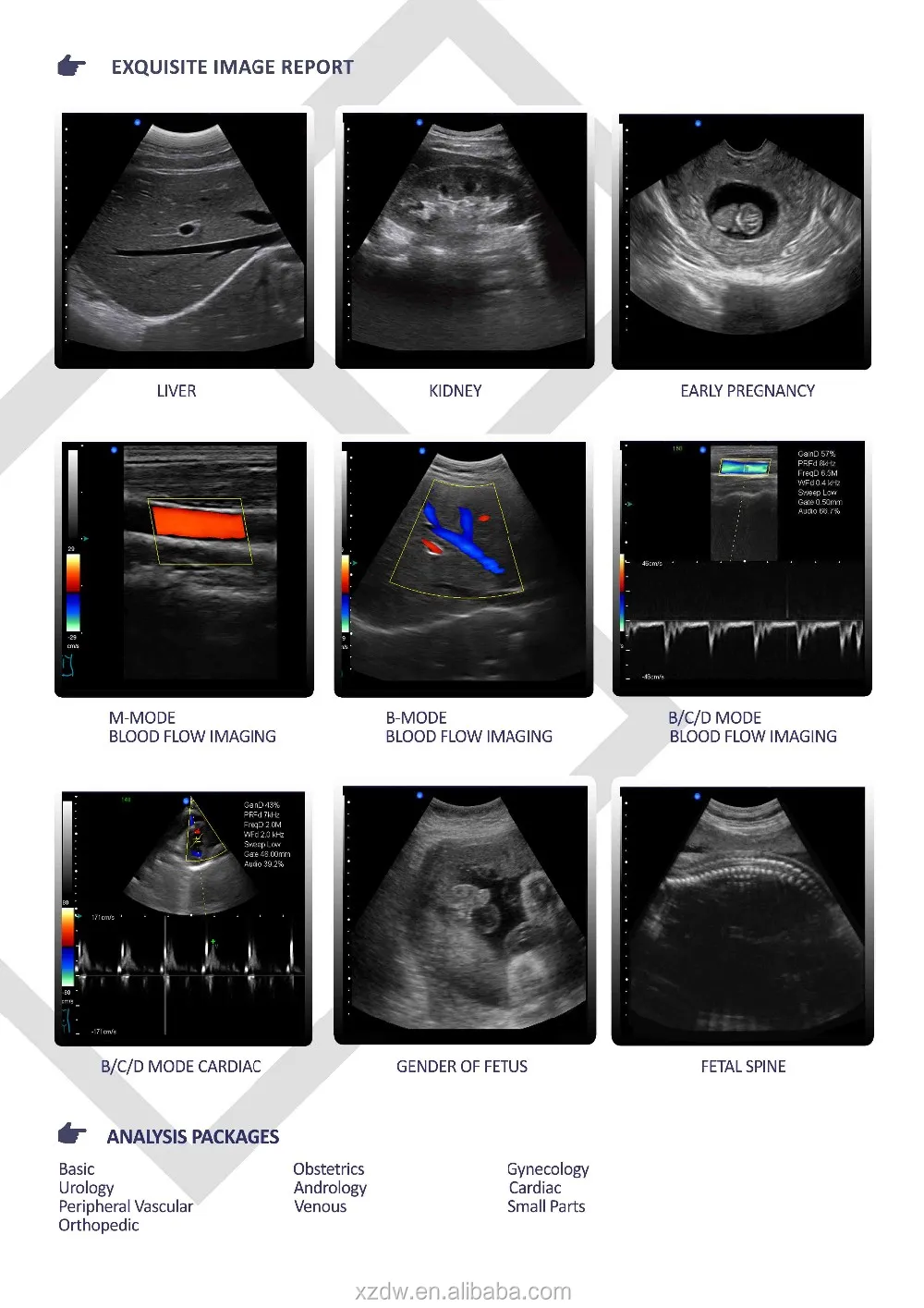

Clear Image
