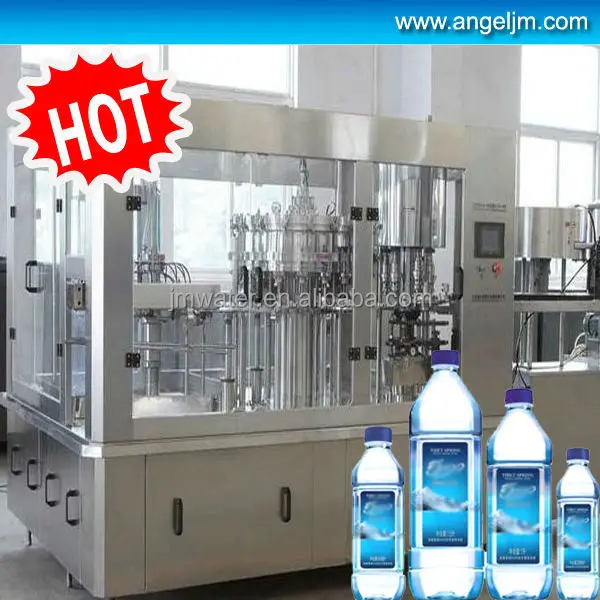

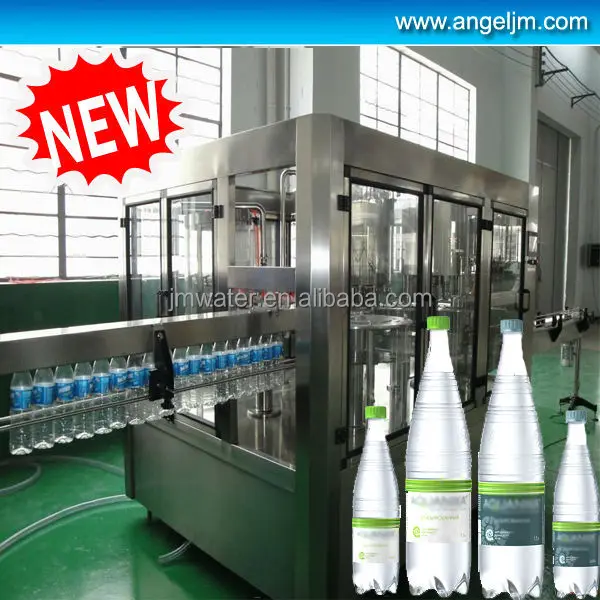

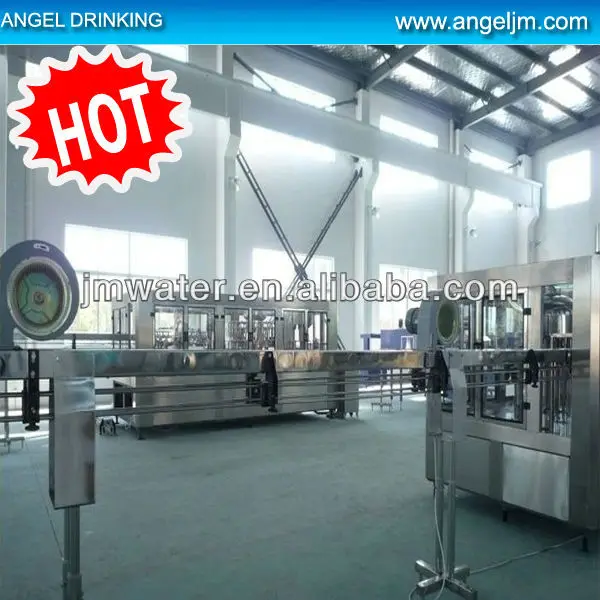

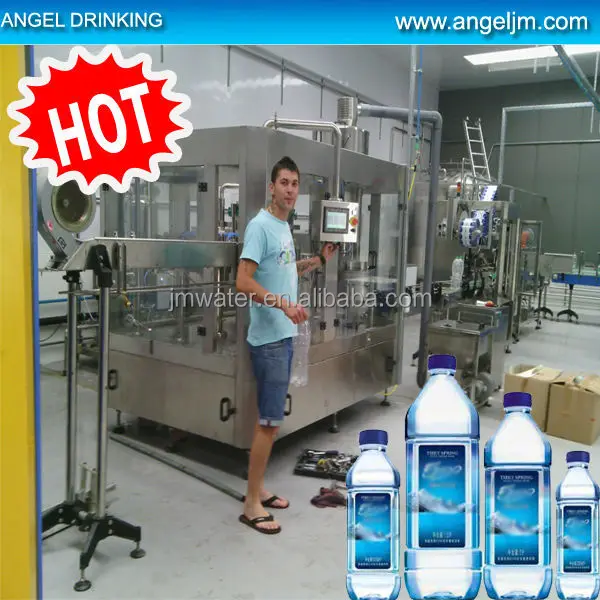

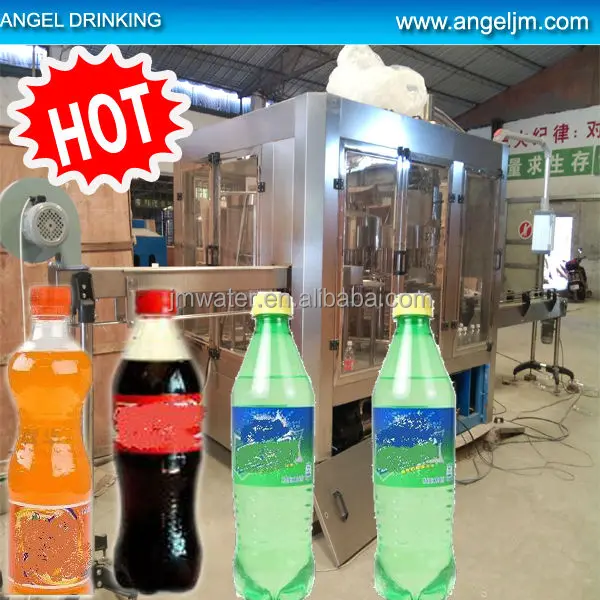

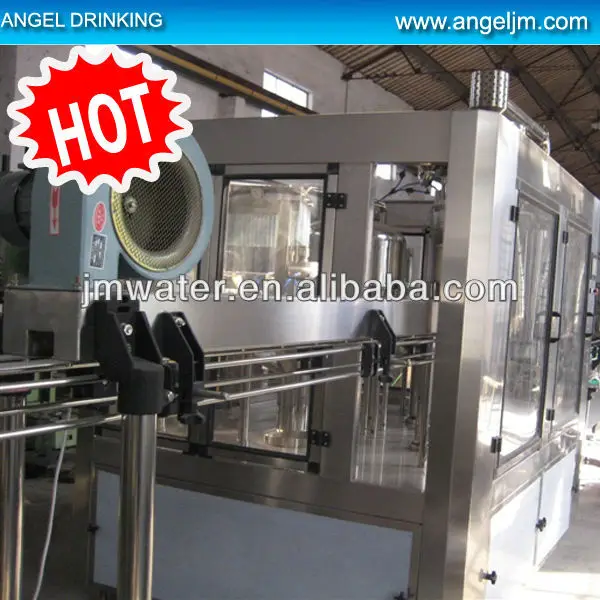

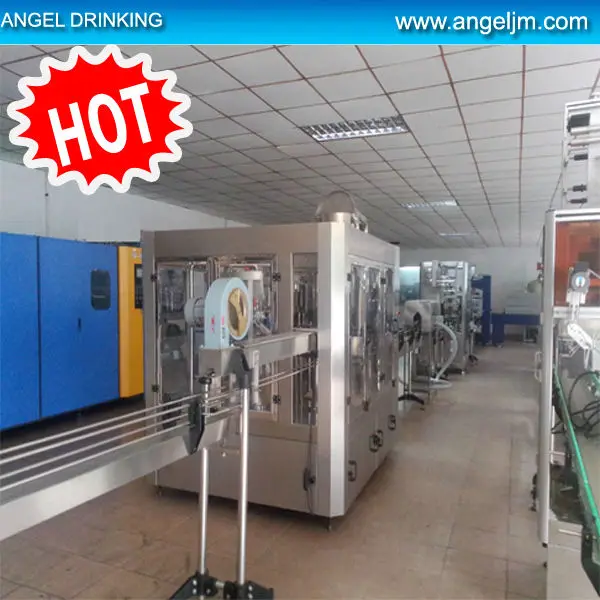

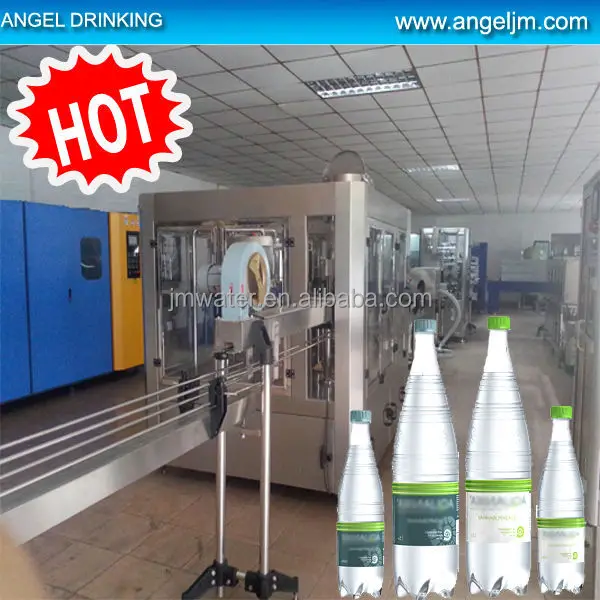

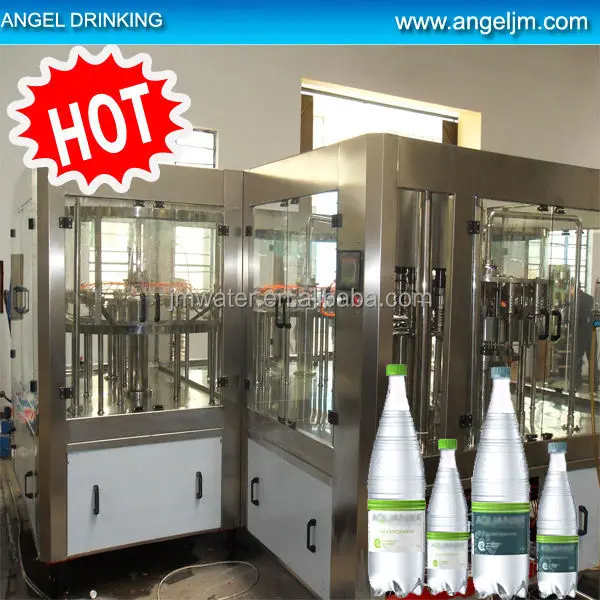

Jiangmen Seraph automatic beverage filling machines/beverage automatic filling machine/beverage processing machinery , combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Technical parameters
Model
CGF16-12-6
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
Production Capacity(500mm)(b/h)
2000-4000
4000-6000
8000-10000
12000-15000
16000-18000
Filling Precision
≤±5mm(Liquid Level)
Polyester Bottle Standard(mm)
Diameter:
D40-D80,
Height:
130-280mm
Bottle Diameter D50-D100,Height:150-320mm
Suitable Cap Shape
Plastic Screw Cap
Water Pressure
of Washing Bottle(Mpa)
0.18
Water Consumption
for Water Bottle(kg/h)
800
1600
2500
3500
5000
Spraying Position
5
5
6
12
15
Dripping Bottle Position
3
3
3.5
7
8
Gas Source Pressure(Mpa)
Normal Pressure
Gas Consumption(m3/min)
0.3
0.3
0.4
0.5
0.6
Total Power(kw)
4.23
5.03
6.57
8.63
9.63
Total Weight
2000
3500
5500
6000
8000
Dimension(L*W*H)(mm)
2100*1500*2200
2450*1800*2200
2750*2180*2200
3500*2200*2250
3500*2200*2250
Why our machine is better than other similar machines
1. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel 304, if needed,
SS 316 is also available.
2. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.
3. Most elements of the electrical system use famous international brand, such as Mitsubish, Omron brand.
4. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The
quality of the equipments reaches the international advanced level.
5. Advanced technologies, human-machine interface touch screen and PLC program control are adopted in this machine.
6. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
