Product Overview

Description

Introduction:

Heating cable is also referred to as heat trace cable amongst the industry. It is used for a wide range of applications including pipe tracing, freeze protection, viscosity control, temperature process maintenance, roof and gutter deicing . Yiteng Heating Tapes are more flexible and can provide a much more rapid thermal response.

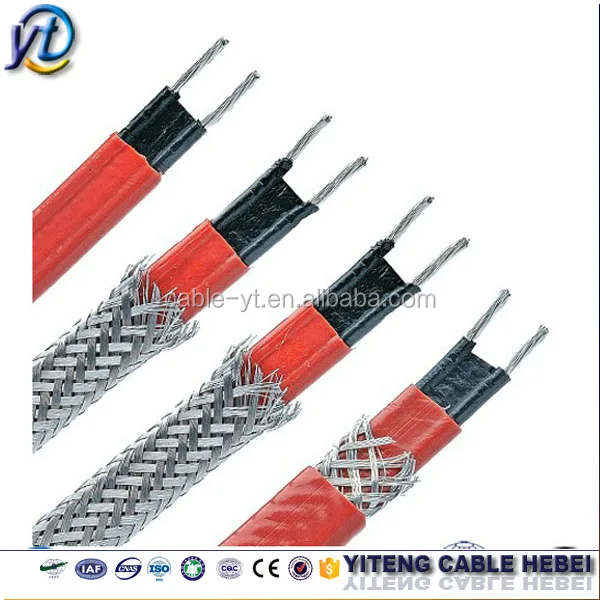

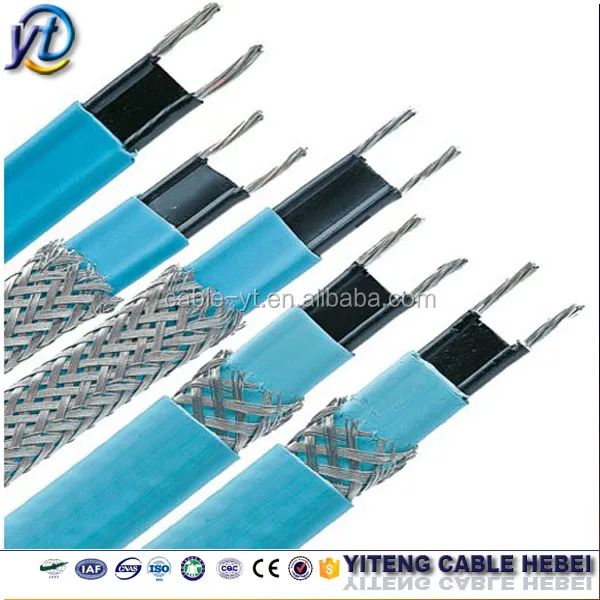

The products provides the most versatility in heat trace design and applications. Constructed of a Semiconductive heater matrix extruded between parallet buswires, a self regulating cable adjusts its output to independently respond to ambient temperatures all along its length. As temperature increases,the heater's resisteance increases, which lower the output wattage. Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. So there is no need for thermostat in some applications. It will never overheat or burnout even when wrapped by itself(overlapped). Also it can be cut to any length. It is a convenient maintenance,easy use and energy efficient heating cable.



factory wholesale  low voltage  heat tracer for driveway gutter roof and pipe

Self-regulating or constant-wattage heating cable

Ideal for long runs on pipes and vessels

Can be cut-to-length at job site

Temperatures up to 500oF (260 °C )

Ultra thin

Meets NEC 427-23 and IEEE Std 515-2004



Applications:

Freeze protection

Viscosity control

Low to high temperature  maintenance

Ordinary locations

Hazardous locations

Heat Tracing Applications

Temperature Raise

Tank Heating

Roof & gutter  de-icing and driveway snow melting

Hot water systems



factory wholesale  low voltage  heat tracer for driveway gutter roof and pipe



 constant Wattage



Self regulating/ self limiting heat trace / heating cable



Self-Regulating / Self-Limiting: Automatically adjusts heat output based on surface temperature. Ideal for freeze protection and low temperature process maintenance.



Constant-Wattage: Provides precise and constant temperatures up to 500 oF (260 °C ).  Ideal for a wide range of applications.





Freeze Protection

Freeze protection cable provides freeze protection for metal or plastic pipes, roof and gutter de-icing, and snow melting for commercial and residential applications. Freeze protection products can be controlled using a variety of thermostats, controllers, sensors, and control panels.



pipe-freeze-protection Pipe Heat Trace self-regulating heating cables for pipe heat tracing are installed on metal and plastic pipes to prevent them from freezing. Theself-regulating cable technology automatically adjusts the heat output of the cable based on the pipe temperature to optimize energy consumption.



roof-gutter-de-icing Roof & Gutter De-Icing:  Ice dams and icicles can cause extensive and costly damage to roof and gutter systems.  Heat Trace Cables for roof & gutter de-icing are installed on roofs and placed inside gutters and downspouts to create and maintain drain paths for water. The self-egulating cable technology automatically adjusts the heat output of the cable based on the surrounding temperature to reduce energy consumption.



Snow Melting  Snow Melt Products are ideal for electric snow melting applications in concrete, asphalt or under paving stones.



Floor heating for houses and builngs green houses ,



Parameters and Models

Output wattage at 10 °C: 8W/M 10W/M, 12W/M, 14W/M, 20W/M, 25W/M,35W/M,40W/M

Max maintain temperatue: 70°C

Max exposure temperature: 85°C

Estimated Critical Temperature : 135°C

work voltage: 12/24/36/110/220/380 V

Approvels: CE; ISO9001, Gost,  cUL, ASTM, ROHS,



Model classfications

Model	structures	Temperature Degree Centigrade	picture
DXW-J-8	Tinned copper buswire, Self-regulating conductive core, Polyolefin or Fluoropolymer jacket	70 °C residential water pipe freeze prevention,   8W/M
ZR DXW-J-12	same as DXW-J-8	70°C  12W/M
ZR DXW-P-12	DXW-J-8 +Thermoplastic out jacket or Fluoropolymer out jacket+braided screen	70 °C explosion proof,  12W/M
ZR DXW-P-12	ZR DXW-P-12+ Thermoplastic out jacket or Fluoropolymer out jacket	70 °C   explosion proof , industrial, oil pipe, chemical pipe,  12W/M
ZR ZXW-J-12	the same as DXW-J-8	105 °C 12W/M
ZR ZXW-P/F-12	the same as ZR DXW-P-12	105 °C   explosion proof , industrial, oil pipe, chemical pipe, 12W/M
ZR GXW-P/F-12	the same as ZR DXW-P-12	135 °C   explosion proof , industrial, oil pipe, chemical pipe , 12W/M
DXW-P/F-14	the same as ZR DXW-P-12	135 °C   explosion proof ,drive way, roof and gutter snow melting 14W/M
ZR DXW- PZ/FZ-12	the same as ZR DXW-P-12	explosion proof  fire proof

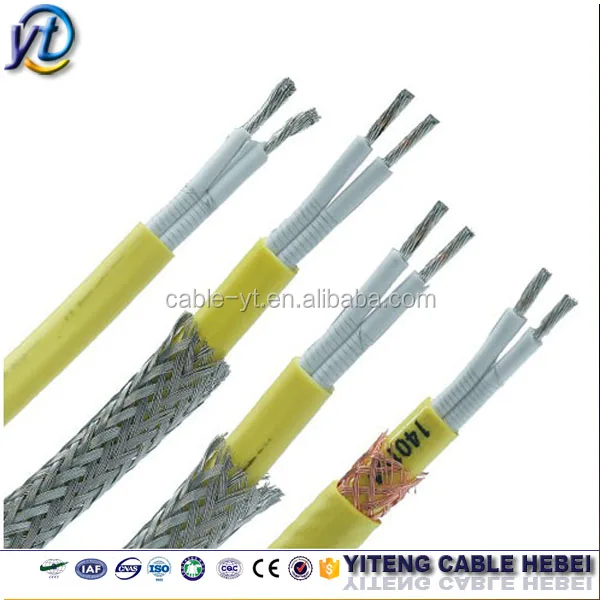

RDP2(Q)-J3 25W	2 Tinned copper buswires+ Polyolefin or Fluoropolymer insulation + Polyolefin or Fluoropolymer sheath +alloy heating wire+ Polyolefin or Fluoropolymer sheath+ braided copper screen + Polyolefin or Fluoropolymer jacket	parallel conection constant wattages, single phase, 25w/m,
RDP3(Q)-J3 40W	3 Tinned copper buswires+ Polyolefin or Fluoropolymer insulation + Polyolefin or Fluoropolymer sheath +alloy heating wire+Polyolefin or Fluoropolymer jacket	parallel conection constant wattages, 3 phases, 40w/m, 380V
Customized models are warmly welcomed
