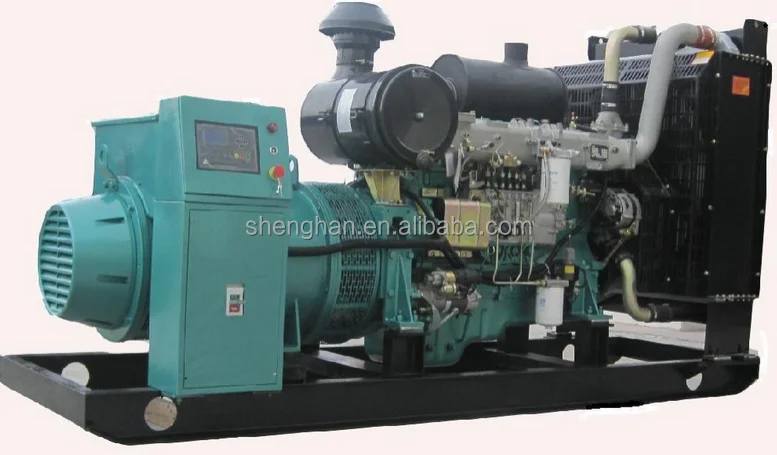

| 260kva Yuchai diesel genset | |||
| engine specifications | Engine Model | YC6M350L-D20 | |
| Consumption | Oil (g/KW.h) | ≤1.3 | |
| Fuel (g/KW.h) | ≤200 | ||
| Output power | 293.75Kva | ||
| cylinder quantity | 6 | ||
| Rated Frequency | 50/60HZ | ||
| Rated Speed | 1500/1800rpm | ||
| Start method | electrical | ||
| Governing method | electrical | ||
| Cooling method | Water Cooled | ||
| Alternator Specifications | Alternator Model | Stamford HJI200 | |
| Rated Output | 260Kva | ||
| Rated Current | 374.4A | ||
| Rated Voltage | 230/400V | ||
| Connection Type | 3P4W | ||
| Exciting Way | pure copper brushless | ||
| Power Factor | 0.8 (Lag) | ||
| Protection Class | IP22 | ||
| Insulation Class | H | ||
| open type | Genset Dimention (mm) | 3000*1100*1700 | |
| N.W (kg) | 2850 | ||
