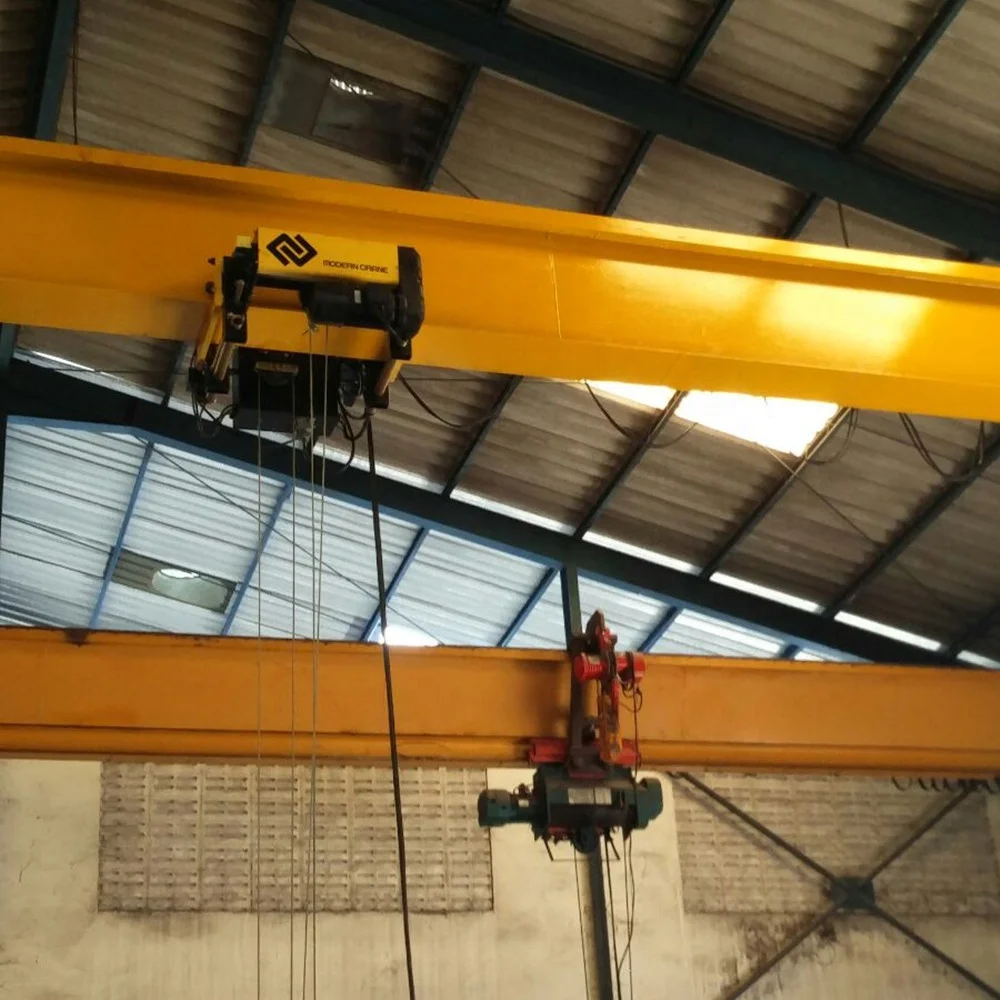

1 5Tons Light Duty HD Type Single Beam Overhead Electric Hoist Bridge Crane For Sale With Best Price

Product Description

L type single girder overhead crane is a series , it can be divided into the following model :

(1) LD single girder overhead crane .

(2) LDY single girder overhead crane

(3) LDP single girder overhead crane

(4) LX singgle girder overhead crane

(5) SLX single girder overhead crane

(6) SL single girder overhead crane

(1)The LD Single Girder Overhead/Bridge Crane  (also called bridge crane )is the most popular designing since the very beginning. Our annual turnout is 20, 000 units for the whole market. The main girder adopts 6mm and 8mm thickness steel plate. Chinese workshop has a 1700mm clearance above the rail, which is excellent for the maintenance of the crane. In some Middle East countries, the clearance is less than this, so please indicate this data before inquiry.

(2) LDY single girder crane for metallurgy is mainly used for lifting molten metal and foundry location. Its configured lifting mechanism is model YH2 electric hoist for metallurgy, hoisting capacity<=10t.

Main girder bottom of crane adopts to special heat insulation disposal.Working environment temperature is -10C~60, relative humidity is <=50% in 40C.design and manufacture of crane meet the requirements of AQSIQ Doc #(2007) 375.the requirements of AQSIQ Doc#(2007)375. Other situations that lift fusion non-metallic material or hot solid metal can refer.

(3)LDP model motor -driven signle beam crane belongs to very low clearance light duty lifting equipment. Electric hoist is at one side of main girder, so can increase service space of hook and reduce the cost. With advantages of big trolley tread, smooth traveling, tight structure, strong rigidity, delicate operation, low noise, safety and reliability and beautiful exterior, it is widely used in the situation that clearance height of workshop is low and the operating ambient temperature is -25C~40C degree.

LDP model motor-driven single beam crane is designed and produced according to GB/T 3811-2008, JB/T 1306-2008 standard and used with model CD1 MD1. It is a light duty crane with rated load of 3 t 10 tons. The span is 7.5~22.5m. Working grade is A3-A4 and lifting height is 6~12m. The main operating method is ground control (ground control, remote control, ground control +remote control). If the span and lifting height is out of the range that style book lists, we can do non-standard design according to user's requirement.

(4) LX electric single girder overhead crane are designed and manufactured strictly in accordance with national standards.Using with CD1,MD1 model electric hoist , it can be a light rail to run a small crane. Its lifting weight of 0.5 to 5tons, span of 3 to 16m, working class of A3 to A5 and the working environment temperature of -25 to +40oC . It is forbidden to use in flammable, explosive and corrosive media environments.

(5) It is driven and operated by man and hand, it don't need electric power.we are adopt the advanced technology:auto- production no-weld U-shape and one stop molding main girder,end beams.SLX Type Manual Single-girder Suspension Crane is in compliance with JB 3775. Its lifting capacity is 0.5t~3t and span is 3~12 m. It is usually used at sites like warehouses without power source, workshops or places for equipment inspection and repaired. Here the carrying work and speed are not so large and usage is not so frequent. Its ambient working temperature should not be lower than -20 centigrade degrees. Manual monorail crab and manual hoist are its single matched products.

If you offer us the parameter, we can do special design according to your requirements.

 (6) SL Type Manual Single-girder Crane is a light-small one which is applicable to equipment installation, maintenance and work sites without power source and fitted with its manual monorail crab that has fine performance and reasonable cost. We are pleased to manufacture products according to users' special requirements

If you offer us the parameter, we can do special design according to your requirements.

Feature

1. Reasonable structure, light dead weight

2. Favorable performance, accurate and smooth lifting.

3. Safe and reliable traveling

4. Low noise, easy operation,

5. Convenient maintenance, high flexibility for parts and components

Production Process

Single Girder Heavy Duty Overhead Traveling Crane/Bridge Crane/EOT Crane Packing

The electric hoist & small parts are packaged in wooden box, the main beam and end carriages are packaged by polyethylene fabric cloth, the loading/shipment by container or bulk ship.

30 years crane experience Industry application overhead crane

Company Information

Modern Crane Co., Ltd. focuses on lifting resolutions for customers. We provide design, production and service of different lifting equipment, which covers electric wire rope hoist, chain hoist, jib crane, bridge crane, gantry crane, port crane etc.

 Under principle CUSTOMER FIRST, MODERN CRANE people always provide customers with first class products and excellent service. MODERN CRANE people follow a strict QUALITY CONTROL system which ensures perfection of each lifting equipment. Our products have completely passed ISO9001, CE, GSand other quality system certificates.

 Thanks to our high quality products and outstanding customer service, MODERN CRANE has earned a reputation from our customers and gained a global sales network reaching Brazil, India, Philippine, Ukraine, Argentina, Spanish, Malaysia, and other 30 countries.

 With the commitment of customer satisfaction, we are expecting to widen and deepen the cooperation and communication with all friends all over the world.

30 years crane experience Industry application overhead crane
Our Service

1. What’s the information should I provide when inquiry?
More details or drawings, more better.
A: Lift capacity B: span C: lift height D: power source
Or other specials you give us will be more appreciated.

 2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons.B: remote control with push buttons
C: cabin(space capsule seat) control with joystick.Choose any type as you like.

 3. Can this type work in hazardous environment?
Sure! Can customize for you, acid proof or explosion proof, no problem for that.

 4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

 5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

 6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anticollision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.

Any other requirements, just feel free to let us know!

                    Your kind inquiry, Our sincere quotation
