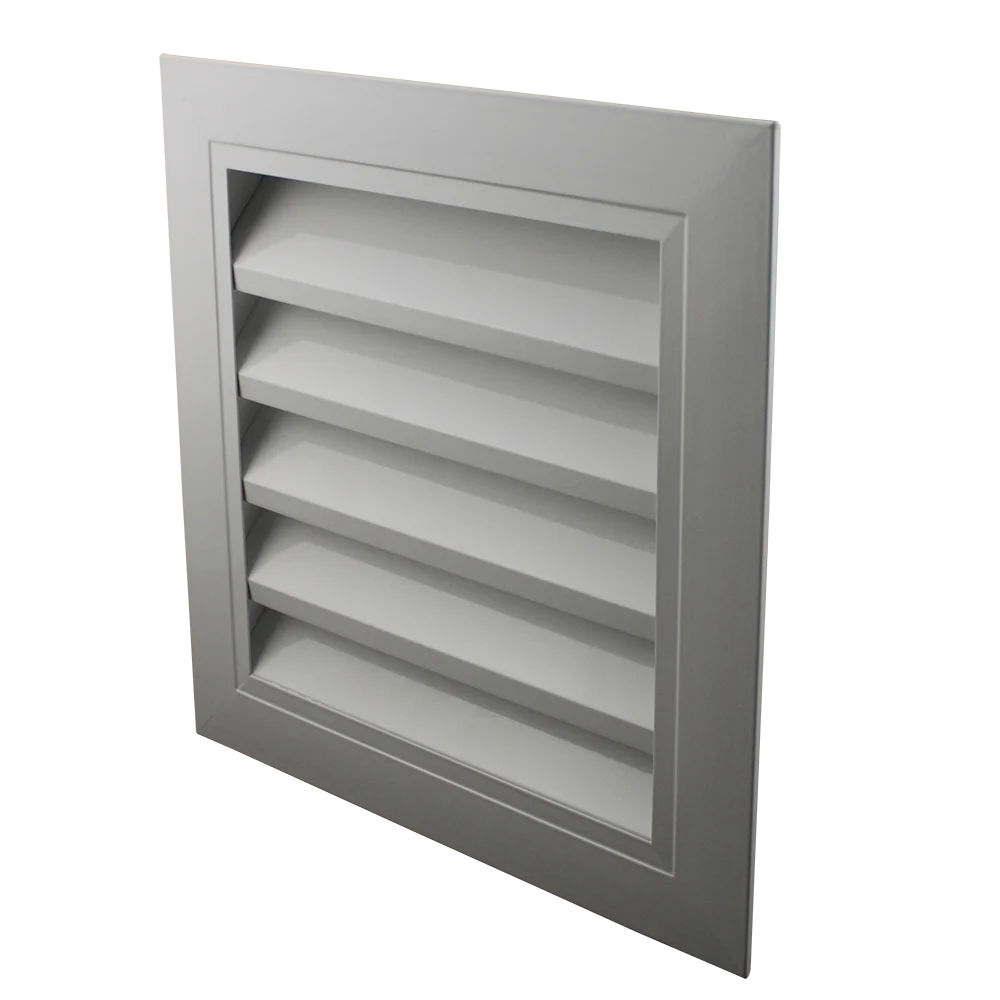

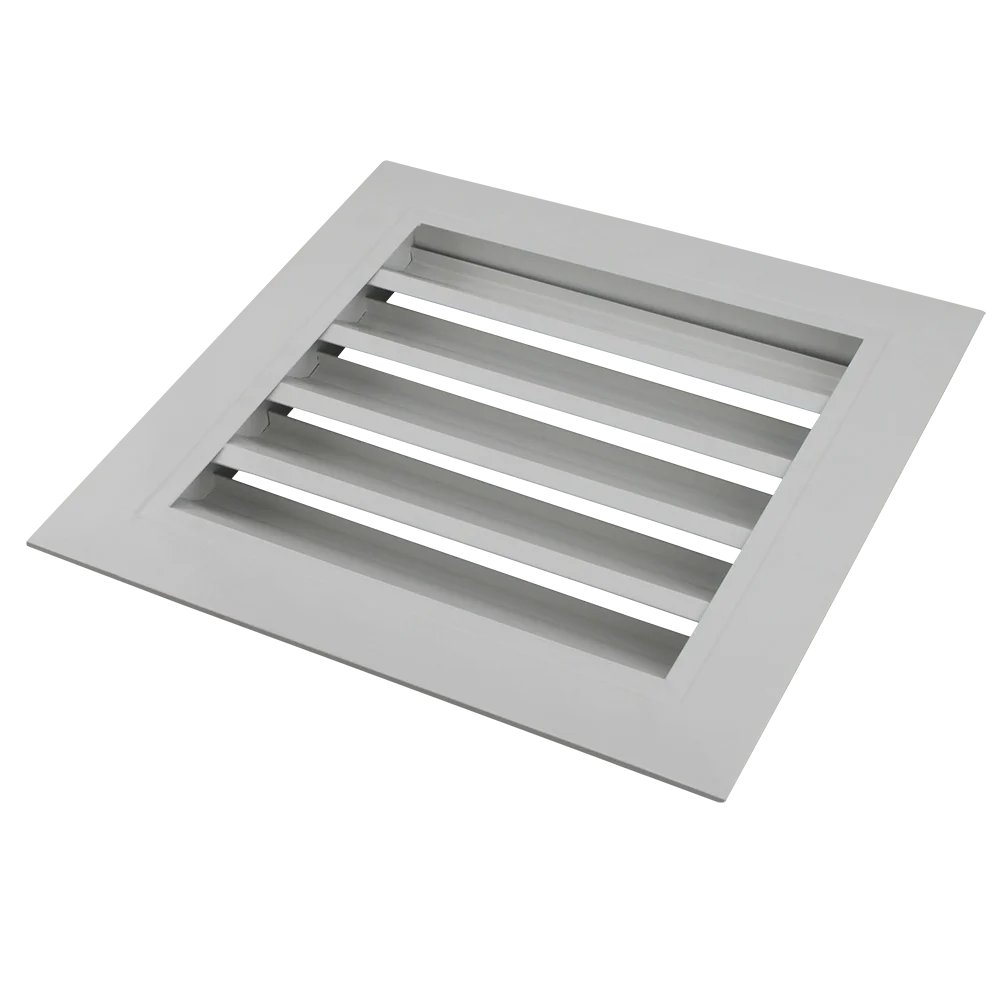

Air conditioning decorative vent grille cover wall aluminum exterior louver

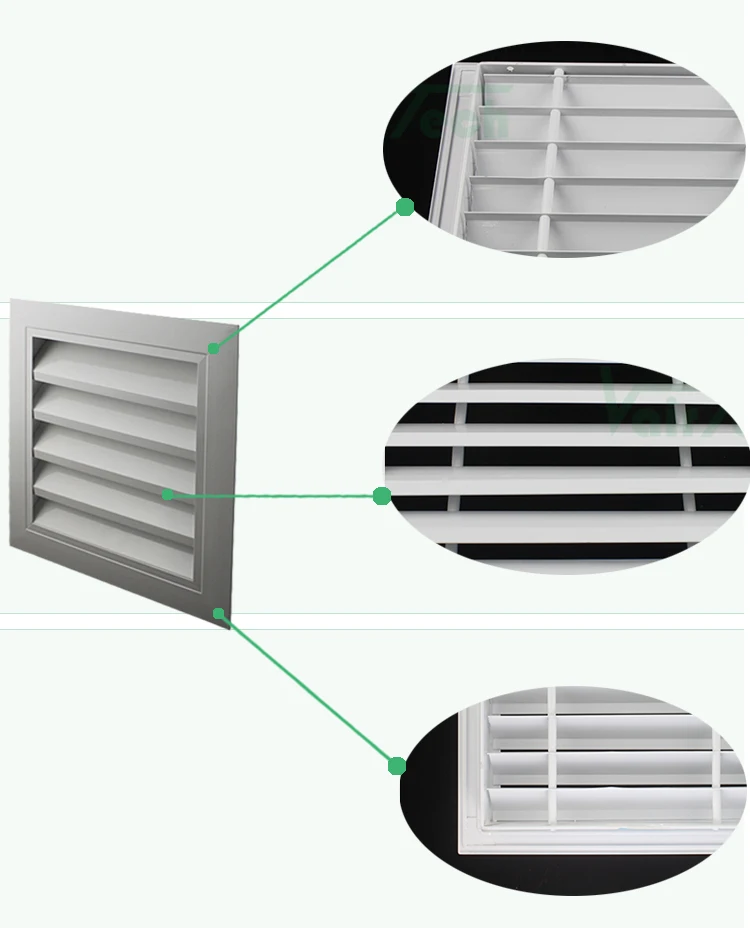

Construction:

• Ø  Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.


• Ø  Blades: Aerofoil blades in 45° from aluminum profile


• Ø  Blades spacing: 35mm as standard


• Ø  Support pipe: 8mm diameter aluminum pipe

Description:

• Ø  Fresh air louver is composed of frame and horizontal blades assembly, manufactured from high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.

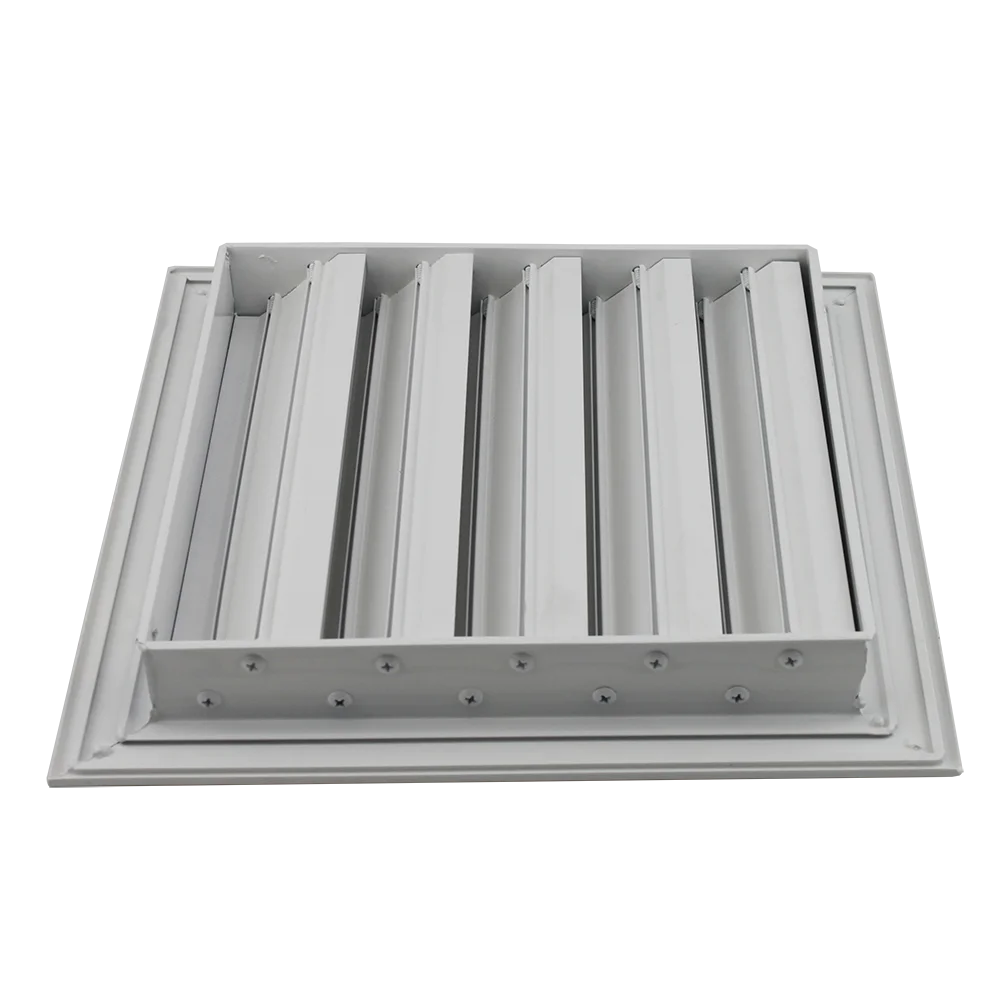

• Ø  Blades are set at angle of 45° with 30mm spacing, and fixed to the inner frame by rivets and support pipe.


• Ø  Total structure is weather proofed and blades are inclined down wards to protect against rain water.


• Ø  Structure provides around 45% effective pressure area .

Surface Finish:

• Ø  Powder coated color finish as per RAL color

    standard color: RAL9016, 9010

• Ø  Natural anodized aluminum finish

Material thickness:

• Ø  Standard 1.0mmn

 Size:

• Ø  any size available


•  Ø  Overall face size = Neck size + 55mm


•  Ø  Standard size (Neck size=A)
