DVB T24 Car DVB T2 TV Receiver 4 Tuner 4 Antenna digital TV receiver High Speed DVB T TDT automobile 160km HD four aerial FTA
- Category: >>>
- Supplier: Vcan Technology Co. Ltd.
Share on (60274603209):
Product Overview
Description
DVB-T24 Car DVB-T2 TV Receiver 4 Tuner 4 Antenna digital TV receiver High Speed
Product Description
Features:
1. Support H.264/AVC, MPEG2~MPEG4 Video Decode;
2. Available to upgrade the firmware via USB slot;
3. USB Recorder, PVR;
4. Standard for DVB-T2;
6. Auto searching and updating bit rate information;
7. Storage for 2000pcs channels;
8. Memory function after power off;
9. Support OSD TELETEXT;
10. Multi Language Support: English, Russian,Thailand;
11. EPG program guide and PIG(Picture in Graphics )Function;
12. 6MHz, 7MHz, 8MHz Band-wide;
13. HDMI output (One route);
14. Audio-R, Audio-L output;
15. Support IR output and extended remote sensor receiver;
16. Google DVB-T22 to get perfect technology support and update software.
Specification
Specifications:
1. Input frequency: VHF 177.5MHz - 226.5MHz UHF 474MHz - 858MHz
2. Modulate: QPSK/16 - QAM/256-QAM
3. Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC
4. Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC
5. One way CVBS RCA output:
Output Resistance: 75 ohm
Output Voltage: 1.0`2.0mVp-p
Audio output: 2Vp-p
6. Power Supply: DC 12V~24V 6W

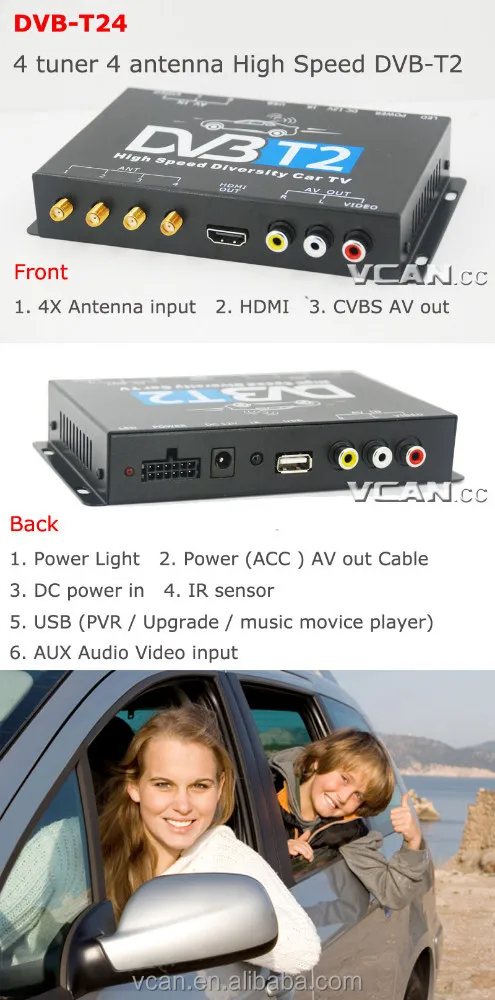

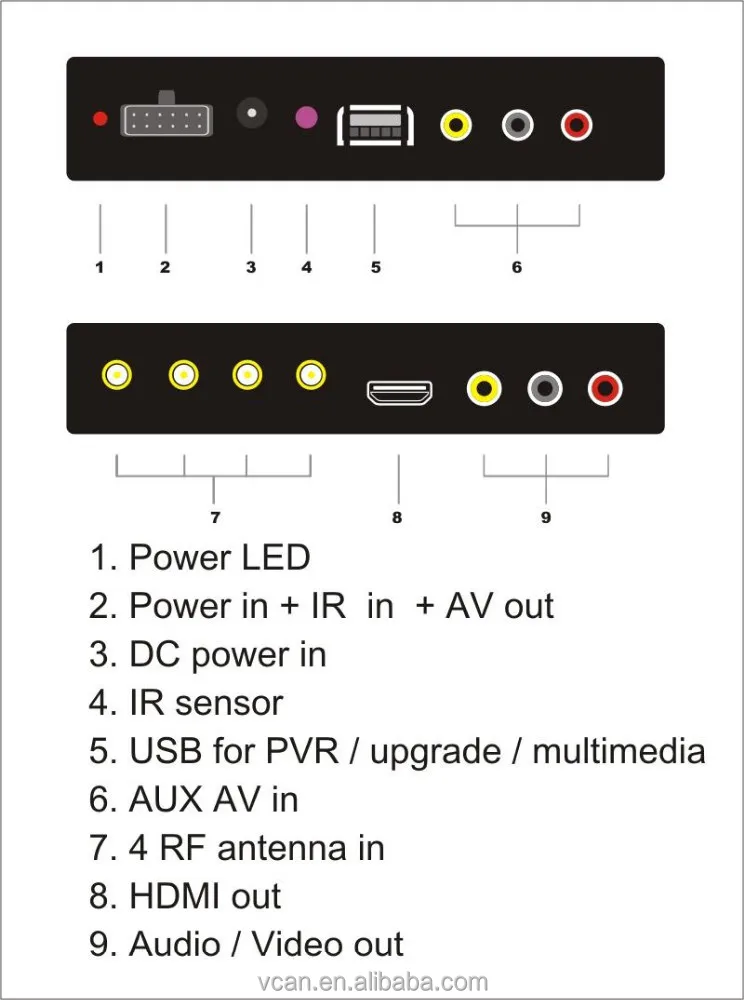

7. Connecting Terminal:
2 Active amplifier antenna input jack (5V supply), car power input jack (Battery+, Battery-) , R/L Audio CVBS Video output jack, External remote control IR cord jack, USB upgrade socket, HDMI High-definition output jack.
8. Applicable Power Supply: Car storage battery (12V~ 24V)
9. Outer dimension: 125mm x 85mm x 26mm
10. Application Temperature: -5 ~40 degree
11. Storage Temperature: -20~60 degree
