I. Features of Factory Supply Anti-vibration digital tilt sensor for FEL
Small size and light weight
Performance stability and credibility
Cost effective and ease of integration
Support multi output signal
Support different operating voltage
Aluminium alloyed case, waterproof and dustproof
II. Description of Factory Supply Anti-vibration digital tilt sensor for FEL
ZCT260AL-485 is a low cost 2-axis tilt sensor, which is developed and produced by Shanghai Zhichuan Electronic Tech Co.,Ltd. Its measuring range is ±60 degree. It can communicate with PC via RS485 half-duplex way. It has zero setting function and response frequency adjustment function as well as optional Baud rate.
III. Applications of Factory Supply Anti-vibration digital tilt sensor for FEL
Angle measuring, leveling adjustment, zero setting.
Medical appliance, Automobile facia.
Mining machine and petroleum drilling equipment.
Aerial work platform monitoring.
IV. Technical Parameter of Factory Supply Anti-vibration Digital Tilt Sensor for FEL
Parameter
Value
Unit
Remark
Measuring Range
±60
degree
Resolution
0.1
degree
Repeatability
0.3
degree
@25°C
Accuracy
0.5
degree
RMS @25°C
Temperature Drift
≤1.5
degree
-20~+60°C
Response Frequency
1~7
Hz
FILT commands to set,lack 3Hz
Operating Voltage
5
V(dc)
±0.5V
Operating Current
≤50
mA
Operating Temperature
-40~+85
°C
Size
46*41*13.5
(mm)

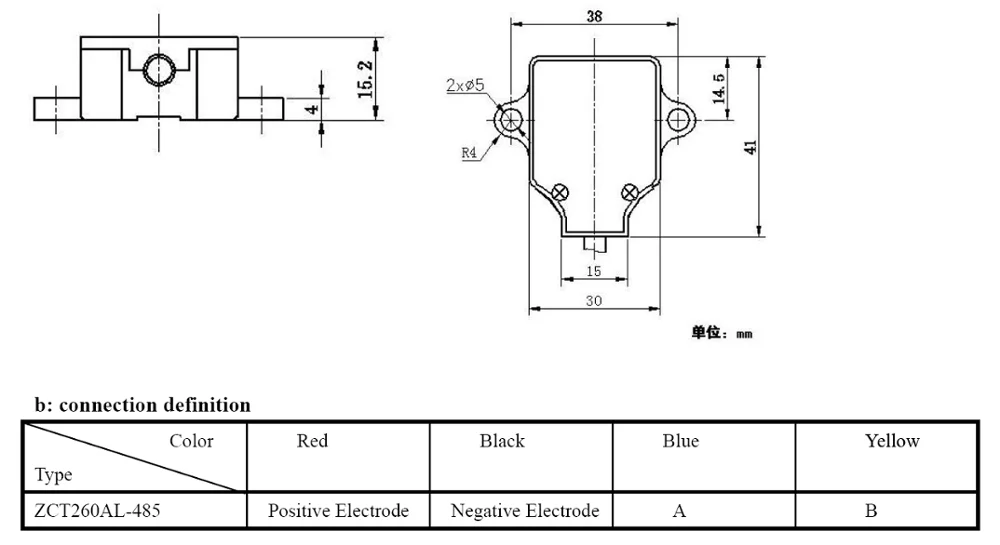

V. Size and Wire Connection of Factory Supply Anti-vibration Digital Tilt Sensor for FEL
